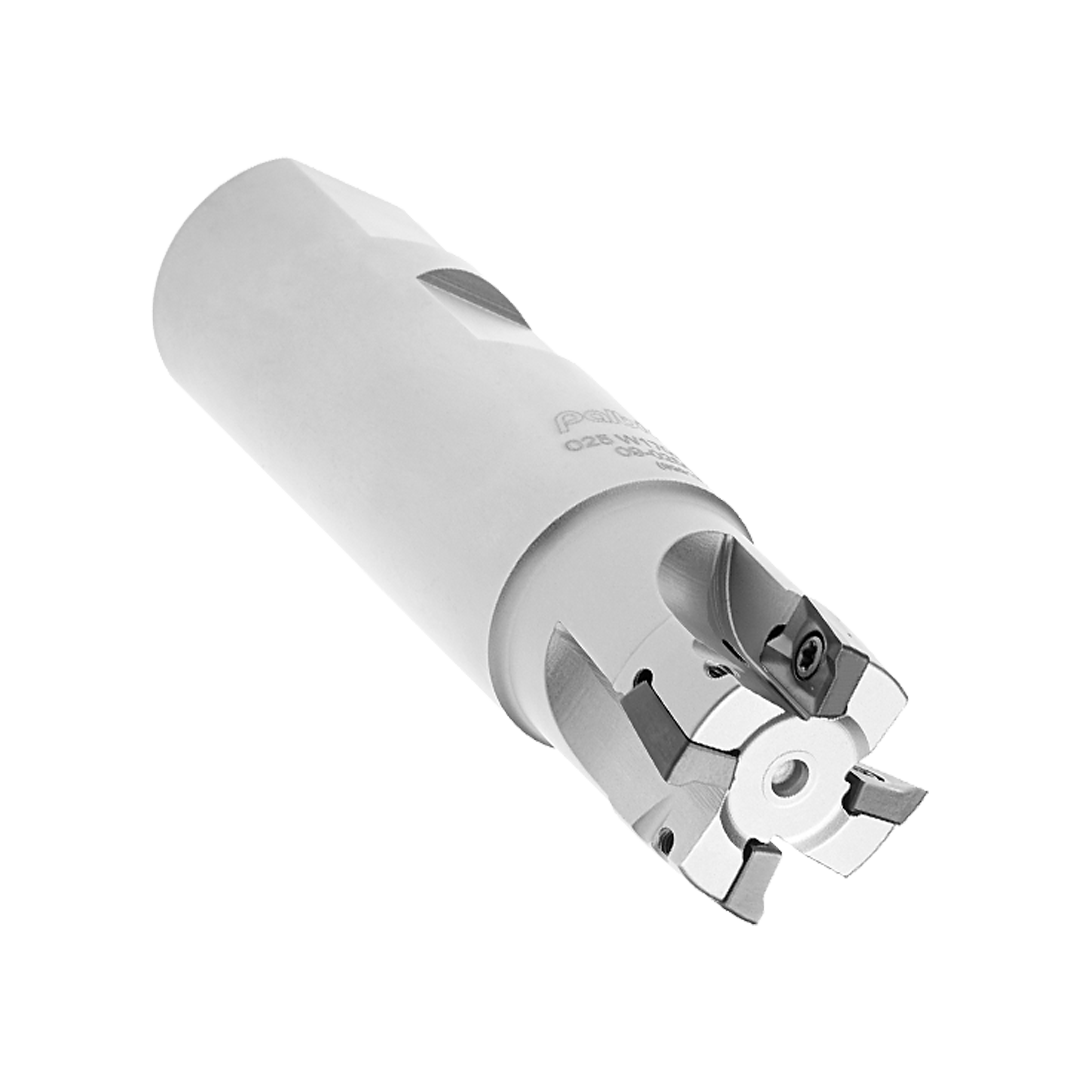

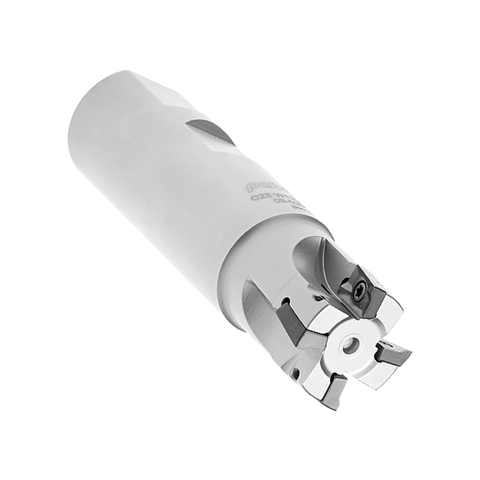

Palbit Weldon Shank Holder - For AP1003 Inserts - 16mm Cutter Diameter - 181031700
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Engineered for precision grooving and parting, Palbit Weldon Shank Holders for AP1003 inserts deliver secure insert clamping and exceptional rigidity. Trusted by engineers and machinists for reliable, consistent performance in demanding CNC production environments.
- Insert compatibility: For AP1003 inserts
- Cutter Diameter: 16 mm
- Clamping mechanism: Secure insert clamping
- Rigidity: Excellent rigidity
- Cutting performance: Accurate cutting performance
- Chip control: Improved chip control
- Tool life: Extended tool life
- Ideal applications: Precision grooving, parting, and other demanding CNC machining tasks
- Reliability: Trusted for reliable performance and consistent results in production environments
Designed to minimize deflection and chatter, this holder helps maintain precise depths of cut and superb surface finishes. The secure clamping and rigid interface reduce tool vibration, enabling stable operation even in high-load cycles. With AP1003 compatibility and a 16 mm cutting diameter, it supports a broad range of grooving and parting operations, delivering consistent productivity and longer overall tool life in busy production settings.
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 16 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 150 |
| Usable Length (LU) | 26 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 17090 - Weldon Shank
View full collection →You are viewing PAL-181031700. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181041700 | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 150 | £190.94 | In Stock | |
| PAL-181041500 | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 95 | £162.38 | 5 days | |
| PAL-181041600 | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 150 | £168.28 | In Stock | |
| PAL-181041400 | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 90 | £139.32 | 5 days | |
| PAL-181041300 | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 85 | £116.01 | 5 days | |
| PAL-181031700 Viewing | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 150 | £133.16 | 5 days |
