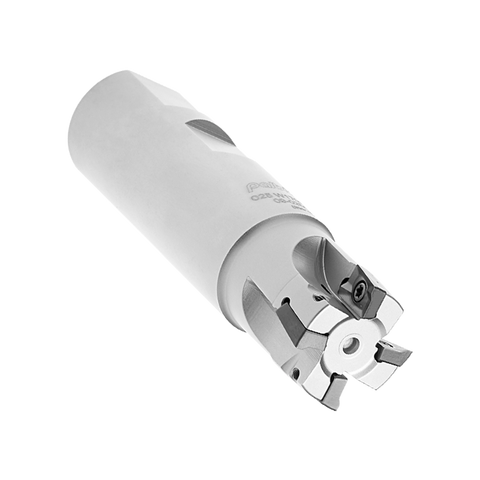

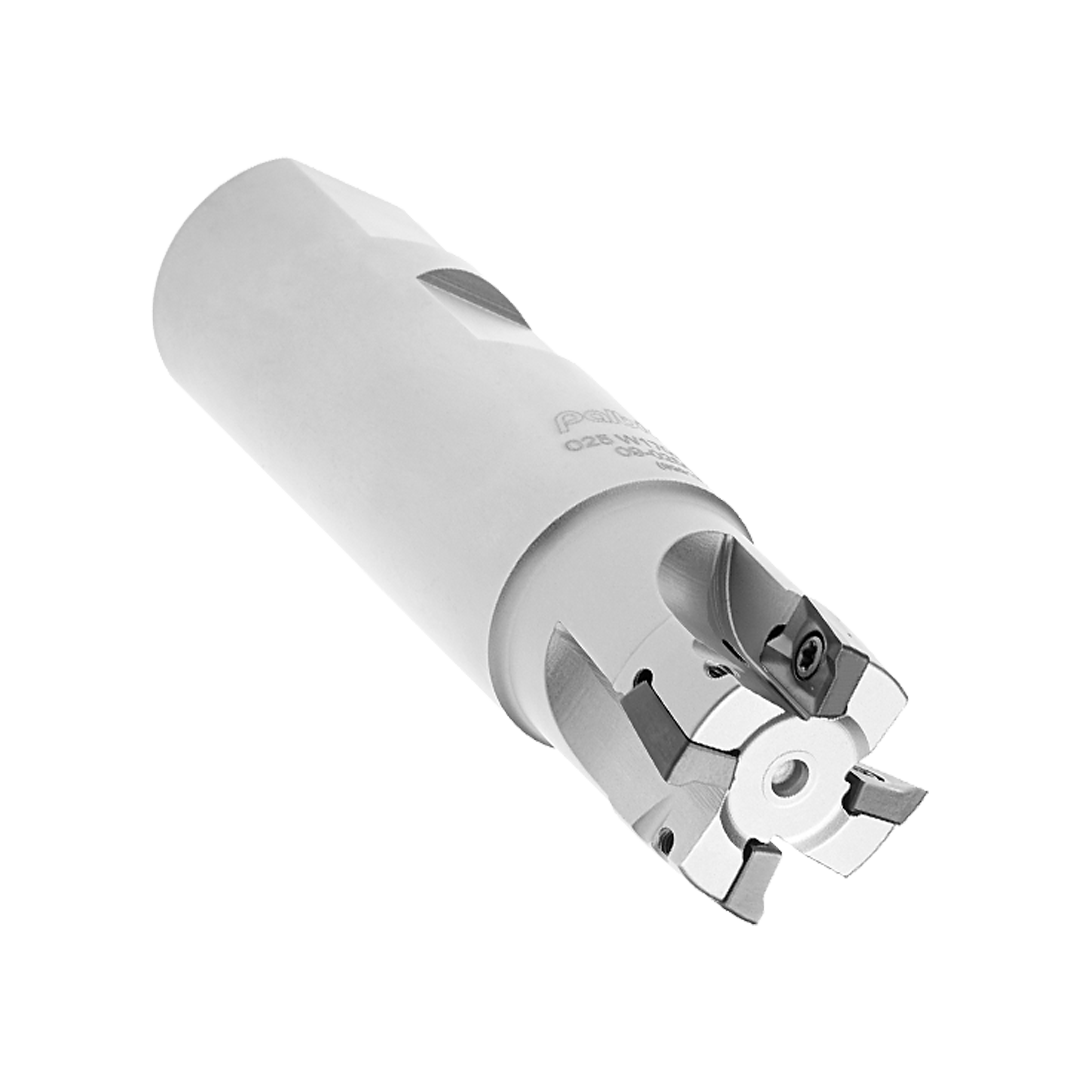

Palbit Weldon Shank Holder - For AP1003 Inserts - 25mm Cutter Diameter - 181041500
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
The Palbit Weldon Shank Holder (Model 181041500) is engineered for precision grooving and parting with AP1003 inserts. It delivers secure insert clamping and exceptional rigidity to support dependable, repeatable cutting in demanding CNC environments.
- Compatibility: Specifically designed to hold AP1003 inserts with a Weldon shank for reliable seating and repeatable performance.
- 25 mm Cutter Diameter: Optimized to align with a 25mm cutter diameter for consistent geometry and chip control.
- Secure Clamping: Robust clamping mechanism minimizes insert movement during heavy cuts, reducing chatter and wear.
- Rigid Construction: Precision-engineered body to maximize rigidity and minimize deflection in high-force operations.
- Chip Control: Enhanced chip evacuation and control to improve surface finish and reduce built-up edge.
With secure seating and high rigidity, this holder helps deliver accurate cuts, prolongs insert life, and lowers downtime in production runs. It supports reliable performance in demanding grooves and parting operations, helping engineers achieve consistent part quality across batches.
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 95 |
| Usable Length (LU) | 30 |
| Axial Rake Angel (GAMP) | 9 |
| Rdial Rake Angle (GAMF) | -13 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 17090 - Weldon Shank
View full collection →You are viewing PAL-181041500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181041700 | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 150 | £190.94 | In Stock | |
| PAL-181041500 Viewing | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 95 | £162.38 | 5 days | |
| PAL-181041600 | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 150 | £168.28 | In Stock | |
| PAL-181041400 | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 90 | £139.32 | 5 days | |
| PAL-181041300 | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 85 | £116.01 | 5 days | |
| PAL-181031700 | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 150 | £133.16 | 5 days |
