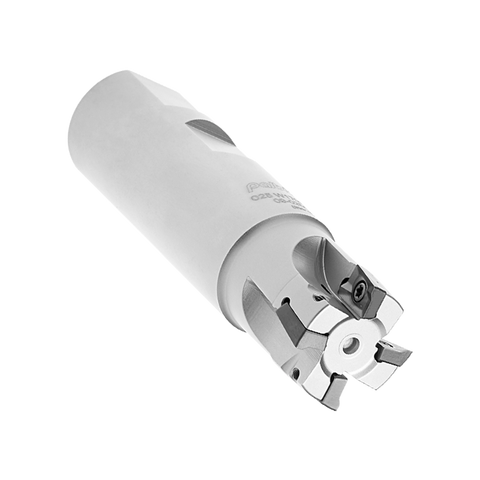

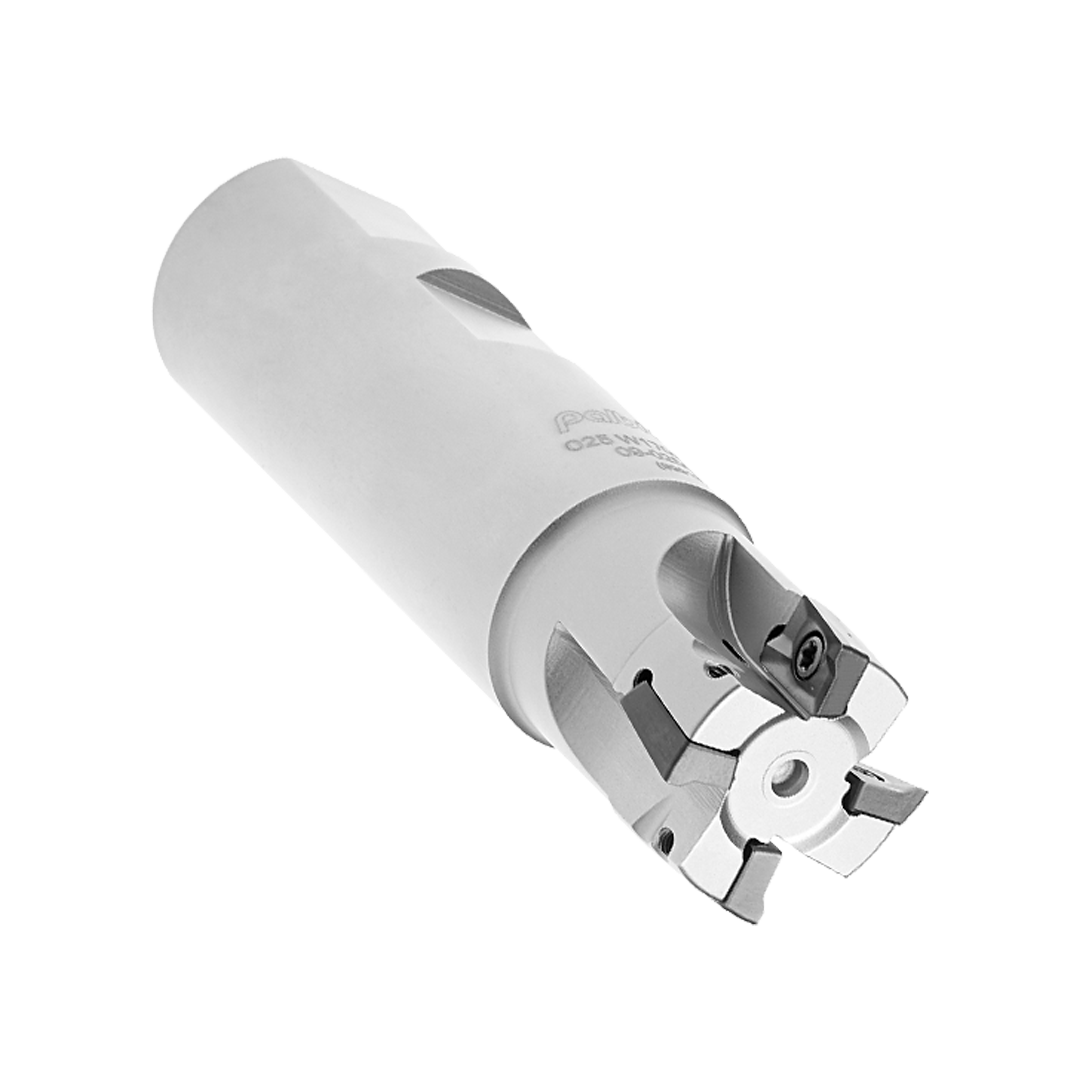

Palbit Weldon Shank Holder - For AP1003 Inserts - 16mm Cutter Diameter - 181041300
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
The Palbit Weldon Shank Holder for AP1003 inserts is a precision tool holder designed for CNC grooving and parting. It delivers secure insert seating and exceptional rigidity, supporting consistent, high‑quality cuts in production environments.
- Compatibility: Designed to hold AP1003 inserts with a Weldon shank, providing reliable seating and repeatable alignment.
- Cutter Diameter: 16 mm cutter diameter for precise, targeted material removal.
- Clamping System: Secure insert clamping that minimizes runout and ensures stable machining under demanding conditions.
- Rigidity: Robust holder geometry enhances rigidity, reducing vibration and improving cut accuracy.
- Chip Control: Optimized design supports effective chip control for cleaner surfaces and easier chip evacuation.
- Applications: Ideal for precision grooving and parting tasks in demanding CNC machining applications.
Engineered for dependable performance, this Weldon shank holder helps extend tool life, deliver consistent results across production runs, and support engineers and machinists in achieving repeatable tolerances with AP1003 inserts.
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 16 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 85 |
| Usable Length (LU) | 26 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 17090 - Weldon Shank
View full collection →You are viewing PAL-181041300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181041700 | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 150 | £160.39 | In Stock | |
| PAL-181041500 | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 95 | £136.40 | 5 days | |
| PAL-181041600 | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 150 | £141.35 | In Stock | |
| PAL-181041400 | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 90 | £117.03 | 5 days | |
| PAL-181041300 Viewing | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 85 | £97.45 | 5 days | |
| PAL-181031700 | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 150 | £111.85 | 5 days |
