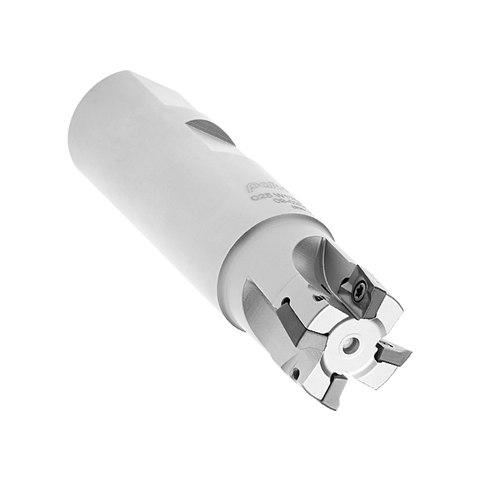

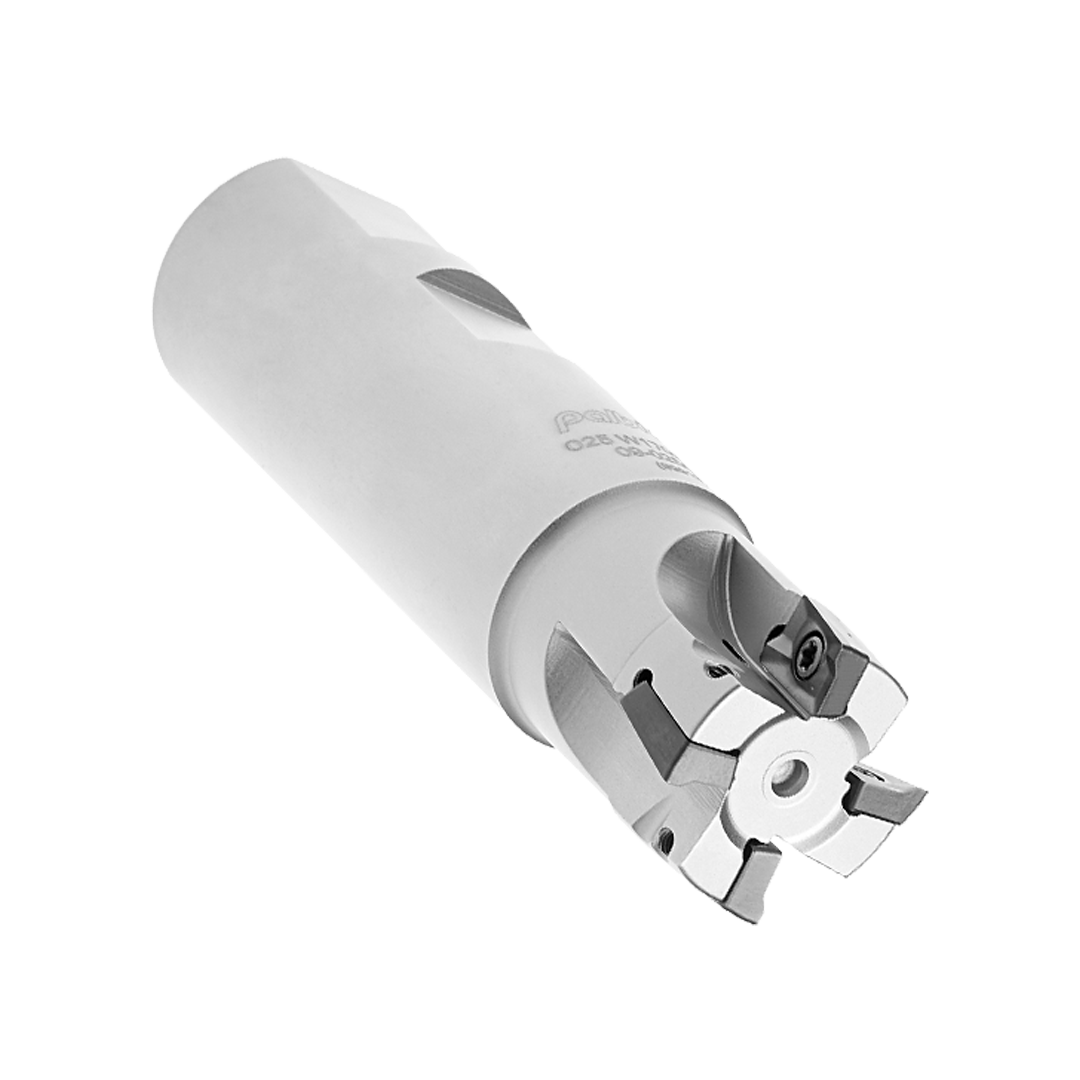

Palbit Weldon Shank Holder - For AP1003 Inserts - 20mm Cutter Diameter - 181041400
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Weldon Shank Holder for AP1003 inserts delivers secure insert seating and high rigidity, engineered for precision grooving and parting in demanding CNC applications. Designed around a 20 mm cutter diameter, this holder maintains accurate cutting performance and extended tool life across production runs.
- Compatible Insert Type: Specifically designed for AP1003 inserts to ensure reliable seating and alignment.
- Diameter: 20 mm cutter diameter for precise groove and parting operations.
- Clamping & Rigidity: Secure insert clamping combined with excellent rigidity to minimize movement during cuts.
- Cutting Performance: Delivers accurate, repeatable cuts for reliable groove and parting results.
- Chip Control: Optimized design supports improved chip control for cleaner finishes and easier evacuation.
- Durability: Engineered for extended tool life in high-demand CNC environments.
The result is reliable, consistent performance in production environments, with tighter tolerances, cleaner finishes, and longer tool life thanks to secure clamping and rigid construction.
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 90 |
| Usable Length (LU) | 28 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -14 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 17090 - Weldon Shank
View full collection →You are viewing PAL-181041400. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181041700 | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 150 | £190.94 | In Stock | |
| PAL-181041500 | AP1003 | Shouldering Cutters | Weldon Shank | 25 | 95 | £162.38 | 5 days | |
| PAL-181041600 | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 150 | £168.28 | In Stock | |
| PAL-181041400 Viewing | AP1003 | Shouldering Cutters | Weldon Shank | 20 | 90 | £139.32 | 5 days | |
| PAL-181041300 | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 85 | £116.01 | 5 days | |
| PAL-181031700 | AP1003 | Shouldering Cutters | Weldon Shank | 16 | 150 | £133.16 | 5 days |
