Vortex Carbide End Mill For Aluminium & Non-Ferrous - 3 Flute Variable Hi Helix -DLC Coated - 1.5mm x 50mm

The Vortex Carbide End Mill is a precision cutting tool engineered for high-speed aluminum and non-ferrous milling. With its 1.5mm diameter and 50mm length, DLC coating, and variable-helix 3-flute design, it delivers exceptional chip evacuation, reduced vibration, and longer tool life—ideal for CNC applications that demand clean edges and tight tolerances.

• 3-Flute Variable Hi-Helix Geometry: The three cutting edges strike a sweet spot between aggressive material removal and excellent surface finish. The variable helix angles differ across each flute, disrupting harmonic vibrations and dramatically reducing chatter—particularly valuable when working with less rigid setups or tight pockets. This design enables stable, high-feed cutting without the deflection problems associated with 2-flute alternatives.
• DLC Coating (Diamond-Like Carbon): Composed of carbon atoms arranged in a diamond-like lattice, DLC-coated end mills exhibit extraordinary resistance to wear, adhesion, and chemical attack. Unlike traditional TiAlN coatings that chemically react with aluminum at high temperatures, DLC is chemically inert to non-ferrous metals. The DLC color coating can improve the wear resistance of the end mill, and the service life is increased by 2-3 times. It increases tool life and ensures a more controlled wear process, while being resistant to edge build-up. That results in an excellent surface finish and high process safety.
• Superior Chip Evacuation: The 3-flute structure has wider chip pockets which discharge chips better, allowing for high-efficiency aluminum machining. The variable helix design prevents chip packing and promotes consistent, smooth chip flow—critical for preventing built-up edge and welding of material to the flutes, a common problem in aluminum work.
• Reduced Cutting Forces & Lower Heat: Tools coated with DLC have lower cutting forces compared to a normal cemented carbide tool in both wet and dry conditions. This means you can run aggressive feeds and speeds while generating less heat, reducing tool wear and the risk of thermal damage to aluminum workpieces.

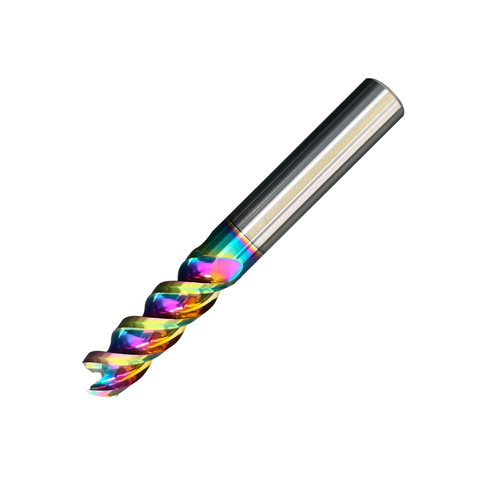

• Premium Carbide Substrate: Built from high-stiffness carbide material, this end mill maintains rigidity under demanding milling conditions. The solid construction resists deflection in deep pocket work while the DLC surface finish (visible as the characteristic iridescent coating in the image) provides visual confirmation of the premium coating quality.
• Optimized for Tight Features: The compact 1.5mm diameter with 50mm overall length reaches into constrained pockets and slots while maintaining sufficient rigidity. Perfect for precision work on aluminum parts where both depth access and positional accuracy matter.

This end mill excels in rapid prototyping, short-run production, and precision machining where aluminum and non-ferrous materials dominate. Whether pocketing, contouring, slotting, or light finishing, the Vortex delivers the clean cuts, fine surface finishes, and extended tool life that reduce downtime and rework. 3-flute carbide end mills have gained popularity when cutting aluminum or non-ferrous materials, offering superior productivity and finish as compared to traditional 2-flute end mills without obstructing chip evacuation. For best performance, apply appropriate cutting speeds and feeds with coolant suitable for non-ferrous metals, or run dry when your machine's rigidity and speeds permit.
