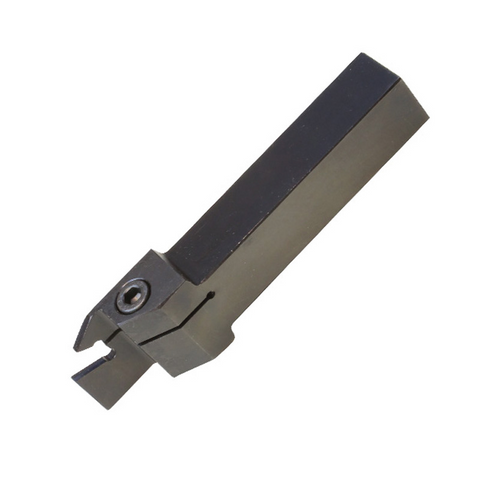

Vortex Integral Holder - Part off and Grooving - For GCMX Inserts - ZQ1616R-02
| ISO Code | ZQ1616R-02 |
| Shank Size | 16x16 |
| Reach | 16 |
| Insert Width | 2 |
Learn more about Klarna
Description
The Vortex Integral Holder is designed for parting off and grooving, specifically engineered to work with GCMX inserts (ZQ). It securely holds the insert in place, delivering precise, stable cutting and dependable performance across a variety of machining tasks. Built for reliability, this holder helps you achieve consistent results with confidence.
- Secure Insert Retention: A precise clamping system holds GCMX inserts (ZQ) firmly in place during both parting off and grooving, reducing insert movement and chatter for repeatable, high-quality cuts.
- High Rigidity and Vibration Control: Robust construction and tight tolerances maximize stiffness, delivering smooth cuts, tighter tolerances, and longer tool life in demanding operations.
- Optimized Chip Evacuation: Designed with efficient chip flow in mind, minimizing chip buildup, cooling the cutting edge, and sustaining cutting efficiency during long runs.
This combination of secure seating, rigidity, and smart chip management helps you streamline setup, improve workflow, and achieve clean, precise finishes. The Vortex Integral Holder supports reliable performance across both parting off and grooving tasks, giving you greater productivity and confidence in high-quality machining outcomes.
Part Numbers
- Protool Part Number
- PRO1600272
- Brand
- Vortex
- Category
- Parting Off & Grooving
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Integral Holders - Part off and Grooving - For GCMX Inserts (ZQ)
View full collection →You are viewing PRO1600272. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Reach | Insert Width | Hand | Suits Inserts | Overall Length | Clamping Screw | Allen Key | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600270 | ZQ1616L-02 | 16x16 | 16 | 2 | Left | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600271 | ZQ1616L-03 | 16x16 | 16 | 3 | Left | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600272 Viewing | ZQ1616R-02 | 16x16 | 16 | 2 | Right | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
