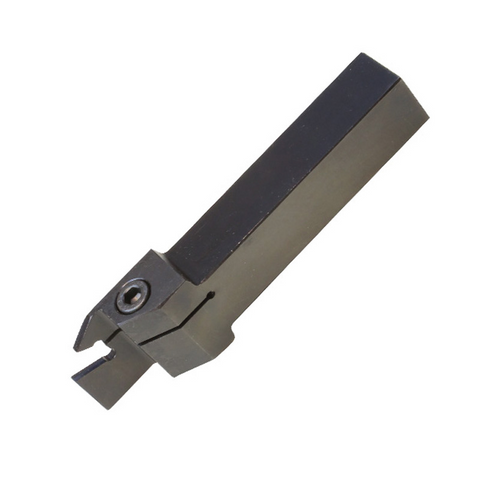

Vortex Integral Holder - Part off and Grooving - For GCMX Inserts - ZQ2020R-02
| ISO Code | ZQ2020R-02 |
| Shank Size | 20x20 |
| Reach | 16 |
| Insert Width | 2 |
Learn more about Klarna
Description
The Vortex Integral Holder is a precision tool holder engineered for parting off and grooving with GCMX inserts (ZQ), including the ZQ2020R-02 variant. It securely clamps the insert to deliver accurate, repeatable cuts in demanding turning and grooving tasks.
- Secure Insert Retention: Keeps the GCMX (ZQ) insert locked firmly in place, maintaining precise geometry for consistent, high-quality cuts.
- Rigid, Low-Vibration Design: Built to resist flex and chatter, providing stable operation and repeatable results even under heavy cuts.
- Versatile, Efficient Chip Evacuation: Optimized for both parting off and grooving, with proven chip flow that minimizes buildup and downtime.
This holder supports smoother, cleaner finishes and helps you maintain productivity by reducing setup adjustments and cutting interruptions. With its robust construction and reliable performance, it’s a trusted choice for professional shops and serious hobbyists aiming for precise, repeatable machining outcomes.
Part Numbers
- Protool Part Number
- PRO1600278
- Brand
- Vortex
- Category
- Parting Off & Grooving
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Integral Holders - Part off and Grooving - For GCMX Inserts (ZQ)
View full collection →You are viewing PRO1600278. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Reach | Insert Width | Hand | Suits Inserts | Overall Length | Clamping Screw | Allen Key | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600270 | ZQ1616L-02 | 16x16 | 16 | 2 | Left | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600271 | ZQ1616L-03 | 16x16 | 16 | 3 | Left | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600272 | ZQ1616R-02 | 16x16 | 16 | 2 | Right | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600273 | ZQ1616R-03 | 16x16 | 16 | 3 | Right | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600274 | ZQ2020L-02 | 20x20 | 16 | 2 | Left | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600275 | ZQ2020L-03 | 20x20 | 20 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600276 | ZQ2020L-03-25 | 20x20 | 25 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600277 | ZQ2020L-04-25 | 20x20 | 25 | 4 | Left | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600278 Viewing | ZQ2020R-02 | 20x20 | 16 | 2 | Right | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600279 | ZQ2020R-03 | 20x20 | 20 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600280 | ZQ2020R-03-25 | 20x20 | 25 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600281 | ZQ2020R-04-25 | 20x20 | 25 | 4 | Right | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600282 | ZQ2525L-02-20 | 25x25 | 20 | 2 | Left | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600283 | ZQ2525L-03 | 25x25 | 20 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600284 | ZQ2525L-03-25 | 25x25 | 25 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600285 | ZQ2525L-04-25 | 25x25 | 25 | 4 | Left | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600286 | ZQ2525R-02-20 | 25x25 | 20 | 2 | Right | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600287 | ZQ2525R-03 | 25x25 | 20 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600288 | ZQ2525R-03-25 | 25x25 | 25 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600289 | ZQ2525R-04-25 | 25x25 | 25 | 4 | Right | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock |
