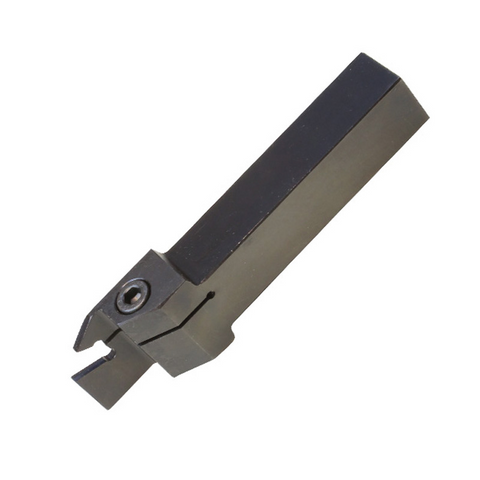

Vortex Integral Holder - Part off and Grooving - For GCMX Inserts - ZQ2020L-03
| ISO Code | ZQ2020L-03 |
| Shank Size | 20x20 |
| Reach | 20 |
| Insert Width | 3 |
Learn more about Klarna
Description
The Vortex Integral Holder is a dedicated tool for parting off and grooving that works with GCMX inserts (ZQ). Part number ZQ2020L-03, it securely clamps the insert to deliver precise, stable cuts and reliable performance across a wide range of machining tasks.
- Secure insert retention: Keeps the GCMX/ZQ insert firmly clamped in place, ensuring precise alignment and repeatable cuts even under heavy engagement.
- Rigid, low-vibration construction: Maximizes stiffness and dampens chatter to deliver consistent tolerances and smoother surface finishes.
- Dual-function versatility with optimized chip evacuation: Ready for both parting off and grooving, with an efficient chip-clearance path that reduces downtime and helps maintain cutting performance.
With the Vortex Integral Holder, you gain dependable, repeatable performance in everyday machining tasks. The secure clamping and rigid construction translate to tighter tolerances and cleaner finishes, while the dual-function capability simplifies setup for parting off and grooving. Efficient chip evacuation keeps the cutting zone clear, helping maintain productivity and minimize downtime across shifts.
Part Numbers
- Protool Part Number
- PRO1600275
- Brand
- Vortex
- Category
- Parting Off & Grooving
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Integral Holders - Part off and Grooving - For GCMX Inserts (ZQ)
View full collection →You are viewing PRO1600275. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Reach | Insert Width | Hand | Suits Inserts | Overall Length | Clamping Screw | Allen Key | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600270 | ZQ1616L-02 | 16x16 | 16 | 2 | Left | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600271 | ZQ1616L-03 | 16x16 | 16 | 3 | Left | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600272 | ZQ1616R-02 | 16x16 | 16 | 2 | Right | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600273 | ZQ1616R-03 | 16x16 | 16 | 3 | Right | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600274 | ZQ2020L-02 | 20x20 | 16 | 2 | Left | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600275 Viewing | ZQ2020L-03 | 20x20 | 20 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600276 | ZQ2020L-03-25 | 20x20 | 25 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600277 | ZQ2020L-04-25 | 20x20 | 25 | 4 | Left | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600278 | ZQ2020R-02 | 20x20 | 16 | 2 | Right | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600279 | ZQ2020R-03 | 20x20 | 20 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600280 | ZQ2020R-03-25 | 20x20 | 25 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600281 | ZQ2020R-04-25 | 20x20 | 25 | 4 | Right | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600282 | ZQ2525L-02-20 | 25x25 | 20 | 2 | Left | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600283 | ZQ2525L-03 | 25x25 | 20 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600284 | ZQ2525L-03-25 | 25x25 | 25 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600285 | ZQ2525L-04-25 | 25x25 | 25 | 4 | Left | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600286 | ZQ2525R-02-20 | 25x25 | 20 | 2 | Right | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600287 | ZQ2525R-03 | 25x25 | 20 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600288 | ZQ2525R-03-25 | 25x25 | 25 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600289 | ZQ2525R-04-25 | 25x25 | 25 | 4 | Right | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock |
