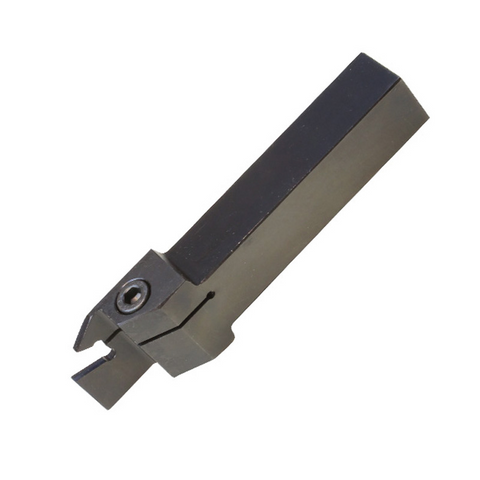

Vortex Integral Holder - Part off and Grooving - For GCMX Inserts - ZQ2525R-03
| ISO Code | ZQ2525R-03 |
| Shank Size | 25x25 |
| Reach | 20 |
| Insert Width | 3 |
Learn more about Klarna
Description
Vortex Integral Holder for parting off and grooving is purpose-built to work with GCMX inserts (ZQ). It provides a stable, precise cutting platform designed for a wide range of machining tasks, helping operators achieve repeatable results with minimal setup adjustments. Built for reliability, this holder clamps inserts securely to reduce movement and chatter, delivering consistent performance across jobs.
- Rigid, Secure Insert Clamping: securely holds GCMX inserts (ZQ) with minimal runout for consistent, repeatable cuts
- Engineered for Minimal Vibration: integral holder design enhances rigidity, reducing chatter and improving surface finish and tool life
- Optimized Chip Evacuation: geometry and clearances promote smooth chip flow, lowering buildup and heat during parting off and grooving
The Vortex Integral Holder helps you streamline operations by providing a stable, precise platform for your GCMX inserts. Expect consistent part dimensions, clean finishes, and longer insert life, with quicker setups and fewer interruptions caused by chip buildup. This holder is a dependable choice for shops that demand accuracy, efficiency, and repeatable results in both parting off and grooving tasks.
Part Numbers
- Protool Part Number
- PRO1600287
- Brand
- Vortex
- Category
- Parting Off & Grooving
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Integral Holders - Part off and Grooving - For GCMX Inserts (ZQ)
View full collection →You are viewing PRO1600287. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Reach | Insert Width | Hand | Suits Inserts | Overall Length | Clamping Screw | Allen Key | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600270 | ZQ1616L-02 | 16x16 | 16 | 2 | Left | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600271 | ZQ1616L-03 | 16x16 | 16 | 3 | Left | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600272 | ZQ1616R-02 | 16x16 | 16 | 2 | Right | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600273 | ZQ1616R-03 | 16x16 | 16 | 3 | Right | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600274 | ZQ2020L-02 | 20x20 | 16 | 2 | Left | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600275 | ZQ2020L-03 | 20x20 | 20 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600276 | ZQ2020L-03-25 | 20x20 | 25 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600277 | ZQ2020L-04-25 | 20x20 | 25 | 4 | Left | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600278 | ZQ2020R-02 | 20x20 | 16 | 2 | Right | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600279 | ZQ2020R-03 | 20x20 | 20 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600280 | ZQ2020R-03-25 | 20x20 | 25 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600281 | ZQ2020R-04-25 | 20x20 | 25 | 4 | Right | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600282 | ZQ2525L-02-20 | 25x25 | 20 | 2 | Left | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600283 | ZQ2525L-03 | 25x25 | 20 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600284 | ZQ2525L-03-25 | 25x25 | 25 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600285 | ZQ2525L-04-25 | 25x25 | 25 | 4 | Left | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600286 | ZQ2525R-02-20 | 25x25 | 20 | 2 | Right | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600287 Viewing | ZQ2525R-03 | 25x25 | 20 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600288 | ZQ2525R-03-25 | 25x25 | 25 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600289 | ZQ2525R-04-25 | 25x25 | 25 | 4 | Right | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock |
