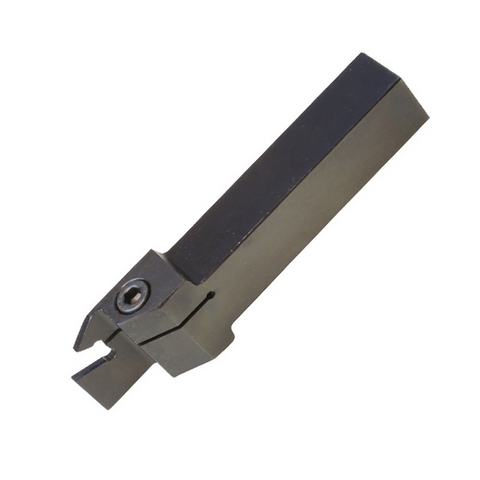

Vortex Integral Holder - Part off and Grooving - For GCMX Inserts - ZQ1616R-03
| ISO Code | ZQ1616R-03 |
| Shank Size | 16x16 |
| Reach | 16 |
| Insert Width | 3 |
Learn more about Klarna
Description
The Vortex Integral Holder for parting off and grooving is engineered to pair seamlessly with GCMX inserts (ZQ) and the ZQ1616R-03 system. Designed to deliver reliable, precise performance, this holder securely clamps inserts to maintain stable cutting conditions and repeatable results across a range of materials and applications.
Built with robust construction and tight tolerances, the Vortex Integral Holder minimizes vibration and flex during cutting. This rigidity helps you achieve consistent diameters and smooth finishes, while its thoughtful design promotes efficient chip evacuation to reduce buildup and downtime.
- Secure insert retention: The integrated clamping system keeps the GCMX (ZQ) inserts firmly in place for precise, repeatable cuts even in demanding materials.
- High rigidity and stability: Sturdy construction minimizes vibration and chatter, delivering consistent performance and better surface quality.
- Dual-function with efficient chip evacuation: Optimized geometry supports both parting off and grooving operations, promoting smooth chip flow and improved cutting efficiency.
This holder helps you streamline workflows, reduce rework, and achieve reliable, high-quality machining results in a wide range of production scenarios.
Part Numbers
- Protool Part Number
- PRO1600273
- Brand
- Vortex
- Category
- Parting Off & Grooving
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Integral Holders - Part off and Grooving - For GCMX Inserts (ZQ)
View full collection →You are viewing PRO1600273. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Reach | Insert Width | Hand | Suits Inserts | Overall Length | Clamping Screw | Allen Key | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600270 | ZQ1616L-02 | 16x16 | 16 | 2 | Left | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600271 | ZQ1616L-03 | 16x16 | 16 | 3 | Left | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600272 | ZQ1616R-02 | 16x16 | 16 | 2 | Right | GCMX 2 / SP*200 | 100 | M4x16N | L3.0 | £24.92 | In Stock | |
| PRO1600273 Viewing | ZQ1616R-03 | 16x16 | 16 | 3 | Right | GCMX 3 / SP*300 | 100 | M5x20N | L4.0 | £24.92 | In Stock | |
| PRO1600274 | ZQ2020L-02 | 20x20 | 16 | 2 | Left | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600275 | ZQ2020L-03 | 20x20 | 20 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600276 | ZQ2020L-03-25 | 20x20 | 25 | 3 | Left | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600277 | ZQ2020L-04-25 | 20x20 | 25 | 4 | Left | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600278 | ZQ2020R-02 | 20x20 | 16 | 2 | Right | GCMX 2 / SP*200 | 125 | M4x16N | L3.0 | £27.58 | In Stock | |
| PRO1600279 | ZQ2020R-03 | 20x20 | 20 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600280 | ZQ2020R-03-25 | 20x20 | 25 | 3 | Right | GCMX 3 / SP*300 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600281 | ZQ2020R-04-25 | 20x20 | 25 | 4 | Right | GCMX 4 / SP*400 | 125 | M5x20N | L4.0 | £27.58 | In Stock | |
| PRO1600282 | ZQ2525L-02-20 | 25x25 | 20 | 2 | Left | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600283 | ZQ2525L-03 | 25x25 | 20 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600284 | ZQ2525L-03-25 | 25x25 | 25 | 3 | Left | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600285 | ZQ2525L-04-25 | 25x25 | 25 | 4 | Left | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600286 | ZQ2525R-02-20 | 25x25 | 20 | 2 | Right | GCMX 2 / SP*200 | 150 | M4x16N | L3.0 | £30.28 | In Stock | |
| PRO1600287 | ZQ2525R-03 | 25x25 | 20 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600288 | ZQ2525R-03-25 | 25x25 | 25 | 3 | Right | GCMX 3 / SP*300 | 150 | M5x20N | L4.0 | £30.28 | In Stock | |
| PRO1600289 | ZQ2525R-04-25 | 25x25 | 25 | 4 | Right | GCMX 4 / SP*400 | 150 | M5x20N | L4.0 | £30.28 | In Stock |
