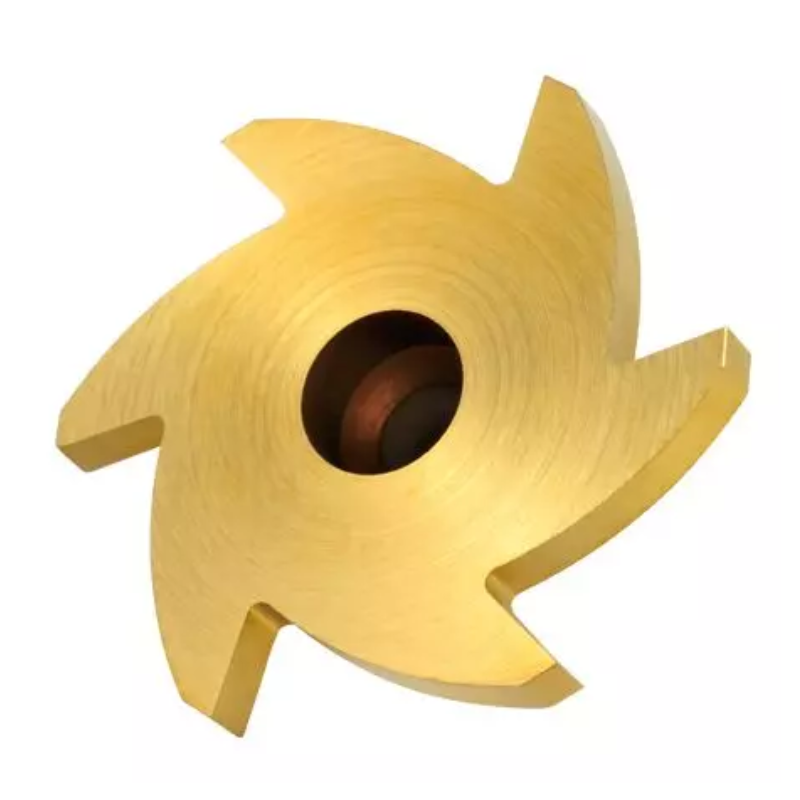

Y.T. Solid UFO T-Slot Insert - Aluminium - 37mm Cutter Diameter 4.2mm Thickness 10mm Cutting Depth 6 Teeth (3T1637-4.2-E.K10)

Y.T. Solid UFO T-Slot Insert for aluminium delivers precise, repeatable results in small-slot milling. With a 37 mm cutter diameter, 4.2 mm thickness, and 10 mm cutting depth across 6 teeth, it’s engineered for tight positioning and extended insert life.

• Material: Aluminium
• Cutter diameter: 37 mm
• Thickness: 4.2 mm
• Cutting depth: 10 mm
• Teeth: 6
• Model: 3T1637-4.2-E.K10
• Interface: Tapered-polygon-interface
• Manufacturing precision: Complete-grinded processing for low connect-positioning tolerance
• Positional tolerance: ±0.01 mm
• Minimum insert thickness: 0.5 mm
• Insert diameter range: 10–32 mm
• Thickness stock increments: In the thin range, stocked in 0.1 mm increments
• Chip evacuation: Optimized for excellent chip evacuation
• Applications: Ideal for small-slot applications

Designed for precision and consistency in small-slot milling, this insert maintains ±0.01 mm connection positioning, delivering consistent slot dimensions and prolonged insert life. The tapered-polygon interface ensures reliable alignment with the UFO T-slot cutter, reducing setup time and runout. With a minimum thickness of 0.5 mm and diameter options from 10 to 32 mm, you can tailor the insert to exact slot specs. The 6-tooth geometry and 10 mm cutting depth provide steady material removal in aluminium, while optimized chip evacuation helps keep the cut clean and the surface finish smooth. The standard 0.1 mm thickness increments ensure you always have the right thickness in stock for fine-tuned fit, especially useful for tight tolerances.
