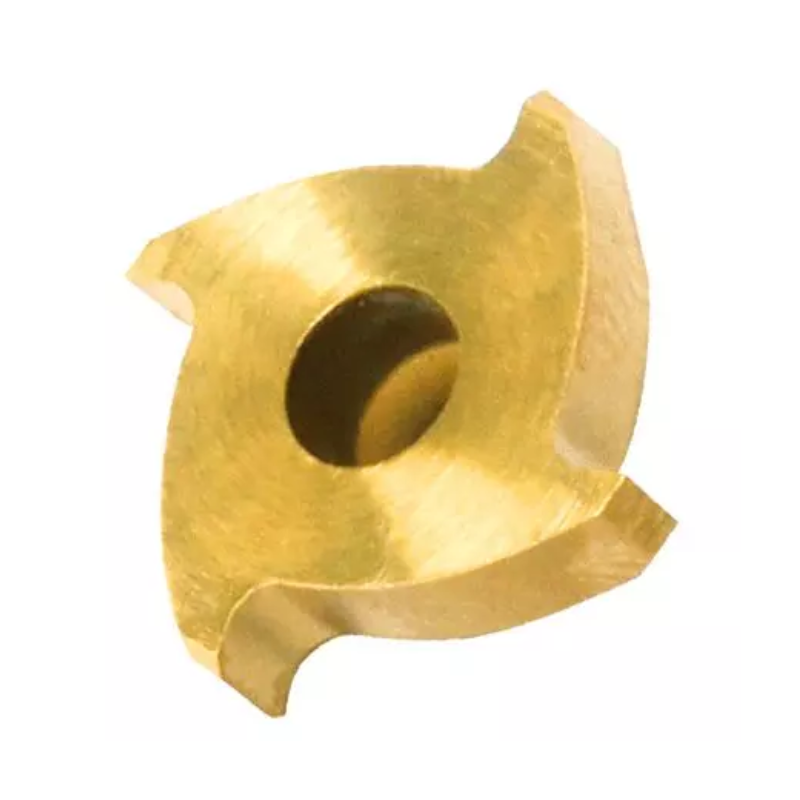

Y.T. Solid UFO T-Slot Insert - Steels, Stainless, Super Alloys - 10mm Cutter Diameter 2.5mm Thickness 1.5mm Cutting Depth 4 Teeth (3T0610-2.5-ME-B100)

The Y.T. Solid UFO T-Slot Insert is built for precision-minded shops tackling small-slot milling in steels, stainless, and super alloys. With a 10 mm cutter diameter and a 2.5 mm thick insert, it delivers stable performance in tight slots while maintaining strong cutting efficiency.

• 4-tooth cutting geometry: Four-teeth design for efficient material removal and smooth finishes in narrow slots.
• 10 mm cutter diameter: Optimized for precise, small-slot milling with consistent toolpath control.
• 2.5 mm insert thickness: Slim profile to fit restricted-slot work while preserving rigidity.
• 1.5 mm cutting depth: Shallow depth enables clean, controlled cuts in thin sections.
• Materials compatibility: Specifically engineered for steels, stainless steel, and super alloys.
• Tapered-polygon interface: Complete-grind processing yields a tight connect positioning tolerance of ±0.01 mm, boosting accuracy and insert life.
• Chip evacuation performance: Geometry designed for efficient chip flow to reduce clogging and heat buildup.
• Insert diameter range and stocking: Insert diameters available from 10 to 32 mm; minimum thickness starts at 0.5 mm, with thinner sizes stocked in 0.1 mm increments for precise sizing.

With near-zero connection tolerance and a geometry tuned for small-slot work, this UFO T-slot insert delivers reliable accuracy and extended insert life across demanding materials. The broad size range and fine thickness increments let you tailor cutting depth and rigidity for each job, while superior chip evacuation minimizes heat and re-cutting. A trusted choice for compact molds, precision components, and other tight-slot milling applications.
