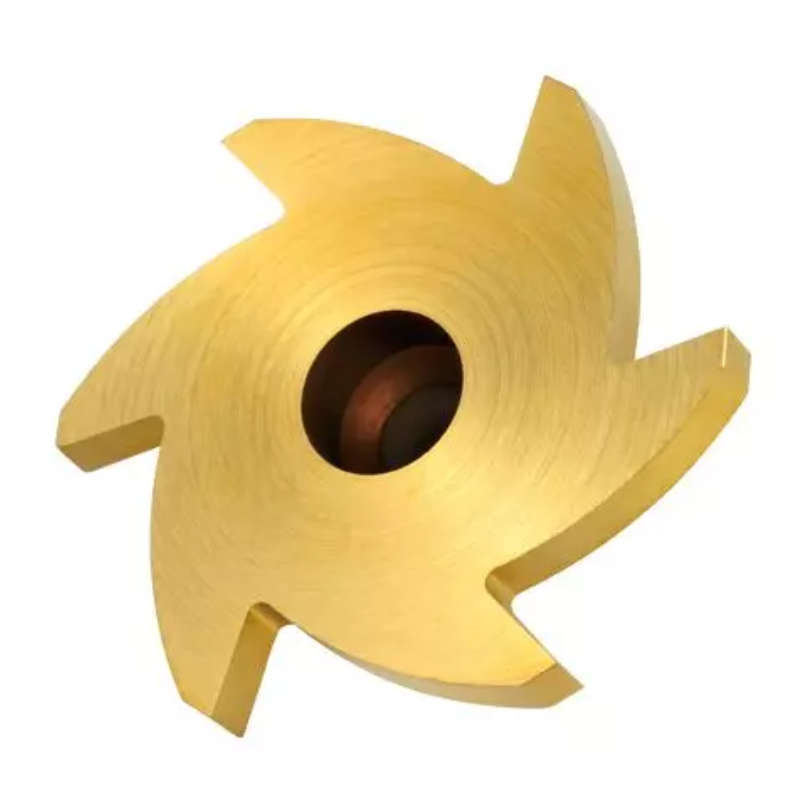

Y.T. Solid UFO T-Slot Insert - Cast Iron - 20mm Cutter Diameter 0.7mm Thickness 4.5mm Cutting Depth 6 Teeth (3T1020-0.7-ME-F20)

Y.T. Solid UFO T-Slot Insert in Cast Iron is designed for precise, reliable small-slot milling. Its tapered-polygon interface and six-tooth geometry deliver accurate fit and efficient material removal, optimized for high-precision T-slot applications.

• Material: Cast Iron
• Diameter: 20 mm Cutter Diameter
• Thickness: 0.7 mm
• Cutting Depth: 4.5 mm
• Teeth: 6
• Interface & Tolerance: Tapered-polygon interface with complete-grinded processing to maintain ±0.01 mm connect positioning tolerance, optimizing machining accuracy and insert life
• Insert Diameter Range: 10–32 mm
• Minimum Thickness Availability: Minimum insert thickness 0.5 mm; full range of insert diameters and thin options stocked with small-thickness increments
• Chip Evacuation: Great performance in chip evacuation, supporting smooth operation in small-slot applications

The tight ±0.01 mm positioning tolerance ensures repeatable, high-precision results across production runs. With a wide insert-diameter range (10–32 mm) and fine 0.1 mm thickness increments for thin options, you can tailor the tool to your exact slot width and cutting depth. Crafted from Cast Iron, this UFO insert provides robust wear resistance, while the six-tooth geometry delivers balanced cutting action for clean finishes and efficient material removal. Excellent chip evacuation helps reduce downtime and maintain consistent surface quality in small-slot milling tasks.
