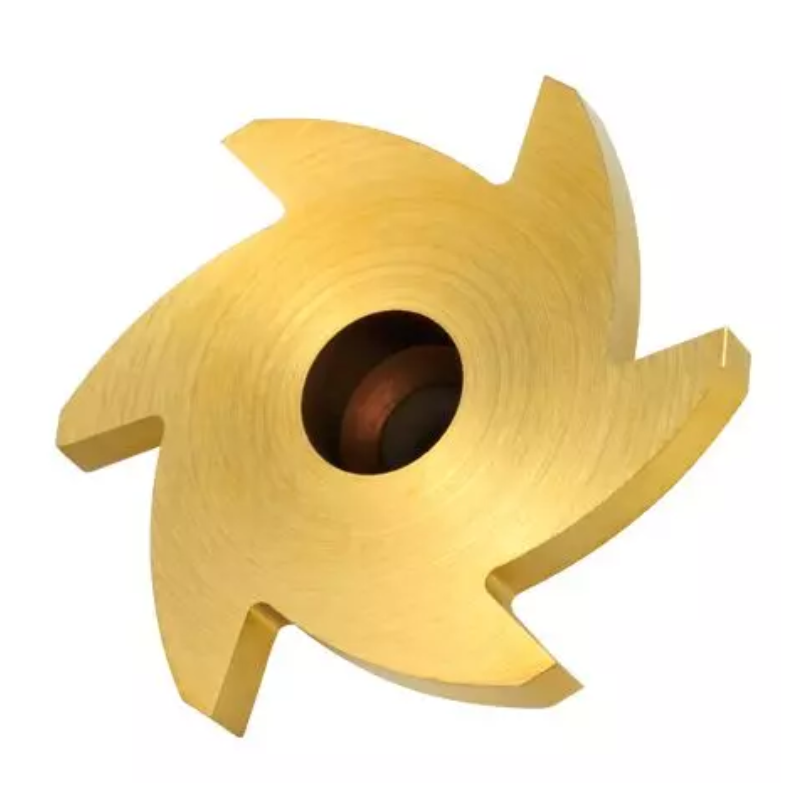

Y.T. Solid UFO T-Slot Insert - Aluminium - 20mm Cutter Diameter 6mm Thickness 4.5mm Cutting Depth 6 Teeth (3T1020-6.0-E-K10)

The Y.T. Solid UFO T-Slot Insert in aluminium is engineered for precise small-slot milling. Designed for accuracy-focused shops, it delivers reliable seating, efficient chip evacuation, and enduring tool life in compact slots.

• Material: Aluminium construction for a lightweight, rigid tool body that conducts heat effectively.
• Diameter: 20 mm cutter diameter for tight-slot operations.
• Thickness: 6 mm insert thickness.
• Cutting Depth: 4.5 mm maximum cutting depth.
• Teeth: 6 teeth for balanced material removal and finish.
• Interface Precision: Tapered-polygon interface ground by complete-grinded processing to maintain seating tolerance of ±0.01 mm, optimizing accuracy and insert life.
• Chip Evacuation: Optimized geometry and chip-flow design for efficient evacuation and reduced clogging.
• Application: Ideal for small-slot applications where precision and reliable seating matter.
• System Range: Part of the UFO T-slot cutter family with a full range of insert diameters from 10 to 32 mm and tolerance-managed interfaces; small-thickness inserts are stocked in 0.1 mm increments.

With a precision-ground interface and a durable aluminium body, the insert seats consistently, reducing runout and tool wear. The 20 mm diameter and 6-teeth arrangement deliver steady feed and controlled material removal, while the 4.5 mm depth of cut supports efficient performance in narrow slots. The design prioritizes chip clearance, helping maintain cutting efficiency and finish quality across extended cycles in small-slot milling tasks.
