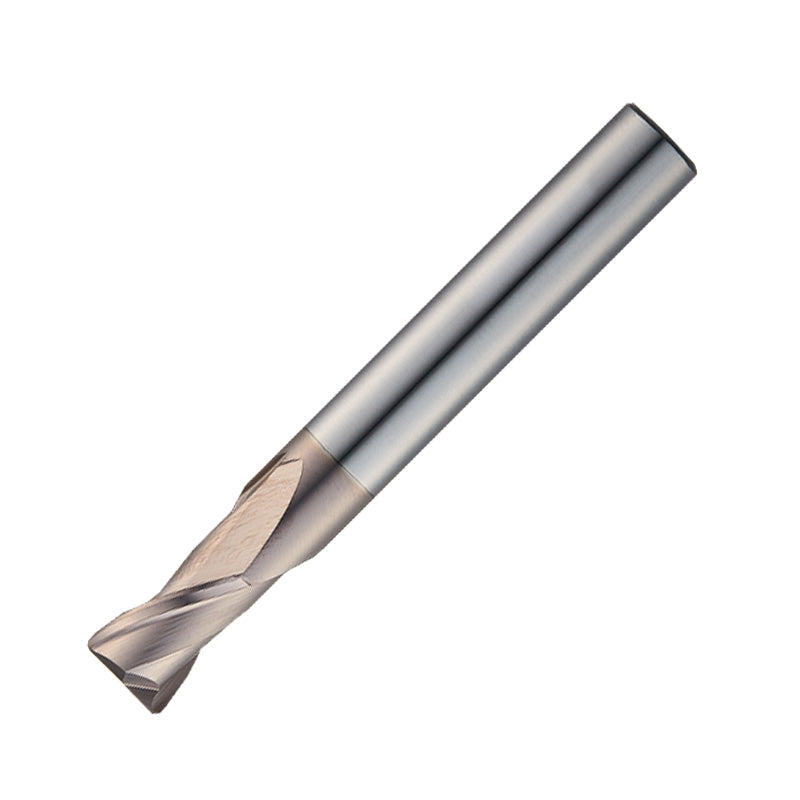

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 2.5mm x16mm x R0.2

Widin’s Carbide Corner Radius End Mill for Mold & Die is a precision milling solution designed for engineers and machinists working on detailed mold cores, cavities, and die components. With a focused 2-flute geometry and an extended 16 mm neck, it delivers clean finishes and deep-reaching performance in challenging mold-and-die geometries.

• Material: Solid carbide construction for wear resistance and long tool life in precision machining.
• Flutes: 2-flute design that promotes efficient chip evacuation and smooth surface finishes.
• Corner Radius: R0.2 to create consistent fillets in corners and edges critical to mold and die features.

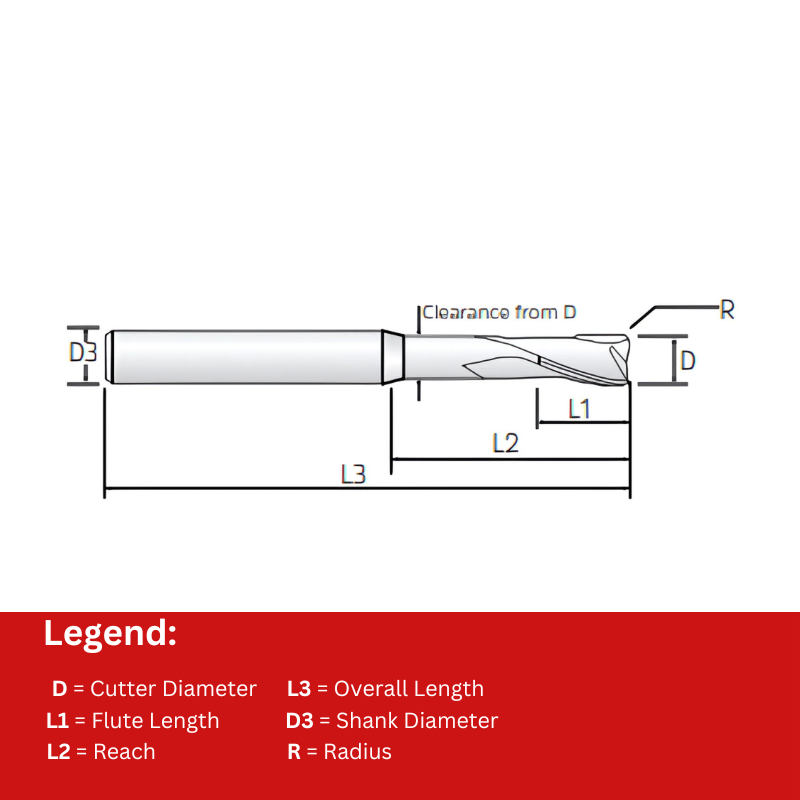

• Diameter: 2.5 mm cutting diameter for tight pockets and fine-detail work.
• Neck Length: 16 mm long neck for extended reach into deep grooves and complex cavities.
• Helix Angle: 30° helix for balanced cutting forces, good processability, and reduced load during milling.
• Application Focus: Ideal for mold and die machining, including cavities, cores, grooves, and fillets where precise radii and smooth finishes are essential.

This end mill is engineered to improve efficiency in mold-and-die workflows. The combination of a two-flute geometry and a 0.2 mm corner radius enables reliable radii formation and consistent surfaces, while the extended neck provides the reach needed for intricate internal features. Use this tool for finishing passes and precise radius milling in tough materials, and pair it with appropriate feeds and speeds to maximize tool life and part quality.
