Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 3mm x20mm x R0.1

The Widin Carbide Corner Radius End Mill for Mold & Die is a precision cutting tool designed for mold and die work. It features a 3 mm diameter, 20 mm length of cut, and a 0.1 mm corner radius, delivering accurate radii and smooth surface finishes in tight cavities.

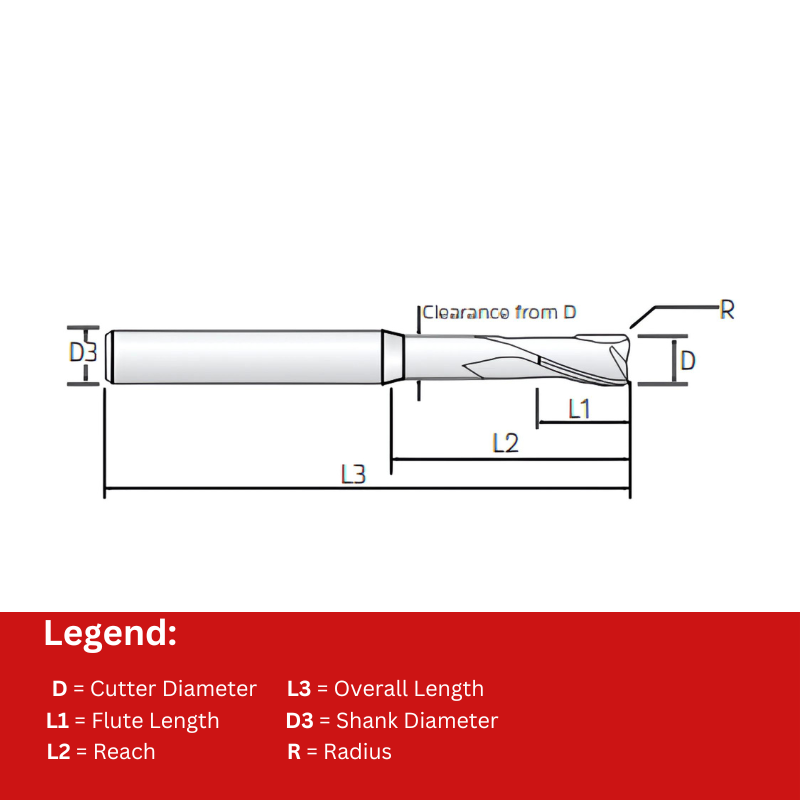

• Diameter: 3 mm
• Length of Cut: 20 mm
• Corner Radius: R0.1 (0.1 mm)
• Flutes: 2-flute design for efficient cutting and chip control
• Helix Angle: 30° for reduced cutting forces and improved chip evacuation
• Shank: Long-neck construction enabling access to deep pockets and grooves
• Material: Carbide for rigidity, wear resistance, and extended tool life
• Application: Optimized for mold and die work, including internal corners and pocket milling

The tool’s 30° helix reduces engagement forces, helping maintain a clean finish while extending tool life during deep-pocket work. The long-neck design provides extended reach into intricate mold features without repositioning, boosting productivity. With a two-flute configuration, it delivers efficient material removal and a smooth surface finish on radii, while the carbide construction offers durability in challenging mold and die materials. The 0.1 mm corner radius enables precise internal fillets, balancing detail with strength to improve mold longevity and part quality.
