Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 4mm x40mm x R0.5

Name: Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 4mm x40mm x R0.5
Brand: Widin
SKU: UR5120400540
Price: 46.28 GBP
Availability: InStock

SKU:UR5120400540

Material Compatibility

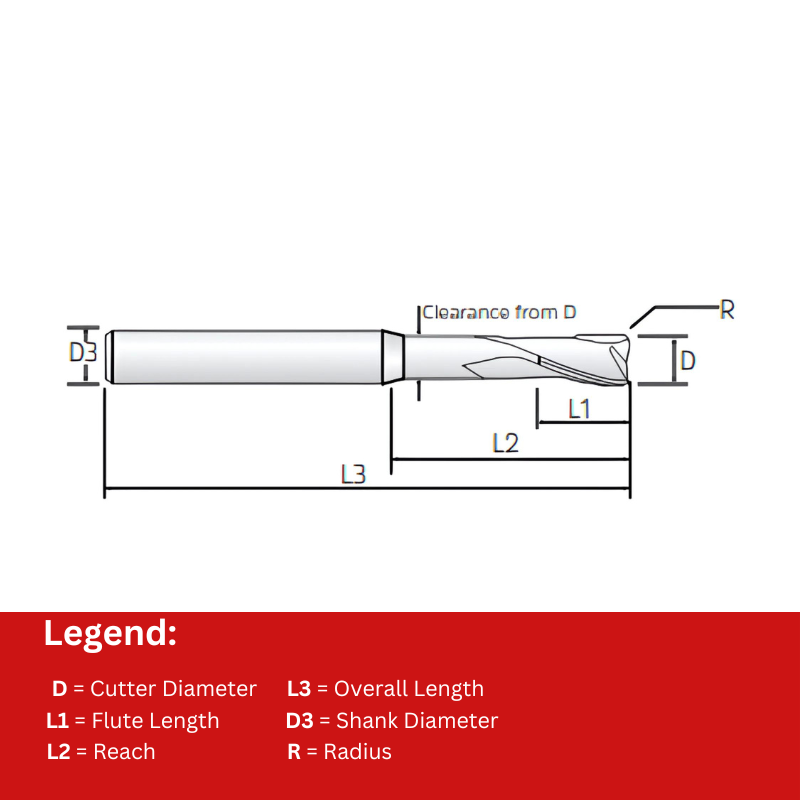

Specification

Cutter Diameter	4
Number of Flutes	2
Flute Length	6
Overall Length	80
Shank Diameter	6
Corner Radius	0.5

View all specifications ↓

Download Cutting Data

£46.28

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Widin Carbide Corner Radius End Mill for Mold & Die is a precision 4 mm milling tool designed for moldmakers and die machinists who demand clean radii in tight, deep cavities. With a long-neck design, it reaches complex internal features while delivering smooth surface finishes and reliable stability.

Diameter: 4 mm
Overall length: 40 mm
Corner radius: R0.5
Flutes: 2
Helix angle: 30°
Material: Carbide
Neck design: Long neck/long shank for extended reach and stability in deep grooves
Application: Ideal for mold and die machining with intricate radii and deep cavities

The 2-flute configuration promotes efficient chip evacuation and delivers a smooth, consistent finish on molded surfaces. The 30° helix minimizes cutting forces, enabling steadier cutting and improved productivity when removing material from challenging geometries. The long-neck design provides extended reach, reducing tool changes and enabling precise radii in deep grooves and tight corners often found in mold and die work. Carbide construction offers excellent wear resistance and edge retention for durable performance across demanding applications.

Cutter Diameter	4
Number of Flutes	2
Flute Length	6
Overall Length	80
Shank Diameter	6
Corner Radius	0.5
Reach	40

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck (WR512)

View full collection →

You are viewing UR5120400540. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Corner Radius	Reach	Price	Stock	Order

UR512002002005	0.2	2	0.3	40	4	0.02	0.5	~~£45.40~~ £19.98	In Stock
UR51200200201	0.2	2	0.3	40	4	0.02	1	~~£45.40~~ £19.98	In Stock
UR512002002015	0.2	2	0.3	40	4	0.02	1.5	~~£45.40~~ £19.98	In Stock
UR51200200202	0.2	2	0.3	40	4	0.02	2	£45.40	5 days
UR512002005005	0.2	2	0.3	40	4	0.05	0.5	~~£45.40~~ £19.98	In Stock
UR51200200501	0.2	2	0.3	40	4	0.05	1	£45.40	5 days
UR512002005015	0.2	2	0.3	40	4	0.05	1.5	£45.40	5 days
UR51200200502	0.2	2	0.3	40	4	0.05	2	£45.40	5 days
UR51200300201	0.3	2	0.5	40	4	0.02	1	£39.63	5 days
UR51200300202	0.3	2	0.5	40	4	0.02	2	£39.63	5 days
UR51200300203	0.3	2	0.5	40	4	0.02	3	£39.63	5 days
UR51200300501	0.3	2	0.5	40	4	0.05	1	~~£39.63~~ £17.44	In Stock
UR51200300502	0.3	2	0.5	40	4	0.05	2	£39.63	5 days
UR51200300503	0.3	2	0.5	40	4	0.05	3	£39.63	5 days
UR51200400501	0.4	2	0.6	40	4	0.05	1	£39.63	5 days
UR512004005015	0.4	2	0.6	40	4	0.05	1.5	~~£39.63~~ £17.44	In Stock
UR51200400502	0.4	2	0.6	40	4	0.05	2	£39.63	5 days
UR512004005025	0.4	2	0.6	40	4	0.05	2.5	~~£39.63~~ £17.44	In Stock
UR51200400503	0.4	2	0.6	40	4	0.05	3	£39.63	5 days
UR51200401015	0.4	2	0.6	40	4	1	1.5	~~£39.63~~ £17.44	In Stock
UR5120040101	0.4	2	0.6	40	4	1	1	~~£39.63~~ £17.44	In Stock
UR51200400504	0.4	2	0.6	40	4	0.05	4	£39.63	5 days
UR5120040102	0.4	2	0.6	40	4	1	2	~~£39.63~~ £17.44	In Stock
UR51200401025	0.4	2	0.6	40	4	1	2.5	~~£39.63~~ £17.44	In Stock
UR5120040103	0.4	2	0.6	40	4	1	3	~~£39.63~~ £17.44	In Stock
UR5120040104	0.4	2	0.6	40	4	1	4	~~£39.63~~ £17.44	In Stock
UR51200500501	0.5	2	0.7	45	4	0.05	1	£32.95	5 days
UR51200500502	0.5	2	0.7	45	4	0.05	2	~~£32.95~~ £14.50	In Stock
UR512005005015	0.5	2	0.7	45	4	0.05	1.5	~~£32.95~~ £14.50	In Stock
UR51200500504	0.5	2	0.7	45	4	0.05	4	~~£32.95~~ £14.50	In Stock
UR512005005025	0.5	2	0.7	45	4	0.05	2.5	~~£32.95~~ £14.50	In Stock
UR51200500503	0.5	2	0.7	45	4	0.05	3	~~£32.95~~ £14.50	In Stock
UR51200500505	0.5	2	0.7	45	4	0.05	5	£32.95	5 days
UR51200500506	0.5	2	0.7	45	4	0.05	6	~~£32.95~~ £14.50	In Stock
UR51200501015	0.5	2	0.7	45	4	0.1	1.5	£32.95	5 days
UR5120050101	0.5	2	0.7	45	4	0.1	1	£32.95	5 days
UR5120050102	0.5	2	0.7	45	4	0.1	2	£32.95	5 days
UR51200501025	0.5	2	0.7	45	4	0.1	2.5	~~£32.95~~ £14.50	In Stock
UR5120050103	0.5	2	0.7	45	4	0.1	3	~~£32.95~~ £14.50	In Stock
UR5120050104	0.5	2	0.7	45	4	0.1	4	~~£32.95~~ £14.50	In Stock
UR5120050105	0.5	2	0.7	45	4	0.1	5	~~£32.95~~ £14.50	In Stock
UR51200600502	0.6	2	0.9	45	4	0.05	2	~~£32.95~~ £14.50	In Stock
UR51200600503	0.6	2	0.9	45	4	0.05	3	~~£32.95~~ £14.50	In Stock
UR5120050106	0.5	2	0.7	45	4	0.1	6	~~£32.95~~ £14.50	In Stock
UR51200600504	0.6	2	0.9	45	4	0.05	4	~~£32.95~~ £14.50	In Stock
UR51200600508	0.6	2	0.9	45	4	0.05	8	~~£32.95~~ £14.50	In Stock
UR51200600510	0.6	2	0.9	45	4	0.05	10	~~£32.95~~ £14.50	In Stock
UR51200600506	0.6	2	0.9	45	4	0.05	6	£32.95	5 days
UR5120060102	0.6	2	0.9	45	4	0.1	2	~~£32.95~~ £14.50	In Stock
UR5120060103	0.6	2	0.9	45	4	0.1	3	~~£32.95~~ £14.50	In Stock
UR5120060104	0.6	2	0.9	45	4	0.1	4	~~£32.95~~ £14.50	In Stock
UR5120060106	0.6	2	0.9	45	4	0.1	6	~~£32.95~~ £14.50	In Stock
UR5120060108	0.6	2	0.9	45	4	0.1	8	~~£32.95~~ £14.50	In Stock
UR5120060110	0.6	2	0.9	45	4	0.1	10	~~£32.95~~ £14.50	In Stock
UR5120060202	0.6	2	0.9	45	4	0.2	2	~~£32.95~~ £14.50	In Stock
UR5120060203	0.6	2	0.9	45	4	0.2	3	~~£32.95~~ £14.50	In Stock
UR5120060204	0.6	2	0.9	45	4	0.2	4	~~£32.95~~ £14.50	In Stock
UR5120060206	0.6	2	0.9	45	4	0.2	6	~~£32.95~~ £14.50	In Stock
UR5120060208	0.6	2	0.9	45	4	0.2	8	~~£32.95~~ £14.50	In Stock
UR5120060210	0.6	2	0.9	45	4	0.2	10	~~£32.95~~ £14.50	In Stock
UR51200700502	0.7	2	1.2	45	4	0.05	2	~~£32.95~~ £14.50	In Stock
UR51200700504	0.7	2	1.2	45	4	0.05	4	~~£32.95~~ £14.50	In Stock
UR51200700506	0.7	2	1.2	45	4	0.05	6	£32.95	5 days
UR51200700510	0.7	2	1.2	45	4	0.05	10	~~£32.95~~ £14.50	In Stock
UR51200700508	0.7	2	1.2	45	4	0.05	8	~~£32.95~~ £14.50	In Stock
UR5120070102	0.7	2	1.2	45	4	0.1	2	~~£32.95~~ £14.50	In Stock
UR5120070104	0.7	2	1.2	45	4	0.1	4	£32.95	5 days
UR5120070106	0.7	2	1.2	45	4	0.1	6	~~£32.95~~ £14.50	In Stock
UR5120070108	0.7	2	1.2	45	4	0.1	8	~~£32.95~~ £14.50	In Stock
UR5120070202	0.7	2	1.2	45	4	0.2	2	£32.95	5 days
UR5120070110	0.7	2	1.2	45	4	0.1	10	~~£32.95~~ £14.50	In Stock
UR5120070204	0.7	2	1.2	45	4	0.2	4	~~£32.95~~ £14.50	In Stock
UR5120070206	0.7	2	1.2	45	4	0.2	6	~~£32.95~~ £14.50	In Stock
UR5120070208	0.7	2	1.2	45	4	0.2	8	~~£32.95~~ £14.50	In Stock
UR51200800503	0.8	2	1.2	45	4	0.05	3	£32.95	5 days
UR51200800502	0.8	2	1.2	45	4	0.05	2	£32.95	5 days
UR5120070210	0.7	2	1.2	45	4	0.2	10	£32.95	5 days	View
UR51200800504	0.8	2	1.2	45	4	0.05	4	£32.95	5 days
UR51200800506	0.8	2	1.2	45	4	0.05	6	~~£32.95~~ £14.50	In Stock
UR51200800508	0.8	2	1.2	45	4	0.05	8	~~£32.95~~ £14.50	In Stock
UR51200800510	0.8	2	1.2	45	4	0.05	10	~~£32.95~~ £14.50	In Stock
UR5120080102	0.8	2	1.2	45	4	0.1	2	£32.95	5 days
UR5120080103	0.8	2	1.2	45	4	0.1	3	£32.95	5 days
UR5120080106	0.8	2	1.2	45	4	0.1	6	£32.95	5 days
UR5120080104	0.8	2	1.2	45	4	0.1	4	~~£32.95~~ £14.50	In Stock
UR5120080108	0.8	2	1.2	45	4	0.1	8	£32.95	5 days
UR5120080110	0.8	2	1.2	45	4	0.1	10	~~£32.95~~ £14.50	In Stock
UR5120080202	0.8	2	1.2	45	4	0.2	2	~~£32.95~~ £14.50	In Stock
UR5120080203	0.8	2	1.2	45	4	0.2	3	~~£32.95~~ £14.50	In Stock
UR5120080208	0.8	2	1.2	45	4	0.2	8	~~£32.95~~ £14.50	In Stock
UR5120080206	0.8	2	1.2	45	4	0.2	6	~~£32.95~~ £14.50	In Stock
UR5120080204	0.8	2	1.2	45	4	0.2	4	£32.95	5 days
UR5120080210	0.8	2	1.2	45	4	0.2	10	~~£32.95~~ £14.50	In Stock
UR51201000503	1	2	1.5	50	4	0.05	3	£28.93	5 days
UR51201000504	1	2	1.5	50	4	0.05	4	£28.93	5 days
UR51201000506	1	2	1.5	50	4	0.05	6	£28.93	5 days
UR51201000508	1	2	1.5	50	4	0.05	8	~~£28.93~~ £12.73	In Stock
UR51201000510	1	2	1.5	50	4	0.05	10	£28.93	5 days
UR51201000512	1	2	1.5	50	4	0.05	12	£28.93	5 days
UR51201000514	1	2	1.5	50	4	0.05	14	£28.93	5 days
UR51201000516	1	2	1.5	50	4	0.05	16	£28.93	5 days
UR5120100104	1	2	1.5	50	4	0.1	4	£28.93	5 days
UR51201000520	1	2	1.5	50	4	0.05	20	£28.93	5 days
UR5120100108	1	2	1.5	50	4	0.1	8	£28.93	5 days
UR5120100106	1	2	1.5	50	4	0.1	6	£28.93	5 days
UR5120100103	1	2	1.5	50	4	0.1	3	~~£28.93~~ £12.73	In Stock
UR5120100110	1	2	1.5	50	4	0.1	10	£28.93	5 days
UR5120100112	1	2	1.5	50	4	0.1	12	£28.93	5 days
UR5120100114	1	2	1.5	50	4	0.1	14	£28.93	5 days
UR5120100116	1	2	1.5	50	4	0.1	16	£28.93	5 days
UR5120100120	1	2	1.5	50	4	0.1	20	£28.93	5 days
UR5120100203	1	2	1.5	50	4	0.2	3	£28.93	5 days
UR5120100204	1	2	1.5	50	4	0.2	4	£28.93	5 days
UR5120100206	1	2	1.5	50	4	0.2	6	£28.93	5 days
UR5120100212	1	2	1.5	50	4	0.2	12	£28.93	5 days
UR5120100208	1	2	1.5	50	4	0.2	8	£28.93	5 days
UR5120100210	1	2	1.5	50	4	0.2	10	£28.93	5 days
UR5120100214	1	2	1.5	50	4	0.2	14	~~£28.93~~ £12.73	In Stock
UR5120100216	1	2	1.5	50	4	0.2	16	~~£28.93~~ £12.73	In Stock
UR5120100220	1	2	1.5	50	4	0.2	20	£28.93	5 days
UR5120100303	1	2	1.5	50	4	0.3	3	£28.93	5 days
UR5120100306	1	2	1.5	50	4	0.3	6	£28.93	5 days
UR5120100308	1	2	1.5	50	4	0.3	8	~~£28.93~~ £12.73	In Stock
UR5120100304	1	2	1.5	50	4	0.3	4	~~£28.93~~ £12.73	In Stock
UR5120100310	1	2	1.5	50	4	0.3	10	~~£28.93~~ £12.73	In Stock
UR5120100312	1	2	1.5	50	4	0.3	12	£28.93	5 days
UR5120100314	1	2	1.5	50	4	0.3	14	£28.93	5 days
UR5120100316	1	2	1.5	50	4	0.3	16	£28.93	5 days
UR5120100320	1	2	1.5	50	4	0.3	20	£28.93	5 days
UR51201200503	1.2	2	1.8	50	4	0.05	3	£28.93	5 days
UR51201200504	1.2	2	1.8	50	4	0.05	4	~~£28.93~~ £12.73	In Stock
UR51201200506	1.2	2	1.8	50	4	0.05	6	~~£28.93~~ £12.73	In Stock
UR51201200510	1.2	2	1.8	50	4	0.05	10	£28.93	5 days
UR51201200508	1.2	2	1.8	50	4	0.05	8	£28.93	5 days
UR51201200512	1.2	2	1.8	50	4	0.05	12	£28.93	5 days
UR51201200516	1.2	2	1.8	50	4	0.05	16	~~£28.93~~ £12.73	In Stock
UR51201200520	1.2	2	1.8	50	4	0.05	20	£28.93	5 days
UR5120120104	1.2	2	1.8	50	4	0.1	4	£28.93	5 days
UR5120120103	1.2	2	1.8	50	4	0.1	3	£28.93	5 days
UR5120120106	1.2	2	1.8	50	4	0.1	6	£28.93	5 days
UR5120120108	1.2	2	1.8	50	4	0.1	8	£28.93	5 days
UR5120120110	1.2	2	1.8	50	4	0.1	10	£28.93	5 days
UR5120120112	1.2	2	1.8	50	4	0.1	12	~~£28.93~~ £12.73	In Stock
UR5120120116	1.2	2	1.8	50	4	0.1	16	£28.93	5 days
UR5120120120	1.2	2	1.8	50	4	0.1	20	£28.93	5 days
UR5120120203	1.2	2	1.8	50	4	0.2	3	£28.93	5 days
UR5120120204	1.2	2	1.8	50	4	0.2	4	£28.93	5 days
UR5120120206	1.2	2	1.8	50	4	0.2	6	£28.93	5 days
UR5120120208	1.2	2	1.8	50	4	0.2	8	~~£28.93~~ £12.73	In Stock
UR5120120216	1.2	2	1.8	50	4	0.2	16	£28.93	5 days
UR5120120210	1.2	2	1.8	50	4	0.2	10	~~£28.93~~ £12.73	In Stock
UR5120120212	1.2	2	1.8	50	4	0.2	12	~~£28.93~~ £12.73	In Stock
UR5120120220	1.2	2	1.8	50	4	0.2	20	~~£28.93~~ £12.73	In Stock
UR5120120304	1.2	2	1.8	50	4	0.3	4	£28.93	5 days
UR5120120303	1.2	2	1.8	50	4	0.3	3	£28.93	5 days
UR5120120306	1.2	2	1.8	50	4	0.3	6	£28.93	5 days
UR5120120308	1.2	2	1.8	50	4	0.3	8	£28.93	5 days
UR5120120310	1.2	2	1.8	50	4	0.3	10	~~£28.93~~ £12.73	In Stock
UR5120120312	1.2	2	1.8	50	4	0.3	12	~~£28.93~~ £12.73	In Stock
UR5120120316	1.2	2	1.8	50	4	0.3	16	~~£28.93~~ £12.73	In Stock
UR5120120320	1.2	2	1.8	50	4	0.3	20	~~£28.93~~ £12.73	In Stock
UR51201500504	1.5	2	2.3	50	4	0.05	4	~~£28.93~~ £12.73	In Stock
UR51201500506	1.5	2	2.3	50	4	0.05	6	£28.93	5 days
UR51201500510	1.5	2	2.3	50	4	0.05	10	£28.93	5 days
UR51201500508	1.5	2	2.3	50	4	0.05	8	£28.93	5 days
UR51201500512	1.5	2	2.3	50	4	0.05	12	£28.93	5 days
UR51201500514	1.5	2	2.3	50	4	0.05	14	£28.93	5 days
UR51201500516	1.5	2	2.3	50	4	0.05	16	£28.93	5 days
UR51201500520	1.5	2	2.3	50	4	0.05	20	£28.93	5 days
UR51201500522	1.5	2	2.3	60	4	0.05	22	£30.13	5 days
UR51201500526	1.5	2	2.3	60	4	0.05	26	£30.13	5 days
UR5120150104	1.5	2	2.3	50	4	0.1	4	£28.93	5 days
UR5120150106	1.5	2	2.3	50	4	0.1	6	£28.93	5 days
UR5120150108	1.5	2	2.3	50	4	0.1	8	£28.93	5 days
UR5120150110	1.5	2	2.3	50	4	0.1	10	£28.93	5 days
UR5120150112	1.5	2	2.3	50	4	0.1	12	£28.93	5 days
UR5120150116	1.5	2	2.3	50	4	0.1	16	£28.93	5 days
UR5120150114	1.5	2	2.3	50	4	0.1	14	£28.93	5 days
UR5120150120	1.5	2	2.3	50	4	0.1	20	£28.93	5 days
UR5120150122	1.5	2	2.3	60	4	0.1	22	£30.13	5 days
UR5120150126	1.5	2	2.3	60	4	0.1	26	£30.13	5 days
UR5120150204	1.5	2	2.3	50	4	0.2	4	£28.93	5 days
UR5120150210	1.5	2	2.3	50	4	0.2	10	£28.93	5 days
UR5120150208	1.5	2	2.3	50	4	0.2	8	£28.93	5 days
UR5120150206	1.5	2	2.3	50	4	0.2	6	£28.93	5 days
UR5120150212	1.5	2	2.3	50	4	0.2	12	£28.93	5 days
UR5120150214	1.5	2	2.3	50	4	0.2	14	£28.93	5 days
UR5120150216	1.5	2	2.3	50	4	0.2	16	£28.93	5 days
UR5120150220	1.5	2	2.3	50	4	0.2	20	~~£28.93~~ £12.73	In Stock
UR5120150226	1.5	2	2.3	60	4	0.2	26	~~£30.13~~ £13.26	In Stock
UR5120150222	1.5	2	2.3	60	4	0.2	22	£30.13	5 days
UR5120150304	1.5	2	2.3	50	4	0.3	4	£28.93	5 days
UR5120150306	1.5	2	2.3	50	4	0.3	6	£28.93	5 days
UR5120150308	1.5	2	2.3	50	4	0.3	8	£28.93	5 days
UR5120150310	1.5	2	2.3	50	4	0.3	10	~~£28.93~~ £12.73	In Stock
UR5120150312	1.5	2	2.3	50	4	0.3	12	~~£28.93~~ £12.73	In Stock
UR5120150314	1.5	2	2.3	50	4	0.3	14	~~£28.93~~ £12.73	In Stock
UR5120150316	1.5	2	2.3	50	4	0.3	16	£28.93	5 days
UR5120150322	1.5	2	2.3	60	4	0.3	22	~~£30.13~~ £13.26	In Stock
UR5120150320	1.5	2	2.3	50	4	0.3	20	£28.93	5 days
UR5120150326	1.5	2	2.3	60	4	0.3	26	~~£30.13~~ £13.26	In Stock
UR5120150504	1.5	2	2.3	50	4	0.5	4	£28.93	5 days
UR5120150506	1.5	2	2.3	50	4	0.5	6	£28.93	5 days
UR5120150508	1.5	2	2.3	50	4	0.5	8	£28.93	5 days
UR5120150510	1.5	2	2.3	50	4	0.5	10	£28.93	5 days
UR5120150512	1.5	2	2.3	50	4	0.5	12	£28.93	5 days
UR5120150516	1.5	2	2.3	50	4	0.5	16	£28.93	5 days
UR5120150514	1.5	2	2.3	50	4	0.5	14	£28.93	5 days
UR5120150522	1.5	2	2.3	60	4	0.5	22	£30.13	5 days
UR5120150520	1.5	2	2.3	50	4	0.5	20	£28.93	5 days
UR5120200106	2	2	3	50	4	0.1	6	£28.93	5 days
UR5120200108	2	2	3	50	4	0.1	8	£28.93	5 days
UR5120200110	2	2	3	50	4	0.1	10	£28.93	5 days
UR5120150526	1.5	2	2.3	60	4	0.5	26	~~£30.13~~ £13.26	In Stock
UR5120200112	2	2	3	50	4	0.1	12	£28.93	5 days
UR5120200114	2	2	3	50	4	0.1	14	£28.93	5 days
UR5120200116	2	2	3	50	4	0.1	16	£28.93	5 days
UR5120200120	2	2	3	50	4	0.1	20	£28.93	5 days
UR5120200126	2	2	3	60	4	0.1	26	£30.13	5 days
UR5120200122	2	2	3	60	4	0.1	22	£30.13	5 days
UR5120200130	2	2	3	70	4	0.1	30	~~£33.61~~ £14.78	In Stock
UR5120200208	2	2	3	50	4	0.2	8	£28.93	5 days
UR5120200206	2	2	3	50	4	0.2	6	£28.93	5 days
UR5120200210	2	2	3	50	4	0.2	10	£28.93	5 days
UR5120200212	2	2	3	50	4	0.2	12	£28.93	5 days
UR5120200214	2	2	3	50	4	0.2	14	£28.93	5 days
UR5120200216	2	2	3	50	4	0.2	16	£28.93	5 days
UR5120200220	2	2	3	50	4	0.2	20	£28.93	5 days
UR5120200222	2	2	3	60	4	0.2	22	£30.13	In Stock
UR5120200226	2	2	3	60	4	0.2	26	£30.13	5 days
UR5120200230	2	2	3	70	4	0.2	30	£33.61	5 days
UR5120200306	2	2	3	50	4	0.3	6	£28.93	5 days
UR5120200308	2	2	3	50	4	0.3	8	£28.93	5 days
UR5120200310	2	2	3	50	4	0.3	10	£28.93	5 days
UR5120200314	2	2	3	50	4	0.3	14	~~£28.93~~ £12.73	In Stock
UR5120200312	2	2	3	50	4	0.3	12	~~£28.93~~ £12.73	In Stock
UR5120200316	2	2	3	50	4	0.3	16	£28.93	5 days
UR5120200320	2	2	3	50	4	0.3	20	~~£28.93~~ £12.73	In Stock
UR5120200322	2	2	3	60	4	0.3	22	~~£30.13~~ £13.26	In Stock
UR5120200330	2	2	3	70	4	0.3	30	~~£33.61~~ £14.78	In Stock
UR5120200326	2	2	3	60	4	0.3	26	~~£30.13~~ £13.26	In Stock
UR5120200508	2	2	3	50	4	0.5	8	£28.93	5 days
UR5120200506	2	2	3	50	4	0.5	6	£28.93	5 days
UR5120200510	2	2	3	50	4	0.5	10	£28.93	5 days
UR5120200512	2	2	3	50	4	0.5	12	£28.93	5 days
UR5120200514	2	2	3	50	4	0.5	14	£28.93	5 days
UR5120200516	2	2	3	50	4	0.5	16	£28.93	5 days
UR5120200520	2	2	3	50	4	0.5	20	£28.93	5 days
UR5120200522	2	2	3	60	4	0.5	22	~~£30.13~~ £13.26	In Stock
UR5120200530	2	2	3	70	4	0.5	30	£33.61	5 days

View Other Sizes

with tools we think you'll like

View all products in this range

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 4mm x40mm x R0.5

What time are Protool open?

Do you offer Free Next Day delivery?

We also offer the following:

Full Range: Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck (WR512)

View Other Sizes

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x0.5mm x R0.02

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x1mm x R0.02

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x1.5mm x R0.02

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x2mm x R0.02

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x0.5mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x1mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x1.5mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x2mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.3mm x1mm x R0.02

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.3mm x2mm x R0.02

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.3mm x3mm x R0.02

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.3mm x1mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.3mm x2mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.3mm x3mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.4mm x1mm x R0.05

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.4mm x1.5mm x R0.05

About Protool

Customer Support

Terms & Conditions

FOLLOW US ON
