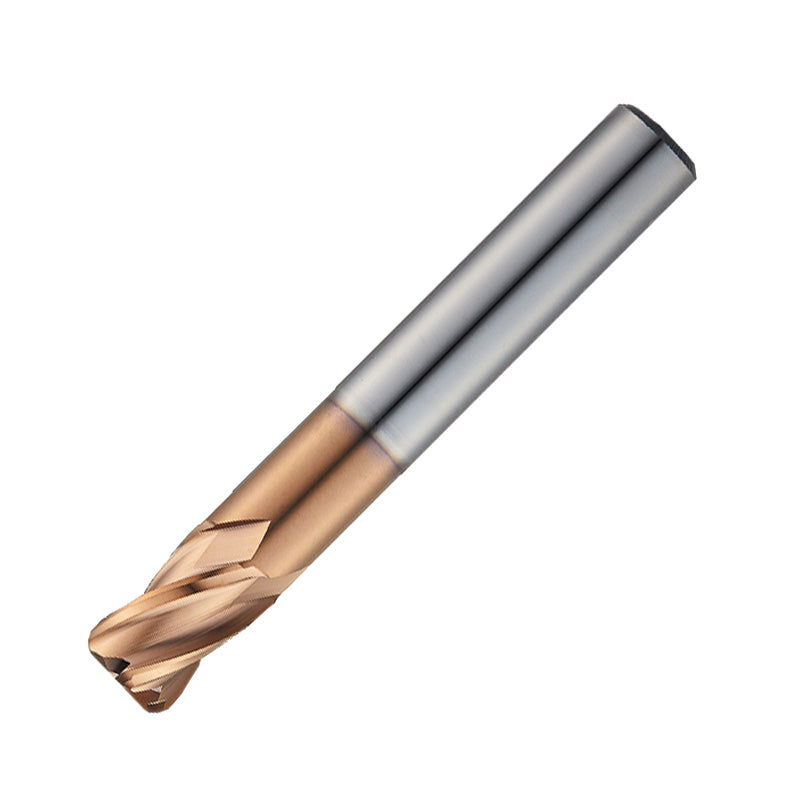

Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 2mm x 8mm x R0.2
SKU:ESR7040200208
Widin Carbide Corner Radius End Mill is a precision cutting tool designed for CNC milling on hard workpieces. Built for engineers and machinists who demand repeatable corners and reliable perform...
Read more ↓
Material Compatibility
P
H
Specification
View all specifications ↓
Download Cutting Data

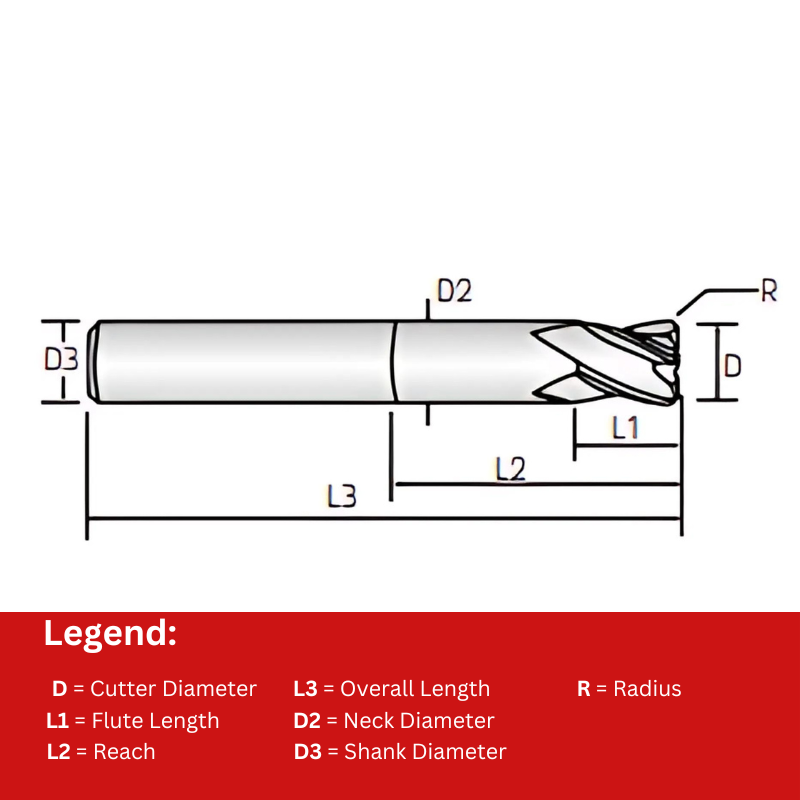

| Cutter Diameter | 2 |
| Number of Flutes | 4 |
| Flute Length | 3 |
| Overall Length | 50 |
| Shank Diameter | 6 |
| Reach | 8 |
£37.83
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Widin Carbide Corner Radius End Mill is a precision cutting tool designed for CNC milling on hard workpieces. Built for engineers and machinists who demand repeatable corners and reliable performance, this 2 mm diameter end mill features a compact 8 mm length of cut and a with a subtle R0.2 corner radius.
- Diameter: 2 mm
- Cutting Length: 8 mm (stub-cut length) for rigidity in tight spaces
- Flute Count: 4-flute design for efficient cutting and smooth chip evacuation
- Corner Radius: R0.2 for precise corners and clean fillets
- Material: Carbide with wear resistance suited for hard metals
- Geometry: Optimized for high-hardness workpieces and stable milling dynamics
This end mill delivers consistent performance across a range of applications, from pocketing and profiling to small-feature finishing. The 4-flute configuration supports steady material removal and good surface finish, while the stub-cut length minimizes deflection in restricted cavities. Ideal for projects requiring accurate radii and sharp, repeatable corners on hard materials such as tool steel and stainless alloys, it helps reduce secondary operations and boosts overall machining efficiency.
| Cutter Diameter | 2 |
| Number of Flutes | 4 |
| Flute Length | 3 |
| Overall Length | 50 |
| Shank Diameter | 6 |
| Reach | 8 |
| Corner Radius | 0.2 |
| Neck Diameter | 1.9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZR704)
View full collection →You are viewing ESR7040200208. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ESR7040100306S4 | 1 | 4 | 2 | 50 | 4 | 6 | 0.3 | 0.95 | £34.81 | 5 days | |
| ESR7040100303S4 | 1 | 4 | 2 | 50 | 4 | 3 | 0.3 | 0.95 | £34.81 | 5 days | |
| ESR7040100104S4 | 1 | 4 | 2 | 50 | 4 | 4 | 0.1 | 0.95 | £34.81 | 5 days | |
| ESR7040150106S4 | 1.5 | 4 | 2.5 | 50 | 4 | 6 | 0.1 | 1.45 | £34.81 | 5 days | |
| ESR7040100106S4 | 1 | 4 | 2 | 50 | 4 | 6 | 0.1 | 0.95 | £34.81 | 5 days | |
| ESR7040150204S4 | 1.5 | 4 | 2.5 | 50 | 4 | 4 | 0.2 | 1.45 | £34.81 | 5 days | |
| ESR7040100206S4 | 1 | 4 | 2 | 50 | 4 | 6 | 0.2 | 0.95 | £34.81 | 5 days | |
| ESR7040150206S4 | 1.5 | 4 | 2.5 | 50 | 4 | 6 | 0.2 | 1.45 | £34.81 | 5 days | |
| ESR7040100103S4 | 1 | 4 | 2 | 50 | 4 | 3 | 0.1 | 0.95 | £34.81 | 5 days | |
| ESR7040100304S4 | 1 | 4 | 2 | 50 | 4 | 4 | 0.3 | 0.95 | £34.81 | 5 days | |
| ESR7040100204S4 | 1 | 4 | 2 | 50 | 4 | 4 | 0.2 | 0.95 | £34.81 | 5 days | |
| ESR7040100203S4 | 1 | 4 | 2 | 50 | 4 | 3 | 0.2 | 0.95 | £34.81 | 5 days | |
| ESR7040150304S4 | 1.5 | 4 | 2.5 | 50 | 4 | 4 | 0.3 | 1.45 | £34.81 | 5 days | |
| ESR7040150306S4 | 1.5 | 4 | 2.5 | 50 | 4 | 6 | 0.3 | 1.45 | £34.81 | 5 days | |
| ESR7040200106S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.1 | 1.9 | £34.81 | 5 days | |
| ESR7040200108S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.1 | 1.9 | £34.81 | 5 days | |
| ESR7040200208S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.2 | 1.9 | £34.81 | 5 days | |
| ESR7040150104S4 | 1.5 | 4 | 2.5 | 50 | 4 | 4 | 0.1 | 1.45 | £34.81 | 5 days | |
| ESR7040200208 Viewing | 2 | 4 | 3 | 50 | 6 | 8 | 0.2 | 1.9 | £37.83 | 5 days | |
| ESR7040250106S4 | 2.5 | 4 | 3.5 | 50 | 4 | 6 | 0.1 | 2.4 | £34.81 | 5 days | |
| ESR7040200210 | 2 | 4 | 3 | 50 | 6 | 10 | 0.2 | 1.9 | £37.83 | 5 days | |
| ESR7040200506S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.5 | 1.9 | £34.81 | 5 days | |
| ESR7040200212 | 2 | 4 | 3 | 50 | 6 | 12 | 0.2 | 1.9 | £40.37 | 5 days | |
| ESR7040200206S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.2 | 1.9 | £34.81 | 5 days | |
| ESR7040200508S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.5 | 1.9 | £34.81 | 5 days | |
| ESR7040200306S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.3 | 1.9 | £34.81 | 5 days | |
| ESR7040300110 | 3 | 4 | 4 | 55 | 6 | 10 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300210 | 3 | 4 | 4 | 55 | 6 | 10 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040200308S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.3 | 1.9 | £34.81 | 5 days | |
| ESR7040300112 | 3 | 4 | 4 | 55 | 6 | 12 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300116 | 3 | 4 | 4 | 55 | 6 | 16 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300120 | 3 | 4 | 4 | 60 | 6 | 20 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300208 | 3 | 4 | 4 | 55 | 6 | 8 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300216 | 3 | 4 | 4 | 55 | 6 | 16 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300108 | 3 | 4 | 4 | 55 | 6 | 8 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300212 | 3 | 4 | 4 | 55 | 6 | 12 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300220 | 3 | 4 | 4 | 60 | 6 | 20 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300309 | 3 | 4 | 4 | 55 | 6 | 9 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300312 | 3 | 4 | 4 | 55 | 6 | 12 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300310 | 3 | 4 | 4 | 55 | 6 | 10 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300316 | 3 | 4 | 4 | 55 | 6 | 16 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300508 | 3 | 4 | 4 | 55 | 6 | 8 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300320 | 3 | 4 | 4 | 60 | 6 | 20 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300509 | 3 | 4 | 4 | 55 | 6 | 9 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300512 | 3 | 4 | 4 | 55 | 6 | 12 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300510 | 3 | 4 | 4 | 55 | 6 | 10 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300520 | 3 | 4 | 4 | 60 | 6 | 20 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040301008 | 3 | 4 | 4 | 55 | 6 | 8 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040300516 | 3 | 4 | 4 | 55 | 6 | 16 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300308 | 3 | 4 | 4 | 55 | 6 | 8 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040301010 | 3 | 4 | 4 | 55 | 6 | 10 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040301012 | 3 | 4 | 4 | 55 | 6 | 12 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040301016 | 3 | 4 | 4 | 55 | 6 | 16 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040400112 | 4 | 4 | 6 | 55 | 6 | 12 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040301020 | 3 | 4 | 4 | 60 | 6 | 20 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040400110 | 4 | 4 | 6 | 55 | 6 | 10 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400116 | 4 | 4 | 6 | 55 | 6 | 16 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400125 | 4 | 4 | 6 | 60 | 6 | 25 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400120 | 4 | 4 | 6 | 60 | 6 | 20 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400220 | 4 | 4 | 6 | 60 | 6 | 20 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400225 | 4 | 4 | 6 | 60 | 6 | 25 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400210 | 4 | 4 | 6 | 55 | 6 | 10 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400216 | 4 | 4 | 6 | 55 | 6 | 16 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400310 | 4 | 4 | 6 | 55 | 6 | 10 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400312 | 4 | 4 | 6 | 55 | 6 | 12 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400212 | 4 | 4 | 6 | 55 | 6 | 12 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400316 | 4 | 4 | 6 | 55 | 6 | 16 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400325 | 4 | 4 | 6 | 60 | 6 | 25 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400510 | 4 | 4 | 6 | 55 | 6 | 10 | 0.5 | 3.8 | £15.14 | In Stock | |
| ESR7040400512 | 4 | 4 | 6 | 55 | 6 | 12 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040400520 | 4 | 4 | 6 | 60 | 6 | 20 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040400516 | 4 | 4 | 6 | 55 | 6 | 16 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040400525 | 4 | 4 | 6 | 60 | 6 | 25 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040600220 | 6 | 4 | 9 | 60 | 6 | 20 | 0.2 | 5.8 | £37.83 | 5 days | |
| ESR7040400320 | 4 | 4 | 6 | 60 | 6 | 20 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040401025 | 4 | 4 | 6 | 60 | 6 | 25 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401012 | 4 | 4 | 6 | 55 | 6 | 12 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401010 | 4 | 4 | 6 | 55 | 6 | 10 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401016 | 4 | 4 | 6 | 55 | 6 | 16 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401020 | 4 | 4 | 6 | 60 | 6 | 20 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040601020 | 6 | 4 | 9 | 60 | 6 | 20 | 1 | 5.8 | £15.14 | In Stock | |
| ESR7040800325 | 8 | 4 | 12 | 60 | 8 | 25 | 0.3 | 7.8 | £46.44 | 5 days | |
| ESR7040600520 | 6 | 4 | 9 | 60 | 6 | 20 | 0.5 | 5.8 | £37.83 | 5 days | |
| ESR7040600320 | 6 | 4 | 9 | 60 | 6 | 20 | 0.3 | 5.8 | £37.83 | 5 days | |
| ESR7040601520 | 6 | 4 | 9 | 60 | 6 | 20 | 1.5 | 5.8 | £37.83 | 5 days | |
| ESR7040602020 | 6 | 4 | 9 | 60 | 6 | 20 | 2 | 5.8 | £37.83 | 5 days | |
| ESR7040800225 | 8 | 4 | 12 | 60 | 8 | 25 | 0.2 | 7.8 | £46.44 | 5 days | |
| ESR7040800525 | 8 | 4 | 12 | 60 | 8 | 25 | 0.5 | 7.8 | £46.44 | 5 days | |
| ESR7040801525 | 8 | 4 | 12 | 60 | 8 | 25 | 1.5 | 7.8 | £46.44 | 5 days | |
| ESR7040801025 | 8 | 4 | 12 | 60 | 8 | 25 | 1 | 7.8 | £46.44 | 5 days | |
| ESR7041001032 | 10 | 4 | 15 | 70 | 10 | 32 | 1 | 9.7 | £64.31 | 5 days | |
| ESR7041000532 | 10 | 4 | 15 | 70 | 10 | 32 | 0.5 | 9.7 | £64.31 | 5 days | |
| ESR7040802025 | 8 | 4 | 12 | 60 | 8 | 25 | 2 | 7.8 | £46.44 | 5 days | |
| ESR7041001532 | 10 | 4 | 15 | 70 | 10 | 32 | 1.5 | 9.7 | £64.31 | 5 days | |
| ESR7041201038 | 12 | 4 | 18 | 80 | 12 | 38 | 1 | 11.7 | £91.60 | 5 days | |
| ESR7041200538 | 12 | 4 | 18 | 80 | 12 | 38 | 0.5 | 11.7 | £91.60 | 5 days | |
| ESR7041000232 | 10 | 4 | 15 | 70 | 10 | 32 | 0.2 | 9.7 | £64.31 | 5 days | |
| ESR7041002032 | 10 | 4 | 15 | 70 | 10 | 32 | 2 | 9.7 | £64.31 | 5 days | |
| ESR7041200338 | 12 | 4 | 18 | 80 | 12 | 38 | 0.3 | 11.7 | £36.64 | In Stock | |
| ESR7041000332 | 10 | 4 | 15 | 70 | 10 | 32 | 0.3 | 9.7 | £64.31 | 5 days | |
| ESR7041202038 | 12 | 4 | 18 | 80 | 12 | 38 | 2 | 11.7 | £91.60 | 5 days | |
| ESR7041201538 | 12 | 4 | 18 | 80 | 12 | 38 | 1.5 | 11.7 | £36.64 | In Stock |
