Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 4mm x 16mm x R0.5

Name: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 4mm x 16mm x R0.5
Brand: Widin
SKU: ESR7040400516
Price: 37.83 GBP
Availability: InStock

SKU:ESR7040400516

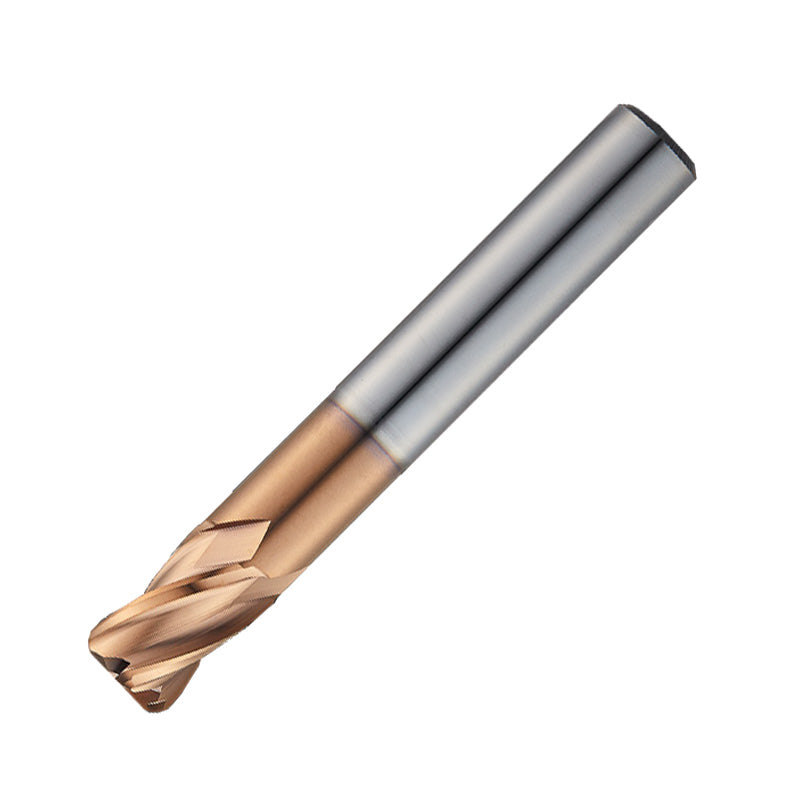

The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for engineers and machinists who demand reliability and versatility. This 4-flute stub-cut end mill (Ø4 mm, LOC 16 mm... Read more ↓

Material Compatibility

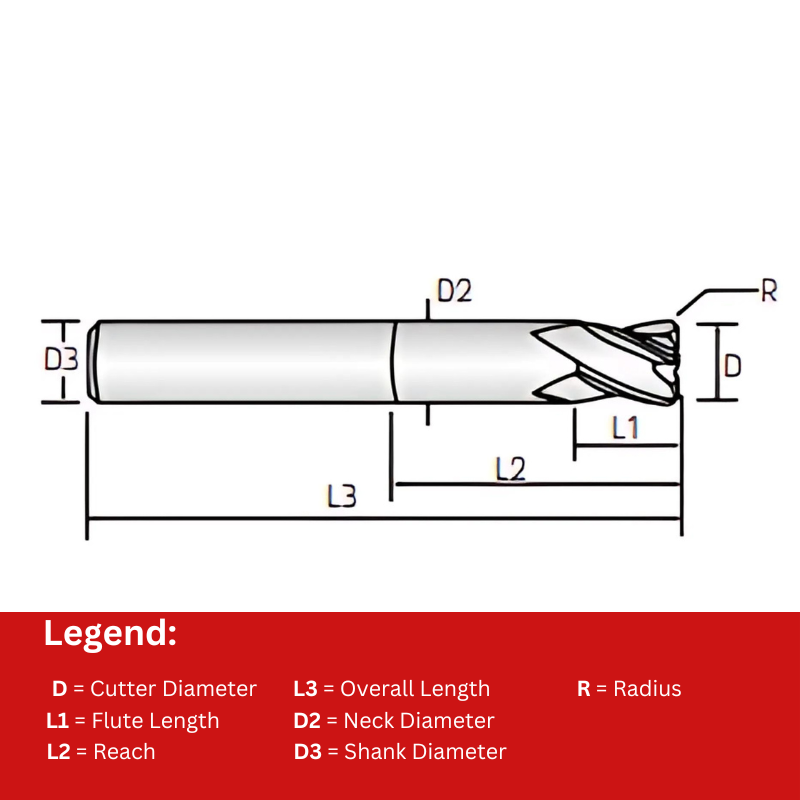

Specification

Cutter Diameter	4
Number of Flutes	4
Flute Length	6
Overall Length	55
Shank Diameter	6
Reach	16

View all specifications ↓

Download Cutting Data

£37.83

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Diameter: 4 mm
Cutting length: 16 mm (stub-cut) for compact, rigid cutting
Flute count: 4-flute geometry to improve material removal and edge finish
Corner radius: R0.5 mm for precise internal and external radii
Material: Solid carbide for hardness and wear resistance
Series: ZR704 with extended corner radius options to suit multiple applications
Design: Stub-cut length enhances rigidity and reduces deflection in shallow pockets

With its carbide construction and optimized geometry, this end mill helps you achieve accurate corners, smooth radii, and reliable tool life across challenging materials. The 4-flute design enables efficient chip evacuation, reducing heat build-up and minimizing chatter. The R0.5 mm corner radius offers flexibility: you can produce sharp transitions when needed or introduce gentle radii to reduce stress concentrators, improving part durability. The compact stub-cut length provides rigidity for precise milling in shallow features, improving dimensional accuracy and surface finish. This tool is ideal for pocketing, contouring, and finishing operations where precision and control matter. For best results, start with light break-in passes, maintain steady feeds and speeds suited to the material, and use appropriate clamping and coolant to extend tool life and achieve consistent finishes.

Cutter Diameter	4
Number of Flutes	4
Flute Length	6
Overall Length	55
Shank Diameter	6
Reach	16
Corner Radius	0.5
Neck Diameter	3.8

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZR704)

View full collection →

You are viewing ESR7040400516. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Reach	Corner Radius	Neck Diameter	Price	Stock

ESR7040100306S4	1	4	2	50	4	6	0.3	0.95	£34.81	5 days
ESR7040100303S4	1	4	2	50	4	3	0.3	0.95	£34.81	5 days
ESR7040100104S4	1	4	2	50	4	4	0.1	0.95	£34.81	5 days
ESR7040150106S4	1.5	4	2.5	50	4	6	0.1	1.45	£34.81	5 days
ESR7040100106S4	1	4	2	50	4	6	0.1	0.95	£34.81	5 days
ESR7040150204S4	1.5	4	2.5	50	4	4	0.2	1.45	£34.81	5 days
ESR7040100206S4	1	4	2	50	4	6	0.2	0.95	£34.81	5 days
ESR7040150206S4	1.5	4	2.5	50	4	6	0.2	1.45	£34.81	5 days
ESR7040100103S4	1	4	2	50	4	3	0.1	0.95	£34.81	5 days
ESR7040100304S4	1	4	2	50	4	4	0.3	0.95	£34.81	5 days
ESR7040100204S4	1	4	2	50	4	4	0.2	0.95	£34.81	5 days
ESR7040100203S4	1	4	2	50	4	3	0.2	0.95	£34.81	5 days
ESR7040150304S4	1.5	4	2.5	50	4	4	0.3	1.45	£34.81	5 days
ESR7040150306S4	1.5	4	2.5	50	4	6	0.3	1.45	£34.81	5 days
ESR7040200106S4	2	4	3	50	4	6	0.1	1.9	£34.81	5 days
ESR7040200108S4	2	4	3	50	4	8	0.1	1.9	£34.81	5 days
ESR7040200208S4	2	4	3	50	4	8	0.2	1.9	£34.81	5 days
ESR7040150104S4	1.5	4	2.5	50	4	4	0.1	1.45	£34.81	5 days
ESR7040200208	2	4	3	50	6	8	0.2	1.9	£37.83	5 days
ESR7040250106S4	2.5	4	3.5	50	4	6	0.1	2.4	£34.81	5 days
ESR7040200210	2	4	3	50	6	10	0.2	1.9	£37.83	5 days
ESR7040200506S4	2	4	3	50	4	6	0.5	1.9	£34.81	5 days
ESR7040200212	2	4	3	50	6	12	0.2	1.9	£40.37	5 days
ESR7040200206S4	2	4	3	50	4	6	0.2	1.9	£34.81	5 days
ESR7040200508S4	2	4	3	50	4	8	0.5	1.9	£34.81	5 days
ESR7040200306S4	2	4	3	50	4	6	0.3	1.9	£34.81	5 days
ESR7040300110	3	4	4	55	6	10	0.1	2.9	£37.83	5 days
ESR7040300210	3	4	4	55	6	10	0.2	2.9	£37.83	5 days
ESR7040200308S4	2	4	3	50	4	8	0.3	1.9	£34.81	5 days
ESR7040300112	3	4	4	55	6	12	0.1	2.9	£37.83	5 days
ESR7040300116	3	4	4	55	6	16	0.1	2.9	£37.83	5 days
ESR7040300120	3	4	4	60	6	20	0.1	2.9	£37.83	5 days
ESR7040300208	3	4	4	55	6	8	0.2	2.9	£37.83	5 days
ESR7040300216	3	4	4	55	6	16	0.2	2.9	£37.83	5 days
ESR7040300108	3	4	4	55	6	8	0.1	2.9	£37.83	5 days
ESR7040300212	3	4	4	55	6	12	0.2	2.9	£37.83	5 days
ESR7040300220	3	4	4	60	6	20	0.2	2.9	£37.83	5 days
ESR7040300309	3	4	4	55	6	9	0.3	2.9	£37.83	5 days
ESR7040300312	3	4	4	55	6	12	0.3	2.9	£37.83	5 days
ESR7040300310	3	4	4	55	6	10	0.3	2.9	£37.83	5 days
ESR7040300316	3	4	4	55	6	16	0.3	2.9	£37.83	5 days
ESR7040300508	3	4	4	55	6	8	0.5	2.9	£37.83	5 days
ESR7040300320	3	4	4	60	6	20	0.3	2.9	£37.83	5 days
ESR7040300509	3	4	4	55	6	9	0.5	2.9	£37.83	5 days
ESR7040300512	3	4	4	55	6	12	0.5	2.9	£37.83	5 days
ESR7040300510	3	4	4	55	6	10	0.5	2.9	£37.83	5 days
ESR7040300520	3	4	4	60	6	20	0.5	2.9	£37.83	5 days
ESR7040301008	3	4	4	55	6	8	1	2.9	£37.83	5 days
ESR7040300516	3	4	4	55	6	16	0.5	2.9	£37.83	5 days
ESR7040300308	3	4	4	55	6	8	0.3	2.9	£37.83	5 days
ESR7040301010	3	4	4	55	6	10	1	2.9	£37.83	5 days
ESR7040301012	3	4	4	55	6	12	1	2.9	£37.83	5 days
ESR7040301016	3	4	4	55	6	16	1	2.9	£37.83	5 days
ESR7040400112	4	4	6	55	6	12	0.1	3.8	£37.83	5 days
ESR7040301020	3	4	4	60	6	20	1	2.9	£37.83	5 days
ESR7040400110	4	4	6	55	6	10	0.1	3.8	£37.83	5 days
ESR7040400116	4	4	6	55	6	16	0.1	3.8	£37.83	5 days
ESR7040400125	4	4	6	60	6	25	0.1	3.8	£37.83	5 days
ESR7040400120	4	4	6	60	6	20	0.1	3.8	£37.83	5 days
ESR7040400220	4	4	6	60	6	20	0.2	3.8	£37.83	5 days
ESR7040400225	4	4	6	60	6	25	0.2	3.8	£37.83	5 days
ESR7040400210	4	4	6	55	6	10	0.2	3.8	£37.83	5 days
ESR7040400216	4	4	6	55	6	16	0.2	3.8	£37.83	5 days
ESR7040400310	4	4	6	55	6	10	0.3	3.8	£37.83	5 days
ESR7040400312	4	4	6	55	6	12	0.3	3.8	£37.83	5 days
ESR7040400212	4	4	6	55	6	12	0.2	3.8	£37.83	5 days
ESR7040400316	4	4	6	55	6	16	0.3	3.8	£37.83	5 days
ESR7040400325	4	4	6	60	6	25	0.3	3.8	£37.83	5 days
ESR7040400510	4	4	6	55	6	10	0.5	3.8	~~£37.83~~ £15.14	In Stock
ESR7040400512	4	4	6	55	6	12	0.5	3.8	£37.83	5 days
ESR7040400520	4	4	6	60	6	20	0.5	3.8	£37.83	5 days
ESR7040400516 Viewing	4	4	6	55	6	16	0.5	3.8	£37.83	5 days
ESR7040400525	4	4	6	60	6	25	0.5	3.8	£37.83	5 days
ESR7040600220	6	4	9	60	6	20	0.2	5.8	£37.83	5 days
ESR7040400320	4	4	6	60	6	20	0.3	3.8	£37.83	5 days
ESR7040401025	4	4	6	60	6	25	1	3.8	£37.83	5 days
ESR7040401012	4	4	6	55	6	12	1	3.8	£37.83	5 days
ESR7040401010	4	4	6	55	6	10	1	3.8	£37.83	5 days
ESR7040401016	4	4	6	55	6	16	1	3.8	£37.83	5 days
ESR7040401020	4	4	6	60	6	20	1	3.8	£37.83	5 days
ESR7040601020	6	4	9	60	6	20	1	5.8	~~£37.83~~ £15.14	In Stock
ESR7040800325	8	4	12	60	8	25	0.3	7.8	£46.44	5 days
ESR7040600520	6	4	9	60	6	20	0.5	5.8	£37.83	5 days
ESR7040600320	6	4	9	60	6	20	0.3	5.8	£37.83	5 days
ESR7040601520	6	4	9	60	6	20	1.5	5.8	£37.83	5 days
ESR7040602020	6	4	9	60	6	20	2	5.8	£37.83	5 days
ESR7040800225	8	4	12	60	8	25	0.2	7.8	£46.44	5 days
ESR7040800525	8	4	12	60	8	25	0.5	7.8	£46.44	5 days
ESR7040801525	8	4	12	60	8	25	1.5	7.8	£46.44	5 days
ESR7040801025	8	4	12	60	8	25	1	7.8	£46.44	5 days
ESR7041001032	10	4	15	70	10	32	1	9.7	£64.31	5 days
ESR7041000532	10	4	15	70	10	32	0.5	9.7	£64.31	5 days
ESR7040802025	8	4	12	60	8	25	2	7.8	£46.44	5 days
ESR7041001532	10	4	15	70	10	32	1.5	9.7	£64.31	5 days
ESR7041201038	12	4	18	80	12	38	1	11.7	£91.60	5 days
ESR7041200538	12	4	18	80	12	38	0.5	11.7	£91.60	5 days
ESR7041000232	10	4	15	70	10	32	0.2	9.7	£64.31	5 days
ESR7041002032	10	4	15	70	10	32	2	9.7	£64.31	5 days
ESR7041200338	12	4	18	80	12	38	0.3	11.7	~~£91.60~~ £36.64	In Stock
ESR7041000332	10	4	15	70	10	32	0.3	9.7	£64.31	5 days
ESR7041202038	12	4	18	80	12	38	2	11.7	£91.60	5 days
ESR7041201538	12	4	18	80	12	38	1.5	11.7	~~£91.60~~ £36.64	In Stock
