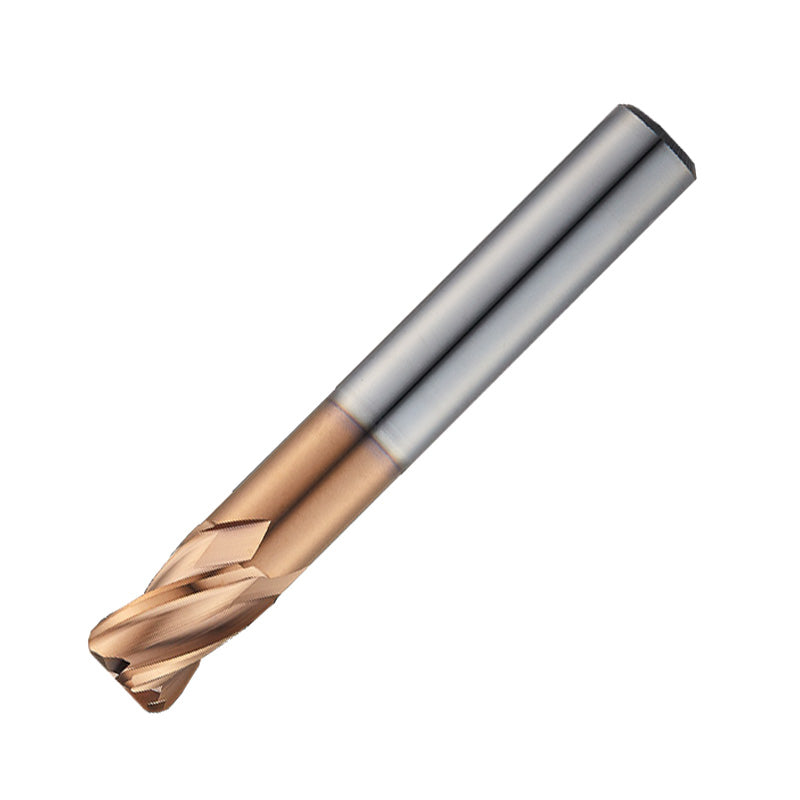

Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 2mm x 12mm x R0.2
SKU:ESR7040200212
The Widin Carbide Corner Radius End Mill is a precision micro-cutting tool designed for detailed work in hard materials. Built for CNC operators, model makers, and precision machinists, it deliver...
Read more ↓
Material Compatibility
P
H
Specification
View all specifications ↓
Download Cutting Data

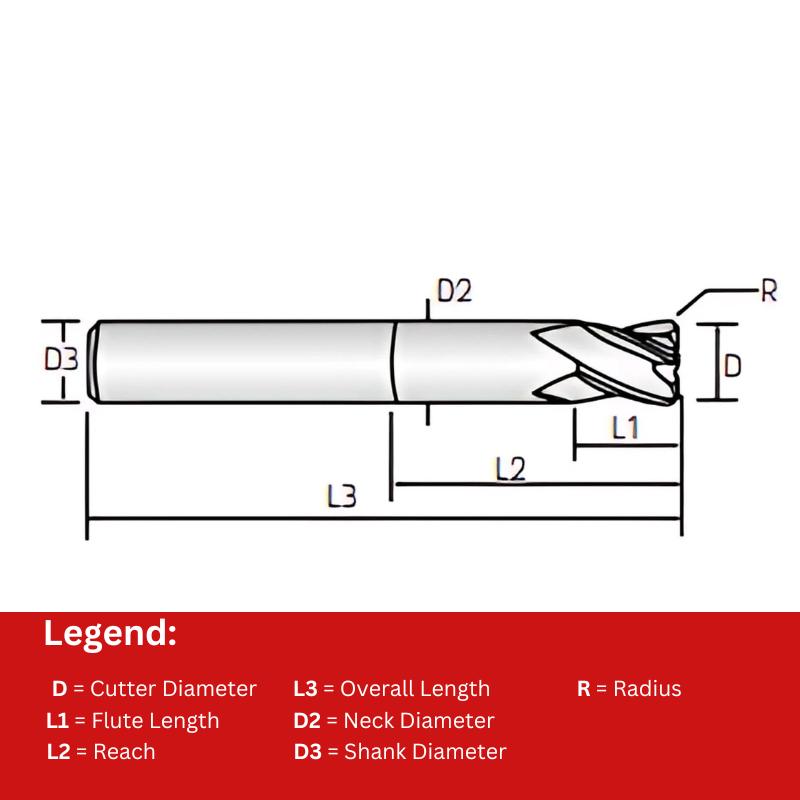

| Cutter Diameter | 2 |
| Number of Flutes | 4 |
| Flute Length | 3 |
| Overall Length | 50 |
| Shank Diameter | 6 |
| Reach | 12 |
£40.37
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Widin Carbide Corner Radius End Mill is a precision micro-cutting tool designed for detailed work in hard materials. Built for CNC operators, model makers, and precision machinists, it delivers clean radii and reliable performance in a compact 2 mm diameter format.
- Diameter: 2 mm
- Length of Cut: 12 mm
- Corner Radius: R0.2
- Flute Count: 4-flute configuration for efficient chip evacuation and smooth cutting
- End Mill Type: Stub-length design for enhanced rigidity and reduced deflection during precision milling
- Material: Carbide for superior hardness, wear resistance, and long tool life
Designed to handle high-hardness workpieces, this end mill minimizes chatter and tolerates demanding milling tasks with consistent finishes. The 0.2 mm corner radius provides precise corner work and smooth transitions, making it ideal for fine detailing, deburring, and pocketing where sharp boundaries matter. With a compact 2 mm diameter and a 12 mm length of cut, it excels in tight cavities, delicate features, and micro-milling applications on steel, stainless alloys, and other hard materials.
| Cutter Diameter | 2 |
| Number of Flutes | 4 |
| Flute Length | 3 |
| Overall Length | 50 |
| Shank Diameter | 6 |
| Reach | 12 |
| Corner Radius | 0.2 |
| Neck Diameter | 1.9 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZR704)
View full collection →You are viewing ESR7040200212. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Neck Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ESR7040100306S4 | 1 | 4 | 2 | 50 | 4 | 6 | 0.3 | 0.95 | £34.81 | 5 days | |
| ESR7040100303S4 | 1 | 4 | 2 | 50 | 4 | 3 | 0.3 | 0.95 | £34.81 | 5 days | |
| ESR7040100104S4 | 1 | 4 | 2 | 50 | 4 | 4 | 0.1 | 0.95 | £34.81 | 5 days | |
| ESR7040150106S4 | 1.5 | 4 | 2.5 | 50 | 4 | 6 | 0.1 | 1.45 | £34.81 | 5 days | |
| ESR7040100106S4 | 1 | 4 | 2 | 50 | 4 | 6 | 0.1 | 0.95 | £34.81 | 5 days | |
| ESR7040150204S4 | 1.5 | 4 | 2.5 | 50 | 4 | 4 | 0.2 | 1.45 | £34.81 | 5 days | |
| ESR7040100206S4 | 1 | 4 | 2 | 50 | 4 | 6 | 0.2 | 0.95 | £34.81 | 5 days | |
| ESR7040150206S4 | 1.5 | 4 | 2.5 | 50 | 4 | 6 | 0.2 | 1.45 | £34.81 | 5 days | |
| ESR7040100103S4 | 1 | 4 | 2 | 50 | 4 | 3 | 0.1 | 0.95 | £34.81 | 5 days | |
| ESR7040100304S4 | 1 | 4 | 2 | 50 | 4 | 4 | 0.3 | 0.95 | £34.81 | 5 days | |
| ESR7040100204S4 | 1 | 4 | 2 | 50 | 4 | 4 | 0.2 | 0.95 | £34.81 | 5 days | |
| ESR7040100203S4 | 1 | 4 | 2 | 50 | 4 | 3 | 0.2 | 0.95 | £34.81 | 5 days | |
| ESR7040150304S4 | 1.5 | 4 | 2.5 | 50 | 4 | 4 | 0.3 | 1.45 | £34.81 | 5 days | |
| ESR7040150306S4 | 1.5 | 4 | 2.5 | 50 | 4 | 6 | 0.3 | 1.45 | £34.81 | 5 days | |
| ESR7040200106S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.1 | 1.9 | £34.81 | 5 days | |
| ESR7040200108S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.1 | 1.9 | £34.81 | 5 days | |
| ESR7040200208S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.2 | 1.9 | £34.81 | 5 days | |
| ESR7040150104S4 | 1.5 | 4 | 2.5 | 50 | 4 | 4 | 0.1 | 1.45 | £34.81 | 5 days | |
| ESR7040200208 | 2 | 4 | 3 | 50 | 6 | 8 | 0.2 | 1.9 | £37.83 | 5 days | |
| ESR7040250106S4 | 2.5 | 4 | 3.5 | 50 | 4 | 6 | 0.1 | 2.4 | £34.81 | 5 days | |
| ESR7040200210 | 2 | 4 | 3 | 50 | 6 | 10 | 0.2 | 1.9 | £37.83 | 5 days | |
| ESR7040200506S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.5 | 1.9 | £34.81 | 5 days | |
| ESR7040200212 Viewing | 2 | 4 | 3 | 50 | 6 | 12 | 0.2 | 1.9 | £40.37 | 5 days | |
| ESR7040200206S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.2 | 1.9 | £34.81 | 5 days | |
| ESR7040200508S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.5 | 1.9 | £34.81 | 5 days | |
| ESR7040200306S4 | 2 | 4 | 3 | 50 | 4 | 6 | 0.3 | 1.9 | £34.81 | 5 days | |
| ESR7040300110 | 3 | 4 | 4 | 55 | 6 | 10 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300210 | 3 | 4 | 4 | 55 | 6 | 10 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040200308S4 | 2 | 4 | 3 | 50 | 4 | 8 | 0.3 | 1.9 | £34.81 | 5 days | |
| ESR7040300112 | 3 | 4 | 4 | 55 | 6 | 12 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300116 | 3 | 4 | 4 | 55 | 6 | 16 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300120 | 3 | 4 | 4 | 60 | 6 | 20 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300208 | 3 | 4 | 4 | 55 | 6 | 8 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300216 | 3 | 4 | 4 | 55 | 6 | 16 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300108 | 3 | 4 | 4 | 55 | 6 | 8 | 0.1 | 2.9 | £37.83 | 5 days | |
| ESR7040300212 | 3 | 4 | 4 | 55 | 6 | 12 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300220 | 3 | 4 | 4 | 60 | 6 | 20 | 0.2 | 2.9 | £37.83 | 5 days | |
| ESR7040300309 | 3 | 4 | 4 | 55 | 6 | 9 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300312 | 3 | 4 | 4 | 55 | 6 | 12 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300310 | 3 | 4 | 4 | 55 | 6 | 10 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300316 | 3 | 4 | 4 | 55 | 6 | 16 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300508 | 3 | 4 | 4 | 55 | 6 | 8 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300320 | 3 | 4 | 4 | 60 | 6 | 20 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040300509 | 3 | 4 | 4 | 55 | 6 | 9 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300512 | 3 | 4 | 4 | 55 | 6 | 12 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300510 | 3 | 4 | 4 | 55 | 6 | 10 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300520 | 3 | 4 | 4 | 60 | 6 | 20 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040301008 | 3 | 4 | 4 | 55 | 6 | 8 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040300516 | 3 | 4 | 4 | 55 | 6 | 16 | 0.5 | 2.9 | £37.83 | 5 days | |
| ESR7040300308 | 3 | 4 | 4 | 55 | 6 | 8 | 0.3 | 2.9 | £37.83 | 5 days | |
| ESR7040301010 | 3 | 4 | 4 | 55 | 6 | 10 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040301012 | 3 | 4 | 4 | 55 | 6 | 12 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040301016 | 3 | 4 | 4 | 55 | 6 | 16 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040400112 | 4 | 4 | 6 | 55 | 6 | 12 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040301020 | 3 | 4 | 4 | 60 | 6 | 20 | 1 | 2.9 | £37.83 | 5 days | |
| ESR7040400110 | 4 | 4 | 6 | 55 | 6 | 10 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400116 | 4 | 4 | 6 | 55 | 6 | 16 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400125 | 4 | 4 | 6 | 60 | 6 | 25 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400120 | 4 | 4 | 6 | 60 | 6 | 20 | 0.1 | 3.8 | £37.83 | 5 days | |
| ESR7040400220 | 4 | 4 | 6 | 60 | 6 | 20 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400225 | 4 | 4 | 6 | 60 | 6 | 25 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400210 | 4 | 4 | 6 | 55 | 6 | 10 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400216 | 4 | 4 | 6 | 55 | 6 | 16 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400310 | 4 | 4 | 6 | 55 | 6 | 10 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400312 | 4 | 4 | 6 | 55 | 6 | 12 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400212 | 4 | 4 | 6 | 55 | 6 | 12 | 0.2 | 3.8 | £37.83 | 5 days | |
| ESR7040400316 | 4 | 4 | 6 | 55 | 6 | 16 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400325 | 4 | 4 | 6 | 60 | 6 | 25 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040400510 | 4 | 4 | 6 | 55 | 6 | 10 | 0.5 | 3.8 | £15.14 | In Stock | |
| ESR7040400512 | 4 | 4 | 6 | 55 | 6 | 12 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040400520 | 4 | 4 | 6 | 60 | 6 | 20 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040400516 | 4 | 4 | 6 | 55 | 6 | 16 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040400525 | 4 | 4 | 6 | 60 | 6 | 25 | 0.5 | 3.8 | £37.83 | 5 days | |
| ESR7040600220 | 6 | 4 | 9 | 60 | 6 | 20 | 0.2 | 5.8 | £37.83 | 5 days | |
| ESR7040400320 | 4 | 4 | 6 | 60 | 6 | 20 | 0.3 | 3.8 | £37.83 | 5 days | |
| ESR7040401025 | 4 | 4 | 6 | 60 | 6 | 25 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401012 | 4 | 4 | 6 | 55 | 6 | 12 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401010 | 4 | 4 | 6 | 55 | 6 | 10 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401016 | 4 | 4 | 6 | 55 | 6 | 16 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040401020 | 4 | 4 | 6 | 60 | 6 | 20 | 1 | 3.8 | £37.83 | 5 days | |
| ESR7040601020 | 6 | 4 | 9 | 60 | 6 | 20 | 1 | 5.8 | £15.14 | In Stock | |
| ESR7040800325 | 8 | 4 | 12 | 60 | 8 | 25 | 0.3 | 7.8 | £46.44 | 5 days | |
| ESR7040600520 | 6 | 4 | 9 | 60 | 6 | 20 | 0.5 | 5.8 | £37.83 | 5 days | |
| ESR7040600320 | 6 | 4 | 9 | 60 | 6 | 20 | 0.3 | 5.8 | £37.83 | 5 days | |
| ESR7040601520 | 6 | 4 | 9 | 60 | 6 | 20 | 1.5 | 5.8 | £37.83 | 5 days | |
| ESR7040602020 | 6 | 4 | 9 | 60 | 6 | 20 | 2 | 5.8 | £37.83 | 5 days | |
| ESR7040800225 | 8 | 4 | 12 | 60 | 8 | 25 | 0.2 | 7.8 | £46.44 | 5 days | |
| ESR7040800525 | 8 | 4 | 12 | 60 | 8 | 25 | 0.5 | 7.8 | £46.44 | 5 days | |
| ESR7040801525 | 8 | 4 | 12 | 60 | 8 | 25 | 1.5 | 7.8 | £46.44 | 5 days | |
| ESR7040801025 | 8 | 4 | 12 | 60 | 8 | 25 | 1 | 7.8 | £46.44 | 5 days | |
| ESR7041001032 | 10 | 4 | 15 | 70 | 10 | 32 | 1 | 9.7 | £64.31 | 5 days | |
| ESR7041000532 | 10 | 4 | 15 | 70 | 10 | 32 | 0.5 | 9.7 | £64.31 | 5 days | |
| ESR7040802025 | 8 | 4 | 12 | 60 | 8 | 25 | 2 | 7.8 | £46.44 | 5 days | |
| ESR7041001532 | 10 | 4 | 15 | 70 | 10 | 32 | 1.5 | 9.7 | £64.31 | 5 days | |
| ESR7041201038 | 12 | 4 | 18 | 80 | 12 | 38 | 1 | 11.7 | £91.60 | 5 days | |
| ESR7041200538 | 12 | 4 | 18 | 80 | 12 | 38 | 0.5 | 11.7 | £91.60 | 5 days | |
| ESR7041000232 | 10 | 4 | 15 | 70 | 10 | 32 | 0.2 | 9.7 | £64.31 | 5 days | |
| ESR7041002032 | 10 | 4 | 15 | 70 | 10 | 32 | 2 | 9.7 | £64.31 | 5 days | |
| ESR7041200338 | 12 | 4 | 18 | 80 | 12 | 38 | 0.3 | 11.7 | £36.64 | In Stock | |
| ESR7041000332 | 10 | 4 | 15 | 70 | 10 | 32 | 0.3 | 9.7 | £64.31 | 5 days | |
| ESR7041202038 | 12 | 4 | 18 | 80 | 12 | 38 | 2 | 11.7 | £91.60 | 5 days | |
| ESR7041201538 | 12 | 4 | 18 | 80 | 12 | 38 | 1.5 | 11.7 | £36.64 | In Stock |
