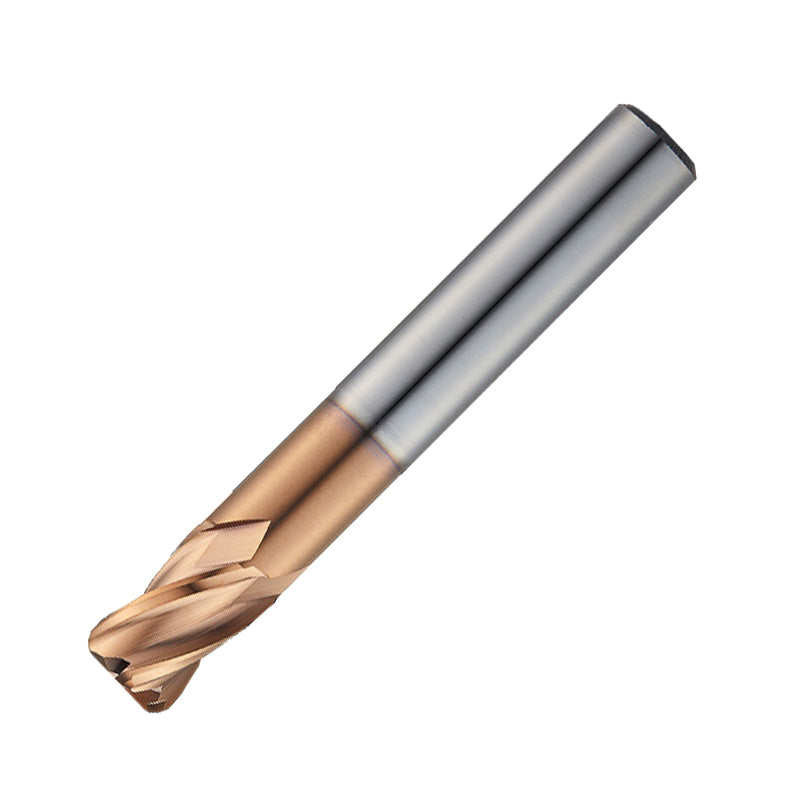

Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 2mm x 8mm x R0.5(4mm Shank)

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 2mm x 8mm x R0.5(4mm Shank)

Name: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 2mm x 8mm x R0.5(4mm Shank)
Brand: Widin
SKU: ESR7040200508S4
Price: 34.81 GBP
Availability: InStock

SKU:ESR7040200508S4

Material Compatibility

Specification

Cutter Diameter	2
Number of Flutes	4
Flute Length	3
Overall Length	50
Shank Diameter	4
Reach	8

View all specifications ↓

Download Cutting Data

£34.81

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Widin Carbide Corner Radius End Mill is a precision cutting tool designed for machinists working with hard materials, delivering clean corners and reliable radii for detailed, high-tidelity machining. This 2 mm diameter end mill features an 8 mm cutting length, a 0.5 mm corner radius, and a 4 mm shank, all in a sturdy 4-flute configuration. It’s part of the ZR704 family, which offers flexibility with corner radius sizes and effective lengths to suit varied applications.

Diameter: 2 mm
Cutting length: 8 mm (stub length)
Corner radius: R0.5 mm
Shank diameter: 4 mm
Flutes: 4
Material: Carbide
End mill type: Corner radius end mill for precise corners and smooth radii
Series: ZR704 family for flexible corner radii and effective lengths

Designed for efficiency in hard-to-cut materials, this carbide end mill maintains sharp edges and consistent radii through extended use. The 4-flute geometry supports steady material removal and a smoother surface finish on pockets, slots, and internal corners, while the stub-length design helps minimize tool deflection for better dimensional control in tight tolerances. Whether you’re finishing a precision mold, detailing automotive components, or refining small features in high-hardness alloys, this end mill delivers dependable performance with repeatable results. For best outcomes, pair with appropriate speeds and feeds and use proper clamping and coolant to maximize tool life and cut quality.

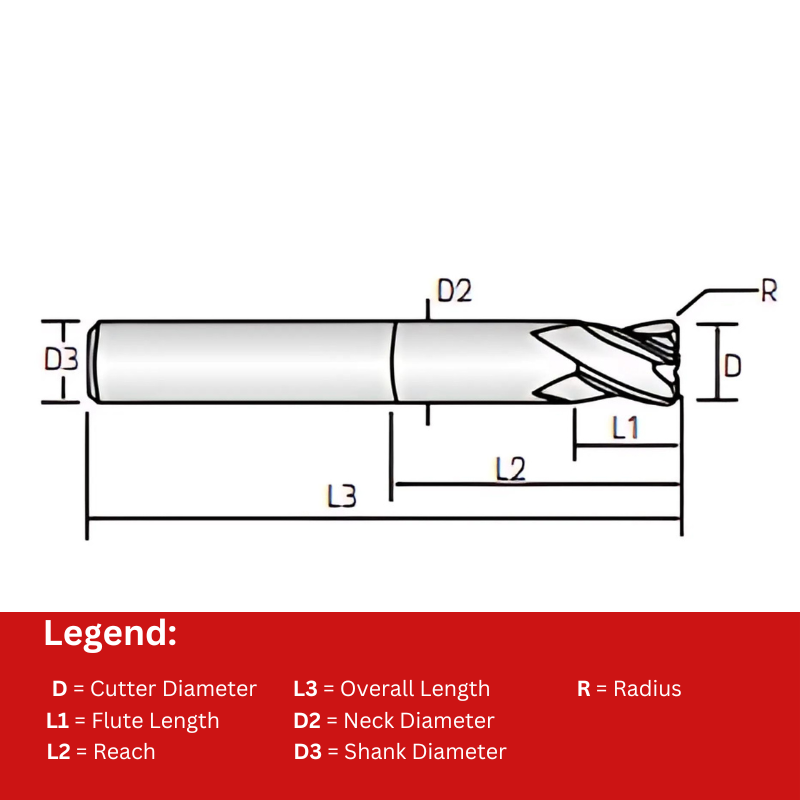

Cutter Diameter	2
Number of Flutes	4
Flute Length	3
Overall Length	50
Shank Diameter	4
Reach	8
Corner Radius	0.5
Neck Diameter	1.9

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZR704)

View full collection →

You are viewing ESR7040200508S4. Click any other SKU to view its full details.

Product SKU	Cutter Diameter	Number of Flutes	Flute Length	Overall Length	Shank Diameter	Reach	Corner Radius	Neck Diameter	Price	Stock

ESR7040100306S4	1	4	2	50	4	6	0.3	0.95	£34.81	5 days
ESR7040100303S4	1	4	2	50	4	3	0.3	0.95	£34.81	5 days
ESR7040100104S4	1	4	2	50	4	4	0.1	0.95	£34.81	5 days
ESR7040150106S4	1.5	4	2.5	50	4	6	0.1	1.45	£34.81	5 days
ESR7040100106S4	1	4	2	50	4	6	0.1	0.95	£34.81	5 days
ESR7040150204S4	1.5	4	2.5	50	4	4	0.2	1.45	£34.81	5 days
ESR7040100206S4	1	4	2	50	4	6	0.2	0.95	£34.81	5 days
ESR7040150206S4	1.5	4	2.5	50	4	6	0.2	1.45	£34.81	5 days
ESR7040100103S4	1	4	2	50	4	3	0.1	0.95	£34.81	5 days
ESR7040100304S4	1	4	2	50	4	4	0.3	0.95	£34.81	5 days
ESR7040100204S4	1	4	2	50	4	4	0.2	0.95	£34.81	5 days
ESR7040100203S4	1	4	2	50	4	3	0.2	0.95	£34.81	5 days
ESR7040150304S4	1.5	4	2.5	50	4	4	0.3	1.45	£34.81	5 days
ESR7040150306S4	1.5	4	2.5	50	4	6	0.3	1.45	£34.81	5 days
ESR7040200106S4	2	4	3	50	4	6	0.1	1.9	£34.81	5 days
ESR7040200108S4	2	4	3	50	4	8	0.1	1.9	£34.81	5 days
ESR7040200208S4	2	4	3	50	4	8	0.2	1.9	£34.81	5 days
ESR7040150104S4	1.5	4	2.5	50	4	4	0.1	1.45	£34.81	5 days
ESR7040200208	2	4	3	50	6	8	0.2	1.9	£37.83	5 days
ESR7040250106S4	2.5	4	3.5	50	4	6	0.1	2.4	£34.81	5 days
ESR7040200210	2	4	3	50	6	10	0.2	1.9	£37.83	5 days
ESR7040200506S4	2	4	3	50	4	6	0.5	1.9	£34.81	5 days
ESR7040200212	2	4	3	50	6	12	0.2	1.9	£40.37	5 days
ESR7040200206S4	2	4	3	50	4	6	0.2	1.9	£34.81	5 days
ESR7040200508S4 Viewing	2	4	3	50	4	8	0.5	1.9	£34.81	5 days
ESR7040200306S4	2	4	3	50	4	6	0.3	1.9	£34.81	5 days
ESR7040300110	3	4	4	55	6	10	0.1	2.9	£37.83	5 days
ESR7040300210	3	4	4	55	6	10	0.2	2.9	£37.83	5 days
ESR7040200308S4	2	4	3	50	4	8	0.3	1.9	£34.81	5 days
ESR7040300112	3	4	4	55	6	12	0.1	2.9	£37.83	5 days
ESR7040300116	3	4	4	55	6	16	0.1	2.9	£37.83	5 days
ESR7040300120	3	4	4	60	6	20	0.1	2.9	£37.83	5 days
ESR7040300208	3	4	4	55	6	8	0.2	2.9	£37.83	5 days
ESR7040300216	3	4	4	55	6	16	0.2	2.9	£37.83	5 days
ESR7040300108	3	4	4	55	6	8	0.1	2.9	£37.83	5 days
ESR7040300212	3	4	4	55	6	12	0.2	2.9	£37.83	5 days
ESR7040300220	3	4	4	60	6	20	0.2	2.9	£37.83	5 days
ESR7040300309	3	4	4	55	6	9	0.3	2.9	£37.83	5 days
ESR7040300312	3	4	4	55	6	12	0.3	2.9	£37.83	5 days
ESR7040300310	3	4	4	55	6	10	0.3	2.9	£37.83	5 days
ESR7040300316	3	4	4	55	6	16	0.3	2.9	£37.83	5 days
ESR7040300508	3	4	4	55	6	8	0.5	2.9	£37.83	5 days
ESR7040300320	3	4	4	60	6	20	0.3	2.9	£37.83	5 days
ESR7040300509	3	4	4	55	6	9	0.5	2.9	£37.83	5 days
ESR7040300512	3	4	4	55	6	12	0.5	2.9	£37.83	5 days
ESR7040300510	3	4	4	55	6	10	0.5	2.9	£37.83	5 days
ESR7040300520	3	4	4	60	6	20	0.5	2.9	£37.83	5 days
ESR7040301008	3	4	4	55	6	8	1	2.9	£37.83	5 days
ESR7040300516	3	4	4	55	6	16	0.5	2.9	£37.83	5 days
ESR7040300308	3	4	4	55	6	8	0.3	2.9	£37.83	5 days
ESR7040301010	3	4	4	55	6	10	1	2.9	£37.83	5 days
ESR7040301012	3	4	4	55	6	12	1	2.9	£37.83	5 days
ESR7040301016	3	4	4	55	6	16	1	2.9	£37.83	5 days
ESR7040400112	4	4	6	55	6	12	0.1	3.8	£37.83	5 days
ESR7040301020	3	4	4	60	6	20	1	2.9	£37.83	5 days
ESR7040400110	4	4	6	55	6	10	0.1	3.8	£37.83	5 days
ESR7040400116	4	4	6	55	6	16	0.1	3.8	£37.83	5 days
ESR7040400125	4	4	6	60	6	25	0.1	3.8	£37.83	5 days
ESR7040400120	4	4	6	60	6	20	0.1	3.8	£37.83	5 days
ESR7040400220	4	4	6	60	6	20	0.2	3.8	£37.83	5 days
ESR7040400225	4	4	6	60	6	25	0.2	3.8	£37.83	5 days
ESR7040400210	4	4	6	55	6	10	0.2	3.8	£37.83	5 days
ESR7040400216	4	4	6	55	6	16	0.2	3.8	£37.83	5 days
ESR7040400310	4	4	6	55	6	10	0.3	3.8	£37.83	5 days
ESR7040400312	4	4	6	55	6	12	0.3	3.8	£37.83	5 days
ESR7040400212	4	4	6	55	6	12	0.2	3.8	£37.83	5 days
ESR7040400316	4	4	6	55	6	16	0.3	3.8	£37.83	5 days
ESR7040400325	4	4	6	60	6	25	0.3	3.8	£37.83	5 days
ESR7040400510	4	4	6	55	6	10	0.5	3.8	~~£37.83~~ £15.14	In Stock
ESR7040400512	4	4	6	55	6	12	0.5	3.8	£37.83	5 days
ESR7040400520	4	4	6	60	6	20	0.5	3.8	£37.83	5 days
ESR7040400516	4	4	6	55	6	16	0.5	3.8	£37.83	5 days
ESR7040400525	4	4	6	60	6	25	0.5	3.8	£37.83	5 days
ESR7040600220	6	4	9	60	6	20	0.2	5.8	£37.83	5 days
ESR7040400320	4	4	6	60	6	20	0.3	3.8	£37.83	5 days
ESR7040401025	4	4	6	60	6	25	1	3.8	£37.83	5 days
ESR7040401012	4	4	6	55	6	12	1	3.8	£37.83	5 days
ESR7040401010	4	4	6	55	6	10	1	3.8	£37.83	5 days
ESR7040401016	4	4	6	55	6	16	1	3.8	£37.83	5 days
ESR7040401020	4	4	6	60	6	20	1	3.8	£37.83	5 days
ESR7040601020	6	4	9	60	6	20	1	5.8	~~£37.83~~ £15.14	In Stock
ESR7040800325	8	4	12	60	8	25	0.3	7.8	£46.44	5 days
ESR7040600520	6	4	9	60	6	20	0.5	5.8	£37.83	5 days
ESR7040600320	6	4	9	60	6	20	0.3	5.8	£37.83	5 days
ESR7040601520	6	4	9	60	6	20	1.5	5.8	£37.83	5 days
ESR7040602020	6	4	9	60	6	20	2	5.8	£37.83	5 days
ESR7040800225	8	4	12	60	8	25	0.2	7.8	£46.44	5 days
ESR7040800525	8	4	12	60	8	25	0.5	7.8	£46.44	5 days
ESR7040801525	8	4	12	60	8	25	1.5	7.8	£46.44	5 days
ESR7040801025	8	4	12	60	8	25	1	7.8	£46.44	5 days
ESR7041001032	10	4	15	70	10	32	1	9.7	£64.31	5 days
ESR7041000532	10	4	15	70	10	32	0.5	9.7	£64.31	5 days
ESR7040802025	8	4	12	60	8	25	2	7.8	£46.44	5 days
ESR7041001532	10	4	15	70	10	32	1.5	9.7	£64.31	5 days
ESR7041201038	12	4	18	80	12	38	1	11.7	£91.60	5 days
ESR7041200538	12	4	18	80	12	38	0.5	11.7	£91.60	5 days
ESR7041000232	10	4	15	70	10	32	0.2	9.7	£64.31	5 days
ESR7041002032	10	4	15	70	10	32	2	9.7	£64.31	5 days
ESR7041200338	12	4	18	80	12	38	0.3	11.7	~~£91.60~~ £36.64	In Stock
ESR7041000332	10	4	15	70	10	32	0.3	9.7	£64.31	5 days
ESR7041202038	12	4	18	80	12	38	2	11.7	£91.60	5 days
ESR7041201538	12	4	18	80	12	38	1.5	11.7	~~£91.60~~ £36.64	In Stock
