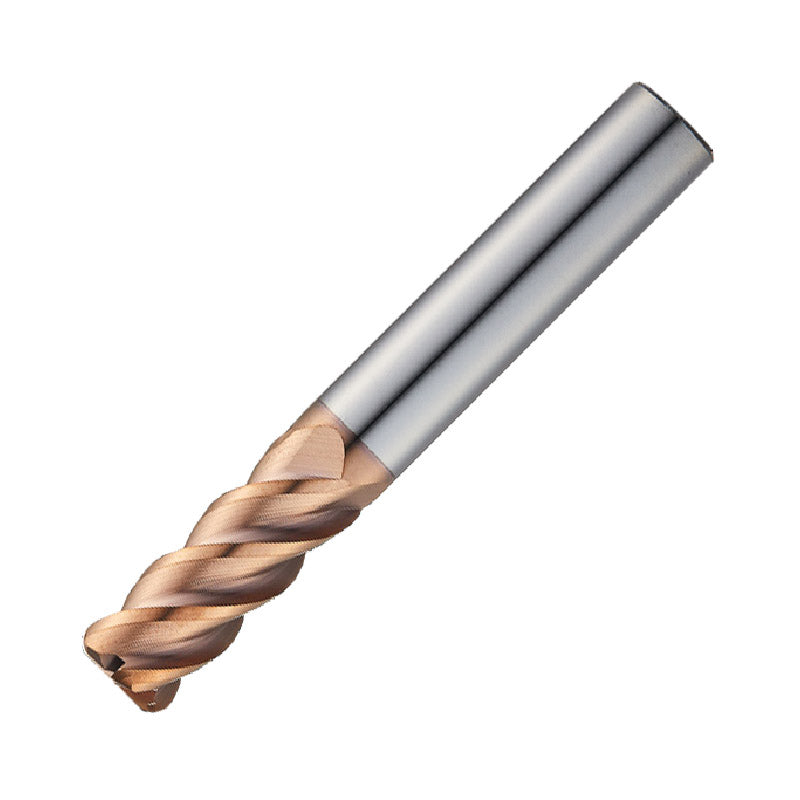

Widin Carbide Corner Radius End Mill - 4 Flute - 10mm x R1.0

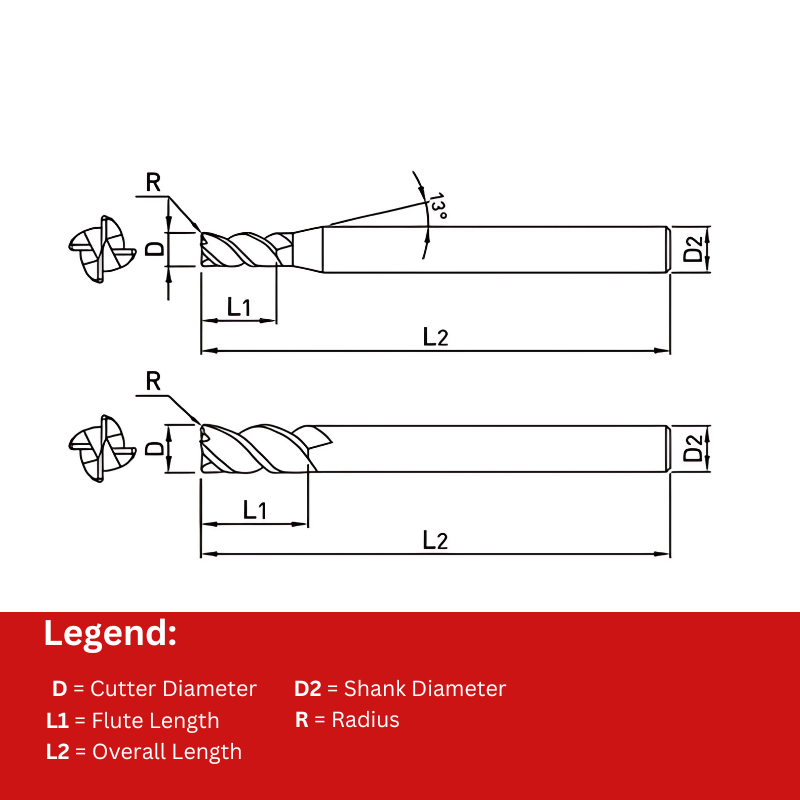

| Cutter Diameter | 10 |
| Number of Flutes | 4 |
| Flute Length | 25 |
| Overall Length | 60 |
| Shank Diameter | 10 |
| Corner Radius | 1 |
Learn more about Klarna
Widin's ZR714 Carbide Corner Radius End Mill is a precision cutting tool built for machinists who regularly tackle hardened materials and intricate radii. This 10 mm diameter, 4-flute end mill with a 1.0 mm corner radius is designed to deliver consistent, accurate results in demanding applications.
- Diameter: 10 mm
- Corner Radius: R1.0 (1.0 mm)
- Flutes: 4-flute design for efficient chip evacuation
- Helix: 45° helix supports high-speed cutting and stable feeds
- Material: Solid carbide end mill for rigidity and wear resistance
- Series: ZR714 family, engineered for high-hardness workpieces
- Shank: 10 mm shank for robust tool engagement
- Length Specifications: Length of cut 25 mm; Overall length 70 mm
- Hardness Capability: Designed to machine high-hardened materials (up to HRc70)
This end mill is tailored for applications that demand both speed and precision, from pocketing and contouring to intricate radii in hardened steels. The combination of a tight corner radius and a 45° helix enables efficient material removal while protecting workpiece geometry, helping you achieve clean corners and tight tolerances with fewer passes.
| Cutter Diameter | 10 |
| Number of Flutes | 4 |
| Flute Length | 25 |
| Overall Length | 60 |
| Shank Diameter | 10 |
| Corner Radius | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute (ZR714)
View full collection →You are viewing ESR7141010. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| ESR7140303 | 3 | 4 | 8 | 50 | 6 | 0.3 | £34.06 | 5 days | |
| ESR7140405 | 4 | 4 | 11 | 50 | 6 | 0.5 | £34.06 | 5 days | |
| ESR7140305 | 3 | 4 | 8 | 50 | 6 | 0.5 | £34.06 | 5 days | |
| ESR7140803 | 8 | 4 | 20 | 60 | 8 | 0.3 | £41.79 | 5 days | |
| ESR7141003 | 10 | 4 | 25 | 70 | 10 | 0.3 | £58.88 | 5 days | |
| ESR7140603 | 6 | 4 | 15 | 60 | 6 | 0.3 | £34.06 | 5 days | |
| ESR7140810 | 8 | 4 | 20 | 60 | 8 | 1 | £41.79 | 5 days | |
| ESR7140805 | 8 | 4 | 20 | 60 | 8 | 0.5 | £41.79 | 5 days | |
| ESR7140820 | 8 | 4 | 20 | 60 | 8 | 2 | £41.79 | 5 days | |
| ESR7140815 | 8 | 4 | 20 | 60 | 8 | 1.5 | £41.79 | 5 days | |
| ESR7140610 | 6 | 4 | 15 | 60 | 6 | 1 | £34.06 | 5 days | |
| ESR7140605 | 6 | 4 | 15 | 60 | 6 | 0.5 | £34.06 | 5 days | |
| ESR7140403 | 4 | 4 | 11 | 50 | 6 | 0.3 | £34.06 | 5 days | |
| ESR7140410 | 4 | 4 | 11 | 50 | 6 | 1 | £34.06 | 5 days | |
| ESR7141005 | 10 | 4 | 25 | 60 | 10 | 0.5 | £58.88 | 5 days | |
| ESR7141020 | 10 | 4 | 25 | 60 | 10 | 2 | £58.88 | 5 days | |
| ESR7141015 | 10 | 4 | 25 | 60 | 10 | 1.5 | £58.88 | 5 days | |
| ESR7141010 Viewing | 10 | 4 | 25 | 60 | 10 | 1 | £58.88 | 5 days | |
| ESR7141030 | 10 | 4 | 25 | 60 | 10 | 3 | £58.88 | 5 days | |
| ESR7141025 | 10 | 4 | 25 | 60 | 10 | 2.5 | £58.88 | 5 days | |
| ESR7141203 | 12 | 4 | 30 | 80 | 12 | 0.3 | £82.44 | 5 days | |
| ESR7141205 | 12 | 4 | 30 | 80 | 12 | 0.5 | £82.44 | 5 days | |
| ESR7141215 | 12 | 4 | 30 | 80 | 12 | 1.5 | £82.44 | 5 days | |
| ESR7141210 | 12 | 4 | 30 | 80 | 12 | 1 | £82.44 | 5 days | |
| ESR7141220 | 12 | 4 | 30 | 80 | 12 | 2 | £82.44 | 5 days | |
| ESR7141230 | 12 | 4 | 30 | 80 | 12 | 3 | £82.44 | 5 days | |
| ESR7141225 | 12 | 4 | 30 | 80 | 12 | 2.5 | £82.44 | 5 days |
