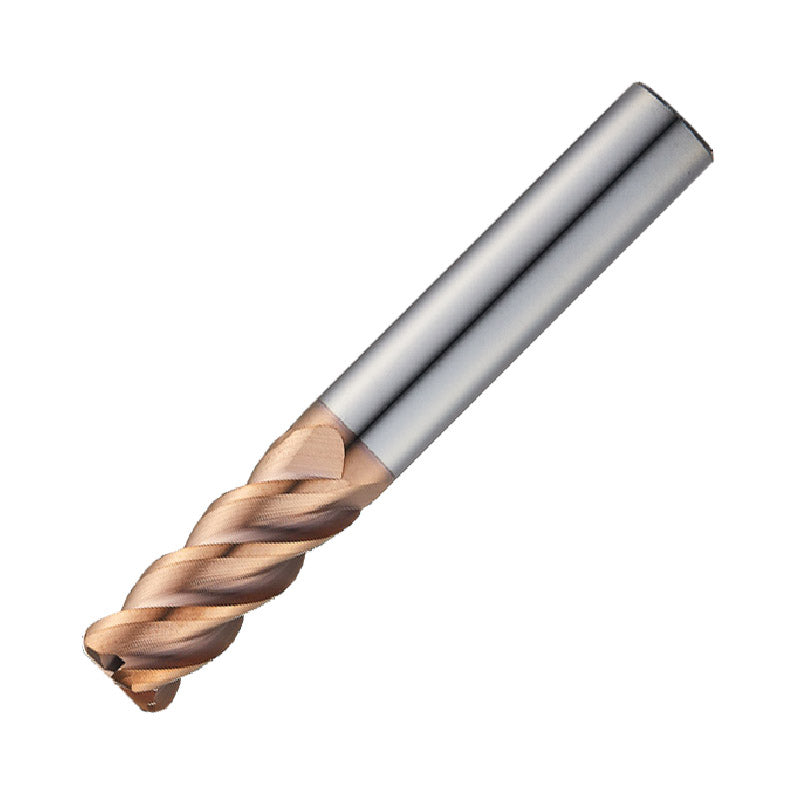

Widin Carbide Corner Radius End Mill - 4 Flute - 10mm x R3.0

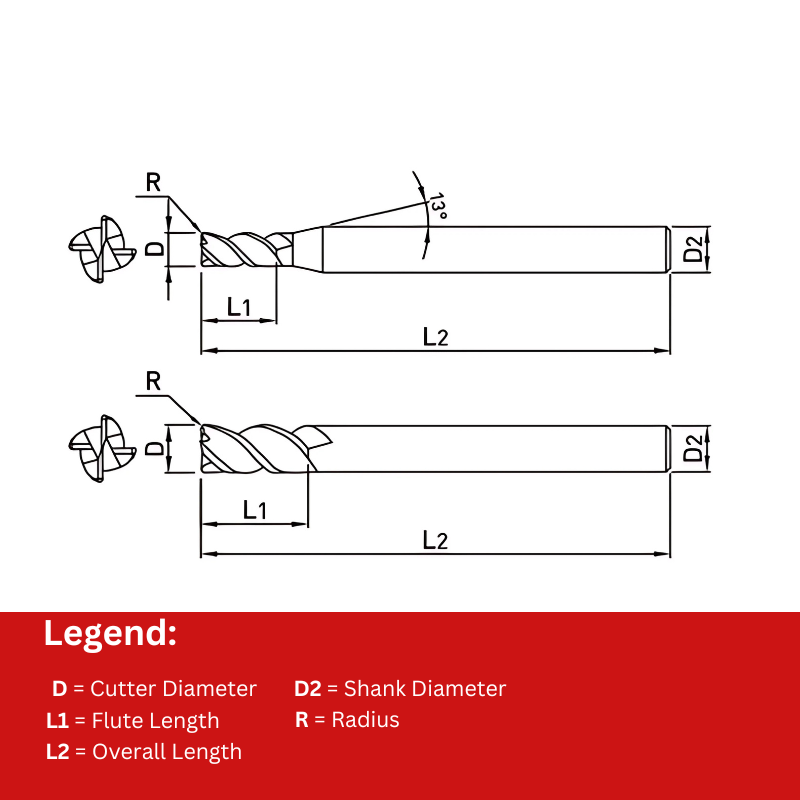

| Cutter Diameter | 10 |
| Number of Flutes | 4 |
| Flute Length | 25 |
| Overall Length | 60 |
| Shank Diameter | 10 |
| Corner Radius | 3 |
Learn more about Klarna
The Widin Carbide Corner Radius End Mill — 4 Flute — 10mm x R3.0 is built for machinists who demand steady performance when milling hard materials and tight radii. This solid carbide end mill combines robust cutting geometry with a 45° helix for fast, stable material removal.
- Diameter: 10 mm
- Corner Radius: R3.0
- Flute Count: 4-flute configuration
- Material: Solid carbide for rigidity and wear resistance
- Helix Angle: 45° for high-speed cutting and efficient chip removal
- Cutting Edge Geometry: Optimized to handle high hardness workpieces with stable, precise cuts
- Applications: Ideal for hardened metals, precision pockets, and detailed radii in molds and dies
Designed to tackle demanding milling tasks, this end mill delivers reliable cutting performance with reduced downtime. The corner radius supports smooth fillets and accurate interior corners, helping to minimize tool deflection and improve part quality. The 45° helix enhances chip evacuation and surface finish at higher feed rates, making it well-suited for production environments and intricate machining alike.
| Cutter Diameter | 10 |
| Number of Flutes | 4 |
| Flute Length | 25 |
| Overall Length | 60 |
| Shank Diameter | 10 |
| Corner Radius | 3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute (ZR714)
View full collection →You are viewing ESR7141030. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| ESR7140303 | 3 | 4 | 8 | 50 | 6 | 0.3 | £34.06 | 5 days | |
| ESR7140405 | 4 | 4 | 11 | 50 | 6 | 0.5 | £34.06 | 5 days | |
| ESR7140305 | 3 | 4 | 8 | 50 | 6 | 0.5 | £34.06 | 5 days | |
| ESR7140803 | 8 | 4 | 20 | 60 | 8 | 0.3 | £41.79 | 5 days | |
| ESR7141003 | 10 | 4 | 25 | 70 | 10 | 0.3 | £58.88 | 5 days | |
| ESR7140603 | 6 | 4 | 15 | 60 | 6 | 0.3 | £34.06 | 5 days | |
| ESR7140810 | 8 | 4 | 20 | 60 | 8 | 1 | £41.79 | 5 days | |
| ESR7140805 | 8 | 4 | 20 | 60 | 8 | 0.5 | £41.79 | 5 days | |
| ESR7140820 | 8 | 4 | 20 | 60 | 8 | 2 | £41.79 | 5 days | |
| ESR7140815 | 8 | 4 | 20 | 60 | 8 | 1.5 | £41.79 | 5 days | |
| ESR7140610 | 6 | 4 | 15 | 60 | 6 | 1 | £34.06 | 5 days | |
| ESR7140605 | 6 | 4 | 15 | 60 | 6 | 0.5 | £34.06 | 5 days | |
| ESR7140403 | 4 | 4 | 11 | 50 | 6 | 0.3 | £34.06 | 5 days | |
| ESR7140410 | 4 | 4 | 11 | 50 | 6 | 1 | £34.06 | 5 days | |
| ESR7141005 | 10 | 4 | 25 | 60 | 10 | 0.5 | £58.88 | 5 days | |
| ESR7141020 | 10 | 4 | 25 | 60 | 10 | 2 | £58.88 | 5 days | |
| ESR7141015 | 10 | 4 | 25 | 60 | 10 | 1.5 | £58.88 | 5 days | |
| ESR7141010 | 10 | 4 | 25 | 60 | 10 | 1 | £58.88 | 5 days | |
| ESR7141030 Viewing | 10 | 4 | 25 | 60 | 10 | 3 | £58.88 | 5 days | |
| ESR7141025 | 10 | 4 | 25 | 60 | 10 | 2.5 | £58.88 | 5 days | |
| ESR7141203 | 12 | 4 | 30 | 80 | 12 | 0.3 | £82.44 | 5 days | |
| ESR7141205 | 12 | 4 | 30 | 80 | 12 | 0.5 | £82.44 | 5 days | |
| ESR7141215 | 12 | 4 | 30 | 80 | 12 | 1.5 | £82.44 | 5 days | |
| ESR7141210 | 12 | 4 | 30 | 80 | 12 | 1 | £82.44 | 5 days | |
| ESR7141220 | 12 | 4 | 30 | 80 | 12 | 2 | £82.44 | 5 days | |
| ESR7141230 | 12 | 4 | 30 | 80 | 12 | 3 | £82.44 | 5 days | |
| ESR7141225 | 12 | 4 | 30 | 80 | 12 | 2.5 | £82.44 | 5 days |
