Widin | Authorised UK Distributor

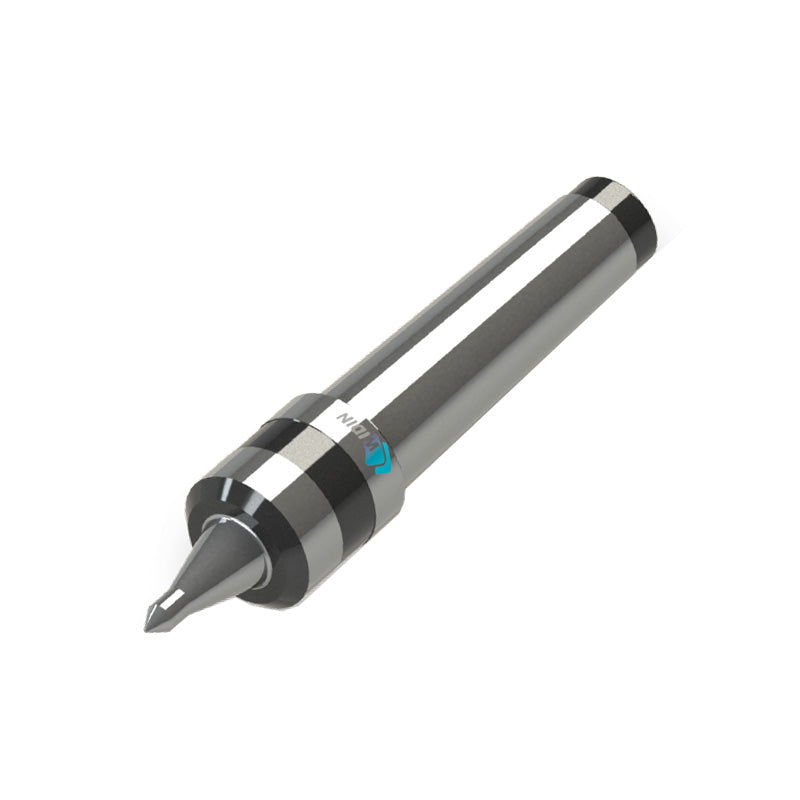

Widin Live Centre

Economical - Minimized Body For Less Interference - HDSTH Type

  • ECONOMICAL - MINIMIZED BODY FOR LESS BITE INTERFERANCE & CARBIDE TIPPED - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Wide range of uses and applications
  • CAP rotation type which prevents inflow of foreign substances Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

  • Starting from
    £99.86
    inc. VAT
    In this range
    12
    products
    In stock now
    0
    ready to dispatch
    Browse all 12 products

    Click any SKU to view full product details, specifications and datasheets.

    Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL b L2 L3 L4 L5 L L6 Price Stock Order
    LC-3HDSTH-06 MT3 36 12.6 18 3800 55 0.003 23.825 6 35 40.5 5 80.5 161.5 81 £100.71 5 days
    LC-3HDSTH-08 MT3 36 16.3 18 3800 55 0.003 23.825 8 35 40.5 5 80.5 161.5 81 £99.86 5 days
    LC-3HDSTH-10 MT3 36 20.1 18 3800 55 0.003 23.825 10 35 40.5 5 80.5 161.5 81 £99.86 5 days
    LC-3HDSTH-12 MT3 36 23.8 18 3800 55 0.003 23.825 12 35 40.5 5 80.5 161.5 81 £99.86 5 days
    LC-4HDSTH-06 MT4 38 10.1 20 3800 65 0.003 31.267 6 36.2 40.5 6 84.5 187 102.5 £108.39 5 days
    LC-4HDSTH-08 MT4 38 13.9 20 3800 65 0.003 31.267 8 36.2 40.5 6 84.5 187 102.5 £108.39 5 days
    LC-4HDSTH-10 MT4 38 17.6 20 3800 65 0.003 31.267 10 36.2 40.5 6 84.5 187 102.5 £108.39 5 days
    LC-4HDSTH-12 MT4 38 21.3 20 3800 65 0.003 31.267 12 36.2 40.5 6 84.5 187 102.5 £108.39 5 days
    LC-5HDSTH-06 MT5 64 13.4 24 3800 150 0.003 44.399 6 47 56.5 10 113.5 243 129.5 £226.65 5 days
    LC-5HDSTH-08 MT5 64 17.1 24 3800 150 0.003 44.399 8 47 56.5 10 113.5 243 129.5 £226.65 5 days
    LC-5HDSTH-10 MT5 64 20.8 24 3800 150 0.003 44.399 10 47 56.5 10 113.5 243 129.5 £226.65 5 days
    LC-5HDSTH-12 MT5 64 24.6 24 3800 150 0.003 44.399 12 47 56.5 10 113.5 243 129.5 £226.65 5 days
