Widin Live Centre - Economical - Minimized Body For Less Interference - HDSTH Type - NO.5 x 10
| Size | MT5 |
| Head Diameter | 64 |
| Point Length | 20.8 |
| Point Diameter | 24 |
Learn more about Klarna
Description

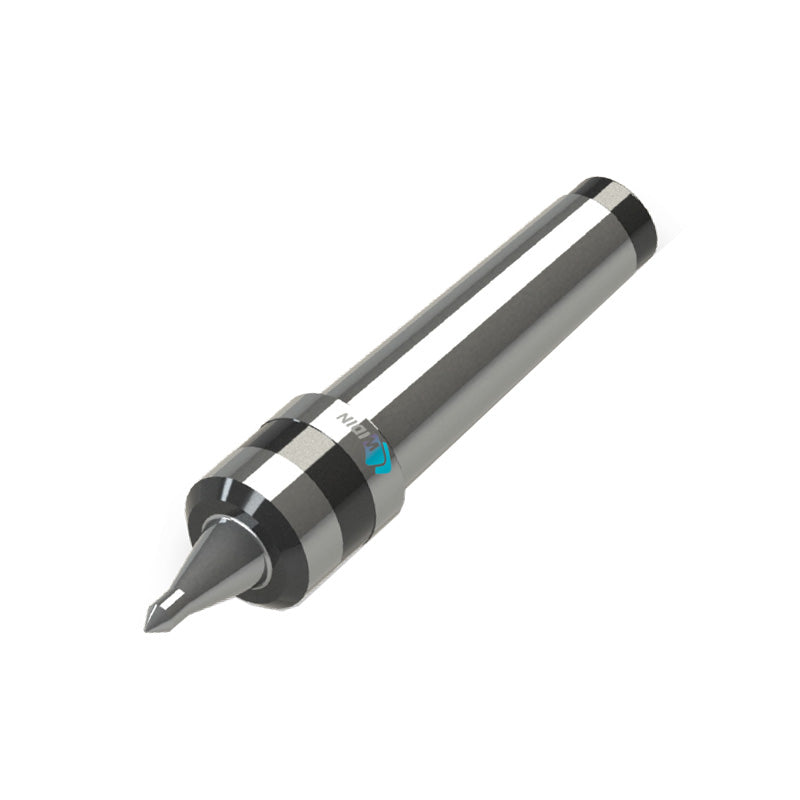

The Widin Live Centre is an economical carbide-tipped live center designed to minimize bite interference during turning. Its minimized body keeps the setup compact and reduces contact with neighboring tooling, helping you achieve cleaner finishes and steadier performance. This HDSTH type center is sized No.5 x 10 for broad compatibility with common lathes and jobs.
This center offers versatile Morse-taper options and a wide range of applications, including No. 3 and No. 6 tapers. The cap-rotation design helps prevent the inflow of foreign substances, keeping the bearing area cleaner and extending life in demanding shop environments.
- Economical, minimized body: Slim profile reduces interference with the workpiece and tooling, enabling tighter setups and cleaner finishes without sacrificing support.
- Carbide-tipped for durability: Hardened carbide tip provides long service life and stable support under demanding turning conditions.
- HDSTH Type with precise run-out: Compatible with Morse tapers No. 3 and No. 6, featuring ultra-tight run-out of 0.00012" to 0.00024" (0.003–0.006 mm) for repeatable, accurate results.
With the Widin Live Centre, you gain fast, reliable centering that enhances workflow, reduces rework, and delivers consistent part quality across a range of turning tasks. The combination of a minimized body, carbide durability, and precise run-out gives you confident performance from setup to finish, even in busy production environments.
Part Numbers
- Protool Part Number
- LC-5HDSTH-10
- Brand
- Widin
- Category
- Live Centre
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Live Centre - Economical - Minimized Body For Less Interference - HDSTH Type
View full collection →You are viewing LC-5HDSTH-10. Click any other SKU to view its full details.

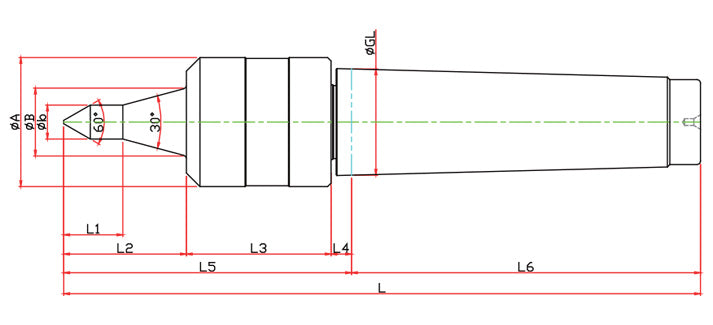

| Product SKU | Size | Head Diameter | Point Length | Point Diameter | Max RPM | Max Load | Concentricity | GL | b | L2 | L3 | L4 | L5 | L | L6 | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC-3HDSTH-06 | MT3 | 36 | 12.6 | 18 | 3800 | 55 | 0.003 | 23.825 | 6 | 35 | 40.5 | 5 | 80.5 | 161.5 | 81 | £94.85 | 5 days | |
| LC-3HDSTH-08 | MT3 | 36 | 16.3 | 18 | 3800 | 55 | 0.003 | 23.825 | 8 | 35 | 40.5 | 5 | 80.5 | 161.5 | 81 | £94.05 | 5 days | |
| LC-3HDSTH-10 | MT3 | 36 | 20.1 | 18 | 3800 | 55 | 0.003 | 23.825 | 10 | 35 | 40.5 | 5 | 80.5 | 161.5 | 81 | £94.05 | 5 days | |
| LC-3HDSTH-12 | MT3 | 36 | 23.8 | 18 | 3800 | 55 | 0.003 | 23.825 | 12 | 35 | 40.5 | 5 | 80.5 | 161.5 | 81 | £94.05 | 5 days | |
| LC-4HDSTH-06 | MT4 | 38 | 10.1 | 20 | 3800 | 65 | 0.003 | 31.267 | 6 | 36.2 | 40.5 | 6 | 84.5 | 187 | 102.5 | £102.08 | 5 days | |
| LC-4HDSTH-08 | MT4 | 38 | 13.9 | 20 | 3800 | 65 | 0.003 | 31.267 | 8 | 36.2 | 40.5 | 6 | 84.5 | 187 | 102.5 | £102.08 | 5 days | |
| LC-4HDSTH-10 | MT4 | 38 | 17.6 | 20 | 3800 | 65 | 0.003 | 31.267 | 10 | 36.2 | 40.5 | 6 | 84.5 | 187 | 102.5 | £102.08 | 5 days | |
| LC-4HDSTH-12 | MT4 | 38 | 21.3 | 20 | 3800 | 65 | 0.003 | 31.267 | 12 | 36.2 | 40.5 | 6 | 84.5 | 187 | 102.5 | £102.08 | 5 days | |
| LC-5HDSTH-06 | MT5 | 64 | 13.4 | 24 | 3800 | 150 | 0.003 | 44.399 | 6 | 47 | 56.5 | 10 | 113.5 | 243 | 129.5 | £213.46 | 5 days | |
| LC-5HDSTH-08 | MT5 | 64 | 17.1 | 24 | 3800 | 150 | 0.003 | 44.399 | 8 | 47 | 56.5 | 10 | 113.5 | 243 | 129.5 | £213.46 | 5 days | |
| LC-5HDSTH-10 Viewing | MT5 | 64 | 20.8 | 24 | 3800 | 150 | 0.003 | 44.399 | 10 | 47 | 56.5 | 10 | 113.5 | 243 | 129.5 | £213.46 | 5 days | |
| LC-5HDSTH-12 | MT5 | 64 | 24.6 | 24 | 3800 | 150 | 0.003 | 44.399 | 12 | 47 | 56.5 | 10 | 113.5 | 243 | 129.5 | £213.46 | 5 days |
