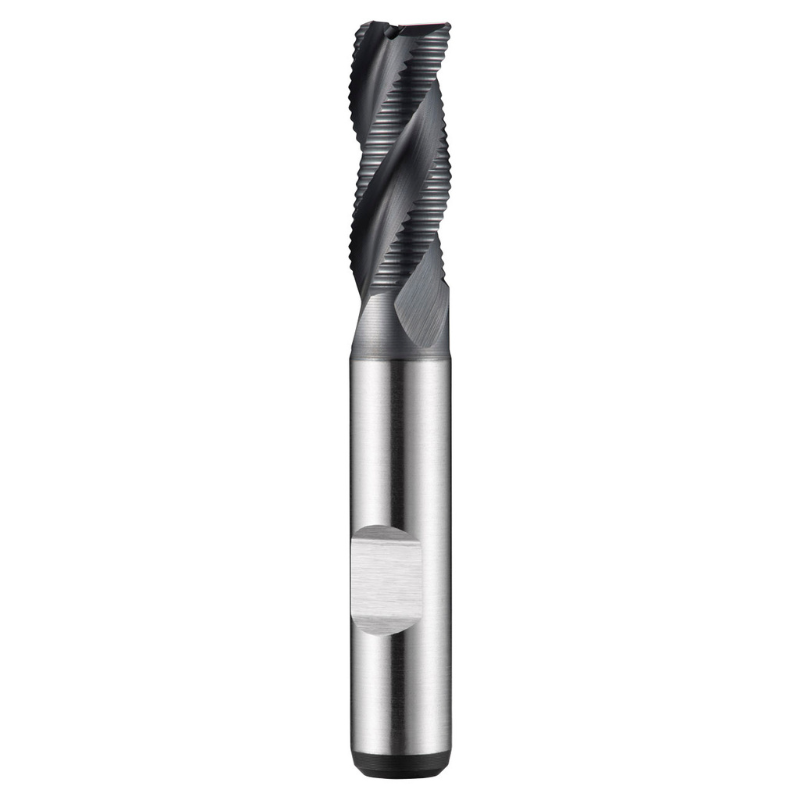

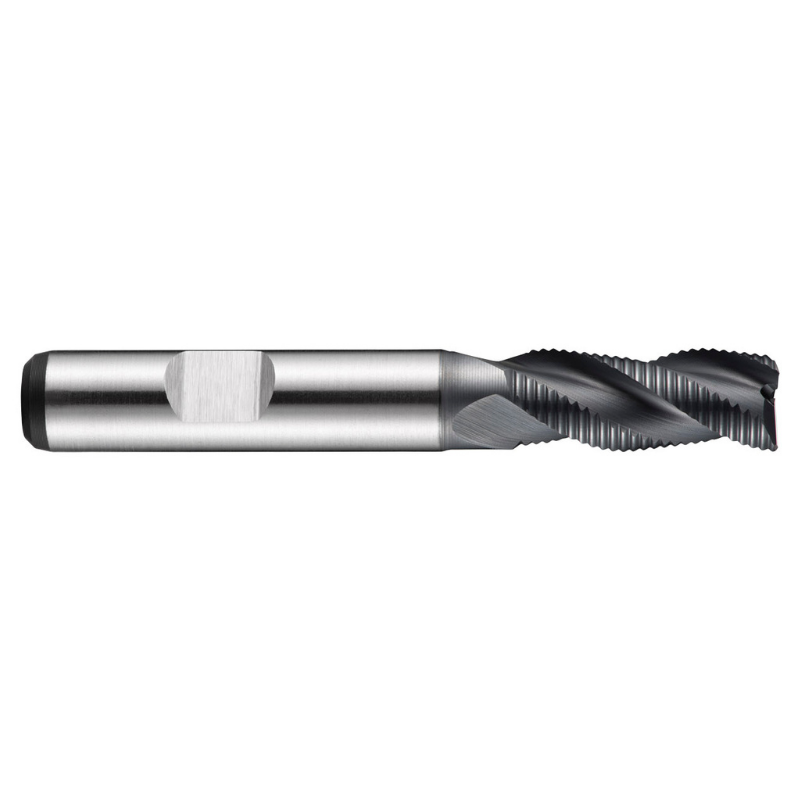

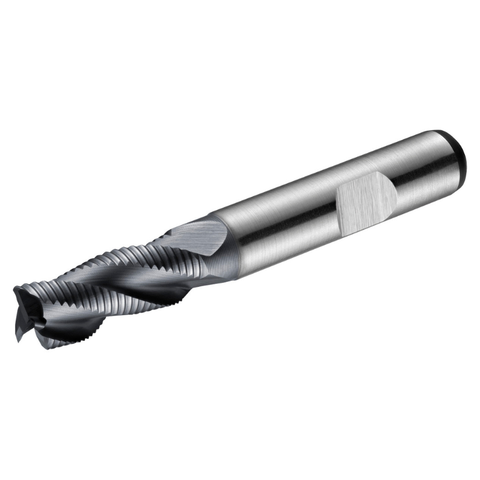

Dormer Pramet C922 12.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (HRA) Standard Length End Mill DIN 844 K

Engineered for aggressive material removal in tough metals, the Dormer Pramet C922 12.0mm HSS-E-Powder Metallurgy Alcrona Primax End Mill is a robust choice for precision roughing. Designed for shoulder milling, slot milling, and ramping, it delivers reliable performance in a range of demanding materials.

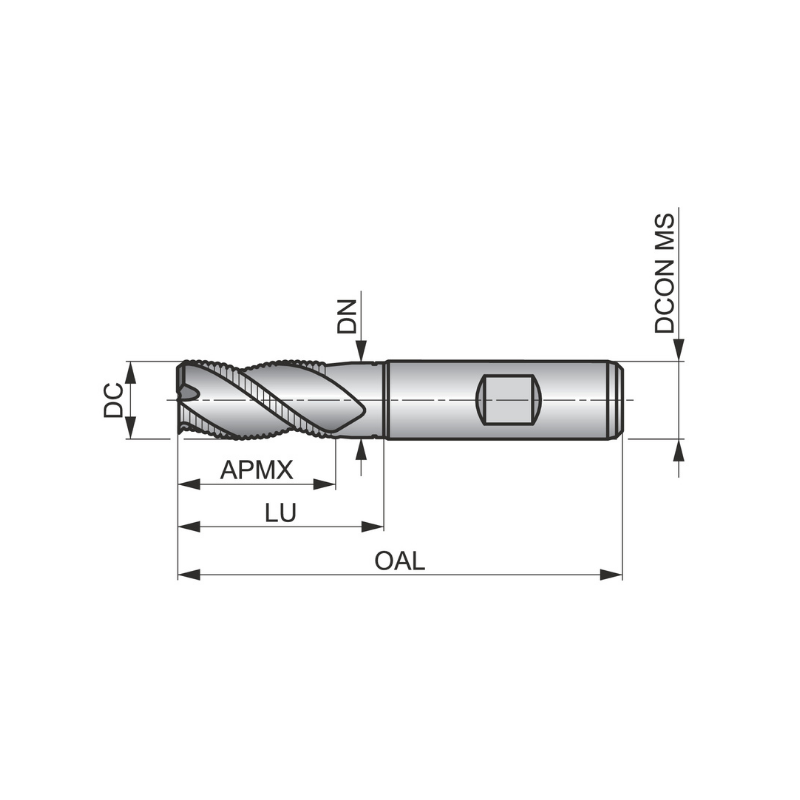

• Diameter: 12.0 mm
• Length of Cut: 26 mm
• Overall Length: 83 mm
• Reach / Neck Relief: 37.5 mm reach with neck relief
• Shank: 12 mm Weldon shank for secure clamping
• Flutes: 3
• Material & Coating: Powder-metallurgical HSS-E with Alcrona Primax coating
• Roughing Profile: HRA asymmetrical fine pitch for smooth cutting action
• Helix & Rake: 35° helix with 12° rake angle
• DIN Standard: DIN 844 K
• Applications: Shoulder milling, slot milling, and ramping in alloy and tool steel, stainless steel, cast iron, copper/copper alloys, and high-temperature alloys

This end mill is built to handle demanding roughing tasks with stability and precision. The asymmetrical fine-pitch HRA geometry helps balance cutting forces, reducing vibration, while the powder-metallurgical HSS-E base paired with the Alcrona Primax coating minimizes wear and heat generation. The 12 mm Weldon shank provides a rigid, repeatable grip, ensuring accuracy during deep pockets and complex ramping operations. With a 26 mm length of cut and 37.5 mm neck relief, you gain reach and clearance for intricate milling paths, all while adhering to the common DIN 844 K standard for broad compatibility in machine setups.
