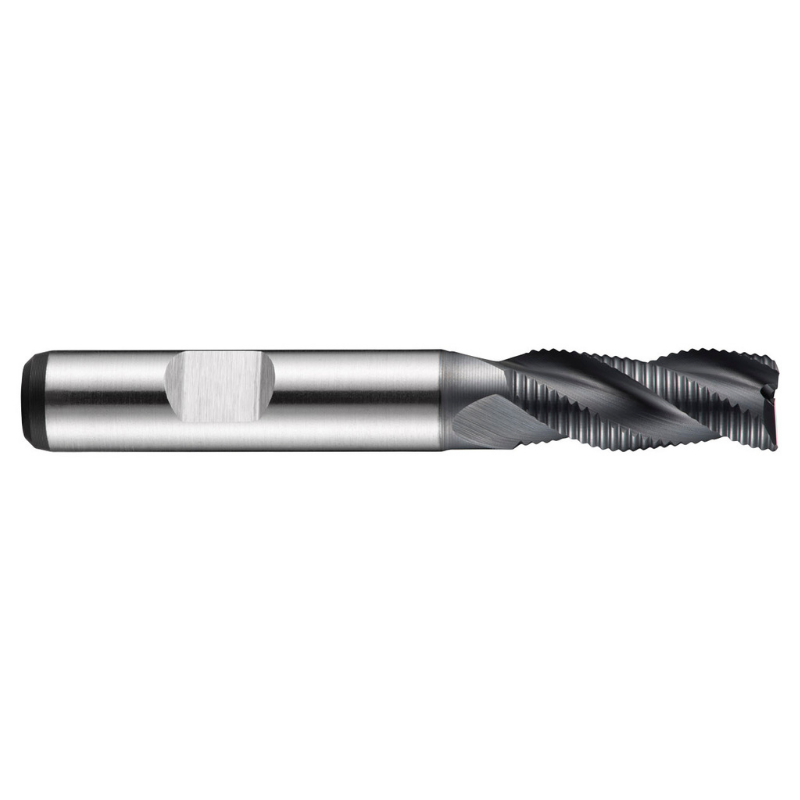

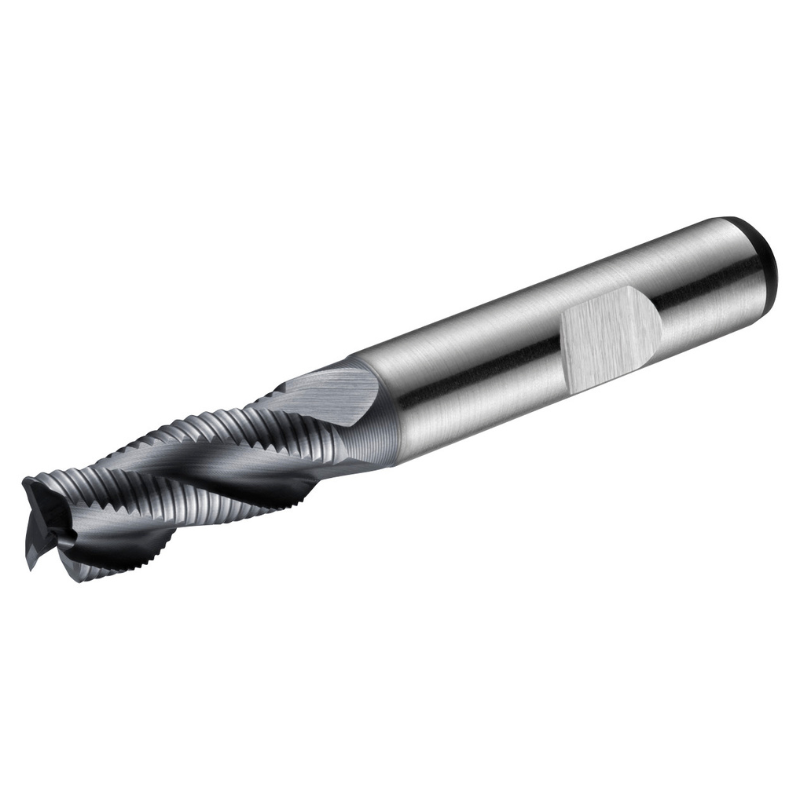

Dormer Pramet C922 24.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (HRA) Standard Length End Mill DIN 844 K

Engineered for heavy-duty roughing, the Dormer Pramet C922 24.0 mm HSS-E powder metallurgy end mill is built to deliver dependable performance in alloys and tool steels. This 4-flute cutter excels at shoulder milling, slot milling, and ramping, providing steady material removal and wear resistance across demanding applications.

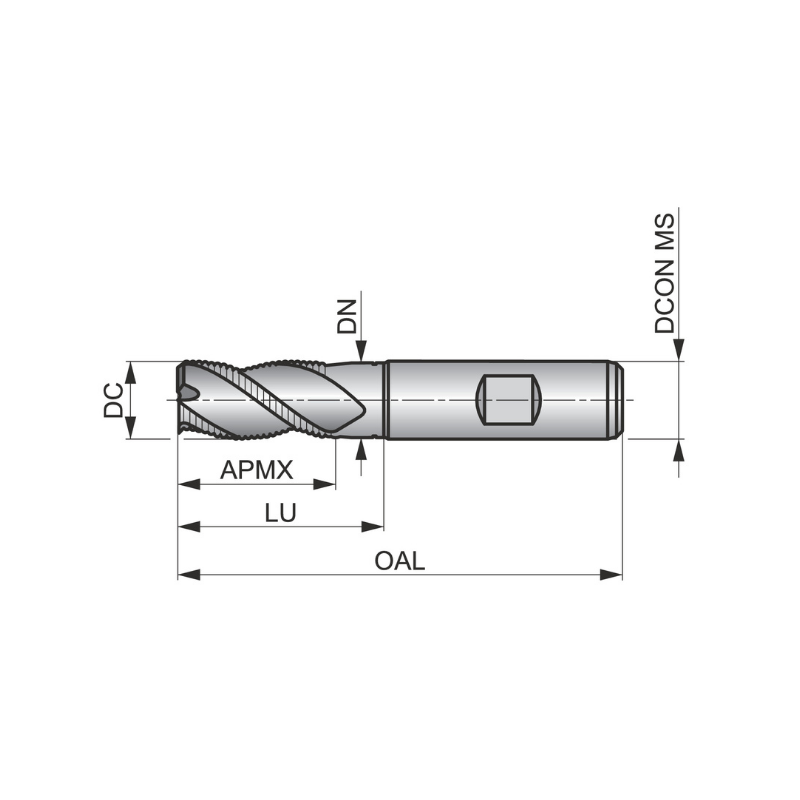

• Diameter: 24.0 mm
• Flute count: 4-flute roughing design
• Length of cut: 45 mm
• Overall length: 121 mm
• Reach / neck relief: 64.5 mm reach with neck relief
• Shank: Weldon 25 mm
• Material / coating: HSS-E powder metallurgy with Alcrona Primax coating
• Helix angle: 35°
• Rake angle: 12°
• Profile: HRA asymmetrical fine pitch
• Standard: DIN 844 K
• Primary applications: shoulder milling, slot milling, ramping
• Material compatibility: suitable for alloy and tool steels, stainless steels, cast iron, copper and copper alloys, and high-temperature alloys

The combination of powder-metallurgical HSS-E with the Alcrona Primax coating provides improved wear resistance and heat performance, helping extend tool life in tough materials. The 4-flute geometry offers efficient chip evacuation and steady cutting in heavy roughing passes, while the 35° helix and 12° rake angle contribute to smoother cutting action and better surface finishes. With a standard Weldon shank and DIN 844 K designation, this end mill integrates smoothly into existing tooling setups and high-capacity milling operations.
