Dormer Pramet C922 6.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (HRA) Standard Length End Mill DIN 844 K

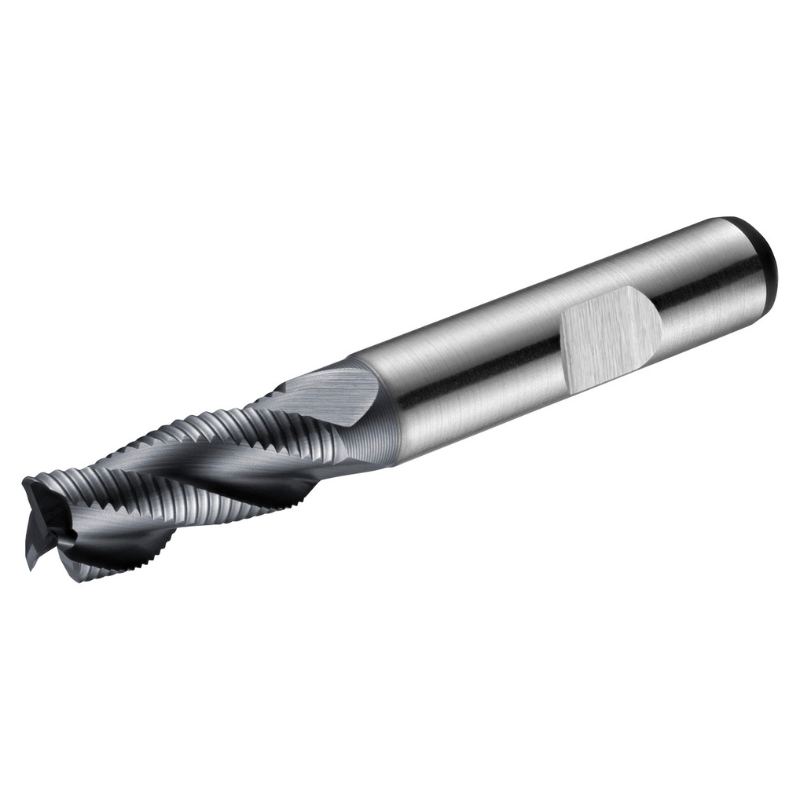

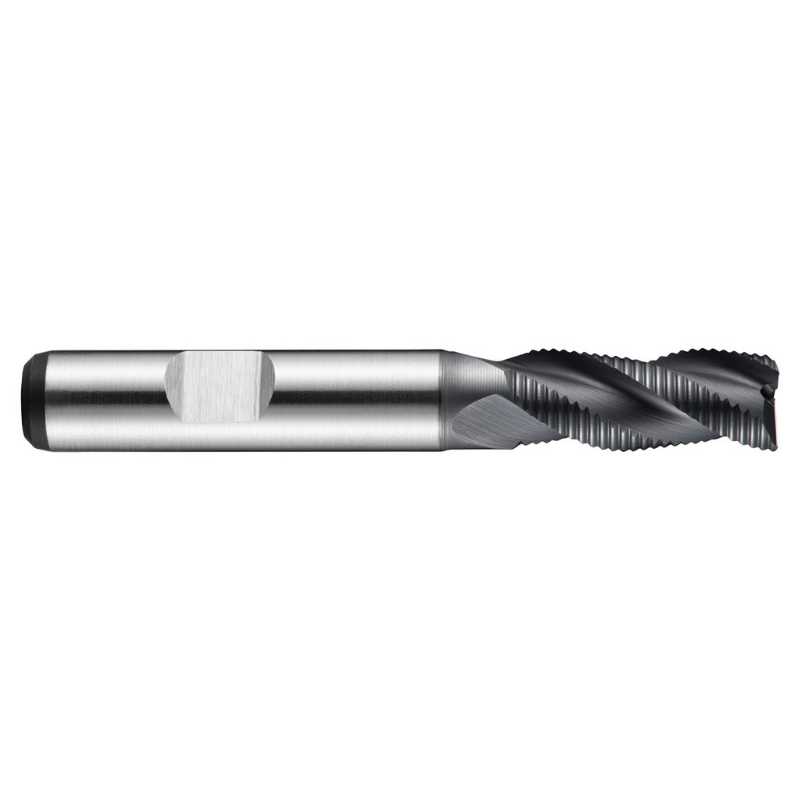

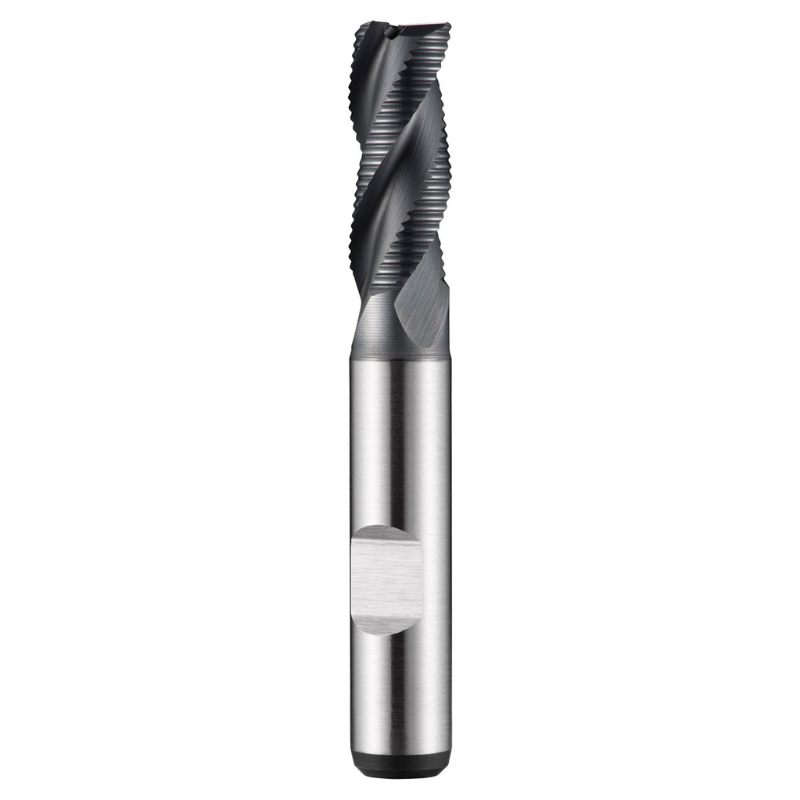

The Dormer Pramet C922 6.0 mm HSS-E-Powder Metallurgical Alcrona Primax flatted shank end mill is a compact roughing tool designed for shoulder milling, slot milling, and ramping in demanding metals. With a three-flute design and a solid Weldon shank, it delivers reliable, efficient material removal for CNC applications.

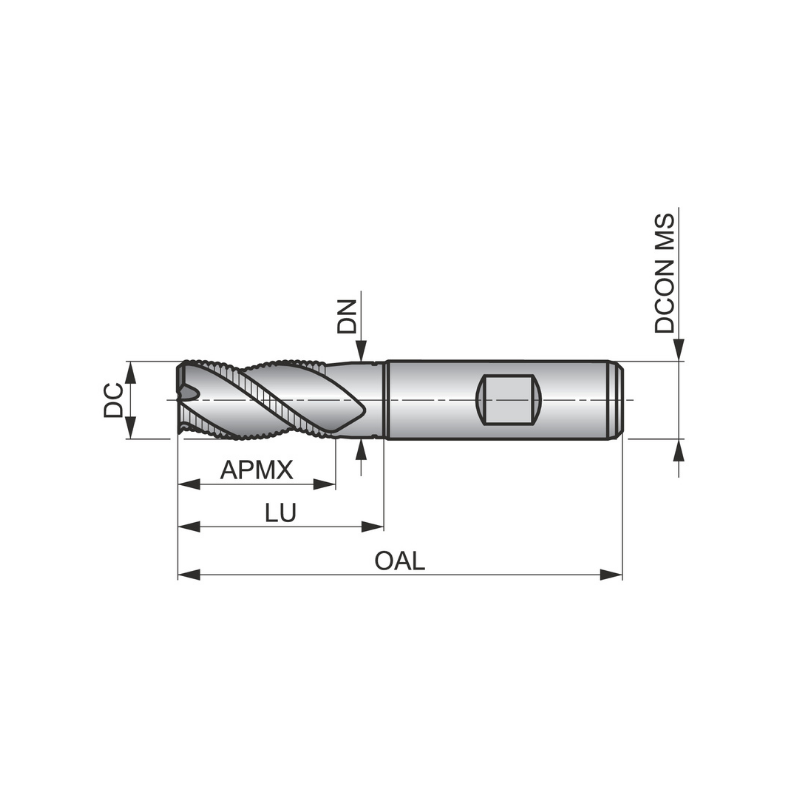

• Diameter: 6.0 mm
• Length of cut: 13 mm
• Overall length: 57 mm
• Shank: Flatted Weldon, 6 mm
• Number of flutes: 3
• Coating/material: HSS-E powder-metallurgical with Alcrona Primax
• Profile: HRA asymmetrical fine pitch
• Helix angle: 35°
• Rake angle: 12°
• Standard: DIN 844 K
• Applications: Shoulder milling, slot milling, ramping
• Material compatibility: Alloy and tool steel, stainless steel, cast iron, copper and copper alloys, and high-temperature alloys

The combination of a 3-flute geometry and an asymmetrical HRA fine-pitch profile enables efficient chip evacuation and steady cutting in tough materials, helping you reduce cycle times without sacrificing precision. The HSS-E powder metallurgical core provides enhanced toughness and wear resistance, while the Alcrona Primax coating minimizes built-up edge and heat during heavy roughing. The 35° helix improves chip flow in shoulder and slot milling, and the 12° rake angle supports stable plunging and ramping in challenging alloys. With DIN 844 K compatibility and a durable 6 mm Weldon shank, this end mill stays securely clamped for reliable performances in high-demand environments.
