Dormer Pramet C922 20.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (HRA) Standard Length End Mill DIN 844 K
| Cutter Diameter | 20 |
| Flute Length | 104 |
| Number of Flutes | 3 |
| Overall Length | 104 |
| Shank Diameter | 20 |
Learn more about Klarna

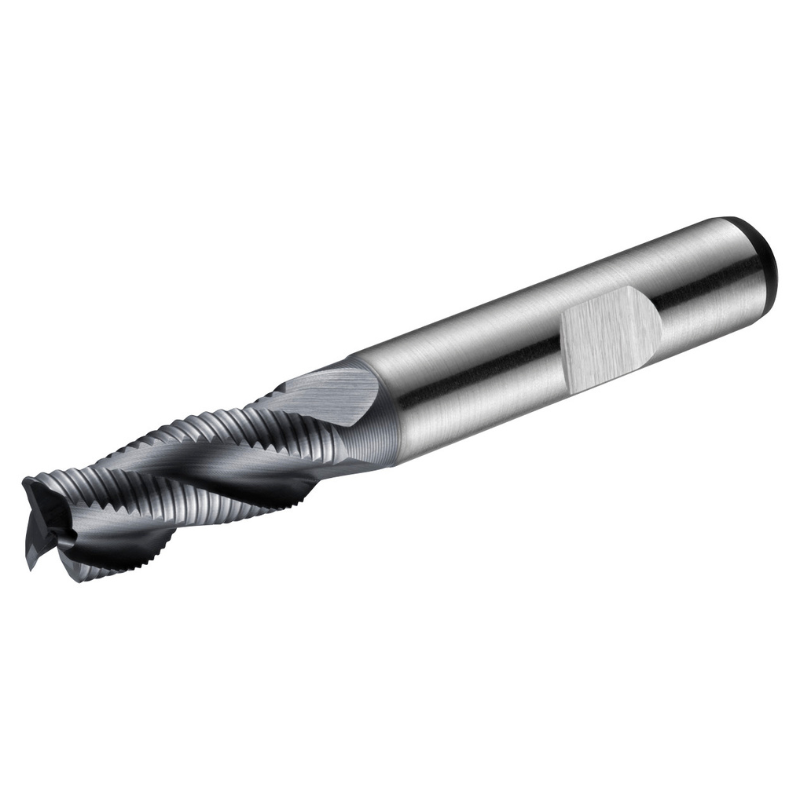

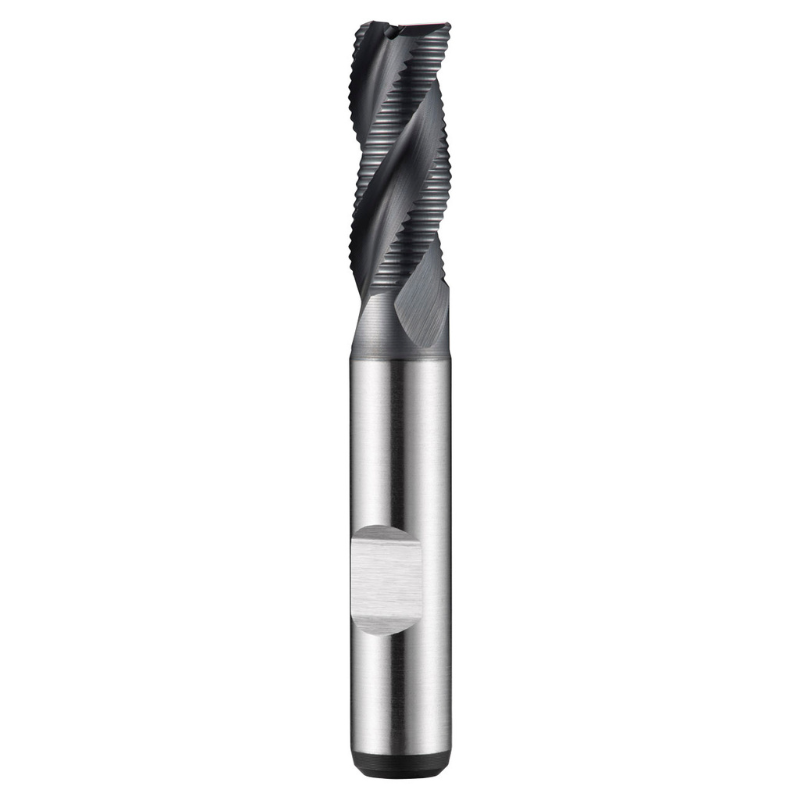

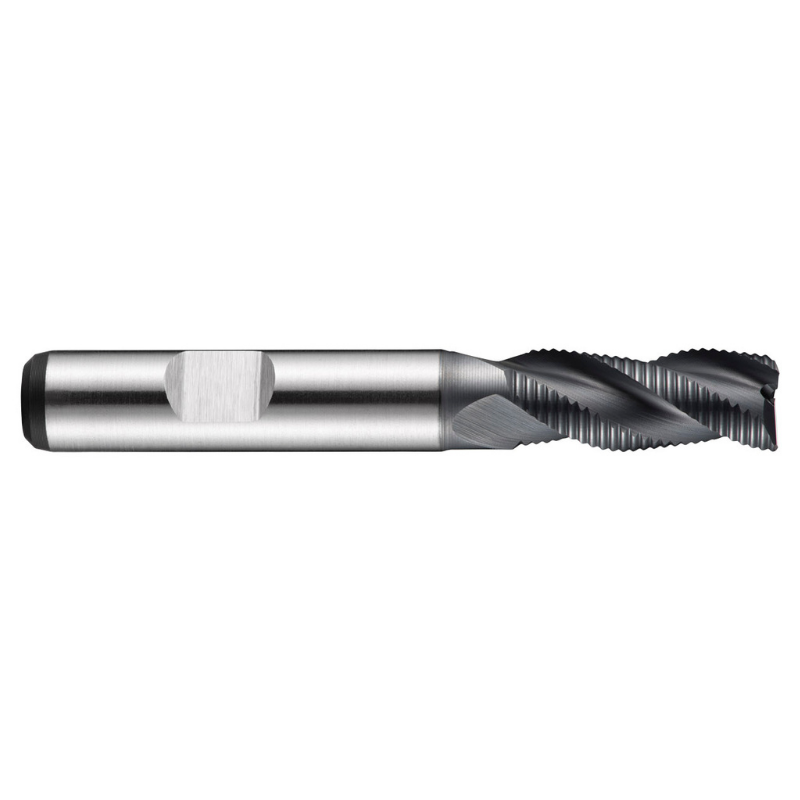

The Dormer Pramet C922 is a 20 mm diameter roughing end mill designed for aggressive material removal in demanding metals. Featuring a powder-metallurgical HSS-E core with Alcrona Primax coating and an HRA asymmetrical fine-pitch profile, it excels at shoulder milling, slot milling, and ramping across tough alloys.

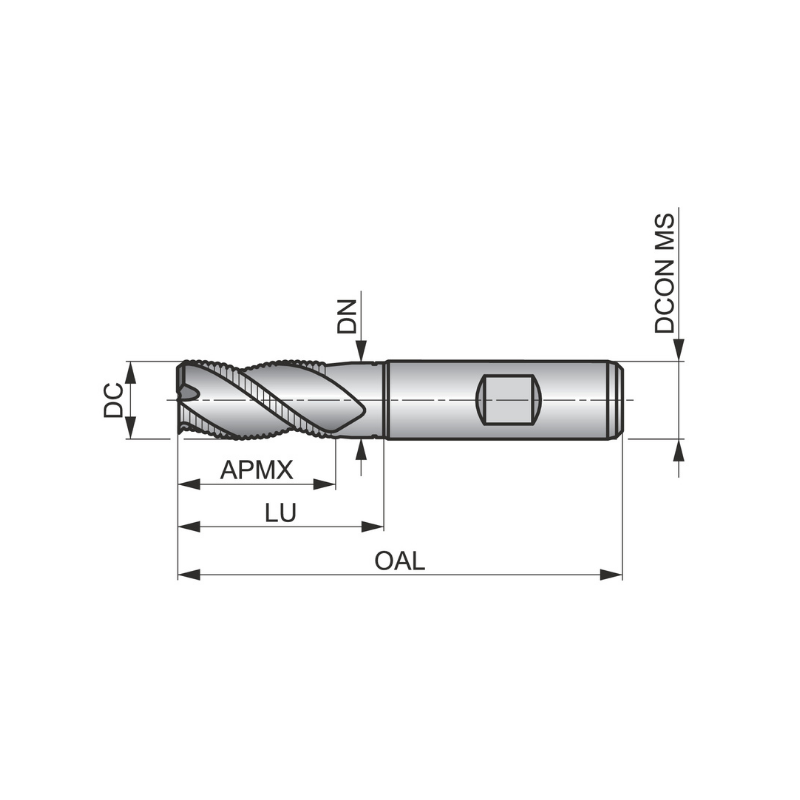

- Diameter: 20 mm
- Number of Flutes: 3
- Cutting Length: 38 mm
- Overall Length: 104 mm
- Reach with Neck Relief: 53.5 mm
- Shank: Weldon 20 mm
- Material & Coating: Powder-metallurgical HSS-E with Alcrona Primax coating
- Helix & Rake: 35° helix, 12° rake
- Profile: HRA asymmetrical fine-pitch
- DIN Standard: DIN 844 K
- Applications: Shoulder milling, slot milling, and ramping
- Material Range: Suitable for alloy and tool steel, stainless steel, cast iron, copper or copper alloys, and high-temperature alloys
Designed to deliver reliable and efficient performance in challenging milling tasks, the C922 supports steady chip formation and controlled cutting forces. The combination of a long reach with neck relief and a robust 3-flute geometry helps maintain productivity in deep pockets and tight cavities, while the Alcrona Primax coating reduces friction and enhances wear resistance for longer tool life in tough metals.
| Cutter Diameter | 20 |
| Flute Length | 104 |
| Number of Flutes | 3 |
| Overall Length | 104 |
| Shank Diameter | 20 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C922 HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (HRA) Standard Length End Mills DIN 844 K
View full collection →You are viewing DOR-C92220.0. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C9226.0 | 6 | 57 | 3 | 57 | 6 | £50.56 | 2 days | |
| DOR-C9227.0 | 7 | 66 | 3 | 66 | 10 | £66.56 | 2 days | |
| DOR-C9228.0 | 8 | 69 | 3 | 69 | 10 | £59.78 | 2 days | |
| DOR-C9229.0 | 9 | 69 | 3 | 69 | 10 | £72.50 | 2 days | |
| DOR-C92210.0 | 10 | 72 | 3 | 72 | 10 | £65.60 | 2 days | |
| DOR-C92211.0 | 11 | 79 | 3 | 79 | 12 | £85.50 | 2 days | |
| DOR-C92212.0 | 12 | 83 | 3 | 83 | 12 | £77.29 | 2 days | |
| DOR-C92213.0 | 13 | 83 | 3 | 83 | 12 | £103.28 | 2 days | |
| DOR-C92214.0 | 14 | 83 | 3 | 83 | 12 | £97.13 | 2 days | |
| DOR-C92215.0 | 15 | 83 | 3 | 83 | 12 | £114.91 | 2 days | |
| DOR-C92216.0 | 16 | 92 | 3 | 92 | 16 | £116.28 | 2 days | |
| DOR-C92218.0 | 18 | 92 | 3 | 92 | 16 | £132.01 | 2 days | |
| DOR-C92220.0 Viewing | 20 | 104 | 3 | 104 | 20 | £153.90 | 2 days | |
| DOR-C92222.0 | 22 | 104 | 3 | 104 | 20 | £185.36 | 2 days | |
| DOR-C92224.0 | 24 | 121 | 4 | 121 | 25 | £251.03 | 2 days |
