Dormer Pramet C922 9.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (HRA) Standard Length End Mill DIN 844 K

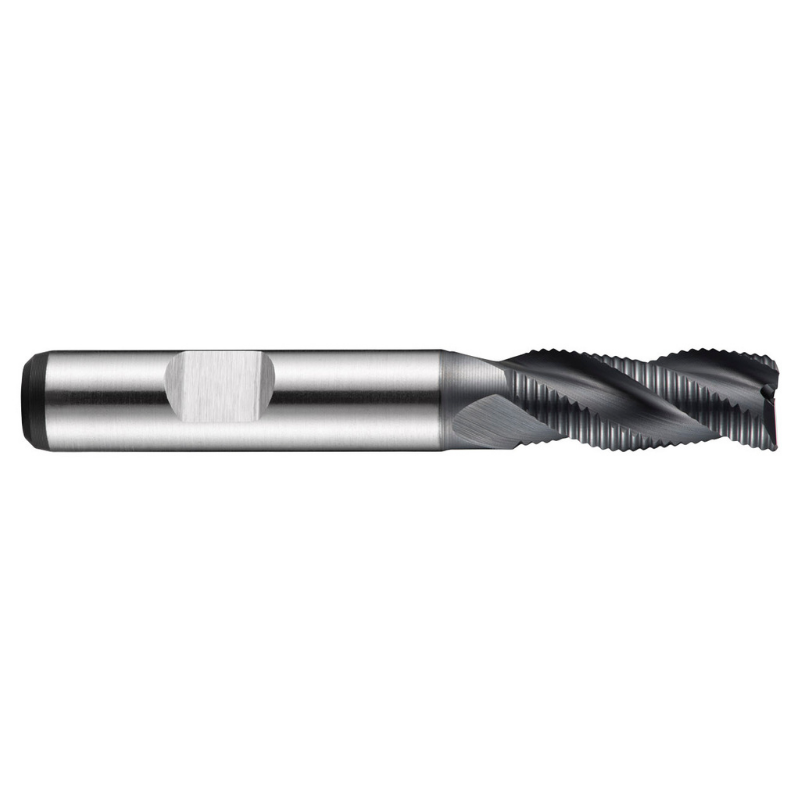

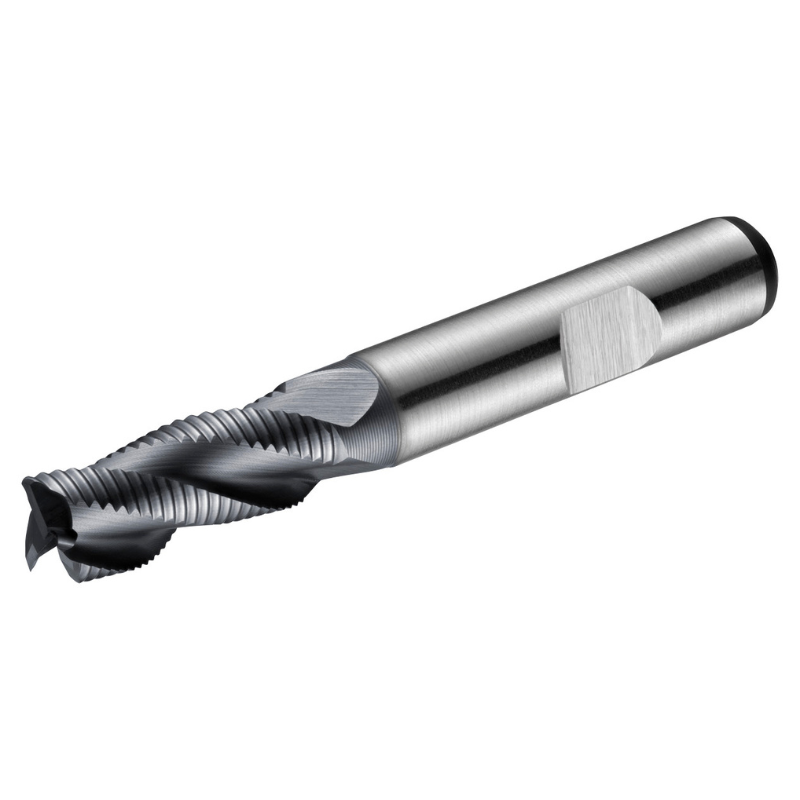

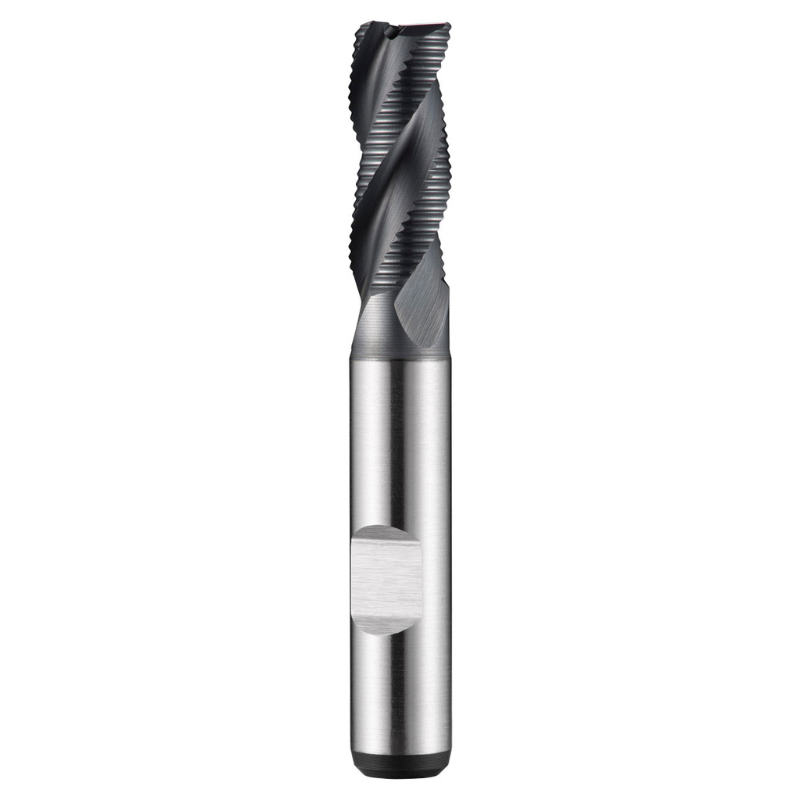

The Dormer Pramet C922 9.0 mm HSS-E powder metallurgy end mill with Alcrona Primax coating is a compact roughing tool designed for precise metal removal in shoulder milling, slot milling, and ramping. Built for reliable performance in tough materials, it delivers consistent results in everyday manufacturing environments.

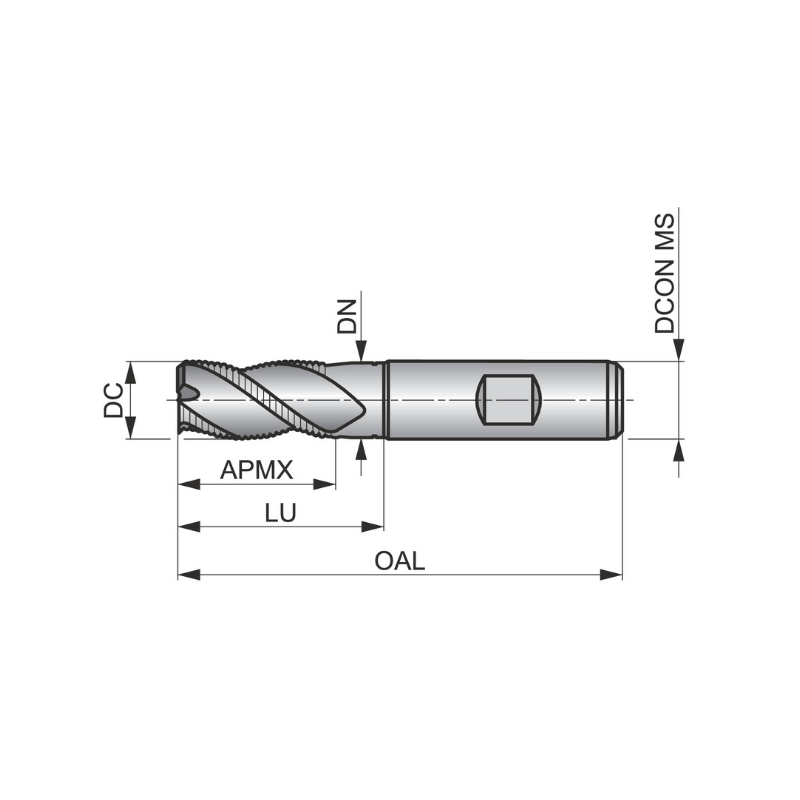

• Diameter: 9.0 mm
• Length of cut: 19 mm
• Overall length: 69 mm
• Shank: Weldon 10 mm shank with a flat for secure seating
• Material & coating: Powder-metallurgical HSS-E with Alcrona Primax coating
• Flutes: 3
• Cutting profile: Asymmetrical fine-pitch HRA for efficient roughing
• Helix & rake: 35° helix, 12° rake angle
• DIN standard: DIN 844 K compatibility
• Applications: Shoulder milling, slot milling, and ramping
• Material range: Suitable for alloy and tool steels, stainless steel, cast iron, copper and copper alloys, and high-temperature alloys

The tool’s 9.0 mm diameter and 19 mm length of cut provide controlled, efficient material removal with reduced deflection in confined spaces. Its 3-flute design strikes a balance between aggressive roughing and effective chip evacuation, helping maintain steady feeds and surface quality. The asymmetrical fine-pitch geometry (HRA) minimizes built-up edges and promotes smooth cutting action across a range of materials. A 35° helix enhances chip flow in deeper cuts, while the 12° rake angle supports edge stability during shoulder milling and ramping operations. The Weldon 10 mm shank with a flat ensures secure clamping in standard tool holders, enabling consistent performance in high-production setups. This end mill is well-suited for shops machining alloy and tool steels, stainless steels, cast iron, and copper-based alloys, including challenging high-temperature materials, where dependable roughing performance matters most.
