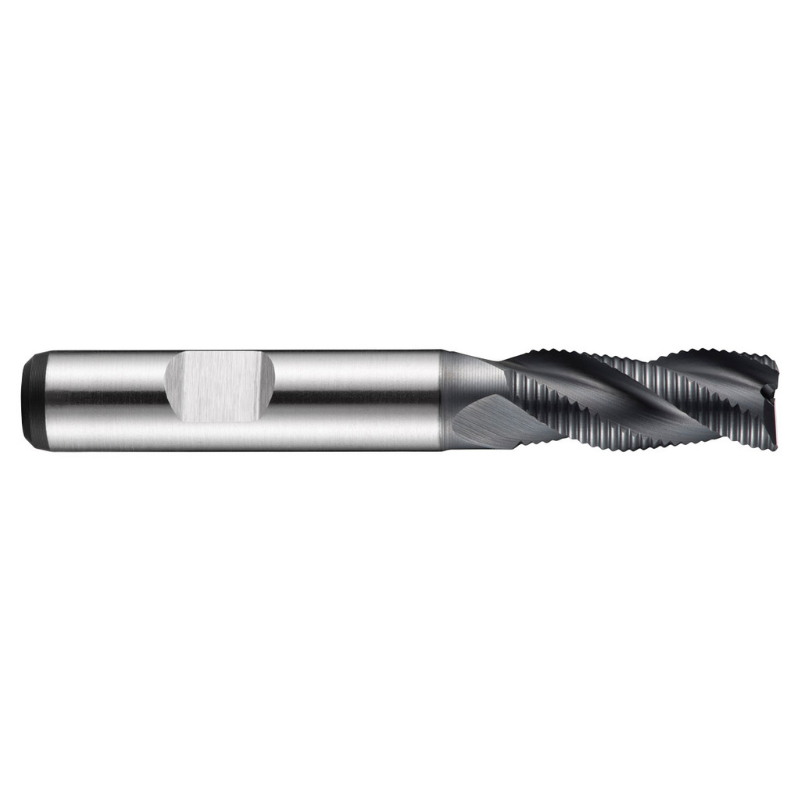

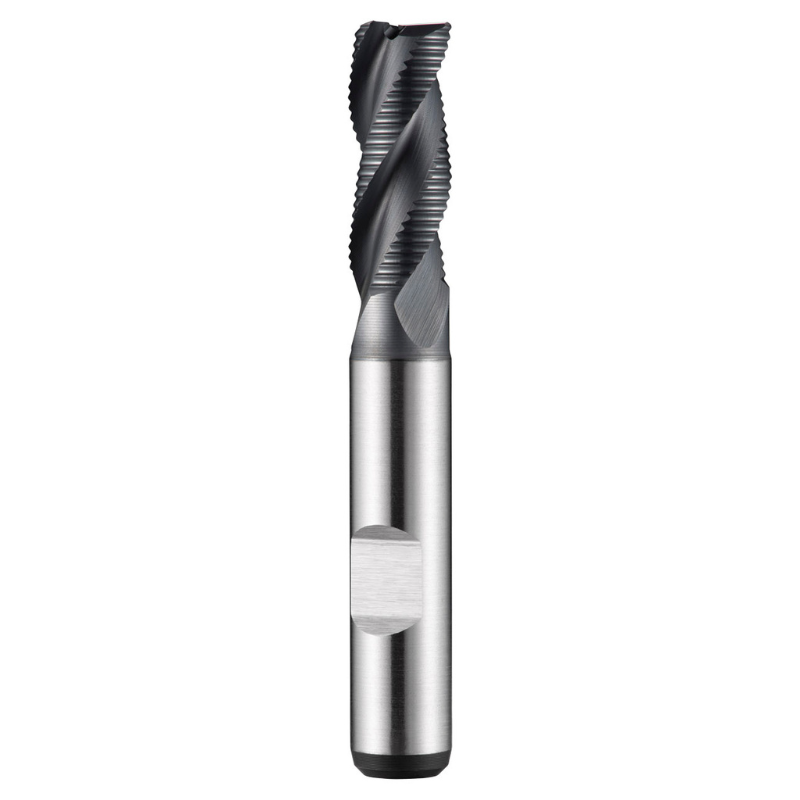

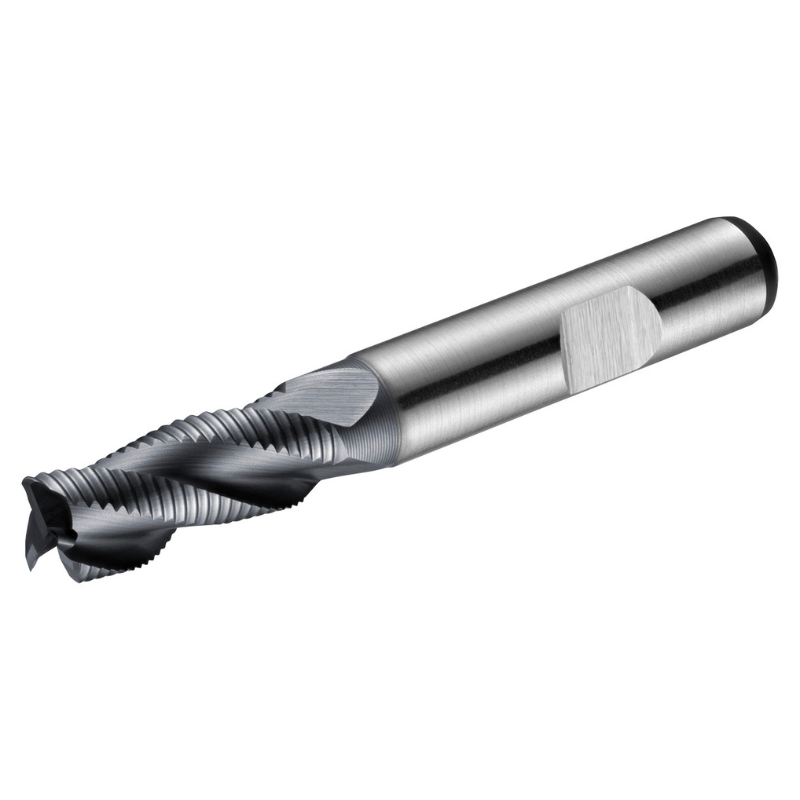

Dormer Pramet C922 15.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Roughing (HRA) Standard Length End Mill DIN 844 K

The Dormer Pramet C922 is a 15.0 mm diameter roughing end mill with a flatted 12 mm Weldon shank, designed for reliable shoulder, slot milling and ramping in a range of ferrous and non‑ferrous metals. It pairs a powder‑metallurgical HSS‑E substrate with an Alcrona Primax coating for durable cutting performance in demanding roughing applications.

• Diameter: 15.0 mm
• Number of Flutes: 3
• Length of Cut: 26 mm
• Overall Length: 83 mm
• Reach / Neck Relief: 37.5 mm reach with neck relief
• Shank: 12 mm Weldon shank, DIN 844 K
• Substrate & Coating: Powder-metallurgical HSS‑E with Alcrona Primax coating
• Helix & Rake: 35° helix and 12° rake angle
• Applications: Shoulder milling, slot milling and ramping in alloy steel, stainless steel, cast iron, copper or copper alloys, and high‑temperature alloys
• Standard / Tolerance: DIN 844 K

The C922’s asymmetrical fine‑pitch profile and 3‑flute geometry deliver strong material removal with controlled chip formation, making it a dependable choice for heavy roughing passes. The powder‑metallurgical HSS‑E substrate and Alcrona Primax coating resist wear under high cutting speeds and heavy loads, helping to extend tool life and maintain consistent performance across multiple operations. The flatted shank enhances rigidity in standard tool holders, while the extended reach and neck relief enable deeper pockets and shoulder work without interference. This end mill is well suited for production environments that machine a variety of materials—from alloy and stainless steels to cast iron and copper alloys—along with challenging high‑temperature alloys.
