Carmex Carbide Tiny Tool - Face Grooving - MFR - BMK Grade - 5mm Minimum Diameter x 0.75mm Groove Width
| Application | Face Grooving (MFR) |
| Minimum Diameter | 5 |
| Groove Width (B) | 0.75 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
Learn more about Klarna

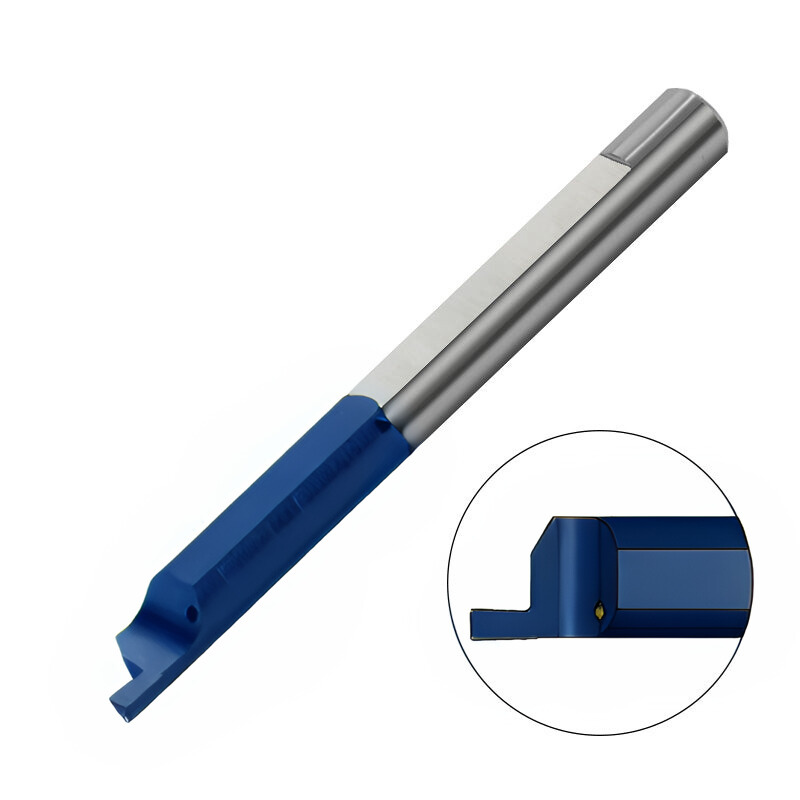

Introducing the Carmex Carbide Tiny Tool for Face Grooving. This solid carbide bar from the Tiny Tools family is engineered for face grooving applications and delivers true straight grooves with a 5 mm minimum diameter and a 0.75 mm groove width.
Configured as BMK grade, it combines sub-micron carbide with advanced PVD triple coating (ISO K10-K20) to deliver extremely high heat resistance and smooth cutting, enabling maximum performance across a wide range of materials.
- BMK Sub-Micron Grade with Triple PVD Coating: Sub-micron carbide with an advanced triple-layer PVD coating delivers outstanding heat resistance and a smooth cutting action, helping to extend tool life and maintain tight groove tolerances even during longer runs.
- Face Grooving Precision: Engineered specifically for face grooving, it produces true straight grooves for clean seating surfaces and reduced finishing work.
- All-Materials Versatility: General-purpose performance across materials, with reliable results on stainless steels and other alloys, making it a practical choice for mixed material runs and busy workshops.
This Tiny Tool provides consistent, dependable grooves that streamline your workflow, minimize rework, and help you hit tight tolerances with confidence. The 5 mm minimum diameter and 0.75 mm groove width fit common setups, delivering repeatable results from the first part to the last.

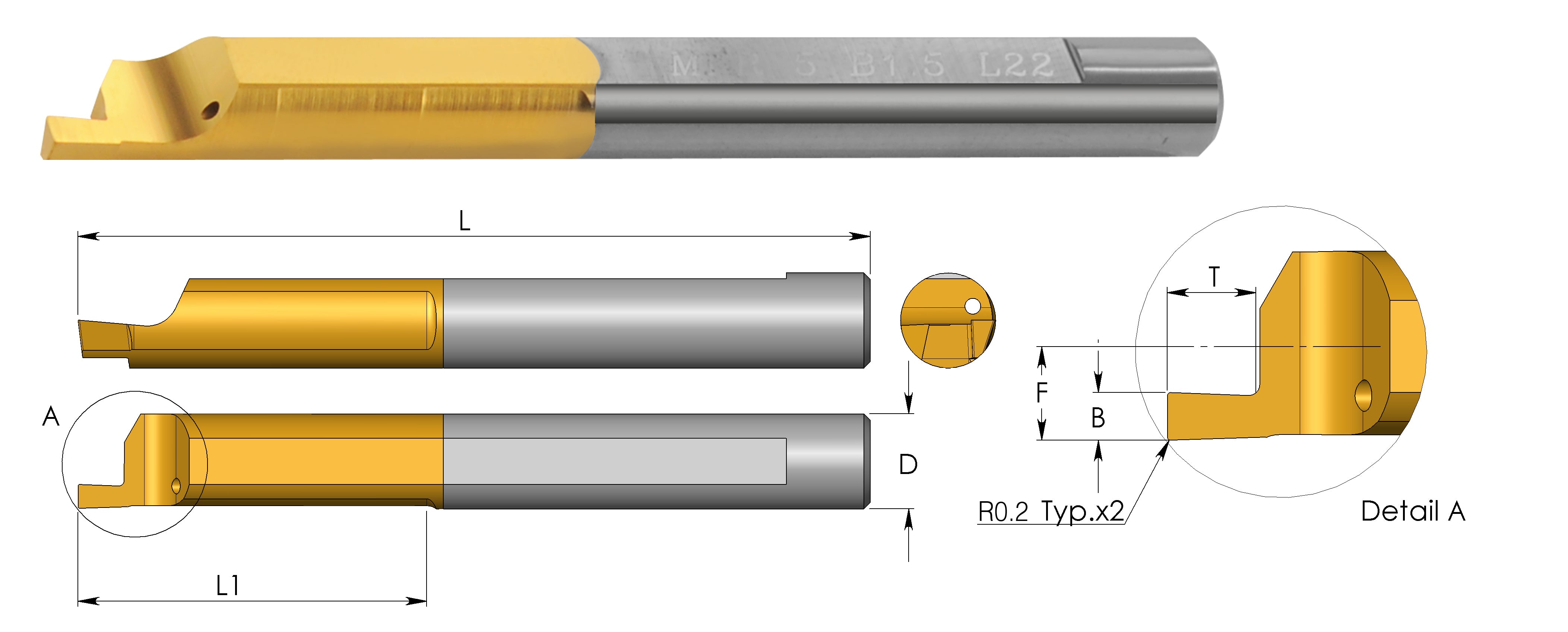

| Application | Face Grooving (MFR) |
| Minimum Diameter | 5 |
| Groove Width (B) | 0.75 |
| Groove Depth (T) | 1.2 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
| L | 51 |
| F | 1.95 |
| D | 4.0 |
| Grade | BMK |
| Holder | SIM****H4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Face Grooving - Grade BMK (MFR)
View full collection →You are viewing MFR4B0.75L15BMK. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| MFR4B0.5L15BMK | 5 | 0.5 | 1.2 | 15 | 0.05 | BMK | SIM****H4 | £26.49 | In Stock | |
| MFR4B0.75L15BMK Viewing | 5 | 0.75 | 1.2 | 15 | 0.1 | BMK | SIM****H4 | £26.49 | 5 days | |
| MFR4B1.0L15BMK | 5 | 1 | 1.5 | 15 | 0.1 | BMK | SIM****H4 | £26.49 | 5 days | |
| MFR4B1.5L15BMK | 5 | 1.5 | 2.8 | 15 | 0.1 | BMK | SIM****H4 | £26.49 | 5 days | |
| MFR4B1.5L15-CBMK | 5 | 1.5 | 2.8 | 15 | 0.1 | BMK | SIM****H4 | £29.13 | 5 days | |
| MFR4B1.5L17BMK | 5 | 1.5 | 3.5 | 17 | 0.1 | BMK | SIM****H4 | £27.80 | 5 days | |
| MFR4B2.0L17BMK | 5 | 2 | 5 | 17 | 0.1 | BMK | SIM****H4 | £29.13 | 5 days | |
| MFR5B0.5L22BMK | 6 | 0.5 | 1.2 | 22 | 0.05 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFR5B0.75L22BMK | 6 | 0.75 | 1.2 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFR5B1.0L22BMK | 6 | 1 | 1.5 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFR5B1.0L23BMK | 6 | 1 | 2.5 | 23 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFR5B1.5L22BMK | 6 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFR5B1.5L22-CBMK | 6 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H5 | £32.87 | 5 days | |
| MFR5B1.5L23BMK | 6 | 1.5 | 3.5 | 23 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFR5B2.0L22BMK | 6 | 2 | 3.8 | 22 | 0.1 | BMK | SIM****H5 | £29.89 | 5 days | |
| MFR5B2.0L22-CBMK | 6 | 2 | 3.8 | 22 | 0.1 | BMK | SIM****H5 | £32.87 | 5 days | |
| MFR5B2.0L23BMK | 6 | 2 | 5 | 23 | 0.1 | BMK | SIM****H5 | £31.39 | 5 days | |
| MFR6B1.0L22BMK | 8 | 1 | 1.5 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | In Stock | |
| MFR6B1.5L22BMK | 8 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MFR6B1.5L22-CBMK | 8 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H6 | £33.53 | 5 days | |
| MFR6B2.0L22BMK | 8 | 2 | 3 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | In Stock | |
| MFR6B2.0L22-CBMK | 8 | 2 | 3 | 22 | 0.1 | BMK | SIM****H6 | £33.53 | 5 days | |
| MFR6B2.5L22BMK | 8 | 2.5 | 4.8 | 22 | 0.1 | BMK | SIM****H6 | £30.48 | 5 days | |
| MFR6B3.0L22-CBMK | 8 | 3 | 6 | 22 | 0.1 | BMK | SIM****H6 | £33.53 | 5 days | |
| MFR6B3.0L30BMK | 8 | 3 | 6 | 30 | 0.1 | BMK | SIM****H6 | £32.00 | In Stock | |
| MFR8B2.5L22BMK | 10 | 2.5 | 3.5 | 22 | 0.1 | BMK | SIM****H8 | £36.24 | 5 days | |
| MFL4B1.5L15-CBMK | 5 | 1.5 | 2.8 | 15 | 0.1 | BMK | SIM****H4 | £29.12 | 5 days | |
| MFL5B1.5L22-CBMK | 6 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H5 | £32.86 | 5 days | |
| MFL5B2.0L22-CBMK | 6 | 2 | 3.8 | 22 | 0.1 | BMK | SIM****H5 | £32.86 | 5 days | |
| MFL6B1.5L22-CBMK | 8 | 1.5 | 2.5 | 22 | 0.1 | BMK | SIM****H6 | £33.51 | 5 days | |
| MFL6B2.0L22-CBMK | 8 | 2 | 3 | 22 | 0.1 | BMK | SIM****H6 | £33.51 | 5 days | |
| MFL6B3.0L22-CBMK | 8 | 3 | 6 | 22 | 0.1 | BMK | SIM****H6 | £33.51 | 5 days |
