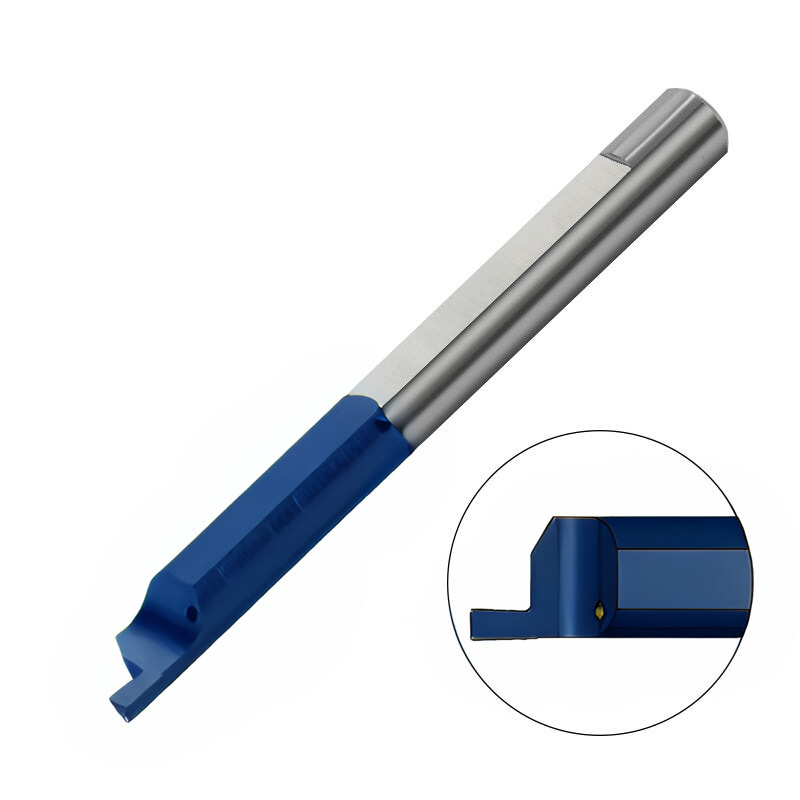

Carmex Carbide Tiny Tool - Face Grooving - MFR - BMK Grade - 6mm Minimum Diameter x 0.75mm Groove Width

Carmex Carbide Tiny Tool - Face Grooving bars are solid carbide tooling from the Tiny Tools family, engineered specifically for face grooving. These bars produce straight grooves, not the rounded profiles of other bar styles, enabling clean, flat faces on your parts. With a 6 mm minimum diameter and a 0.75 mm groove width, they fit typical CNC setups and deliver repeatable, precise grooves every time. The tool lineup includes coating options to match your material and speed requirements, including BXC TiN for low cutting speeds and BMK for high-heat, all-material performance.

• Precisely straight grooves: Engineered to deliver straight, uniform grooves for accurate face finishes and reliable part seating, reducing rework and finishing steps.
• BXC - PVD TiN coating for low cutting speeds: Coating designed to minimize friction and wear at slower feeds, helping maintain smooth cutting action when machining stainless steels and similar alloys.
• BMK - Sub-micron grade with advanced PVD triple coating: Delivers exceptional heat resistance and smooth cutting, providing dependable performance across a wide range of materials.

These face grooving bars help you streamline setups, consistently reproduce precise groove dimensions, and extend tool life through optimized coatings. The combination of a 6 mm diameter with a 0.75 mm groove width supports quick, repeatable installations, while the coating options let you tailor performance to your material and machining speed for better throughput and finished quality.
