Carmex Carbide Tiny Tool - Face Grooving - MFR - BXC Grade - 6mm Minimum Diameter x 1.5mm Groove Width
| Application | Face Grooving (MFR) |
| Minimum Diameter | 6 |
| Groove Width (B) | 1.5 |
| Groove Depth (T) | 3.5 |
| Reach (L1) | 23 |
| Radius (R) | 0.1 |
Learn more about Klarna

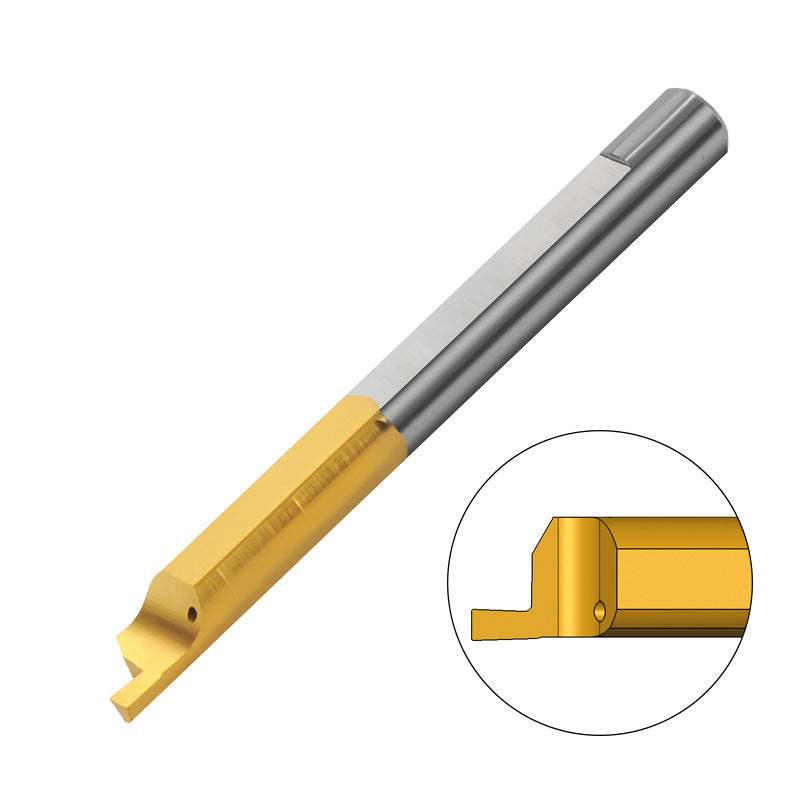

Carmex Carbide Tiny Tool - Face Grooving is a solid carbide bar designed specifically for face grooving tasks. Part of the Tiny Tools family, these bars deliver straight grooves with tight dimensional control, ideal for precise fits and clean surface finishes. The tool is built for demanding stainless steels and other materials, with a 6 mm minimum diameter and a 1.5 mm groove width for consistent, repeatable results.
- Straight-groove geometry for face grooving: Engineered to produce clean, straight grooves, ensuring repeatable dimensions and minimal post-processing for reliable assemblies.
- BXC TiN-coated grade for low cutting speeds: Optimized for stainless steels (ISO P30-P50 / K25-K40) to deliver controlled cutting action and longer tool life at lower speeds.
- BMK sub-micron grade with triple coating for high heat resistance: Advanced PVD triple coating with a sub-micron structure provides smooth cutting and broad material compatibility, enhancing performance under demanding conditions.
These bars are built to improve workflow and outcomes across CNC milling and production environments. The combination of straight-groove geometry and specialized coatings helps reduce tool wear and finishing time, delivering consistent groove quality from job to job and across a range of materials.

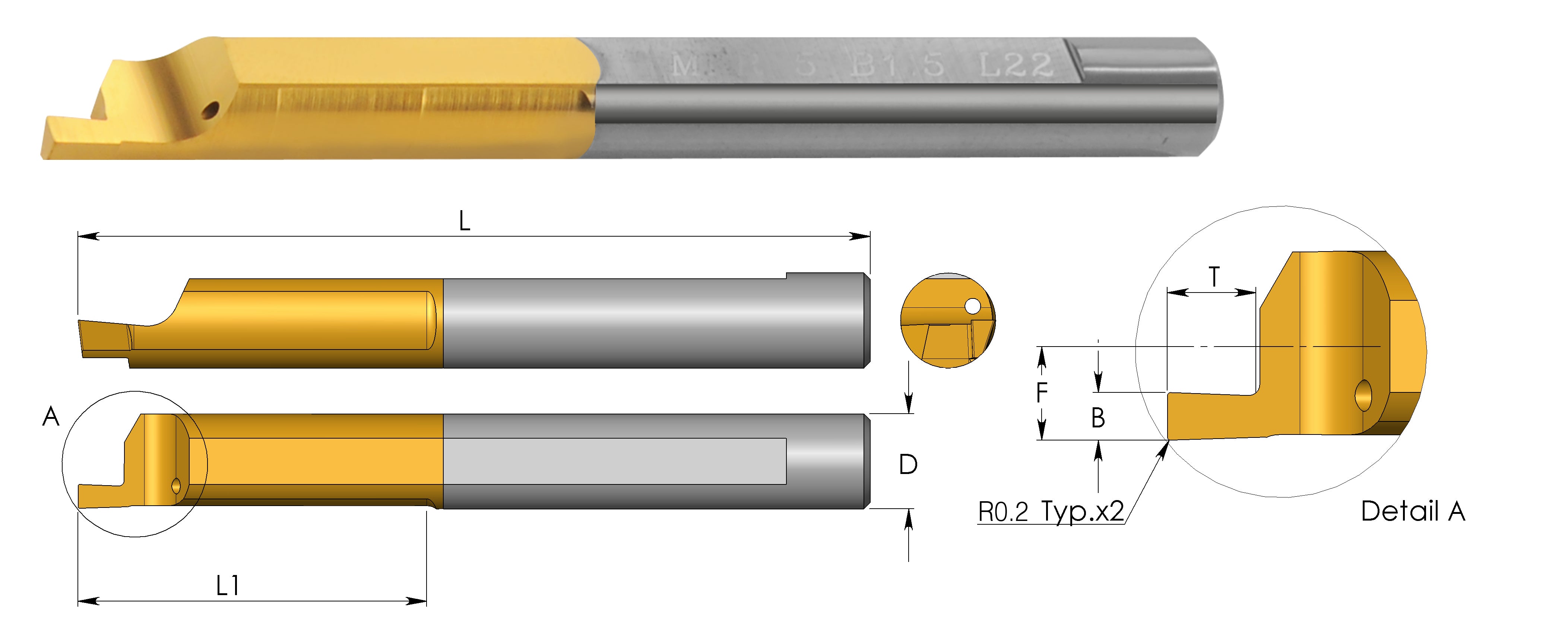

| Application | Face Grooving (MFR) |
| Minimum Diameter | 6 |
| Groove Width (B) | 1.5 |
| Groove Depth (T) | 3.5 |
| Reach (L1) | 23 |
| Radius (R) | 0.1 |
| L | 51 |
| F | 2.45 |
| D | 5.0 |
| Grade | BXC |
| Holder | SIM****H5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Face Grooving - Grade BXC (MFR)
View full collection →You are viewing MFR5B1.5L23BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| MFR4B0.5L15BXC | 5 | 0.5 | 1.2 | 15 | 0.05 | BXC | SIM****H4 | £24.03 | 5 days | |
| MFR4B0.75L15BXC | 5 | 0.75 | 1.2 | 15 | 0.1 | BXC | SIM****H4 | £24.03 | 5 days | |
| MFR4B1.0L15BXC | 5 | 1 | 1.5 | 15 | 0.1 | BXC | SIM****H4 | £24.03 | 5 days | |
| MFR4B1.5L15BXC | 5 | 1.5 | 2.8 | 15 | 0.1 | BXC | SIM****H4 | £24.03 | In Stock | |
| MFR4B1.5L15-CBXC | 5 | 1.5 | 2.8 | 15 | 0.1 | BXC | SIM****H4 | £26.49 | 5 days | |
| MFR4B1.5L17BXC | 5 | 1.5 | 3.5 | 17 | 0.1 | BXC | SIM****H4 | £25.24 | 5 days | |
| MFR4B2.0L17BXC | 5 | 2 | 5 | 17 | 0.1 | BXC | SIM****H4 | £26.49 | 5 days | |
| MFR5B0.5L22BXC | 6 | 0.5 | 1.2 | 22 | 0.05 | BXC | SIM****H5 | £27.16 | In Stock | |
| MFR5B0.75L22BXC | 6 | 0.75 | 1.2 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | 5 days | |
| MFR5B1.0L22BXC | 6 | 1 | 1.5 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | 5 days | |
| MFR5B1.0L23BXC | 6 | 1 | 2.5 | 23 | 0.1 | BXC | SIM****H5 | £27.16 | In Stock | |
| MFR5B1.5L22BXC | 6 | 1.5 | 2.5 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | 5 days | |
| MFR5B1.5L22-CBXC | 6 | 1.5 | 2.5 | 22 | 0.1 | BXC | SIM****H5 | £29.89 | 5 days | |
| MFR5B1.5L23BXC Viewing | 6 | 1.5 | 3.5 | 23 | 0.1 | BXC | SIM****H5 | £27.16 | 5 days | |
| MFR5B2.0L22BXC | 6 | 2 | 3.8 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | In Stock | |
| MFR5B2.0L22-CBXC | 6 | 2 | 3.8 | 22 | 0.1 | BXC | SIM****H5 | £29.89 | 5 days | |
| MFR5B2.0L23BXC | 6 | 2 | 5 | 23 | 0.1 | BXC | SIM****H5 | £28.56 | 5 days | |
| MFR6B1.0L22BXC | 8 | 1 | 1.5 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | 5 days | |
| MFR6B1.5L22BXC | 8 | 1.5 | 2.5 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | In Stock | |
| MFR6B1.5L22-CBXC | 8 | 1.5 | 2.5 | 22 | 0.1 | BXC | SIM****H6 | £30.48 | 5 days | |
| MFR6B2.0L22BXC | 8 | 2 | 3 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | In Stock | |
| MFR6B2.0L22-CBXC | 8 | 2 | 3 | 22 | 0.1 | BXC | SIM****H6 | £30.48 | 5 days | |
| MFR6B2.5L22BXC | 8 | 2.5 | 4.8 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | In Stock | |
| MFR6B3.0L22-CBXC | 8 | 3 | 6 | 22 | 0.1 | BXC | SIM****H6 | £30.48 | 5 days | |
| MFR6B3.0L30BXC | 8 | 3 | 6 | 30 | 0.1 | BXC | SIM****H6 | £29.10 | In Stock | |
| MFR8B2.5L22BXC | 10 | 2.5 | 3.5 | 22 | 0.1 | BXC | SIM****H8 | £32.94 | 5 days | |
| MFR8B3.0L30BXC | 10 | 3 | 6 | 30 | 0.1 | BXC | SIM****H8 | £36.24 | 5 days | |
| MFL8B3.0L30BXC | 10 | 3 | 6 | 30 | 0.1 | BXC | SIM****H8 | £36.24 | 5 days | |
| MFL4B1.5L15-CBXC | 5 | 1.5 | 2.8 | 15 | 0.1 | BXC | SIM****H4 | £26.48 | 5 days | |
| MFL5B1.5L22-CBXC | 6 | 1.5 | 2.5 | 22 | 0.1 | BXC | SIM****H5 | £29.89 | 5 days | |
| MFL5B2.0L22-CBXC | 6 | 2 | 3.8 | 22 | 0.1 | BXC | SIM****H5 | £29.89 | 5 days | |
| MFL6B1.5L22-CBXC | 8 | 1.5 | 2.5 | 22 | 0.1 | BXC | SIM****H6 | £30.45 | 5 days | |
| MFL6B2.0L22-CBXC | 8 | 2 | 3 | 22 | 0.1 | BXC | SIM****H6 | £30.45 | 5 days | |
| MFL6B3.0L22-CBXC | 8 | 3 | 6 | 22 | 0.1 | BXC | SIM****H6 | £30.45 | 5 days |
