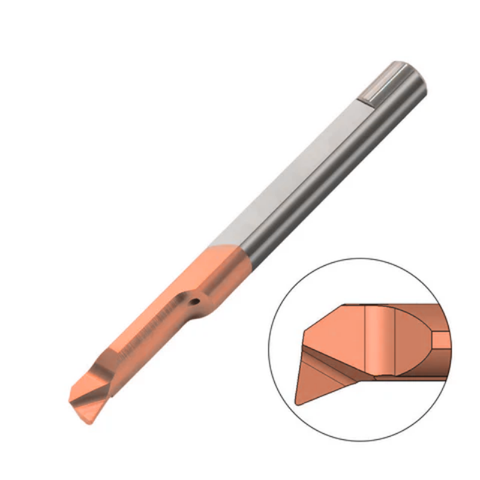

Carmex Carbide Tiny Tool - Boring & Profiling - MPR - TNX Grade - 8.1mm Minimum Diameter x 22mm Reach x R0.2
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 8.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 1.6 |
| Grade | TNX |
Learn more about Klarna
The Carmex Carbide Tiny Tool - Boring & Profiling - MPR - TNX Grade is a compact precision cutting tool designed for small profiling and boring applications. Built for engineers, machinists, hobbyists, and technicians who need fine control in tight spaces, it enables intricate shapes and precise profiles on small parts with clean edges.
Manufactured from premium TNX-grade carbide, this tool combines hardness, wear resistance, and long tool life with a slender form that reaches 22 mm and handles a minimum diameter of 8.1 mm. The R0.2 corner radius supports smooth profiling and precise boring of intricate shapes in small components.
- Small-profile design for tight profiling: The compact geometry enables precise profiling and boring in confined spaces, helping you shape intricate features on small parts with control and clean edges.
- Premium TNX-grade carbide for durability: Hard-wearing carbide delivers long tool life and consistent performance even under demanding small-part operations, reducing replacement frequency.
- Optimized edge geometry with R0.2 radius: Sharp, controlled edge with a 0.2 mm corner radius minimizes digging and chatter, delivering smooth surfaces and reliable results.
Together, these features help you complete delicate profiling and precise bores with confidence, improving workflow, reducing downtime, and delivering consistent, high-quality finishes on small components.
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 8.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 1.6 |
| Grade | TNX |
| Holder | SIM****H8 |
| L | 64 |
| F | 3.8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade TNX (MPR)
View full collection →You are viewing MPR8R0.2L22TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPR2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPR4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPR2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days | |
| MPR3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR8R0.2L22TNX Viewing | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £40.53 | 5 days | |
| MPR5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPR2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPR4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPR5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPR4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPR6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPR2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPR6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPR8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPR5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPL1.5R0.1L10TNX | 1.5 | 10 | 0.1 | 0.3 | TNX | SIM****H3 | £24.38 | 5 days | |
| MPL1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPL2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPL2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPL4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPL4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPL5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPL6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPL6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPL6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPL7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPL8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPL8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £34.25 | 5 days | |
| MPL8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days |
