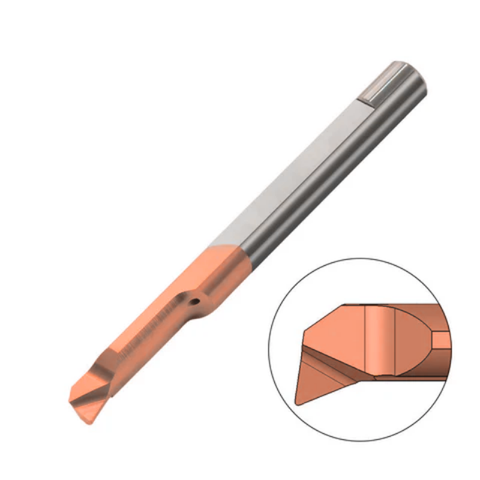

Carmex Carbide Tiny Tool - Boring & Profiling - MPL - TNX Grade - 4.1mm Minimum Diameter x 15mm Reach x R0.2 (Left Hand)

Carmex Carbide Tiny Tool - Boring & Profiling - MPL - TNX Grade - 4.1mm Minimum Diameter x 15mm Reach x R0.2 (Left Hand)

SKU:MPL4R0.2L15TNX

The Carmex Carbide Tiny Tool - Boring & Profiling - MPL is a precision cutting tool engineered for small profiling and boring tasks. Designed for engineers, machinists, and precise-part appli... Read more ↓
P
M
K
N
S
H
ApplicationBoring and Profiling (MPL)
Minimum Diameter4.1
Reach (L1)15
Radius (R)0.2
View all specifications ↓
Download Cutting Data
£24.08
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

The Carmex Carbide Tiny Tool - Boring & Profiling - MPL is a precision cutting tool engineered for small profiling and boring tasks. Designed for engineers, machinists, and precise-part applications, its compact form delivers accurate profiles and clean holes in tight spaces. This tool is ideal when you need intricate shapes and tight tolerances on small components.

Crafted from premium TNX-grade carbide, the Tiny Tool offers exceptional durability, edge retention, and wear resistance. Its small size—4.1 mm minimum diameter with a 15 mm reach and a left-hand orientation with an R0.2 corner radius—enables reliable performance on delicate workpieces and restricted cavities, without sacrificing rigidity or control.

  • Compact carbide design for tiny profiling and boring: Enables accurate, repeatable profiles and precise holes on small parts, even in tight spaces.
  • TNX-grade carbide for wear resistance: Delivers long tool life with sharp, consistent cuts through repeated profiling and boring tasks.
  • 4.1 mm min diameter, 15 mm reach, left-hand with R0.2: Combines accessible geometry with clean corner finishes, reducing deflection and improving surface quality in confined features.

This tool helps you streamline workflows by handling delicate, high-precision profiling and boring in a single compact tool. With durable carbide construction and a geometry tailored for small parts, it delivers reliable, repeatable results that you can trust across demanding applications.

Part Numbers

Protool Part Number
MPL4R0.2L15TNX
Brand
Carmex
Category
Tiny Tool Inserts
Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Not sure if this is the right tool for your job? Ask us about speeds and feeds, material suitability, holders or alternatives — 30+ years of machining experience on the other end.

Prefer to talk? Call 01732 887334 — Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade TNX (MPR)

View full collection →

You are viewing MPL4R0.2L15TNX. Click any other SKU to view its full details.

Product SKUMinimum DiameterReachRadiusProfile Max DepthGradeHolderPriceStock Order
MPR1.5R0.1L6TNX 1.560.10.3TNXSIM****H3£23.90 5 days
MPR2R0.15L15TNX 2.1150.150.5TNXSIM****H3£22.75 5 days
MPR4R0.1L15TNX 4.1150.10.8TNXSIM****H4£24.05 5 days
MPR7R0.2L30TNX 7.1300.21.5TNXSIM****H7£34.68 5 days
MPR2R0.15L5TNX 2.150.150.5TNXSIM****H3£21.70 5 days
MPR8R0.2L35TNX 8.1350.21.6TNXSIM****H8£37.53 5 days
MPR3R0.2L15TNX 3.1150.20.7TNXSIM****H3£23.58 5 days
MPR8R0.2L22TNX 8.1220.21.6TNXSIM****H8£40.53 5 days
MPR5R0.2L30TNX 5.1300.21.2TNXSIM****H5£32.15 5 days
MPR2R0.1L10TNX 2.1100.10.5TNXSIM****H3£21.70 5 days
MPR3R0.1L15TNX 3.1150.10.7TNXSIM****H3£23.58 5 days
MPR4R0.1L10TNX 4.1100.10.8TNXSIM****H4£24.05 5 days
MPR4R0.2L15TNX 4.1150.20.8TNXSIM****H4£24.05 5 days
MPR6R0.2L30TNX 6.1300.21.4TNXSIM****H6£32.85 5 days
MPR4R0.2L10TNX 4.1100.20.8TNXSIM****H4£22.23 5 days
MPR5R0.2L22TNX 5.1220.21.2TNXSIM****H5£28.00 5 days
MPR3R0.2L22TNX 3.1220.20.7TNXSIM****H3£24.78 5 days
MPR4R0.2L22TNX 4.1220.20.8TNXSIM****H4£25.25 5 days
MPR6R0.2L22TNX 6.1220.21.4TNXSIM****H6£28.60 5 days
MPR2R0.15L10TNX 2.1100.150.5TNXSIM****H3£21.70 5 days
MPR5R0.1L22TNX 5.1220.11.2TNXSIM****H5£28.00 5 days
MPR3R0.2L10TNX 3.1100.20.7TNXSIM****H3£21.70 5 days
MPR3R0.05L10TNX 3.1100.050.7TNXSIM****H3£21.70 5 days
MPR5R0.2L15TNX 5.1150.21.2TNXSIM****H5£24.55 5 days
MPR6R0.2L15TNX 6.1150.21.4TNXSIM****H6£25.30 5 days
MPR8R0.2L15TNX 8.1150.21.6TNXSIM****H8£30.33 5 days
MPR5R0.2L10TNX 5.1100.21.2TNXSIM****H5£24.55 5 days
MPL1.5R0.1L10TNX 1.5100.10.3TNXSIM****H3£24.38 5 days
MPL1.5R0.1L6TNX 1.560.10.3TNXSIM****H3£23.90 5 days
MPL2R0.15L10TNX 2.1100.150.5TNXSIM****H3£21.70 5 days
MPL2R0.15L15TNX 2.1150.150.5TNXSIM****H3£22.75 5 days
MPL2R0.15L5TNX 2.150.150.5TNXSIM****H3£21.70 5 days
MPL2R0.1L10TNX 2.1100.10.5TNXSIM****H3£21.70 5 days
MPL3R0.05L10TNX 3.1100.050.7TNXSIM****H3£21.70 5 days
MPL3R0.1L15TNX 3.1150.10.7TNXSIM****H3£23.58 5 days
MPL3R0.2L10TNX 3.1100.20.7TNXSIM****H3£21.70 5 days
MPL3R0.2L15TNX 3.1150.20.7TNXSIM****H3£23.58 5 days
MPL3R0.2L22TNX 3.1220.20.7TNXSIM****H3£24.78 5 days
MPL4R0.1L10TNX 4.1100.10.8TNXSIM****H4£24.08 5 days
MPL4R0.1L15TNX 4.1150.10.8TNXSIM****H4£24.08 5 days
MPL4R0.2L10TNX 4.1100.20.8TNXSIM****H4£22.23 5 days
MPL4R0.2L15TNX Viewing4.1150.20.8TNXSIM****H4£24.08 5 days
MPL4R0.2L22TNX 4.1220.20.8TNXSIM****H4£25.25 5 days
MPL5R0.1L22TNX 5.1220.11.2TNXSIM****H5£28.00 5 days
MPL5R0.2L10TNX 5.1100.21.2TNXSIM****H5£24.53 5 days
MPL5R0.2L15TNX 5.1150.21.2TNXSIM****H5£24.53 5 days
MPL5R0.2L22TNX 5.1220.21.2TNXSIM****H5£28.00 5 days
MPL5R0.2L30TNX 5.1300.21.2TNXSIM****H5£32.15 5 days
MPL6R0.2L15TNX 6.1150.21.4TNXSIM****H6£25.30 5 days
MPL6R0.2L22TNX 6.1220.21.4TNXSIM****H6£28.60 5 days
MPL6R0.2L30TNX 6.1300.21.4TNXSIM****H6£32.85 5 days
MPL7R0.2L30TNX 7.1300.21.5TNXSIM****H7£34.68 5 days
MPL8R0.2L15TNX 8.1150.21.6TNXSIM****H8£30.33 5 days
MPL8R0.2L22TNX 8.1220.21.6TNXSIM****H8£34.25 5 days
MPL8R0.2L35TNX 8.1350.21.6TNXSIM****H8£37.53 5 days
