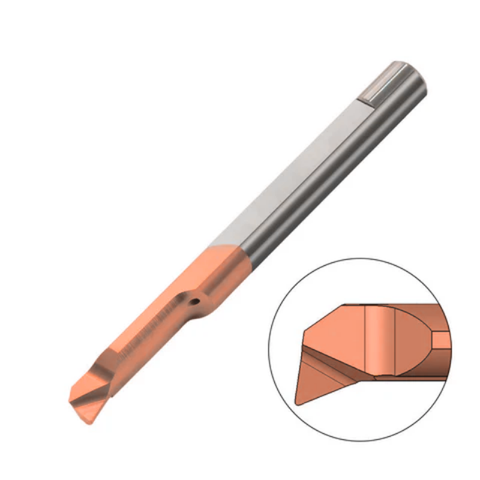

Carmex Carbide Tiny Tool - Boring & Profiling - MPR - TNX Grade - 6.1mm Minimum Diameter x 30mm Reach x R0.2
SKU:MPR6R0.2L30TNX
The Carmex Carbide Tiny Tool is a precision cutting tool designed for small profiling and boring tasks. It’s ideal for engineers, machinists, model makers, and hobbyists who need to create intric...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 30 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 1.4 |
| Grade | TNX |
£32.85
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool is a precision cutting tool designed for small profiling and boring tasks. It’s ideal for engineers, machinists, model makers, and hobbyists who need to create intricate profiles in compact parts, delivering consistent results in tight spaces.
- Small-diameter, long-reach profiling tool: Access tight pockets and deep profiles with a 6.1 mm minimum diameter and 30 mm reach, making it perfect for delicate, detail-oriented work on small parts.
- Premium TNX-grade carbide for durability: Built with high-grade carbide to provide excellent wear resistance and edge retention, helping you achieve reliable performance over many cycles.
- Fine R0.2 corner radius for clean profiles: The compact radius delivers sharp, accurate contours with minimal finishing, enhancing part quality and reducing secondary operations.
Designed for reliable, repeatable results, this tiny profiling and boring tool supports precise micro-machining across a range of materials. Its compact geometry and durable carbide help streamline setups, reduce tool changes, and deliver consistent finishes on small, intricate features—helping you complete projects faster and with greater confidence.
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 30 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 1.4 |
| Grade | TNX |
| Holder | SIM****H6 |
| L | 76 |
| F | 2.8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade TNX (MPR)
View full collection →You are viewing MPR6R0.2L30TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPR2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPR4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPR2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days | |
| MPR3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £40.53 | 5 days | |
| MPR5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPR2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR6R0.2L30TNX Viewing | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPR4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPR5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPR4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPR6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPR2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPR6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPR8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPR5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPL1.5R0.1L10TNX | 1.5 | 10 | 0.1 | 0.3 | TNX | SIM****H3 | £24.38 | 5 days | |
| MPL1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPL2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPL2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPL4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPL4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPL5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPL6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPL6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPL6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPL7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPL8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPL8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £34.25 | 5 days | |
| MPL8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days |
