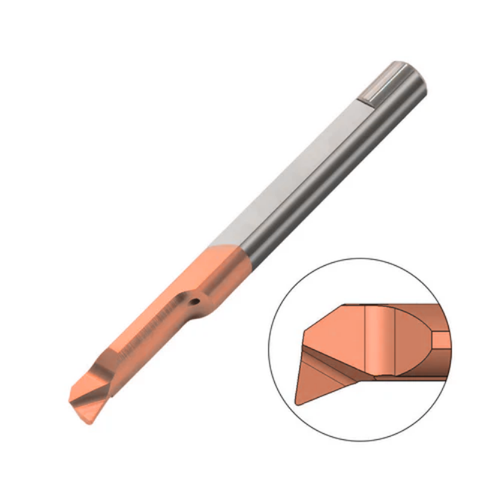

Carmex Carbide Tiny Tool - Boring & Profiling - MPR - TNX Grade - 6.1mm Minimum Diameter x 22mm Reach x R0.2
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 1.4 |
| Grade | TNX |
Learn more about Klarna
The Carmex Carbide Tiny Tool for Boring & Profiling (MPR) is a precision cutting tool designed for small profiling and boring applications. It’s ideal for engineers, machinists, hobbyists, and shops that routinely work on intricate parts, delivering accurate profiles and clean bores in tight spaces.
Made from premium TNX-grade carbide, this compact tool blends durability with precise geometry. With a 6.1 mm minimum diameter, a 22 mm reach, and a radius of 0.2 mm (R0.2), it enables detailed profiling and deeper boring on small components without compromising accuracy.
- TNX-grade carbide construction: premium material delivers exceptional wear resistance and long tool life under profiling and boring workloads.
- Small-diameter profiling with precise radii: 6.1 mm minimum diameter and a 0.2 mm corner radius (R0.2) support accurate, repeatable profiles and smooth bore initiation in tight spaces.
- Extended reach in a compact form: 22 mm reach allows deeper access to features without repositioning, improving workflow and reducing setup time.
Designed to boost productivity, this tiny tool helps you complete small-profile and boring tasks with confidence. It enables consistent cut quality across parts, minimizes tool changes by reaching deeper features in a single setup, and stands up to wear thanks to premium carbide. Whether you’re refining small cavities, creating intricate profiles, or deburring bore entrances, this tool delivers reliable, repeatable results you can trust.
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.2 |
| Profile Max Depth (H) | 1.4 |
| Grade | TNX |
| Holder | SIM****H6 |
| L | 51 |
| F | 2.8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade TNX (MPR)
View full collection →You are viewing MPR6R0.2L22TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPR2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPR4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPR2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days | |
| MPR3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £40.53 | 5 days | |
| MPR5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPR2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPR4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPR5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPR4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPR6R0.2L22TNX Viewing | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPR2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPR6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPR8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPR5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPL1.5R0.1L10TNX | 1.5 | 10 | 0.1 | 0.3 | TNX | SIM****H3 | £24.38 | 5 days | |
| MPL1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPL2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPL2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPL4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPL4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPL5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPL6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPL6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPL6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPL7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPL8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPL8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £34.25 | 5 days | |
| MPL8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days |
