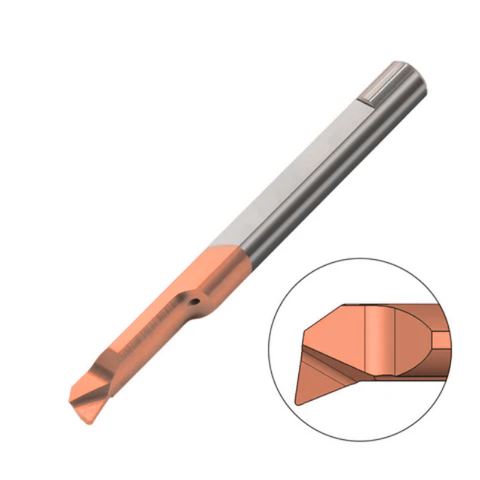

Carmex Carbide Tiny Tool - Boring & Profiling - MPL - TNX Grade - 4.1mm Minimum Diameter x 10mm Reach x R0.2 (Left Hand)
| Application | Boring and Profiling (MPL) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 10 |
| Radius (R) | 0.2 |
Learn more about Klarna
Compatible holders
The ones our customers buy most.
Description
The Carmex Carbide Tiny Tools - Small Profiling & Boring Tool (MPL) is a precision cutting tool engineered for small profiling and boring tasks. With a compact 4.1 mm minimum diameter, 10 mm reach, and a left-hand R0.2 edge, it excels at shaping intricate features in tight spaces on small parts.
Crafted from premium TNX-grade carbide, this tiny tool offers outstanding hardness, wear resistance, and long tool life in demanding micro-machining applications. Its durable construction stands up to repeated use, delivering consistent performance across cycles.
- Small-diameter profiling and boring capability: Access tight pockets and slender features while maintaining precise profiles and boring accuracy on small components.
- Premium TNX-grade carbide construction: Delivers outstanding hardness and wear resistance for long tool life and reliable performance in challenging materials.
- Left-hand geometry with R0.2 edge radius: Provides smooth cuts and clean finishes in tight profiles, with improved chip control for efficient machining.
Together, these features translate into reliable, repeatable results for your micro-machining workflows. The tool's compact size reaches into tight cavities, the carbide construction lasts longer between changes, and the left-hand geometry with R0.2 radius helps achieve smooth finishes with fewer passes. This means faster setup, reduced downtime, and higher quality results on small parts—giving you confidence in every job.
Part Numbers
- Protool Part Number
- MPL4R0.2L10TNX
- Brand
- Carmex
- Category
- Tiny Tool Inserts
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade TNX (MPR)
View full collection →You are viewing MPL4R0.2L10TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPR2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPR4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPR2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days | |
| MPR3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £40.53 | 5 days | |
| MPR5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPR2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPR4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPR5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPR4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPR6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPR2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPR6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPR8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPR5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPL1.5R0.1L10TNX | 1.5 | 10 | 0.1 | 0.3 | TNX | SIM****H3 | £24.38 | 5 days | |
| MPL1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPL2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPL2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPL4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L10TNX Viewing | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPL4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPL5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPL6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPL6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPL6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPL7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPL8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPL8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £34.25 | 5 days | |
| MPL8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days |
