Carmex Carbide Tiny Tool - Boring & Profiling - MPR - TNX Grade - 5.1mm Minimum Diameter x 22mm Reach x R0.1
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.1 |
| Profile Max Depth (H) | 1.2 |
| Grade | TNX |
Learn more about Klarna

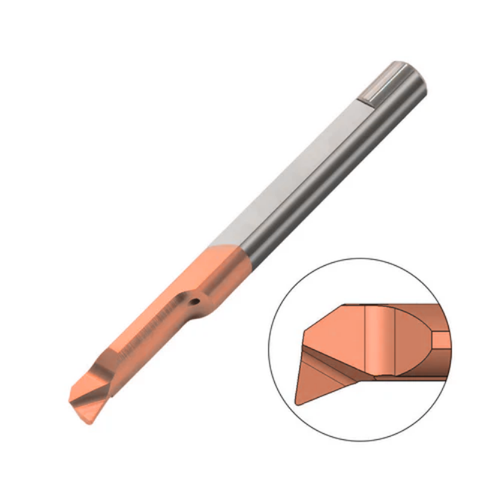

The Carmex Carbide Tiny Tool (MPR, TNX Grade) is a compact carbide cutting tool designed specifically for small profiling and boring tasks. With a minimum diameter of 5.1 mm and a reach of 22 mm, it reaches into tight spaces to shape intricate profiles and bore precise features on small parts. The tool’s R0.1 corner radius helps create clean transitions where precision matters.
Crafted from premium-grade carbide, it delivers excellent edge retention, strength, and wear resistance, so you can rely on consistent performance over many cycles. Its compact form and specialized geometry make it a versatile choice for delicate work in tight cavities and thin-walled components.
- Small-diameter, long-reach geometry: Access tight profiles and deep bores with a 5.1 mm minimum diameter and 22 mm reach, enabling profiling and boring in confined spaces.
- Premium carbide for durability: Premium-grade carbide provides long tool life, high rigidity, and wear resistance for repeatable cuts in challenging materials.
- Precise R0.1 corner radius for clean profiles: The 0.1 mm radius delivers sharp, accurate corners and smooth transitions, reducing follow-up finishing passes.
This Tiny Tool is built to help you complete intricate profiling and boring tasks more efficiently, delivering consistent results that improve part quality and reduce downtime from tool changes or rework.
| Application | Boring and Profiling (MPR) |
| Minimum Diameter | 5.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.1 |
| Profile Max Depth (H) | 1.2 |
| Grade | TNX |
| Holder | SIM****H5 |
| L | 51 |
| F | 2.1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Profiling & Boring - Grade TNX (MPR)
View full collection →You are viewing MPR5R0.1L22TNX. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Profile Max Depth | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MPR1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPR2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPR4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPR2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days | |
| MPR3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £40.53 | 5 days | |
| MPR5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPR2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPR4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.05 | 5 days | |
| MPR6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPR4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPR5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPR4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPR6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPR2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.1L22TNX Viewing | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPR3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPR5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPR6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPR8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPR5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.55 | 5 days | |
| MPL1.5R0.1L10TNX | 1.5 | 10 | 0.1 | 0.3 | TNX | SIM****H3 | £24.38 | 5 days | |
| MPL1.5R0.1L6TNX | 1.5 | 6 | 0.1 | 0.3 | TNX | SIM****H3 | £23.90 | 5 days | |
| MPL2R0.15L10TNX | 2.1 | 10 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.15L15TNX | 2.1 | 15 | 0.15 | 0.5 | TNX | SIM****H3 | £22.75 | 5 days | |
| MPL2R0.15L5TNX | 2.1 | 5 | 0.15 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL2R0.1L10TNX | 2.1 | 10 | 0.1 | 0.5 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.05L10TNX | 3.1 | 10 | 0.05 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.1L15TNX | 3.1 | 15 | 0.1 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L10TNX | 3.1 | 10 | 0.2 | 0.7 | TNX | SIM****H3 | £21.70 | 5 days | |
| MPL3R0.2L15TNX | 3.1 | 15 | 0.2 | 0.7 | TNX | SIM****H3 | £23.58 | 5 days | |
| MPL3R0.2L22TNX | 3.1 | 22 | 0.2 | 0.7 | TNX | SIM****H3 | £24.78 | 5 days | |
| MPL4R0.1L10TNX | 4.1 | 10 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.1L15TNX | 4.1 | 15 | 0.1 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L10TNX | 4.1 | 10 | 0.2 | 0.8 | TNX | SIM****H4 | £22.23 | 5 days | |
| MPL4R0.2L15TNX | 4.1 | 15 | 0.2 | 0.8 | TNX | SIM****H4 | £24.08 | 5 days | |
| MPL4R0.2L22TNX | 4.1 | 22 | 0.2 | 0.8 | TNX | SIM****H4 | £25.25 | 5 days | |
| MPL5R0.1L22TNX | 5.1 | 22 | 0.1 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L10TNX | 5.1 | 10 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L15TNX | 5.1 | 15 | 0.2 | 1.2 | TNX | SIM****H5 | £24.53 | 5 days | |
| MPL5R0.2L22TNX | 5.1 | 22 | 0.2 | 1.2 | TNX | SIM****H5 | £28.00 | 5 days | |
| MPL5R0.2L30TNX | 5.1 | 30 | 0.2 | 1.2 | TNX | SIM****H5 | £32.15 | 5 days | |
| MPL6R0.2L15TNX | 6.1 | 15 | 0.2 | 1.4 | TNX | SIM****H6 | £25.30 | 5 days | |
| MPL6R0.2L22TNX | 6.1 | 22 | 0.2 | 1.4 | TNX | SIM****H6 | £28.60 | 5 days | |
| MPL6R0.2L30TNX | 6.1 | 30 | 0.2 | 1.4 | TNX | SIM****H6 | £32.85 | 5 days | |
| MPL7R0.2L30TNX | 7.1 | 30 | 0.2 | 1.5 | TNX | SIM****H7 | £34.68 | 5 days | |
| MPL8R0.2L15TNX | 8.1 | 15 | 0.2 | 1.6 | TNX | SIM****H8 | £30.33 | 5 days | |
| MPL8R0.2L22TNX | 8.1 | 22 | 0.2 | 1.6 | TNX | SIM****H8 | £34.25 | 5 days | |
| MPL8R0.2L35TNX | 8.1 | 35 | 0.2 | 1.6 | TNX | SIM****H8 | £37.53 | 5 days |
