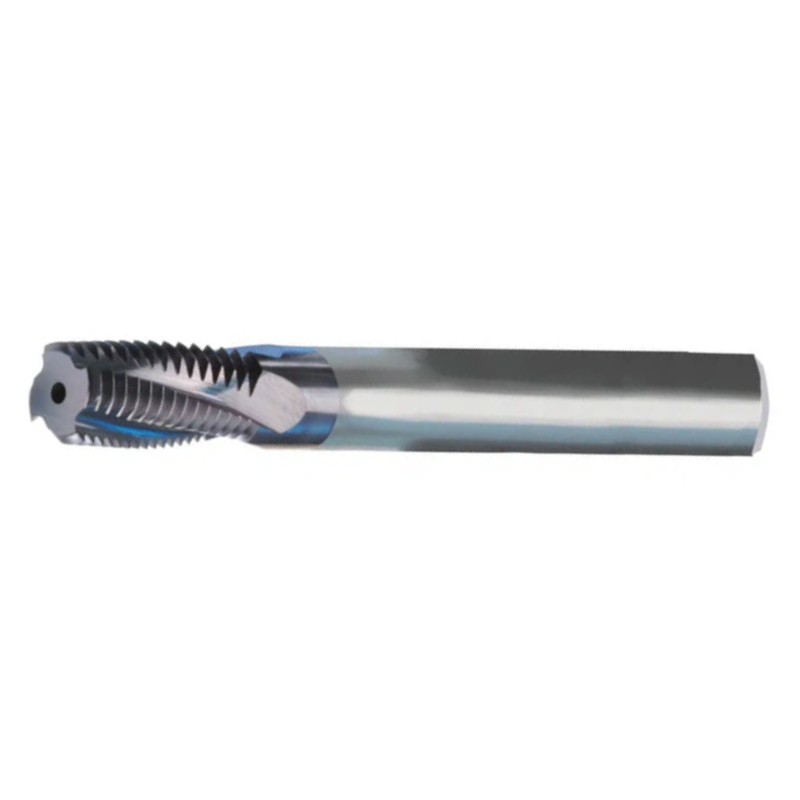

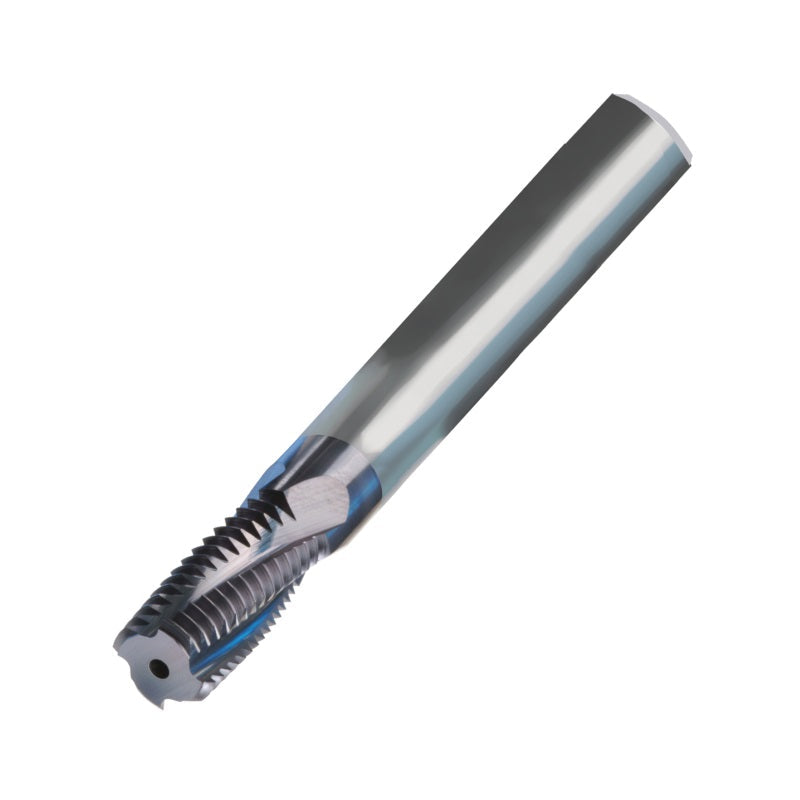

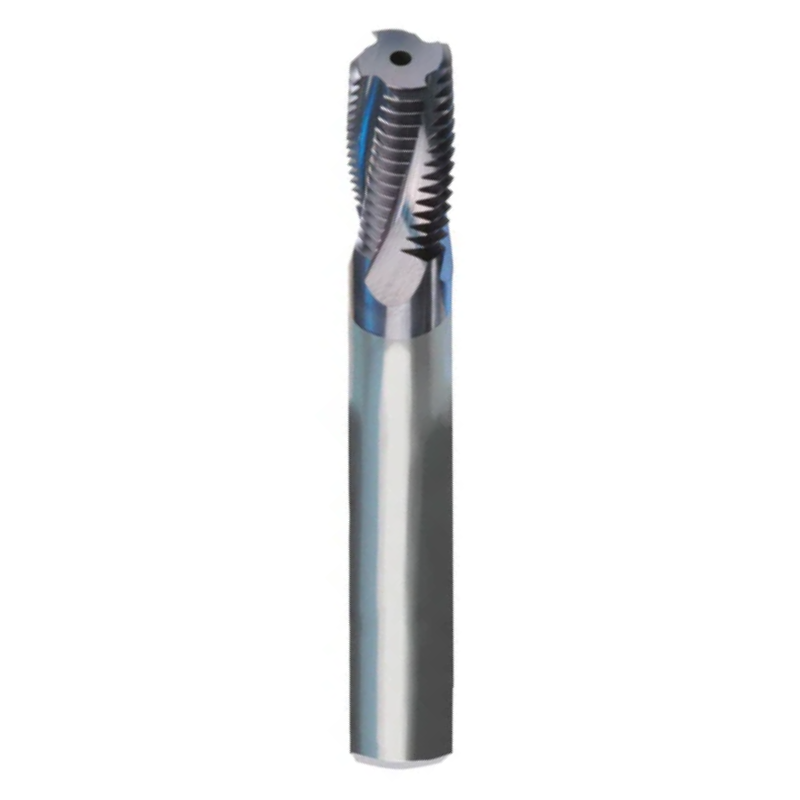

Carmex Thread Mills Solid Carbide - With Through Coolant - UN (UNC UNF UNEF UNS) - 1/4 x 20 - MT7

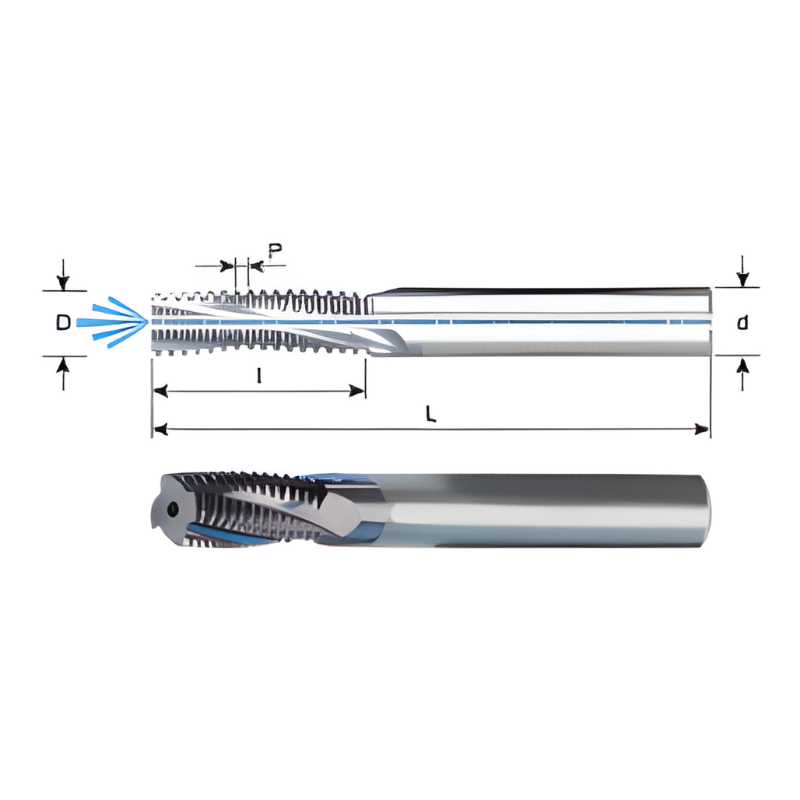

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 20 |
| Diameter (D) | 4.7 |
| Flute Length (l) | 12.1 |
| Shank Diameter (d) | 6 |
Learn more about Klarna
Experience reliable, high-precision internal threading with Carmex MTB Thread Mills. Designed for machinists and engineers working with UNC/UNF/UNEF/UNS thread forms, these through-coolant solid carbide tools deliver clean threads and extended tool life.
- Diameter x Thread Pitch: 1/4" nominal diameter with 20 TPI for UNC/UNF/UNEF/UNS thread forms
- Through-Coolant Bore: coolant is delivered through the bore to flush chips and cool cutting edges, improving chip evacuation and surface finish
- Material: Solid carbide construction for exceptional hardness, wear resistance, and long tool life
- Shank: MT7 Morse Taper shank for secure, quick-change compatibility with compatible CNC spindles
- Threading Capability: engineered specifically for internal threading using UNC, UNF, UNEF, and UNS standards
- Application Focus: optimized for precise, repeatable thread milling in through holes and blind holes alike
With through-coolant threading, you gain reliable chip clearance and consistent heat control, which translates to cleaner thread forms and fewer rework cycles. The combination of solid carbide strength and an MT7 shank offers dependable performance in demanding materials and tight tolerances. This tool is well-suited for shops producing fasteners, housings, and precision components where durable tooling and precise thread accuracy matter most, helping you reduce downtime and extend tool life without compromising on thread quality.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 20 |
| Diameter (D) | 4.7 |
| Flute Length (l) | 12.1 |
| Shank Diameter (d) | 6 |
| No of Flutes | 3 |
| Overall Length (L) | 58 |
| Thread Mill Style | Standard + Coolant |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC, UNF, UNEF) - With Through Coolant (MTB)
View full collection →You are viewing MTB06047C1220UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTB06032C632UNMT7 | No. 8 No. 10 No. 12 | 32 | 6.8 | 6.8 | 58 | £95.48 | 5 days | |
| MTB06047C1220UNMT7 Viewing | 1/4 | 20 | 12.1 | 12.1 | 58 | £95.48 | 5 days | |
| MTB06052C1528UNMT7 | 1/4 | 28 | 15 | 15 | 58 | £114.58 | 5 days | |
| MTB06056C1418UNMT7 | 5/16 | 18 | 14.8 | 14.8 | 58 | £95.48 | 5 days | |
| MTB0605C1128UNMT7 | 1/4 | 28 | 11.3 | 11.3 | 58 | £95.48 | 5 days | |
| MTB0606C1428UNMT7 | 7/16 - 1/2 | 28 | 14.1 | 14.1 | 58 | £95.48 | 5 days | |
| MTB0606C1432UNMT7 | 5/16 | 32 | 14.7 | 14.7 | 58 | £95.48 | In Stock | |
| MTB0606C2018UNMT7 | 5/16 | 18 | 20.5 | 20.5 | 58 | £114.58 | 5 days | |
| MTB08066C1424UNMT7 | 5/16 | 24 | 14.3 | 14.3 | 64 | £127.18 | 5 days | |
| MTB08067C1616UNMT7 | 3/8 | 16 | 16.7 | 16.7 | 64 | £127.18 | 5 days | |
| MTB08074C2416UNMT7 | 3/8 | 16 | 24.6 | 24.6 | 64 | £152.61 | 5 days | |
| MTB08077C2014UNMT7 | 7/16 | 14 | 20.9 | 20.9 | 64 | £127.18 | 5 days | |
| MTB0808C2120UNMT7 | 7/16 - 1/2 | 20 | 21 | 21 | 64 | £127.18 | 5 days | |
| MTB0808D1832UNMT7 | 3/8 | 32 | 18.7 | 18.7 | 64 | £127.18 | 5 days | |
| MTB0808D2124UNMT7 | 3/8 9/16 - 5/8 | 24 | 20.6 | 20.6 | 64 | £127.18 | 5 days | |
| MTB10085C2814UNMT7 | 7/16 | 14 | 28.1 | 28.1 | 73 | £176.09 | 5 days | |
| MTB10092C2213UNMT7 | 1/2 | 13 | 22.5 | 22.5 | 73 | £146.70 | 5 days | |
| MTB10098D3213UNMT7 | 1/2 | 13 | 32.2 | 32.2 | 73 | £176.09 | 5 days | |
| MTB1010D2220UNMT7 | 1/2 | 20 | 22.3 | 22.3 | 73 | £146.70 | 5 days | |
| MTB12105C2612UNMT7 | 9/16 | 12 | 26.5 | 26.5 | 84 | £183.59 | 5 days | |
| MTB12113D2618UNMT7 | 9/16 5/8 - 1 1/8 1 5/8 | 18 | 26.1 | 26.1 | 84 | £183.59 | 5 days | |
| MTB12114C2811UNMT7 | 5/8 | 11 | 28.9 | 28.9 | 84 | £183.59 | 5 days | |
| MTB12116D3712UNMT7 | 9/16 | 12 | 37 | 37 | 84 | £220.26 | 5 days | |
| MTB1212D3116UNMT7 | 3/4 | 16 | 31 | 31 | 84 | £183.59 | 5 days | |
| MTB1212D3811UNMT7 | 5/8 | 11 | 38.1 | 38.1 | 84 | £220.26 | 5 days | |
| MTB1212E2720UNMT7 | 3/4 - 1 | 20 | 27.3 | 27.3 | 84 | £183.59 | 5 days | |
| MTB16144D3410UNMT7 | 3/4 | 10 | 34.3 | 34.3 | 105 | £216.59 | 5 days | |
| MTB16147E4910UNMT7 | 3/4 | 10 | 49.5 | 49.5 | 105 | £259.88 | In Stock | |
| MTB1616C389UNMT7 | 7/8 | 9 | 38.1 | 38.1 | 105 | £216.59 | 5 days | |
| MTB1616E3714UNMT7 | 7/8 | 14 | 37.2 | 37.2 | 105 | £216.59 | In Stock | |
| MTB1616E4112UNMT7 | 1 - 1 1/2 | 12 | 41.3 | 41.3 | 105 | £216.59 | 5 days | |
| MTB20195D428UNMT7 | 1 | 8 | 42.9 | 42.9 | 105 | £261.57 | 5 days | |
| MTB2020D457UNMT7 | 1 1/8 - 1 1/4 | 7 | 45.3 | 45.3 | 105 | £261.57 | 5 days |
