Carmex Thread Mills Solid Carbide - With Through Coolant - UN (UNC UNF UNEF UNS) - 7/8 x 9 - MT7

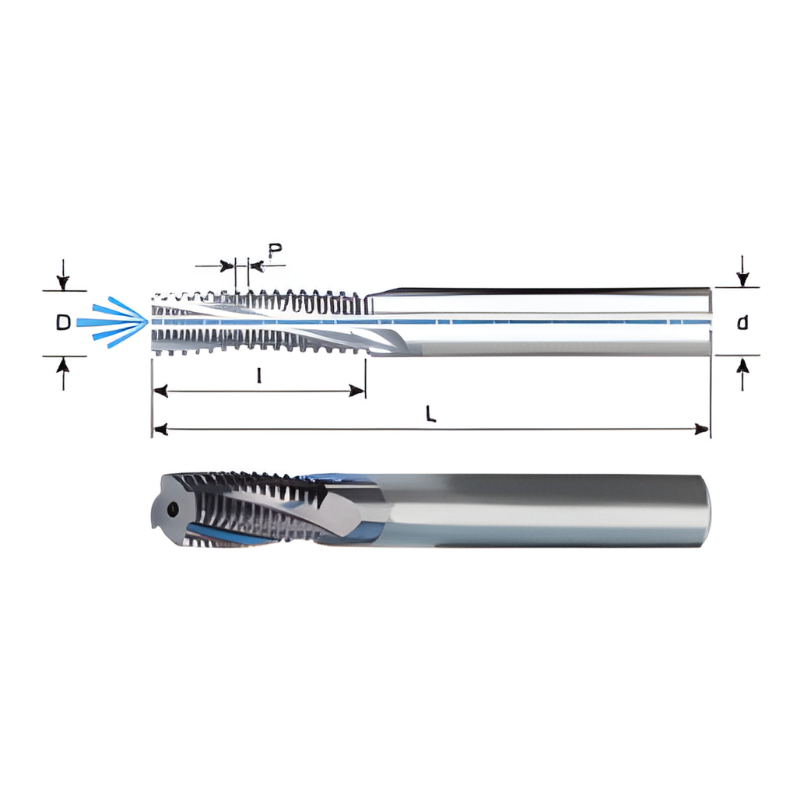

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 7/8 |
| Pitch | 9 |
| Diameter (D) | 16 |
| Flute Length (l) | 38.1 |
| Shank Diameter (d) | 16 |
Learn more about Klarna

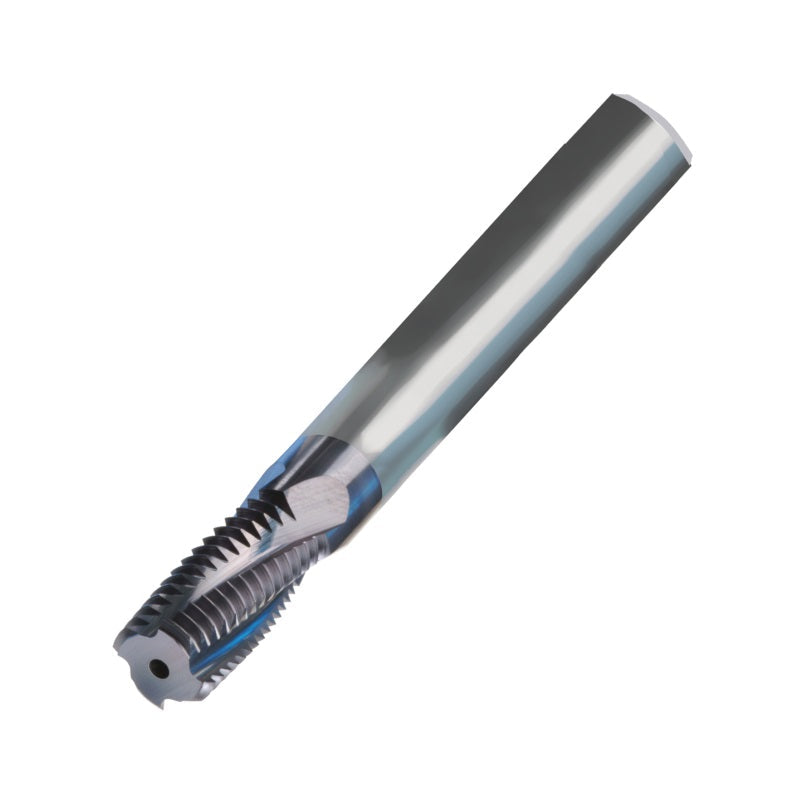

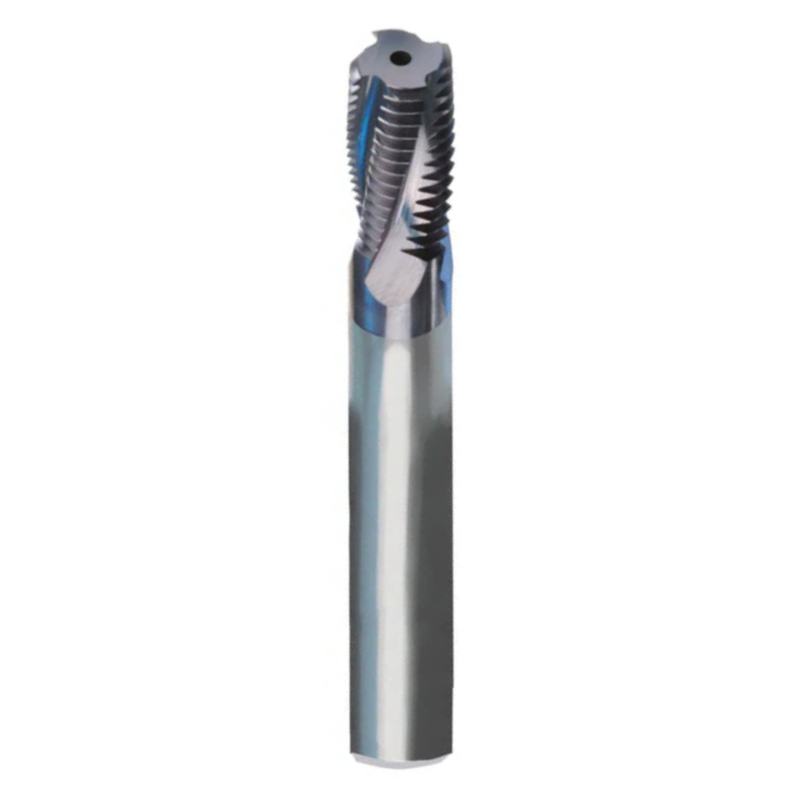

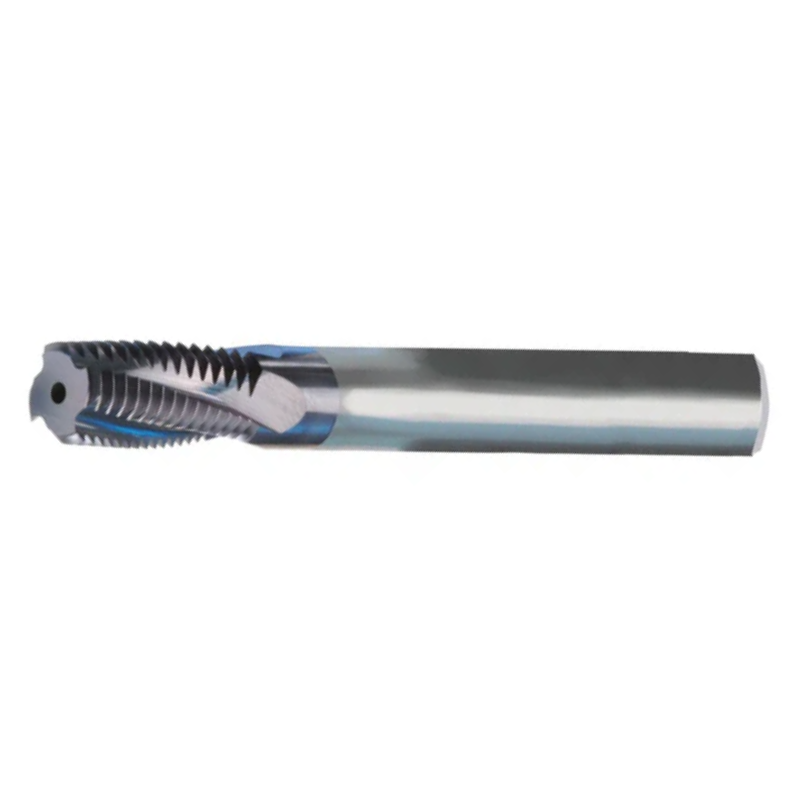

The Carmex MTB solid carbide thread mill with through coolant is engineered for precise internal threading in UN-series threads (UNC, UNF, UNEF, UNS). Built for shops that demand durability and reliable chip control, it combines rugged carbide with an innovative coolant-through design.
- Through-Coolant Bore: Coolant is delivered directly through the tool bore to flood the cutting zone, aiding chip removal and keeping temperatures in check for cleaner, deeper threads.
- Solid Carbide Construction: Premium carbide provides exceptional hardness and wear resistance, helping the tool withstand demanding threading operations and extend tool life.
- UN Thread Compatibility: Specifically engineered to mill UNC, UNF, UNEF, and UNS thread forms to standard profiles with minimal chatter and precise dimension control.
- 7/8 in Cutting Diameter x 9 in Length: Optimized size for a wide range of internal threading tasks, paired with an MT7 shank for secure, reliable performance on compatible machines.
- MTB Line Innovation: Advances the proven MT platform by integrating bore-through cooling, delivering enhanced performance and longer tool life in tough materials.
With through-coolant, chips are efficiently evacuated from the hole, heat is controlled at the cutting edge, and tool wear is reduced. This translates to more consistent thread quality, fewer tool changes, and improved productivity in precision machining—whether you’re working on automotive components, aerospace parts, or mold cavities that require robust UNC/UNF/UNEF/UNS threads.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 7/8 |
| Pitch | 9 |
| Diameter (D) | 16 |
| Flute Length (l) | 38.1 |
| Shank Diameter (d) | 16 |
| No of Flutes | 3 |
| Overall Length (L) | 105 |
| Thread Mill Style | Standard + Coolant |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC, UNF, UNEF) - With Through Coolant (MTB)
View full collection →You are viewing MTB1616C389UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTB06032C632UNMT7 | No. 8 No. 10 No. 12 | 32 | 6.8 | 6.8 | 58 | £95.48 | 5 days | |
| MTB06047C1220UNMT7 | 1/4 | 20 | 12.1 | 12.1 | 58 | £95.48 | 5 days | |
| MTB06052C1528UNMT7 | 1/4 | 28 | 15 | 15 | 58 | £114.58 | 5 days | |
| MTB06056C1418UNMT7 | 5/16 | 18 | 14.8 | 14.8 | 58 | £95.48 | 5 days | |
| MTB0605C1128UNMT7 | 1/4 | 28 | 11.3 | 11.3 | 58 | £95.48 | 5 days | |
| MTB0606C1428UNMT7 | 7/16 - 1/2 | 28 | 14.1 | 14.1 | 58 | £95.48 | 5 days | |
| MTB0606C1432UNMT7 | 5/16 | 32 | 14.7 | 14.7 | 58 | £95.48 | In Stock | |
| MTB0606C2018UNMT7 | 5/16 | 18 | 20.5 | 20.5 | 58 | £114.58 | 5 days | |
| MTB08066C1424UNMT7 | 5/16 | 24 | 14.3 | 14.3 | 64 | £127.18 | 5 days | |
| MTB08067C1616UNMT7 | 3/8 | 16 | 16.7 | 16.7 | 64 | £127.18 | 5 days | |
| MTB08074C2416UNMT7 | 3/8 | 16 | 24.6 | 24.6 | 64 | £152.61 | 5 days | |
| MTB08077C2014UNMT7 | 7/16 | 14 | 20.9 | 20.9 | 64 | £127.18 | 5 days | |
| MTB0808C2120UNMT7 | 7/16 - 1/2 | 20 | 21 | 21 | 64 | £127.18 | 5 days | |
| MTB0808D1832UNMT7 | 3/8 | 32 | 18.7 | 18.7 | 64 | £127.18 | 5 days | |
| MTB0808D2124UNMT7 | 3/8 9/16 - 5/8 | 24 | 20.6 | 20.6 | 64 | £127.18 | 5 days | |
| MTB10085C2814UNMT7 | 7/16 | 14 | 28.1 | 28.1 | 73 | £176.09 | 5 days | |
| MTB10092C2213UNMT7 | 1/2 | 13 | 22.5 | 22.5 | 73 | £146.70 | 5 days | |
| MTB10098D3213UNMT7 | 1/2 | 13 | 32.2 | 32.2 | 73 | £176.09 | 5 days | |
| MTB1010D2220UNMT7 | 1/2 | 20 | 22.3 | 22.3 | 73 | £146.70 | 5 days | |
| MTB12105C2612UNMT7 | 9/16 | 12 | 26.5 | 26.5 | 84 | £183.59 | 5 days | |
| MTB12113D2618UNMT7 | 9/16 5/8 - 1 1/8 1 5/8 | 18 | 26.1 | 26.1 | 84 | £183.59 | 5 days | |
| MTB12114C2811UNMT7 | 5/8 | 11 | 28.9 | 28.9 | 84 | £183.59 | 5 days | |
| MTB12116D3712UNMT7 | 9/16 | 12 | 37 | 37 | 84 | £220.26 | 5 days | |
| MTB1212D3116UNMT7 | 3/4 | 16 | 31 | 31 | 84 | £183.59 | 5 days | |
| MTB1212D3811UNMT7 | 5/8 | 11 | 38.1 | 38.1 | 84 | £220.26 | 5 days | |
| MTB1212E2720UNMT7 | 3/4 - 1 | 20 | 27.3 | 27.3 | 84 | £183.59 | 5 days | |
| MTB16144D3410UNMT7 | 3/4 | 10 | 34.3 | 34.3 | 105 | £216.59 | 5 days | |
| MTB16147E4910UNMT7 | 3/4 | 10 | 49.5 | 49.5 | 105 | £259.88 | In Stock | |
| MTB1616C389UNMT7 Viewing | 7/8 | 9 | 38.1 | 38.1 | 105 | £216.59 | 5 days | |
| MTB1616E3714UNMT7 | 7/8 | 14 | 37.2 | 37.2 | 105 | £216.59 | In Stock | |
| MTB1616E4112UNMT7 | 1 - 1 1/2 | 12 | 41.3 | 41.3 | 105 | £216.59 | 5 days | |
| MTB20195D428UNMT7 | 1 | 8 | 42.9 | 42.9 | 105 | £261.57 | 5 days | |
| MTB2020D457UNMT7 | 1 1/8 - 1 1/4 | 7 | 45.3 | 45.3 | 105 | £261.57 | 5 days |
