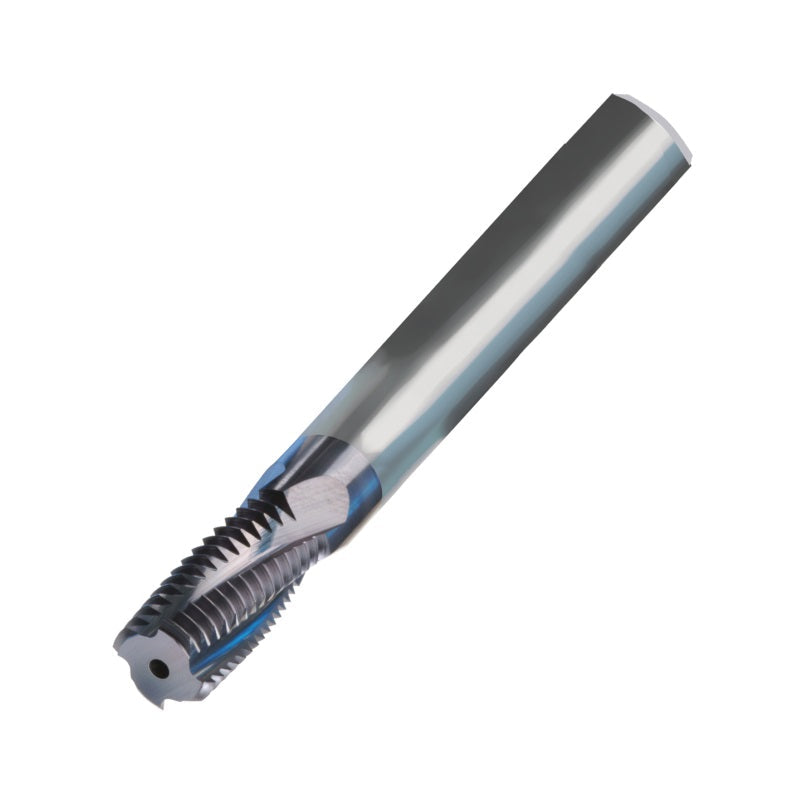

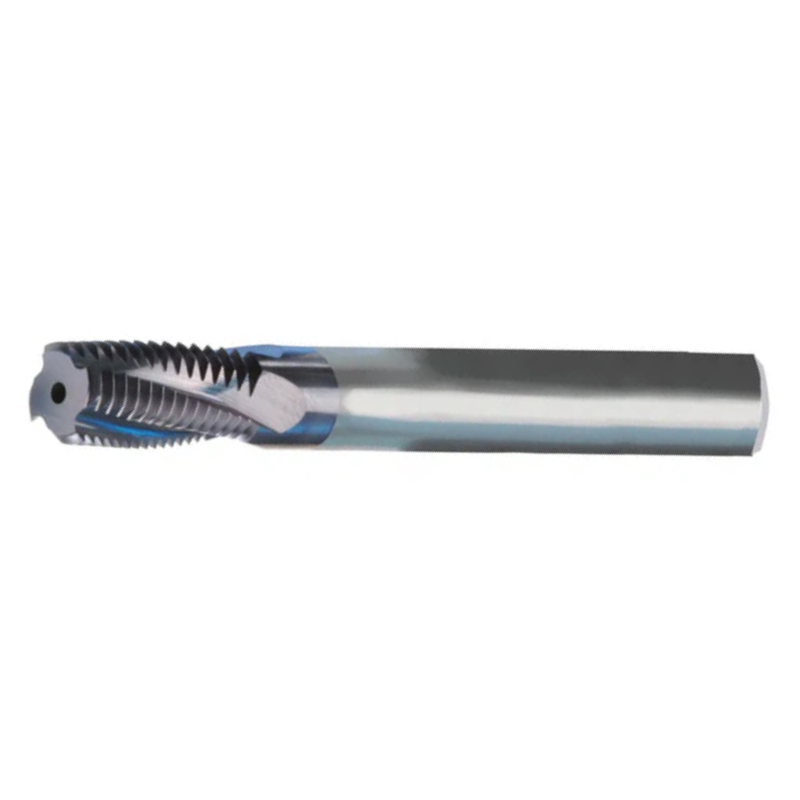

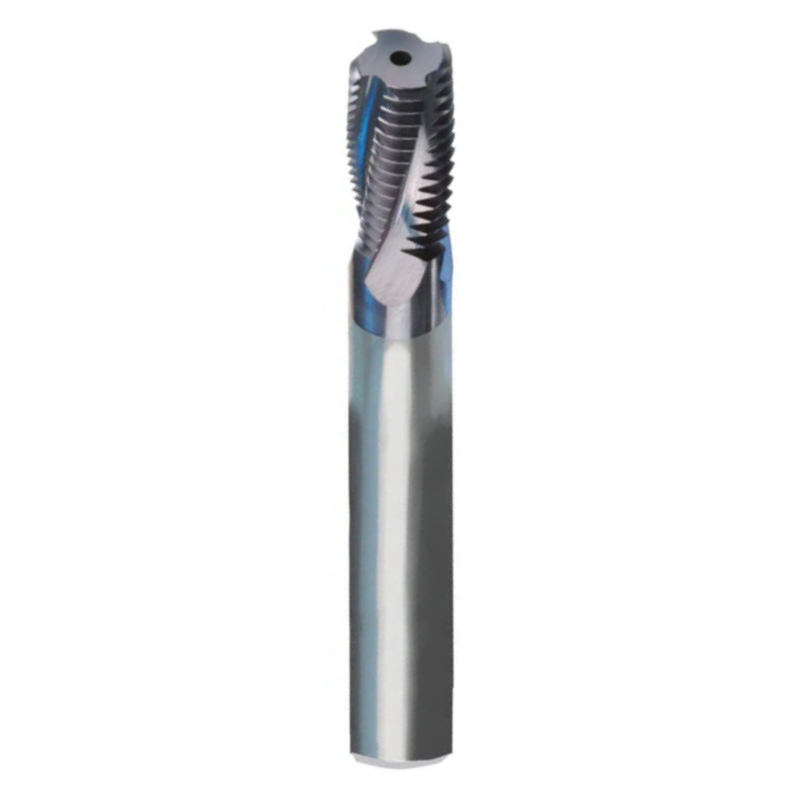

Carmex Thread Mills Solid Carbide - With Through Coolant - UN (UNC UNF UNEF UNS) - 1/4 x 28 - MT7

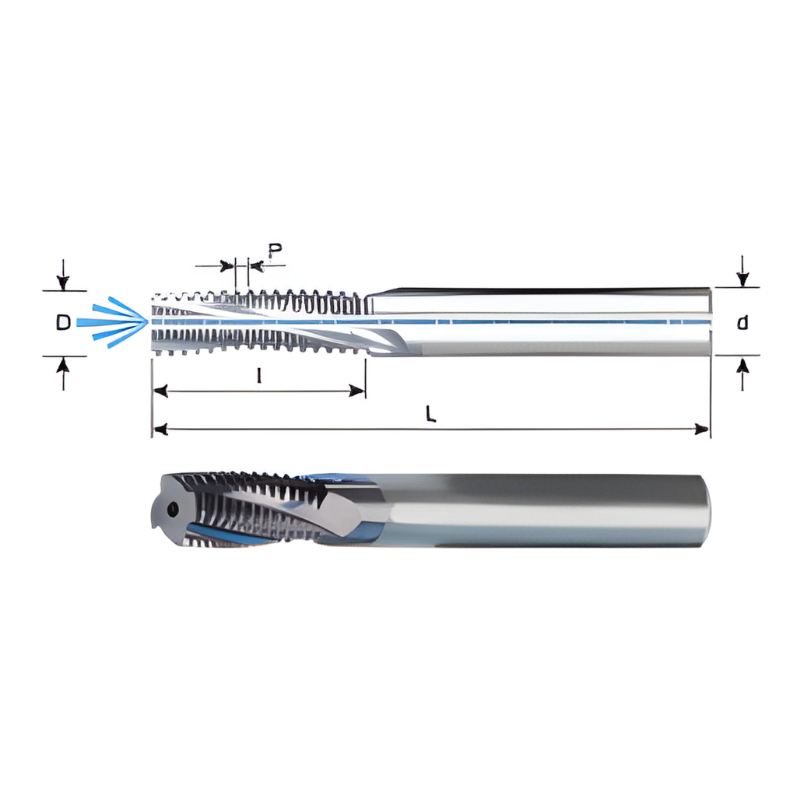

| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 28 |
| Diameter (D) | 5.2 |
| Flute Length (l) | 15 |
| Shank Diameter (d) | 6 |
Learn more about Klarna
Meet the Carmex MTB Solid Carbide Thread Mill with Through Coolant. Built for machinists and engineers who demand precise internal threads in metal components, it delivers superior chip control and extended tool life.
- Thread forms supported: UNC, UNF, UNEF, UNS and UN threads (1/4-28) for versatile compatibility with common fastener standards.
- Diameter and pitch: 1/4" diameter with 28 threads per inch, optimized for clean, accurate internal threads.
- Through-coolant bore: Coolant is delivered through the tool bore to the cutting edge, aiding chip evacuation and reducing heat buildup.
- Solid carbide construction: Premium carbide substrate delivers rigidity, wear resistance, and long tool life in challenging materials.
- MT7 shank: Morse Taper 7 shank ensures secure, precise mounting on compatible CNC machines and toolholders.
- MTB line innovation: Part of the MTB family that emphasizes improved cooling and durability for high-production threading tasks.
The through-coolant capability, paired with a robust carbide body, minimizes chip recutting and heat generation, leading to cleaner thread profiles, higher productivity, and fewer tool changes. Ideal for applications requiring reliable internal threads in automotive, aerospace, and general metal fabrication, this tool helps you achieve consistent thread depth and better surface finish while reducing operational costs over the tool’s life.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | 1/4 |
| Pitch | 28 |
| Diameter (D) | 5.2 |
| Flute Length (l) | 15 |
| Shank Diameter (d) | 6 |
| No of Flutes | 3 |
| Overall Length (L) | 58 |
| Thread Mill Style | Standard + Coolant |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Solid Carbide Thread Mills - UN (UNC, UNF, UNEF) - With Through Coolant (MTB)
View full collection →You are viewing MTB06052C1528UNMT7. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTB06032C632UNMT7 | No. 8 No. 10 No. 12 | 32 | 6.8 | 6.8 | 58 | £95.48 | 5 days | |
| MTB06047C1220UNMT7 | 1/4 | 20 | 12.1 | 12.1 | 58 | £95.48 | 5 days | |
| MTB06052C1528UNMT7 Viewing | 1/4 | 28 | 15 | 15 | 58 | £114.58 | 5 days | |
| MTB06056C1418UNMT7 | 5/16 | 18 | 14.8 | 14.8 | 58 | £95.48 | 5 days | |
| MTB0605C1128UNMT7 | 1/4 | 28 | 11.3 | 11.3 | 58 | £95.48 | 5 days | |
| MTB0606C1428UNMT7 | 7/16 - 1/2 | 28 | 14.1 | 14.1 | 58 | £95.48 | 5 days | |
| MTB0606C1432UNMT7 | 5/16 | 32 | 14.7 | 14.7 | 58 | £95.48 | In Stock | |
| MTB0606C2018UNMT7 | 5/16 | 18 | 20.5 | 20.5 | 58 | £114.58 | 5 days | |
| MTB08066C1424UNMT7 | 5/16 | 24 | 14.3 | 14.3 | 64 | £127.18 | 5 days | |
| MTB08067C1616UNMT7 | 3/8 | 16 | 16.7 | 16.7 | 64 | £127.18 | 5 days | |
| MTB08074C2416UNMT7 | 3/8 | 16 | 24.6 | 24.6 | 64 | £152.61 | 5 days | |
| MTB08077C2014UNMT7 | 7/16 | 14 | 20.9 | 20.9 | 64 | £127.18 | 5 days | |
| MTB0808C2120UNMT7 | 7/16 - 1/2 | 20 | 21 | 21 | 64 | £127.18 | 5 days | |
| MTB0808D1832UNMT7 | 3/8 | 32 | 18.7 | 18.7 | 64 | £127.18 | 5 days | |
| MTB0808D2124UNMT7 | 3/8 9/16 - 5/8 | 24 | 20.6 | 20.6 | 64 | £127.18 | 5 days | |
| MTB10085C2814UNMT7 | 7/16 | 14 | 28.1 | 28.1 | 73 | £176.09 | 5 days | |
| MTB10092C2213UNMT7 | 1/2 | 13 | 22.5 | 22.5 | 73 | £146.70 | 5 days | |
| MTB10098D3213UNMT7 | 1/2 | 13 | 32.2 | 32.2 | 73 | £176.09 | 5 days | |
| MTB1010D2220UNMT7 | 1/2 | 20 | 22.3 | 22.3 | 73 | £146.70 | 5 days | |
| MTB12105C2612UNMT7 | 9/16 | 12 | 26.5 | 26.5 | 84 | £183.59 | 5 days | |
| MTB12113D2618UNMT7 | 9/16 5/8 - 1 1/8 1 5/8 | 18 | 26.1 | 26.1 | 84 | £183.59 | 5 days | |
| MTB12114C2811UNMT7 | 5/8 | 11 | 28.9 | 28.9 | 84 | £183.59 | 5 days | |
| MTB12116D3712UNMT7 | 9/16 | 12 | 37 | 37 | 84 | £220.26 | 5 days | |
| MTB1212D3116UNMT7 | 3/4 | 16 | 31 | 31 | 84 | £183.59 | 5 days | |
| MTB1212D3811UNMT7 | 5/8 | 11 | 38.1 | 38.1 | 84 | £220.26 | 5 days | |
| MTB1212E2720UNMT7 | 3/4 - 1 | 20 | 27.3 | 27.3 | 84 | £183.59 | 5 days | |
| MTB16144D3410UNMT7 | 3/4 | 10 | 34.3 | 34.3 | 105 | £216.59 | 5 days | |
| MTB16147E4910UNMT7 | 3/4 | 10 | 49.5 | 49.5 | 105 | £259.88 | In Stock | |
| MTB1616C389UNMT7 | 7/8 | 9 | 38.1 | 38.1 | 105 | £216.59 | 5 days | |
| MTB1616E3714UNMT7 | 7/8 | 14 | 37.2 | 37.2 | 105 | £216.59 | In Stock | |
| MTB1616E4112UNMT7 | 1 - 1 1/2 | 12 | 41.3 | 41.3 | 105 | £216.59 | 5 days | |
| MTB20195D428UNMT7 | 1 | 8 | 42.9 | 42.9 | 105 | £261.57 | 5 days | |
| MTB2020D457UNMT7 | 1 1/8 - 1 1/4 | 7 | 45.3 | 45.3 | 105 | £261.57 | 5 days |
