Carmex Carbide Tiny Tool - Boring Bar - MTR - BXC Grade - 4.1mm Minimum Diameter x 15mm Reach x R0.1
SKU:MTR4R0.1L15BXC

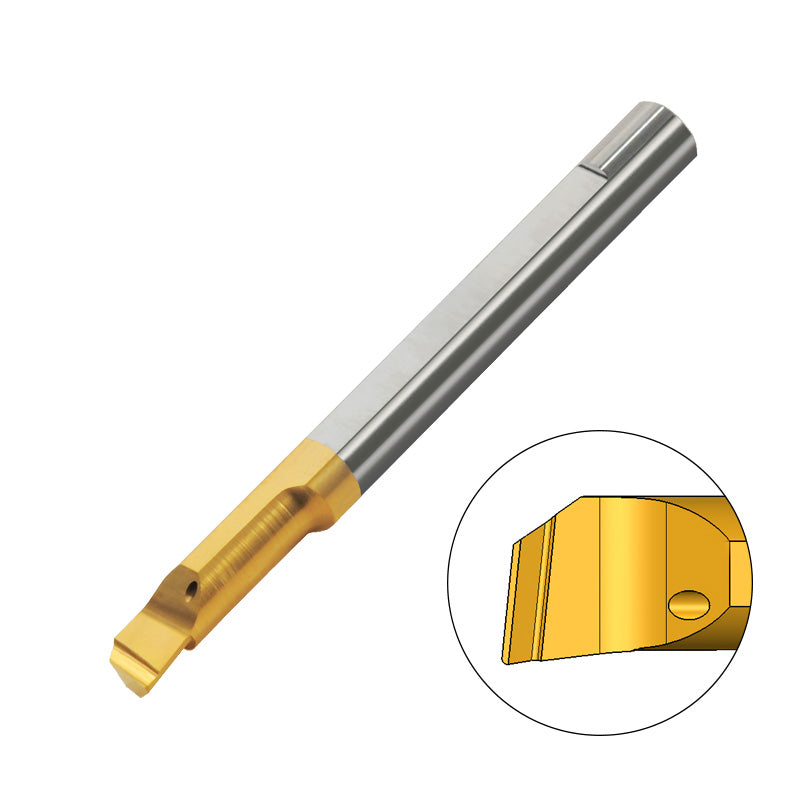

Carmex Carbide Tiny Tool is a compact solid carbide boring bar designed for small-diameter boring and general turning tasks. With a 4.1 mm minimum diameter, a 15 mm reach, and a precise R0.1 nose...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
| Grade | BXC |
| Holder | SIM****H4 |
£23.35
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Carmex Carbide Tiny Tool is a compact solid carbide boring bar designed for small-diameter boring and general turning tasks. With a 4.1 mm minimum diameter, a 15 mm reach, and a precise R0.1 nose radius, it delivers accurate, repeatable cuts in tight bores and pockets.
Designed for engineers, machinists, and hobbyists alike, this tiny tool provides versatility across materials and applications. It comes in two high-performance coating grades that optimize performance at different speeds: the BXC Grade with PVD TiN for low-speed cutting of stainless steels, and the BMK Grade, a sub-micron option with a triple PVD coating for excellent heat resistance and smooth cutting across a wide range of materials.
- Small-diameter bore capability: 4.1 mm minimum diameter, 15 mm reach, and R0.1 nose radius enable precise boring and turning in tight spots with clean, accurate finishes.
- Coating options for versatility: BXC TiN coating improves wear resistance and consistency at low cutting speeds on stainless steels (ISO P30-P50 / K25-K40).
- High-heat BMK performance: BMK sub-micron grade with triple PVD coating delivers exceptional heat resistance and smooth cutting across various materials, helping extend tool life and maintain stable cuts.
This combination of compact geometry, dual coating options, and hard-wearing carbide delivers reliable performance, reduces downtime, and helps you achieve precise, repeatable results in every boring or turning task.

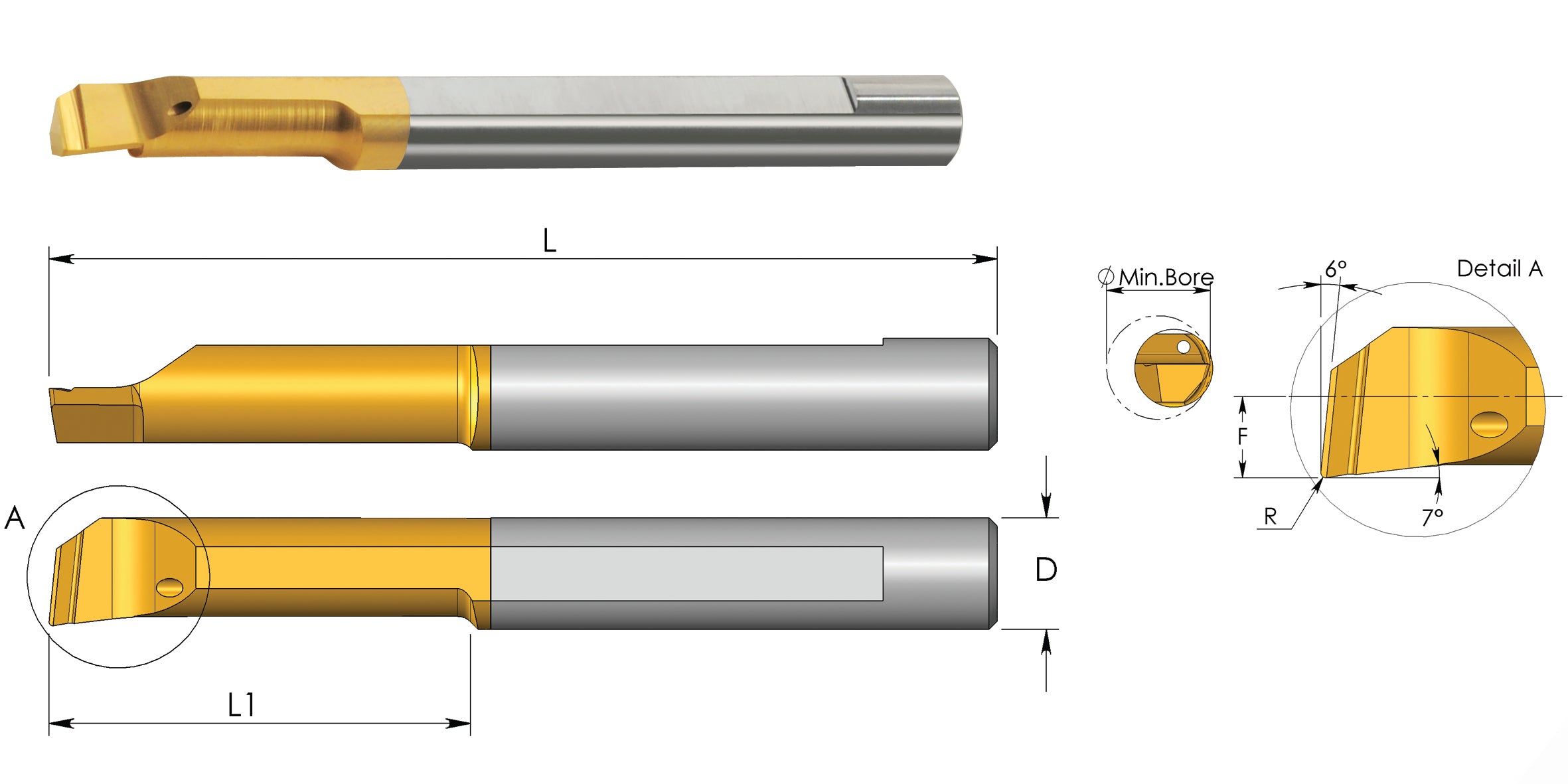

| Application | Boring (MTR) |
| Minimum Diameter | 4.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.1 |
| Grade | BXC |
| Holder | SIM****H4 |
| L | 51 |
| F | 1.7 |
| D | 4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - BXC Grade (MTR)
View full collection →You are viewing MTR4R0.1L15BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR1.2R0L7BXC | 1.2 | 7 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1.2R0L9BXC | 1.2 | 9 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1.5R0.1L6BXC | 1.5 | 6 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1.5R0L6BXC | 1.5 | 6 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1R0.05L4BXC | 1 | 4 | 0.05 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1R0.05L6BXC | 1 | 6 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1R0L6BXC | 1 | 6 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR2.5R0.1L10BXC | 2.5 | 10 | 0.1 | BXC | SIM****H4 | £21.03 | In Stock | |
| MTR2.5R0.1L15BXC | 2.5 | 15 | 0.1 | BXC | SIM****H4 | £22.12 | In Stock | |
| MTR2.5R0L10BXC | 2.5 | 10 | 0 | BXC | SIM****H4 | £21.03 | In Stock | |
| MTR2R0.05L10BXC | 2.1 | 10 | 0.05 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.05L5BXC | 2.1 | 5 | 0.05 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.15L10BXC | 2.1 | 10 | 0.15 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR2R0.15L5BXC | 2.1 | 5 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTR2R0.1L10BXC | 2.1 | 10 | 0.1 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.1L15BXC | 2.1 | 15 | 0.1 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0L10BXC | 2.1 | 10 | 0 | BXC | SIM****H3 | £22.09 | 5 days | |
| MTR3R0.05L10BXC | 3.1 | 10 | 0.05 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR3R0.05L15BXC | 3.1 | 15 | 0.05 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR3R0.1L10BXC | 3.1 | 10 | 0.1 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTR3R0.1L15BXC | 3.1 | 15 | 0.1 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR3R0.2L10BXC | 3.1 | 10 | 0.2 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR3R0.2L15BXC | 3.1 | 15 | 0.2 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR4R0.05L15BXC | 4.1 | 15 | 0.05 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR4R0.05L22BXC | 4.1 | 22 | 0.05 | BXC | SIM****H4 | £24.43 | In Stock | |
| MTR4R0.1L10BXC | 4.1 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | In Stock | |
| MTR4R0.1L15BXC Viewing | 4.1 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR4R0.1L22BXC | 4.1 | 22 | 0.1 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTR4R0.2L10BXC | 4.1 | 10 | 0.2 | BXC | SIM****H4 | £21.57 | In Stock | |
| MTR4R0.2L15BXC | 4.1 | 15 | 0.2 | BXC | SIM****H4 | £23.35 | In Stock | |
| MTR4R0.2L22BXC | 4.1 | 22 | 0.2 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTR4R0.2L30BXC | 4.1 | 30 | 0.2 | BXC | SIM****H4 | £27.72 | In Stock | |
| MTR5R0.05L15BXC | 5.1 | 15 | 0.05 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTR5R0.1L15BXC | 5.1 | 15 | 0.1 | BXC | SIM****H5 | £23.84 | In Stock | |
| MTR5R0.1L22BXC | 5.1 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | In Stock | |
| MTR5R0.1L30BXC | 5.1 | 30 | 0.1 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTR5R0.2L10BXC | 5.1 | 10 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTR5R0.2L15BXC | 5.1 | 15 | 0.2 | BXC | SIM****H5 | £23.81 | In Stock | |
| MTR5R0.2L22BXC | 5.1 | 22 | 0.2 | BXC | SIM****H5 | £27.16 | In Stock | |
| MTR5R0.2L30BXC | 5.1 | 30 | 0.2 | BXC | SIM****H5 | £30.85 | In Stock | |
| MTR5R0.2L40BXC | 5.1 | 40 | 0.2 | BXC | SIM****H5 | £33.90 | 5 days | |
| MTR6R0.05L15BXC | 6.1 | 15 | 0.05 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.05L22BXC | 6.1 | 22 | 0.05 | BXC | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.1L15BXC | 6.1 | 15 | 0.1 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.1L22BXC | 6.1 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTR6R0.2L15BXC | 6.1 | 15 | 0.2 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.2L22BXC | 6.1 | 22 | 0.2 | BXC | SIM****H6 | £27.72 | In Stock | |
| MTR6R0.2L30BXC | 6.1 | 30 | 0.2 | BXC | SIM****H6 | £31.29 | In Stock | |
| MTR6R0.2L35BXC | 6.1 | 35 | 0.2 | BXC | SIM****H6 | £33.65 | In Stock | |
| MTR6R0.2L40BXC | 6.1 | 40 | 0.2 | BXC | SIM****H6 | £34.42 | 5 days | |
| MTR7R0.2L22BXC | 7.1 | 22 | 0.2 | BXC | SIM****H7 | £29.52 | In Stock | |
| MTR7R0.2L30BXC | 7.1 | 30 | 0.2 | BXC | SIM****H7 | £32.72 | In Stock | |
| MTR8R0.2L15BXC | 8.1 | 15 | 0.2 | BXC | SIM****H8 | £29.42 | In Stock | |
| MTR8R0.2L22BXC | 8.1 | 22 | 0.2 | BXC | SIM****H8 | £33.23 | In Stock | |
| MTR8R0.2L35BXC | 8.1 | 35 | 0.2 | BXC | SIM****H8 | £35.35 | 5 days | |
| MTR10R0.2L35BXC | 10.1 | 35 | 0.2 | BXC | SIM****H10 | £37.47 | In Stock | |
| MTR0.3R0L1BXC | 0.3 | 1.2 | 0 | BXC | SIM****H3 | £28.09 | 5 days | |
| MTR0.5R0.05L2BXC | 0.5 | 2 | 0.05 | BXC | SIM****H3 | £25.51 | 5 days | |
| MTR1.2R0.05L9BXC | 1.2 | 9 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1.5R0.1L10BXC | 1.5 | 10 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR2.5R0.15L10BXC | 2.5 | 10 | 0.15 | BXC | SIM****H4 | £21.03 | 5 days | |
| MTR3.7R0.1L10BXC | 3.7 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTR3.7R0.1L15BXC | 3.7 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR3.7R0.15L15BXC | 3.7 | 15 | 0.15 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR5R0.05L22BXC | 5.1 | 22 | 0.05 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL0.3R0L1BXC | 0.3 | 1.2 | 0 | BXC | SIM****H3 | £28.09 | 5 days | |
| MTL0.5R0.05L2BXC | 0.5 | 2 | 0.05 | BXC | SIM****H3 | £25.52 | 5 days | |
| MTL1.2R0.05L9BXC | 1.2 | 9 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.2R0L7BXC | 1.2 | 7 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL1.2R0L9BXC | 1.2 | 9 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL1.5R0.1L10BXC | 1.5 | 10 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.5R0.1L6BXC | 1.5 | 6 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.5R0L6BXC | 1.5 | 6 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL10R0.2L35BXC | 10.1 | 35 | 0.2 | BXC | SIM****H10 | £37.47 | 5 days | |
| MTL1R0.05L4BXC | 1 | 4 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1R0.05L6BXC | 1 | 6 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1R0L6BXC | 1 | 6 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL2.5R0.15L10BXC | 2.5 | 10 | 0.15 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2.5R0.1L10BXC | 2.5 | 10 | 0.1 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2.5R0.1L15BXC | 2.5 | 15 | 0.1 | BXC | SIM****H3 | £22.11 | 5 days | |
| MTL2.5R0L10BXC | 2.5 | 10 | 0 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2R0.05L10BXC | 2.1 | 10 | 0.05 | BXC | SIM****H3 | £22.09 | 5 days | |
| MTL2R0.05L5BXC | 2.1 | 5 | 0.05 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0.15L10BXC | 2.1 | 10 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL2R0.15L5BXC | 2.1 | 5 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL2R0.1L10BXC | 2.1 | 10 | 0.1 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0.1L15BXC | 2.1 | 15 | 0.1 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0L10BXC | 2.1 | 10 | 0 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL3.7R0.15L15BXC | 3.7 | 15 | 0.15 | BXC | SIM****H4 | £23.34 | 5 days | |
| MTL3.7R0.1L10BXC | 3.7 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL3.7R0.1L15BXC | 3.7 | 15 | 0.1 | BXC | SIM****H4 | £23.34 | 5 days | |
| MTL3R0.05L10BXC | 3.1 | 10 | 0.05 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL3R0.05L15BXC | 3.1 | 15 | 0.05 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL3R0.1L10BXC | 3.1 | 10 | 0.1 | BXC | SIM****H3 | £22.89 | 5 days | |
| MTL3R0.1L15BXC | 3.1 | 15 | 0.1 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL3R0.2L10BXC | 3.1 | 10 | 0.2 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL3R0.2L15BXC | 3.1 | 15 | 0.2 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL4R0.05L15BXC | 4.1 | 15 | 0.05 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.05L22BXC | 4.1 | 22 | 0.05 | BXC | SIM****H4 | £24.43 | 5 days | |
| MTL4R0.1L10BXC | 4.1 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL4R0.1L15BXC | 4.1 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.1L22BXC | 4.1 | 22 | 0.1 | BXC | SIM****H4 | £24.50 | 5 days | |
| MTL4R0.2L10BXC | 4.1 | 10 | 0.2 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL4R0.2L15BXC | 4.1 | 15 | 0.2 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.2L22BXC | 4.1 | 22 | 0.2 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTL4R0.2L30BXC | 4.1 | 30 | 0.2 | BXC | SIM****H4 | £27.72 | 5 days | |
| MTL5R0.05L15BXC | 5.1 | 15 | 0.05 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.05L22BXC | 5.1 | 22 | 0.05 | BXC | SIM****H5 | £27.15 | 5 days | |
| MTL5R0.1L15BXC | 5.1 | 15 | 0.1 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.1L22BXC | 5.1 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL5R0.1L30BXC | 5.1 | 30 | 0.1 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTL5R0.2L10BXC | 5.1 | 10 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.2L15BXC | 5.1 | 15 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.2L22BXC | 5.1 | 22 | 0.2 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL5R0.2L30BXC | 5.1 | 30 | 0.2 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTL5R0.2L40BXC | 5.1 | 40 | 0.2 | BXC | SIM****H5 | £33.90 | 5 days | |
| MTL6R0.05L15BXC | 6.1 | 15 | 0.05 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.05L22BXC | 6.1 | 22 | 0.05 | BXC | SIM****H6 | £26.92 | 5 days | |
| MTL6R0.1L15BXC | 6.1 | 15 | 0.1 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.1L22BXC | 6.1 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTL6R0.2L15BXC | 6.1 | 15 | 0.2 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.2L22BXC | 6.1 | 22 | 0.2 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTL6R0.2L30BXC | 6.1 | 30 | 0.2 | BXC | SIM****H6 | £31.29 | 5 days | |
| MTL6R0.2L35BXC | 6.1 | 35 | 0.2 | BXC | SIM****H6 | £33.65 | 5 days | |
| MTL6R0.2L40BXC | 6.1 | 40 | 0.2 | BXC | SIM****H6 | £34.43 | 5 days | |
| MTL7R0.2L22BXC | 7.1 | 22 | 0.2 | BXC | SIM****H7 | £29.52 | 5 days | |
| MTL7R0.2L30BXC | 7.1 | 30 | 0.2 | BXC | SIM****H7 | £32.72 | 5 days | |
| MTL8R0.2L15BXC | 8.1 | 15 | 0.2 | BXC | SIM****H8 | £29.42 | 5 days | |
| MTL8R0.2L22BXC | 8.1 | 22 | 0.2 | BXC | SIM****H8 | £33.23 | 5 days | |
| MTL8R0.2L35BXC | 8.1 | 35 | 0.2 | BXC | SIM****H8 | £35.35 | 5 days |
No products match your filters.
