Carmex Carbide Tiny Tool - Boring Bar - MTR - BXC Grade - 6.1mm Minimum Diameter x 15mm Reach x R0.05
SKU:MTR6R0.05L15BXC

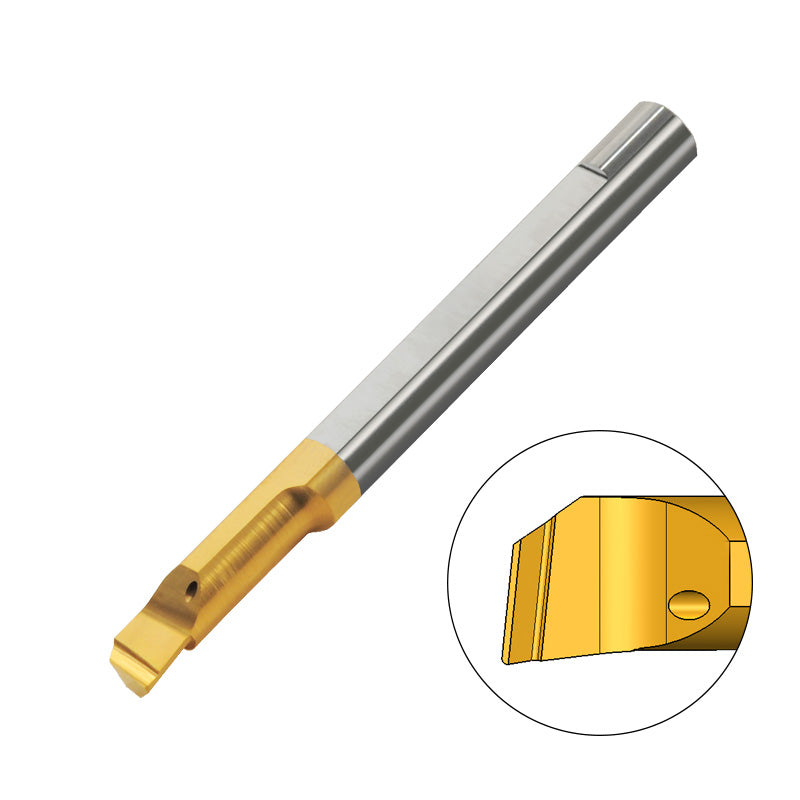

The Carmex Carbide Tiny Tool is a compact boring bar crafted from solid carbide for precise boring and reliable general turning. With a 6.1 mm minimum diameter, a 15 mm reach, and a nose radius o...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.05 |
| Grade | BXC |
| Holder | SIM****H6 |
£24.53
Prices shown ex. VAT
In Stock— only 4 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool is a compact boring bar crafted from solid carbide for precise boring and reliable general turning. With a 6.1 mm minimum diameter, a 15 mm reach, and a nose radius of R0.05, it delivers accurate, clean cuts in tight bores.
This tool line is designed for engineers, machinists, and hobbyists who value repeatable results in stainless steels and a wide range of materials. It offers two coating grades to match your cutting conditions: BXC TiN-coated for low-speed work and smoother finishes, and BMK with advanced PVD triple coating (ISO K10-K20) for extremely high heat resistance and versatile, all-material performance.
- Compact carbide boring bar with precise geometry: Delivers tight bore capability and stable cuts in confined spaces thanks to the small 6.1 mm minimum diameter, 15 mm reach, and R0.05 nose radius.
- Two coating grades to match materials: BXC TiN-coated for low-speed cuts and stainless steels (ISO P30-P50 / K25-K40); BMK with triple PVD coating (ISO K10-K20) for high-heat, general-purpose use.
- Designed for reliability and long tool life: Solid carbide construction and advanced coatings reduce wear, extend tool life, and promote smooth cutting, reducing downtime in demanding boring and turning applications.
Together, this tiny tool helps you achieve accurate bore dimensions, smoother surface finishes, and consistent results across a range of materials, while minimizing setup time and tool changes. It’s a dependable choice for production environments and precision work alike.

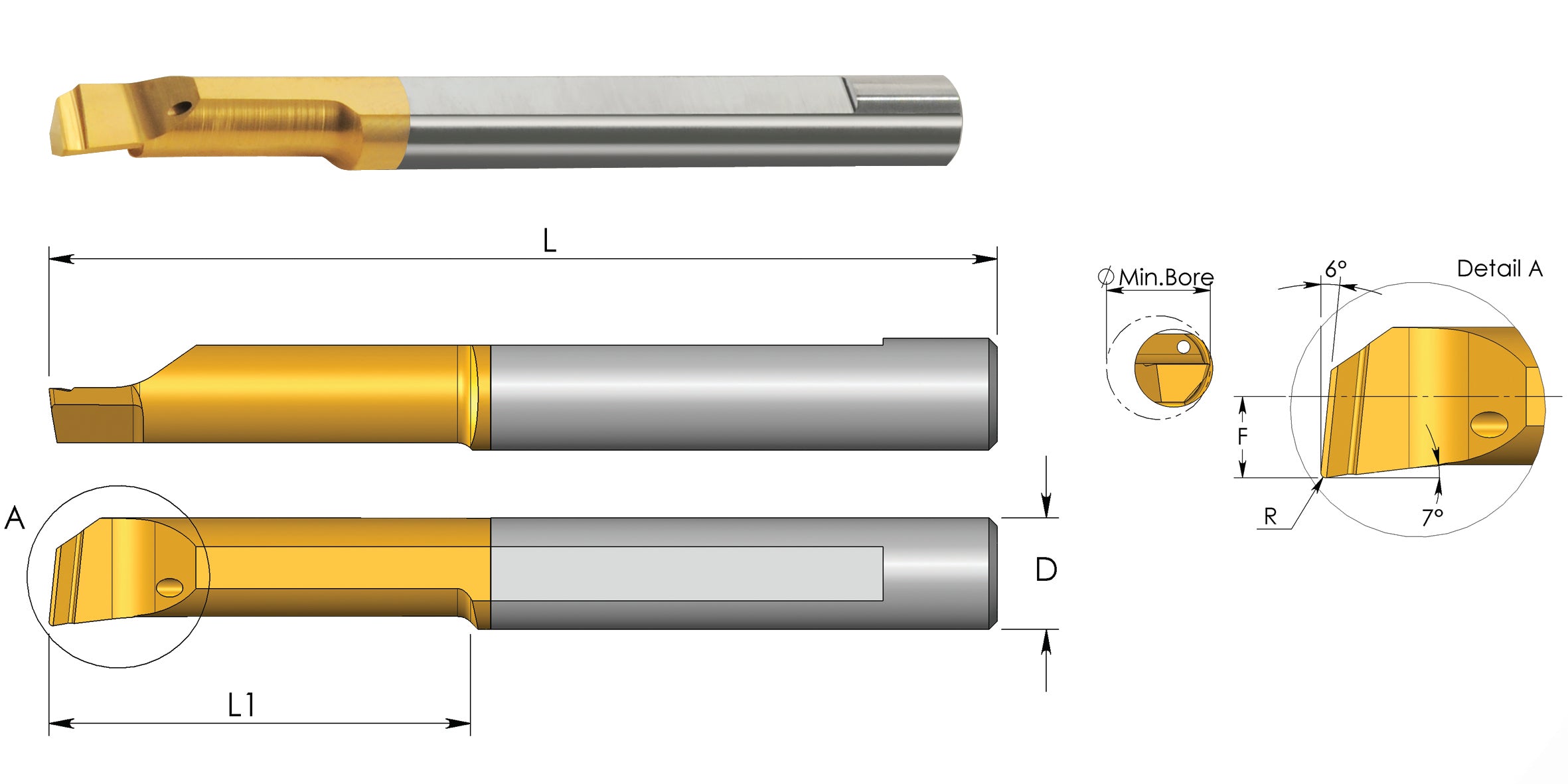

| Application | Boring (MTR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 15 |
| Radius (R) | 0.05 |
| Grade | BXC |
| Holder | SIM****H6 |
| L | 51 |
| F | 2.8 |
| D | 6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - BXC Grade (MTR)
View full collection →You are viewing MTR6R0.05L15BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR1.2R0L7BXC | 1.2 | 7 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1.2R0L9BXC | 1.2 | 9 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1.5R0.1L6BXC | 1.5 | 6 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1.5R0L6BXC | 1.5 | 6 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1R0.05L4BXC | 1 | 4 | 0.05 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1R0.05L6BXC | 1 | 6 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1R0L6BXC | 1 | 6 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR2.5R0.1L10BXC | 2.5 | 10 | 0.1 | BXC | SIM****H4 | £21.03 | In Stock | |
| MTR2.5R0.1L15BXC | 2.5 | 15 | 0.1 | BXC | SIM****H4 | £22.12 | In Stock | |
| MTR2.5R0L10BXC | 2.5 | 10 | 0 | BXC | SIM****H4 | £21.03 | In Stock | |
| MTR2R0.05L10BXC | 2.1 | 10 | 0.05 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.05L5BXC | 2.1 | 5 | 0.05 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.15L10BXC | 2.1 | 10 | 0.15 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR2R0.15L5BXC | 2.1 | 5 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTR2R0.1L10BXC | 2.1 | 10 | 0.1 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.1L15BXC | 2.1 | 15 | 0.1 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0L10BXC | 2.1 | 10 | 0 | BXC | SIM****H3 | £22.09 | 5 days | |
| MTR3R0.05L10BXC | 3.1 | 10 | 0.05 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR3R0.05L15BXC | 3.1 | 15 | 0.05 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR3R0.1L10BXC | 3.1 | 10 | 0.1 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTR3R0.1L15BXC | 3.1 | 15 | 0.1 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR3R0.2L10BXC | 3.1 | 10 | 0.2 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR3R0.2L15BXC | 3.1 | 15 | 0.2 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR4R0.05L15BXC | 4.1 | 15 | 0.05 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR4R0.05L22BXC | 4.1 | 22 | 0.05 | BXC | SIM****H4 | £24.43 | In Stock | |
| MTR4R0.1L10BXC | 4.1 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | In Stock | |
| MTR4R0.1L15BXC | 4.1 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR4R0.1L22BXC | 4.1 | 22 | 0.1 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTR4R0.2L10BXC | 4.1 | 10 | 0.2 | BXC | SIM****H4 | £21.57 | In Stock | |
| MTR4R0.2L15BXC | 4.1 | 15 | 0.2 | BXC | SIM****H4 | £23.35 | In Stock | |
| MTR4R0.2L22BXC | 4.1 | 22 | 0.2 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTR4R0.2L30BXC | 4.1 | 30 | 0.2 | BXC | SIM****H4 | £27.72 | In Stock | |
| MTR5R0.05L15BXC | 5.1 | 15 | 0.05 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTR5R0.1L15BXC | 5.1 | 15 | 0.1 | BXC | SIM****H5 | £23.84 | In Stock | |
| MTR5R0.1L22BXC | 5.1 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | In Stock | |
| MTR5R0.1L30BXC | 5.1 | 30 | 0.1 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTR5R0.2L10BXC | 5.1 | 10 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTR5R0.2L15BXC | 5.1 | 15 | 0.2 | BXC | SIM****H5 | £23.81 | In Stock | |
| MTR5R0.2L22BXC | 5.1 | 22 | 0.2 | BXC | SIM****H5 | £27.16 | In Stock | |
| MTR5R0.2L30BXC | 5.1 | 30 | 0.2 | BXC | SIM****H5 | £30.85 | In Stock | |
| MTR5R0.2L40BXC | 5.1 | 40 | 0.2 | BXC | SIM****H5 | £33.90 | 5 days | |
| MTR6R0.05L15BXC Viewing | 6.1 | 15 | 0.05 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.05L22BXC | 6.1 | 22 | 0.05 | BXC | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.1L15BXC | 6.1 | 15 | 0.1 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.1L22BXC | 6.1 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTR6R0.2L15BXC | 6.1 | 15 | 0.2 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.2L22BXC | 6.1 | 22 | 0.2 | BXC | SIM****H6 | £27.72 | In Stock | |
| MTR6R0.2L30BXC | 6.1 | 30 | 0.2 | BXC | SIM****H6 | £31.29 | In Stock | |
| MTR6R0.2L35BXC | 6.1 | 35 | 0.2 | BXC | SIM****H6 | £33.65 | In Stock | |
| MTR6R0.2L40BXC | 6.1 | 40 | 0.2 | BXC | SIM****H6 | £34.42 | 5 days | |
| MTR7R0.2L22BXC | 7.1 | 22 | 0.2 | BXC | SIM****H7 | £29.52 | In Stock | |
| MTR7R0.2L30BXC | 7.1 | 30 | 0.2 | BXC | SIM****H7 | £32.72 | In Stock | |
| MTR8R0.2L15BXC | 8.1 | 15 | 0.2 | BXC | SIM****H8 | £29.42 | In Stock | |
| MTR8R0.2L22BXC | 8.1 | 22 | 0.2 | BXC | SIM****H8 | £33.23 | In Stock | |
| MTR8R0.2L35BXC | 8.1 | 35 | 0.2 | BXC | SIM****H8 | £35.35 | 5 days | |
| MTR10R0.2L35BXC | 10.1 | 35 | 0.2 | BXC | SIM****H10 | £37.47 | In Stock | |
| MTR0.3R0L1BXC | 0.3 | 1.2 | 0 | BXC | SIM****H3 | £28.09 | 5 days | |
| MTR0.5R0.05L2BXC | 0.5 | 2 | 0.05 | BXC | SIM****H3 | £25.51 | 5 days | |
| MTR1.2R0.05L9BXC | 1.2 | 9 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1.5R0.1L10BXC | 1.5 | 10 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR2.5R0.15L10BXC | 2.5 | 10 | 0.15 | BXC | SIM****H4 | £21.03 | 5 days | |
| MTR3.7R0.1L10BXC | 3.7 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTR3.7R0.1L15BXC | 3.7 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR3.7R0.15L15BXC | 3.7 | 15 | 0.15 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR5R0.05L22BXC | 5.1 | 22 | 0.05 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL0.3R0L1BXC | 0.3 | 1.2 | 0 | BXC | SIM****H3 | £28.09 | 5 days | |
| MTL0.5R0.05L2BXC | 0.5 | 2 | 0.05 | BXC | SIM****H3 | £25.52 | 5 days | |
| MTL1.2R0.05L9BXC | 1.2 | 9 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.2R0L7BXC | 1.2 | 7 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL1.2R0L9BXC | 1.2 | 9 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL1.5R0.1L10BXC | 1.5 | 10 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.5R0.1L6BXC | 1.5 | 6 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.5R0L6BXC | 1.5 | 6 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL10R0.2L35BXC | 10.1 | 35 | 0.2 | BXC | SIM****H10 | £37.47 | 5 days | |
| MTL1R0.05L4BXC | 1 | 4 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1R0.05L6BXC | 1 | 6 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1R0L6BXC | 1 | 6 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL2.5R0.15L10BXC | 2.5 | 10 | 0.15 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2.5R0.1L10BXC | 2.5 | 10 | 0.1 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2.5R0.1L15BXC | 2.5 | 15 | 0.1 | BXC | SIM****H3 | £22.11 | 5 days | |
| MTL2.5R0L10BXC | 2.5 | 10 | 0 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2R0.05L10BXC | 2.1 | 10 | 0.05 | BXC | SIM****H3 | £22.09 | 5 days | |
| MTL2R0.05L5BXC | 2.1 | 5 | 0.05 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0.15L10BXC | 2.1 | 10 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL2R0.15L5BXC | 2.1 | 5 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL2R0.1L10BXC | 2.1 | 10 | 0.1 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0.1L15BXC | 2.1 | 15 | 0.1 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0L10BXC | 2.1 | 10 | 0 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL3.7R0.15L15BXC | 3.7 | 15 | 0.15 | BXC | SIM****H4 | £23.34 | 5 days | |
| MTL3.7R0.1L10BXC | 3.7 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL3.7R0.1L15BXC | 3.7 | 15 | 0.1 | BXC | SIM****H4 | £23.34 | 5 days | |
| MTL3R0.05L10BXC | 3.1 | 10 | 0.05 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL3R0.05L15BXC | 3.1 | 15 | 0.05 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL3R0.1L10BXC | 3.1 | 10 | 0.1 | BXC | SIM****H3 | £22.89 | 5 days | |
| MTL3R0.1L15BXC | 3.1 | 15 | 0.1 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL3R0.2L10BXC | 3.1 | 10 | 0.2 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL3R0.2L15BXC | 3.1 | 15 | 0.2 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL4R0.05L15BXC | 4.1 | 15 | 0.05 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.05L22BXC | 4.1 | 22 | 0.05 | BXC | SIM****H4 | £24.43 | 5 days | |
| MTL4R0.1L10BXC | 4.1 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL4R0.1L15BXC | 4.1 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.1L22BXC | 4.1 | 22 | 0.1 | BXC | SIM****H4 | £24.50 | 5 days | |
| MTL4R0.2L10BXC | 4.1 | 10 | 0.2 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL4R0.2L15BXC | 4.1 | 15 | 0.2 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.2L22BXC | 4.1 | 22 | 0.2 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTL4R0.2L30BXC | 4.1 | 30 | 0.2 | BXC | SIM****H4 | £27.72 | 5 days | |
| MTL5R0.05L15BXC | 5.1 | 15 | 0.05 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.05L22BXC | 5.1 | 22 | 0.05 | BXC | SIM****H5 | £27.15 | 5 days | |
| MTL5R0.1L15BXC | 5.1 | 15 | 0.1 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.1L22BXC | 5.1 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL5R0.1L30BXC | 5.1 | 30 | 0.1 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTL5R0.2L10BXC | 5.1 | 10 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.2L15BXC | 5.1 | 15 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.2L22BXC | 5.1 | 22 | 0.2 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL5R0.2L30BXC | 5.1 | 30 | 0.2 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTL5R0.2L40BXC | 5.1 | 40 | 0.2 | BXC | SIM****H5 | £33.90 | 5 days | |
| MTL6R0.05L15BXC | 6.1 | 15 | 0.05 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.05L22BXC | 6.1 | 22 | 0.05 | BXC | SIM****H6 | £26.92 | 5 days | |
| MTL6R0.1L15BXC | 6.1 | 15 | 0.1 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.1L22BXC | 6.1 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTL6R0.2L15BXC | 6.1 | 15 | 0.2 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.2L22BXC | 6.1 | 22 | 0.2 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTL6R0.2L30BXC | 6.1 | 30 | 0.2 | BXC | SIM****H6 | £31.29 | 5 days | |
| MTL6R0.2L35BXC | 6.1 | 35 | 0.2 | BXC | SIM****H6 | £33.65 | 5 days | |
| MTL6R0.2L40BXC | 6.1 | 40 | 0.2 | BXC | SIM****H6 | £34.43 | 5 days | |
| MTL7R0.2L22BXC | 7.1 | 22 | 0.2 | BXC | SIM****H7 | £29.52 | 5 days | |
| MTL7R0.2L30BXC | 7.1 | 30 | 0.2 | BXC | SIM****H7 | £32.72 | 5 days | |
| MTL8R0.2L15BXC | 8.1 | 15 | 0.2 | BXC | SIM****H8 | £29.42 | 5 days | |
| MTL8R0.2L22BXC | 8.1 | 22 | 0.2 | BXC | SIM****H8 | £33.23 | 5 days | |
| MTL8R0.2L35BXC | 8.1 | 35 | 0.2 | BXC | SIM****H8 | £35.35 | 5 days |
No products match your filters.
