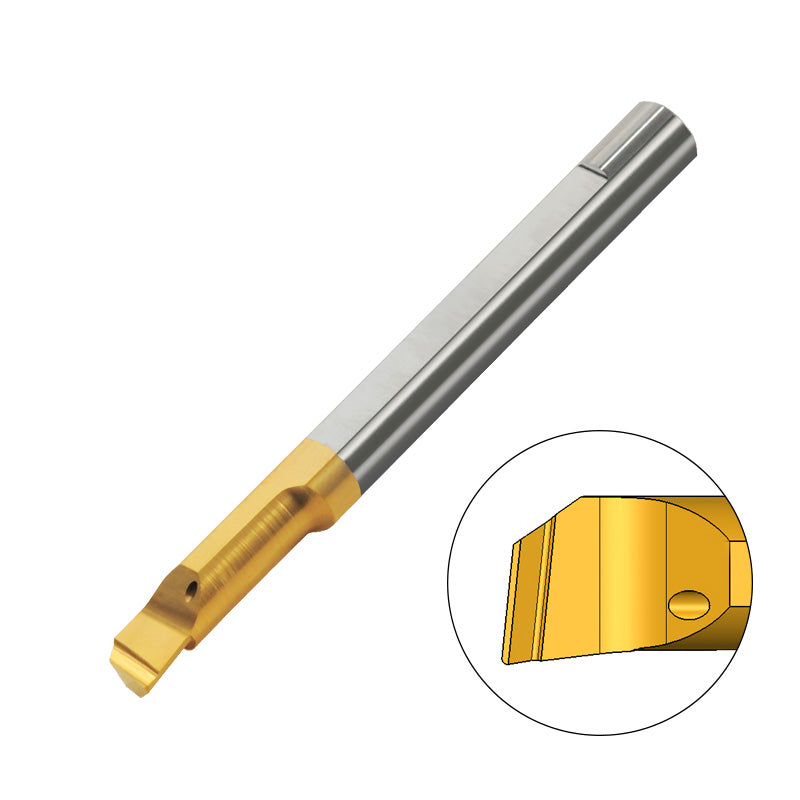

Carmex Carbide Tiny Tool - Boring Bar - MTR - BXC Grade - 6.1mm Minimum Diameter x 22mm Reach x R0.05
SKU:MTR6R0.05L22BXC
The Carmex Carbide Tiny Tool Boring Bar is a compact, solid carbide tool designed for precision internal boring and small-diameter turning. With a 6.1 mm minimum diameter and a 22 mm reach, it he...
Read more ↓
Material Compatibility
P
M
K
N
S
H
Specification
View all specifications ↓
Download Cutting Data
| Application | Boring (MTR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.05 |
| Grade | BXC |
| Holder | SIM****H6 |
£26.91
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Carmex Carbide Tiny Tool Boring Bar is a compact, solid carbide tool designed for precision internal boring and small-diameter turning. With a 6.1 mm minimum diameter and a 22 mm reach, it helps you access tight bores and deep features without swapping in larger tooling.
This bar is offered in BXC Grade, featuring a PVD TiN coating optimized for low cutting speeds. It delivers reliable performance on a wide range of stainless steels (ISO P30-P50 / K25-K40), helping you achieve consistent cuts at slower speeds while extending edge life.
- Compact bore-capable geometry: 6.1 mm minimum diameter and 22 mm reach let you access tight bores and reach deep features without frequent tool changes.
- PVD TiN-coated BXC Grade for low-speed cutting: Optimized for stainless steels, providing stable cuts and predictable performance at reduced cutting speeds.
- R0.05 radius for smooth finishes: A precise edge radius that supports clean, controlled cuts and improved surface finish in boring and turning applications.
Designed for both dedicated boring tasks and general turning, this tiny carbide bar helps you complete small-diameter work with fewer tool changes, reliable results, and consistent finishes across materials.

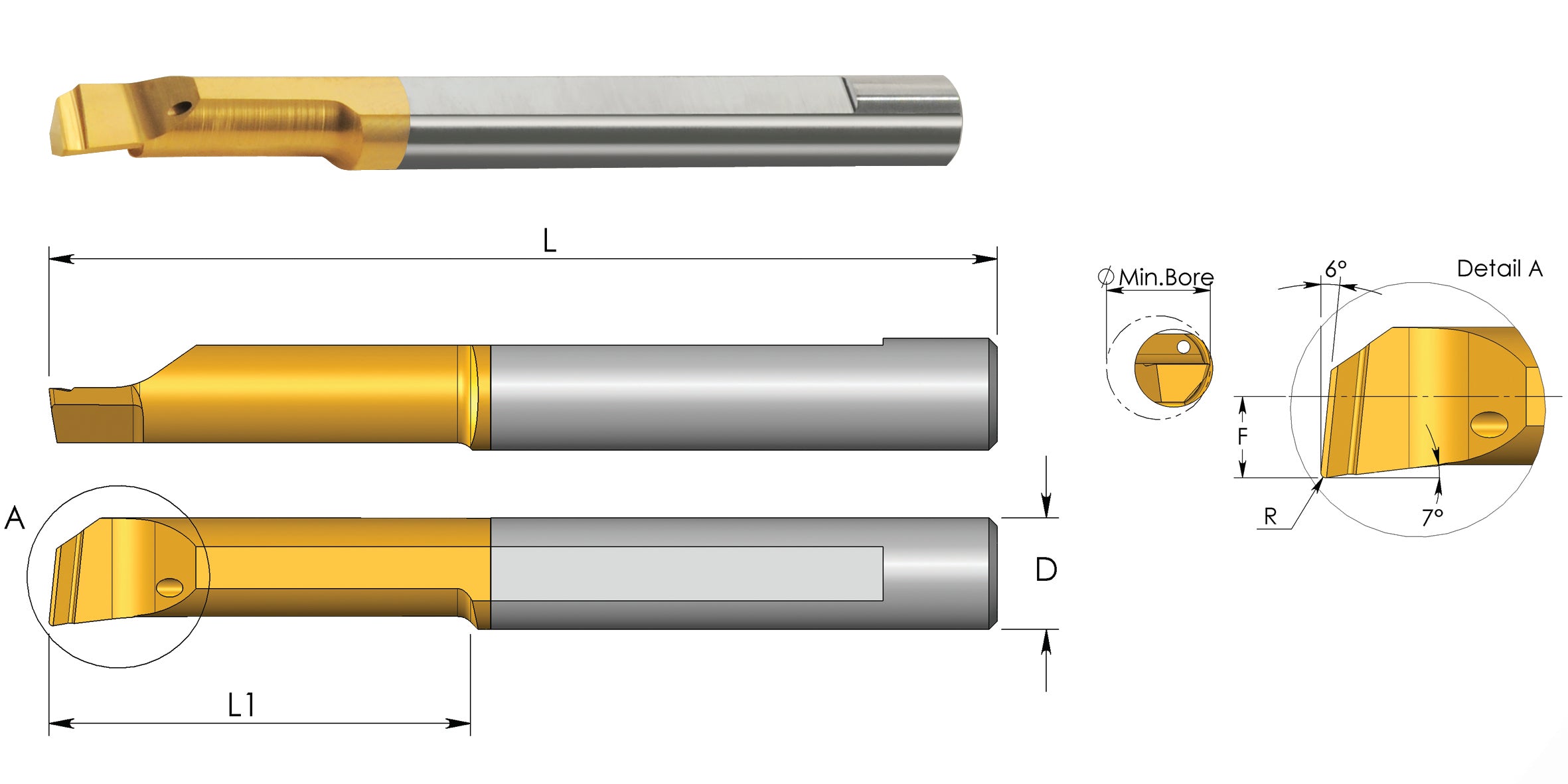

| Application | Boring (MTR) |
| Minimum Diameter | 6.1 |
| Reach (L1) | 22 |
| Radius (R) | 0.05 |
| Grade | BXC |
| Holder | SIM****H6 |
| L | 51 |
| F | 2.8 |
| D | 6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Carmex Carbide Tiny Tools - Boring Bars - BXC Grade (MTR)
View full collection →You are viewing MTR6R0.05L22BXC. Click any other SKU to view its full details.
| Product SKU | Minimum Diameter | Reach | Radius | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTR1.2R0L7BXC | 1.2 | 7 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1.2R0L9BXC | 1.2 | 9 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1.5R0.1L6BXC | 1.5 | 6 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1.5R0L6BXC | 1.5 | 6 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1R0.05L4BXC | 1 | 4 | 0.05 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR1R0.05L6BXC | 1 | 6 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1R0L6BXC | 1 | 6 | 0 | BXC | SIM****H3 | £23.20 | In Stock | |
| MTR2.5R0.1L10BXC | 2.5 | 10 | 0.1 | BXC | SIM****H4 | £21.03 | In Stock | |
| MTR2.5R0.1L15BXC | 2.5 | 15 | 0.1 | BXC | SIM****H4 | £22.12 | In Stock | |
| MTR2.5R0L10BXC | 2.5 | 10 | 0 | BXC | SIM****H4 | £21.03 | In Stock | |
| MTR2R0.05L10BXC | 2.1 | 10 | 0.05 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.05L5BXC | 2.1 | 5 | 0.05 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.15L10BXC | 2.1 | 10 | 0.15 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR2R0.15L5BXC | 2.1 | 5 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTR2R0.1L10BXC | 2.1 | 10 | 0.1 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0.1L15BXC | 2.1 | 15 | 0.1 | BXC | SIM****H3 | £22.09 | In Stock | |
| MTR2R0L10BXC | 2.1 | 10 | 0 | BXC | SIM****H3 | £22.09 | 5 days | |
| MTR3R0.05L10BXC | 3.1 | 10 | 0.05 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR3R0.05L15BXC | 3.1 | 15 | 0.05 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR3R0.1L10BXC | 3.1 | 10 | 0.1 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTR3R0.1L15BXC | 3.1 | 15 | 0.1 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR3R0.2L10BXC | 3.1 | 10 | 0.2 | BXC | SIM****H3 | £21.03 | In Stock | |
| MTR3R0.2L15BXC | 3.1 | 15 | 0.2 | BXC | SIM****H3 | £22.88 | In Stock | |
| MTR4R0.05L15BXC | 4.1 | 15 | 0.05 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR4R0.05L22BXC | 4.1 | 22 | 0.05 | BXC | SIM****H4 | £24.43 | In Stock | |
| MTR4R0.1L10BXC | 4.1 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | In Stock | |
| MTR4R0.1L15BXC | 4.1 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR4R0.1L22BXC | 4.1 | 22 | 0.1 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTR4R0.2L10BXC | 4.1 | 10 | 0.2 | BXC | SIM****H4 | £21.57 | In Stock | |
| MTR4R0.2L15BXC | 4.1 | 15 | 0.2 | BXC | SIM****H4 | £23.35 | In Stock | |
| MTR4R0.2L22BXC | 4.1 | 22 | 0.2 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTR4R0.2L30BXC | 4.1 | 30 | 0.2 | BXC | SIM****H4 | £27.72 | In Stock | |
| MTR5R0.05L15BXC | 5.1 | 15 | 0.05 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTR5R0.1L15BXC | 5.1 | 15 | 0.1 | BXC | SIM****H5 | £23.84 | In Stock | |
| MTR5R0.1L22BXC | 5.1 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | In Stock | |
| MTR5R0.1L30BXC | 5.1 | 30 | 0.1 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTR5R0.2L10BXC | 5.1 | 10 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTR5R0.2L15BXC | 5.1 | 15 | 0.2 | BXC | SIM****H5 | £23.81 | In Stock | |
| MTR5R0.2L22BXC | 5.1 | 22 | 0.2 | BXC | SIM****H5 | £27.16 | In Stock | |
| MTR5R0.2L30BXC | 5.1 | 30 | 0.2 | BXC | SIM****H5 | £30.85 | In Stock | |
| MTR5R0.2L40BXC | 5.1 | 40 | 0.2 | BXC | SIM****H5 | £33.90 | 5 days | |
| MTR6R0.05L15BXC | 6.1 | 15 | 0.05 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.05L22BXC Viewing | 6.1 | 22 | 0.05 | BXC | SIM****H6 | £26.91 | 5 days | |
| MTR6R0.1L15BXC | 6.1 | 15 | 0.1 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.1L22BXC | 6.1 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTR6R0.2L15BXC | 6.1 | 15 | 0.2 | BXC | SIM****H6 | £24.53 | In Stock | |
| MTR6R0.2L22BXC | 6.1 | 22 | 0.2 | BXC | SIM****H6 | £27.72 | In Stock | |
| MTR6R0.2L30BXC | 6.1 | 30 | 0.2 | BXC | SIM****H6 | £31.29 | In Stock | |
| MTR6R0.2L35BXC | 6.1 | 35 | 0.2 | BXC | SIM****H6 | £33.65 | In Stock | |
| MTR6R0.2L40BXC | 6.1 | 40 | 0.2 | BXC | SIM****H6 | £34.42 | 5 days | |
| MTR7R0.2L22BXC | 7.1 | 22 | 0.2 | BXC | SIM****H7 | £29.52 | In Stock | |
| MTR7R0.2L30BXC | 7.1 | 30 | 0.2 | BXC | SIM****H7 | £32.72 | In Stock | |
| MTR8R0.2L15BXC | 8.1 | 15 | 0.2 | BXC | SIM****H8 | £29.42 | In Stock | |
| MTR8R0.2L22BXC | 8.1 | 22 | 0.2 | BXC | SIM****H8 | £33.23 | In Stock | |
| MTR8R0.2L35BXC | 8.1 | 35 | 0.2 | BXC | SIM****H8 | £35.35 | 5 days | |
| MTR10R0.2L35BXC | 10.1 | 35 | 0.2 | BXC | SIM****H10 | £37.47 | In Stock | |
| MTR0.3R0L1BXC | 0.3 | 1.2 | 0 | BXC | SIM****H3 | £28.09 | 5 days | |
| MTR0.5R0.05L2BXC | 0.5 | 2 | 0.05 | BXC | SIM****H3 | £25.51 | 5 days | |
| MTR1.2R0.05L9BXC | 1.2 | 9 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR1.5R0.1L10BXC | 1.5 | 10 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTR2.5R0.15L10BXC | 2.5 | 10 | 0.15 | BXC | SIM****H4 | £21.03 | 5 days | |
| MTR3.7R0.1L10BXC | 3.7 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTR3.7R0.1L15BXC | 3.7 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR3.7R0.15L15BXC | 3.7 | 15 | 0.15 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTR5R0.05L22BXC | 5.1 | 22 | 0.05 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL0.3R0L1BXC | 0.3 | 1.2 | 0 | BXC | SIM****H3 | £28.09 | 5 days | |
| MTL0.5R0.05L2BXC | 0.5 | 2 | 0.05 | BXC | SIM****H3 | £25.52 | 5 days | |
| MTL1.2R0.05L9BXC | 1.2 | 9 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.2R0L7BXC | 1.2 | 7 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL1.2R0L9BXC | 1.2 | 9 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL1.5R0.1L10BXC | 1.5 | 10 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.5R0.1L6BXC | 1.5 | 6 | 0.1 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1.5R0L6BXC | 1.5 | 6 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL10R0.2L35BXC | 10.1 | 35 | 0.2 | BXC | SIM****H10 | £37.47 | 5 days | |
| MTL1R0.05L4BXC | 1 | 4 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1R0.05L6BXC | 1 | 6 | 0.05 | BXC | SIM****H3 | £23.20 | 5 days | |
| MTL1R0L6BXC | 1 | 6 | 0 | BXC | SIM****H3 | £23.18 | 5 days | |
| MTL2.5R0.15L10BXC | 2.5 | 10 | 0.15 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2.5R0.1L10BXC | 2.5 | 10 | 0.1 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2.5R0.1L15BXC | 2.5 | 15 | 0.1 | BXC | SIM****H3 | £22.11 | 5 days | |
| MTL2.5R0L10BXC | 2.5 | 10 | 0 | BXC | SIM****H3 | £21.04 | 5 days | |
| MTL2R0.05L10BXC | 2.1 | 10 | 0.05 | BXC | SIM****H3 | £22.09 | 5 days | |
| MTL2R0.05L5BXC | 2.1 | 5 | 0.05 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0.15L10BXC | 2.1 | 10 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL2R0.15L5BXC | 2.1 | 5 | 0.15 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL2R0.1L10BXC | 2.1 | 10 | 0.1 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0.1L15BXC | 2.1 | 15 | 0.1 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL2R0L10BXC | 2.1 | 10 | 0 | BXC | SIM****H3 | £22.08 | 5 days | |
| MTL3.7R0.15L15BXC | 3.7 | 15 | 0.15 | BXC | SIM****H4 | £23.34 | 5 days | |
| MTL3.7R0.1L10BXC | 3.7 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL3.7R0.1L15BXC | 3.7 | 15 | 0.1 | BXC | SIM****H4 | £23.34 | 5 days | |
| MTL3R0.05L10BXC | 3.1 | 10 | 0.05 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL3R0.05L15BXC | 3.1 | 15 | 0.05 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL3R0.1L10BXC | 3.1 | 10 | 0.1 | BXC | SIM****H3 | £22.89 | 5 days | |
| MTL3R0.1L15BXC | 3.1 | 15 | 0.1 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL3R0.2L10BXC | 3.1 | 10 | 0.2 | BXC | SIM****H3 | £21.03 | 5 days | |
| MTL3R0.2L15BXC | 3.1 | 15 | 0.2 | BXC | SIM****H3 | £22.88 | 5 days | |
| MTL4R0.05L15BXC | 4.1 | 15 | 0.05 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.05L22BXC | 4.1 | 22 | 0.05 | BXC | SIM****H4 | £24.43 | 5 days | |
| MTL4R0.1L10BXC | 4.1 | 10 | 0.1 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL4R0.1L15BXC | 4.1 | 15 | 0.1 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.1L22BXC | 4.1 | 22 | 0.1 | BXC | SIM****H4 | £24.50 | 5 days | |
| MTL4R0.2L10BXC | 4.1 | 10 | 0.2 | BXC | SIM****H4 | £21.57 | 5 days | |
| MTL4R0.2L15BXC | 4.1 | 15 | 0.2 | BXC | SIM****H4 | £23.35 | 5 days | |
| MTL4R0.2L22BXC | 4.1 | 22 | 0.2 | BXC | SIM****H4 | £24.50 | In Stock | |
| MTL4R0.2L30BXC | 4.1 | 30 | 0.2 | BXC | SIM****H4 | £27.72 | 5 days | |
| MTL5R0.05L15BXC | 5.1 | 15 | 0.05 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.05L22BXC | 5.1 | 22 | 0.05 | BXC | SIM****H5 | £27.15 | 5 days | |
| MTL5R0.1L15BXC | 5.1 | 15 | 0.1 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.1L22BXC | 5.1 | 22 | 0.1 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL5R0.1L30BXC | 5.1 | 30 | 0.1 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTL5R0.2L10BXC | 5.1 | 10 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.2L15BXC | 5.1 | 15 | 0.2 | BXC | SIM****H5 | £23.81 | 5 days | |
| MTL5R0.2L22BXC | 5.1 | 22 | 0.2 | BXC | SIM****H5 | £27.16 | 5 days | |
| MTL5R0.2L30BXC | 5.1 | 30 | 0.2 | BXC | SIM****H5 | £30.85 | 5 days | |
| MTL5R0.2L40BXC | 5.1 | 40 | 0.2 | BXC | SIM****H5 | £33.90 | 5 days | |
| MTL6R0.05L15BXC | 6.1 | 15 | 0.05 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.05L22BXC | 6.1 | 22 | 0.05 | BXC | SIM****H6 | £26.92 | 5 days | |
| MTL6R0.1L15BXC | 6.1 | 15 | 0.1 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.1L22BXC | 6.1 | 22 | 0.1 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTL6R0.2L15BXC | 6.1 | 15 | 0.2 | BXC | SIM****H6 | £24.53 | 5 days | |
| MTL6R0.2L22BXC | 6.1 | 22 | 0.2 | BXC | SIM****H6 | £27.72 | 5 days | |
| MTL6R0.2L30BXC | 6.1 | 30 | 0.2 | BXC | SIM****H6 | £31.29 | 5 days | |
| MTL6R0.2L35BXC | 6.1 | 35 | 0.2 | BXC | SIM****H6 | £33.65 | 5 days | |
| MTL6R0.2L40BXC | 6.1 | 40 | 0.2 | BXC | SIM****H6 | £34.43 | 5 days | |
| MTL7R0.2L22BXC | 7.1 | 22 | 0.2 | BXC | SIM****H7 | £29.52 | 5 days | |
| MTL7R0.2L30BXC | 7.1 | 30 | 0.2 | BXC | SIM****H7 | £32.72 | 5 days | |
| MTL8R0.2L15BXC | 8.1 | 15 | 0.2 | BXC | SIM****H8 | £29.42 | 5 days | |
| MTL8R0.2L22BXC | 8.1 | 22 | 0.2 | BXC | SIM****H8 | £33.23 | 5 days | |
| MTL8R0.2L35BXC | 8.1 | 35 | 0.2 | BXC | SIM****H8 | £35.35 | 5 days |
No products match your filters.
