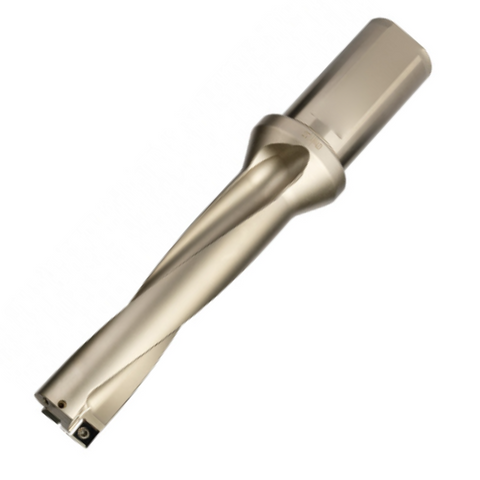

Omega Indexable U-Drill - 5xD - SPMG/SPKX - 24mm
| Diameter | 24 |
| Flute Length | 120 |
| Insert | SP...07T3 |
| Shank Size | 25 |
Learn more about Klarna
Description
Omega Indexable U-Drill is a versatile drilling solution built for general-purpose holemaking in metalworking. It uses SPMG/SPKX ISO inserts and features a 24 mm diameter, making it suitable for steel, stainless steel, cast iron, exotics, and non-ferrous materials.
- Diameter: 24 mm cutting diameter for medium-sized holes.
- Insert compatibility: Uses SPMG or SPKX ISO inserts for flexible tooling options.
- Maximum drill depth: 5xD maximum drill depth for deeper holes in a single setup.
- Coolant capability: Internal through coolant capabilities for efficient chip evacuation and insert life.
- Holder options: Available with 2xD, 3xD and 4xD holders to match rigidity and reach requirements.
- Material applications: General purpose drilling across Steel, Stainless Steel, Cast Iron, Exotics and Non-Ferrous materials.
Designed for dependable, economical performance, this U-Drill delivers consistent hole quality with replaceable ISO inserts and through-coolant efficiency. Its modular holder options let you tailor reach and rigidity to your application, while the 5xD depth supports deeper holes without frequent tool changes.
Part Numbers
- Protool Part Number
- OM23925
- Brand
- Omega
- Category
- Indexable Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Omega Indexable U-Drill - 5xD - SPMG/SPKX
View full collection →You are viewing OM23925. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OM23906 | 15 | 75 | SP...0502 | 25 | M2.0X5 | T6 | £73.15 | In Stock | |
| OM23908 | 16 | 80 | SP...0502 | 25 | M2.0X5 | T6 | £73.15 | In Stock | |
| OM23910 | 17 | 85 | SP...0602 | 25 | M2.2X5.5 | T7 | £73.15 | In Stock | |
| OM23912 | 18 | 90 | SP...0602 | 25 | M2.2X5.5 | T7 | £73.15 | In Stock | |
| OM23914 | 19 | 95 | SP...0602 | 25 | M2.2X5.5 | T7 | £85.16 | In Stock | |
| OM23916 | 20 | 100 | SP...0602 | 25 | M2.2X5.5 | T7 | £85.16 | In Stock | |
| OM23918 | 21 | 105 | SP...0602 | 25 | M2.2X5.5 | T7 | £94.99 | Next Day | |
| OM23920 | 22 | 110 | SP...07T3 | 25 | M2.5X8 | T8 | £94.99 | In Stock | |
| OM23923 | 23 | 115 | SP...07T3 | 25 | M2.5X8 | T8 | £94.99 | Next Day | |
| OM23925 Viewing | 24 | 120 | SP...07T3 | 25 | M2.5X8 | T8 | £104.81 | In Stock | |
| OM23929 | 25 | 125 | SP...07T3 | 32 | M2.5X8 | T8 | £104.81 | In Stock | |
| OM23931 | 26 | 130 | SP...07T3 | 32 | M2.5X8 | T8 | £117.91 | In Stock | |
| OM23933 | 27 | 135 | SP...07T3 | 32 | M2.5X8 | T8 | £117.91 | In Stock | |
| OM23935 | 28 | 140 | SP...0904 | 32 | M3.5X9 | T15 | £128.83 | In Stock | |
| OM23937 | 29 | 145 | SP...0904 | 32 | M3.5X9 | T15 | £128.83 | In Stock | |
| OM23939 | 30 | 150 | SP...0904 | 32 | M3.5X9 | T15 | £137.57 | In Stock | |
| OM23940 | 31 | 155 | SP...0904 | 32 | M3.5X9 | T15 | £137.57 | In Stock | |
| OM23941 | 32 | 160 | SP...0904 | 32 | M3.5X9 | T15 | £148.48 | In Stock | |
| OM23942 | 33 | 165 | SP...0904 | 32 | M3.5X9 | T15 | £148.48 | In Stock | |
| OM23943 | 34 | 170 | SP...1104 | 32 | M4.0X10 | T15 | £155.04 | In Stock | |
| OM23945 | 35 | 175 | SP...1104 | 32 | M4.0X10 | T15 | £159.40 | In Stock | |
| OM23947 | 36 | 180 | SP...1104 | 32 | M4.0X10 | T15 | £161.59 | In Stock | |
| OM23949 | 37 | 185 | SP...1104 | 32 | M4.0X10 | T15 | £168.14 | In Stock | |
| OM23951 | 38 | 190 | SP...1104 | 32 | M4.0X10 | T15 | £168.14 | In Stock | |
| OM23953 | 39 | 195 | SP...1104 | 32 | M4.0X10 | T15 | £172.50 | In Stock | |
| OM23955 | 40 | 200 | SP...1104 | 32 | M4.0X10 | T15 | £172.50 | In Stock | |
| OM23957 | 41 | 205 | SP...1104 | 32 | M5.0X11 | T20 | £176.87 | In Stock | |
| OM23959 | 42 | 210 | SP...1405 | 40 | M5.0X11 | T20 | £176.87 | In Stock | |
| OM23960 | 43 | 215 | SP...1405 | 40 | M5.0X11 | T20 | £183.42 | In Stock | |
| OM23961 | 44 | 220 | SP...1405 | 40 | M5.0X11 | T20 | £183.42 | In Stock | |
| OM23962 | 45 | 225 | SP...1405 | 40 | M5.0X11 | T20 | £189.97 | In Stock | |
| OM23963 | 46 | 230 | SP...1405 | 40 | M5.0X11 | T20 | £189.97 | In Stock | |
| OM23964 | 47 | 235 | SP...1405 | 40 | M5.0X11 | T20 | £198.71 | In Stock | |
| OM23965 | 48 | 240 | SP...1405 | 40 | M5.0X11 | T20 | £198.71 | In Stock | |
| OM23966 | 49 | 245 | SP...1405 | 40 | M5.0X11 | T20 | £205.26 | In Stock | |
| OM23967 | 50 | 250 | SP...1405 | 40 | M5.0X11 | T20 | £205.26 | In Stock |
