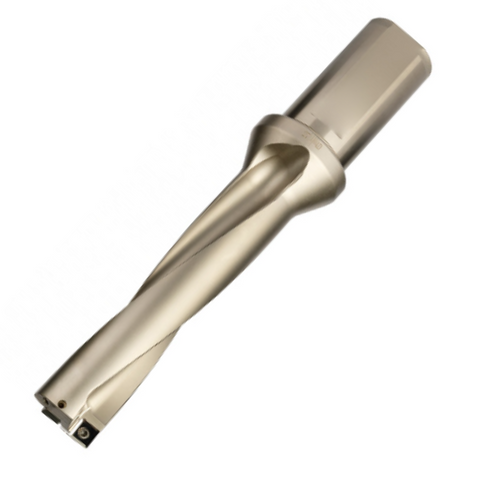

Omega Indexable U-Drill - 5xD - SPMG/SPKX - 47mm
| Diameter | 47 |
| Flute Length | 235 |
| Insert | SP...1405 |
| Shank Size | 40 |
| Screw | M5.0X11 |
| Wrench | T20 |
Learn more about Klarna
The Omega Indexable U-Drill delivers efficient, general‑purpose drilling with replaceable ISO inserts. Designed for steel, stainless steel, cast iron, exotics and non‑ferrous materials, it’s ideal for shops seeking reliable performance with through‑coolant capability.
- Insert compatibility: Uses SPMG or SPKX ISO inserts for flexible, economical tooling.
- Depth capability: 5xD maximum drill depth for deeper holes in a single setup.
- Coolant capability: Internal through coolant to improve chip evacuation and hole quality.
- Holder options: Available in 2xD, 3xD and 4xD lengths to suit different machines and applications.
- Material applicability: General purpose insert grade for machining Steel, Stainless Steel, Cast Iron and Exotics.
With replaceable inserts, you can maintain sharp cutting edges and control tooling costs. The through‑coolant design helps manage heat and improve hole quality, while the 5xD depth capacity expands the range of holes you can produce in a single pass.
| Diameter | 47 |
| Flute Length | 235 |
| Insert | SP...1405 |
| Shank Size | 40 |
| Screw | M5.0X11 |
| Wrench | T20 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Omega Indexable U-Drill - 5xD - SPMG/SPKX
View full collection →You are viewing OM23964. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OM23906 | 15 | 75 | SP...0502 | 25 | M2.0X5 | T6 | £73.15 | In Stock | |
| OM23908 | 16 | 80 | SP...0502 | 25 | M2.0X5 | T6 | £73.15 | In Stock | |
| OM23910 | 17 | 85 | SP...0602 | 25 | M2.2X5.5 | T7 | £73.15 | In Stock | |
| OM23912 | 18 | 90 | SP...0602 | 25 | M2.2X5.5 | T7 | £73.15 | In Stock | |
| OM23914 | 19 | 95 | SP...0602 | 25 | M2.2X5.5 | T7 | £85.16 | In Stock | |
| OM23916 | 20 | 100 | SP...0602 | 25 | M2.2X5.5 | T7 | £85.16 | In Stock | |
| OM23918 | 21 | 105 | SP...0602 | 25 | M2.2X5.5 | T7 | £94.99 | In Stock | |
| OM23920 | 22 | 110 | SP...07T3 | 25 | M2.5X8 | T8 | £94.99 | In Stock | |
| OM23923 | 23 | 115 | SP...07T3 | 25 | M2.5X8 | T8 | £94.99 | In Stock | |
| OM23925 | 24 | 120 | SP...07T3 | 25 | M2.5X8 | T8 | £104.81 | In Stock | |
| OM23929 | 25 | 125 | SP...07T3 | 32 | M2.5X8 | T8 | £104.81 | In Stock | |
| OM23931 | 26 | 130 | SP...07T3 | 32 | M2.5X8 | T8 | £117.91 | In Stock | |
| OM23933 | 27 | 135 | SP...07T3 | 32 | M2.5X8 | T8 | £117.91 | In Stock | |
| OM23935 | 28 | 140 | SP...0904 | 32 | M3.5X9 | T15 | £128.83 | In Stock | |
| OM23937 | 29 | 145 | SP...0904 | 32 | M3.5X9 | T15 | £128.83 | In Stock | |
| OM23939 | 30 | 150 | SP...0904 | 32 | M3.5X9 | T15 | £137.57 | In Stock | |
| OM23940 | 31 | 155 | SP...0904 | 32 | M3.5X9 | T15 | £137.57 | In Stock | |
| OM23941 | 32 | 160 | SP...0904 | 32 | M3.5X9 | T15 | £148.48 | In Stock | |
| OM23942 | 33 | 165 | SP...0904 | 32 | M3.5X9 | T15 | £148.48 | In Stock | |
| OM23943 | 34 | 170 | SP...1104 | 32 | M4.0X10 | T15 | £155.04 | In Stock | |
| OM23945 | 35 | 175 | SP...1104 | 32 | M4.0X10 | T15 | £159.40 | In Stock | |
| OM23947 | 36 | 180 | SP...1104 | 32 | M4.0X10 | T15 | £161.59 | In Stock | |
| OM23949 | 37 | 185 | SP...1104 | 32 | M4.0X10 | T15 | £168.14 | In Stock | |
| OM23951 | 38 | 190 | SP...1104 | 32 | M4.0X10 | T15 | £168.14 | In Stock | |
| OM23953 | 39 | 195 | SP...1104 | 32 | M4.0X10 | T15 | £172.50 | In Stock | |
| OM23955 | 40 | 200 | SP...1104 | 32 | M4.0X10 | T15 | £172.50 | In Stock | |
| OM23957 | 41 | 205 | SP...1104 | 32 | M5.0X11 | T20 | £176.87 | In Stock | |
| OM23959 | 42 | 210 | SP...1405 | 40 | M5.0X11 | T20 | £176.87 | In Stock | |
| OM23960 | 43 | 215 | SP...1405 | 40 | M5.0X11 | T20 | £183.42 | In Stock | |
| OM23961 | 44 | 220 | SP...1405 | 40 | M5.0X11 | T20 | £183.42 | In Stock | |
| OM23962 | 45 | 225 | SP...1405 | 40 | M5.0X11 | T20 | £189.97 | In Stock | |
| OM23963 | 46 | 230 | SP...1405 | 40 | M5.0X11 | T20 | £189.97 | In Stock | |
| OM23964 Viewing | 47 | 235 | SP...1405 | 40 | M5.0X11 | T20 | £198.71 | In Stock | |
| OM23965 | 48 | 240 | SP...1405 | 40 | M5.0X11 | T20 | £198.71 | In Stock | |
| OM23966 | 49 | 245 | SP...1405 | 40 | M5.0X11 | T20 | £205.26 | In Stock | |
| OM23967 | 50 | 250 | SP...1405 | 40 | M5.0X11 | T20 | £205.26 | In Stock |
