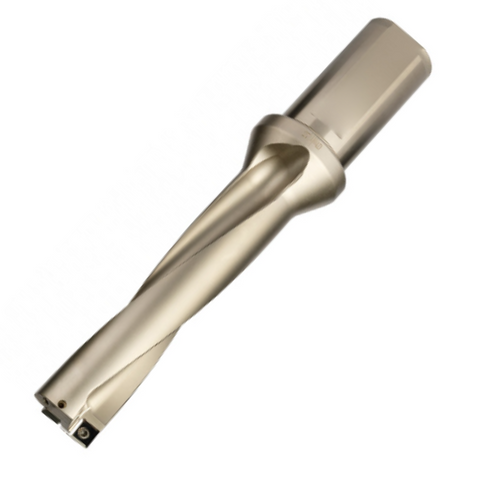

Omega Indexable U-Drill - 5xD - SPMG/SPKX - 41mm
| Diameter | 41 |
| Flute Length | 205 |
| Insert | SP...1104 |
| Shank Size | 32 |
| Screw | M5.0X11 |
| Wrench | T20 |
Learn more about Klarna
Omega Indexable U-Drill, 41 mm diameter, delivers versatile, general‑purpose drilling with a 5xD maximum depth. Designed for steel, stainless steel, cast iron, exotics and non‑ferrous materials, it uses SPMG or SPKX ISO inserts and supports through coolant for improved performance.
- Diameter: 41 mm
- Depth capability: 5xD maximum drill depth
- Insert compatibility: Uses SPMG or SPKX ISO inserts
- Coolant: Internal through coolant capabilities
- Material applicability: General‑purpose insert grades for Steel, Stainless Steel, Cast Iron & Exotics
- Holder options: Available in 2xD, 3xD and 4xD
- Intended use: General purpose indexable drilling for a wide range of materials
This drill is built to handle diverse machining tasks with replaceable inserts, enabling cost‑effective maintenance and flexibility across typical production environments. Its through‑coolant design helps manage heat and chip evacuation, while the ISO insert system provides broad material compatibility and straightforward replacement.
| Diameter | 41 |
| Flute Length | 205 |
| Insert | SP...1104 |
| Shank Size | 32 |
| Screw | M5.0X11 |
| Wrench | T20 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Omega Indexable U-Drill - 5xD - SPMG/SPKX
View full collection →You are viewing OM23957. Click any other SKU to view its full details.
| Product SKU | Diameter | Flute Length | Insert | Shank Size | Screw | Wrench | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OM23906 | 15 | 75 | SP...0502 | 25 | M2.0X5 | T6 | £73.15 | In Stock | |
| OM23908 | 16 | 80 | SP...0502 | 25 | M2.0X5 | T6 | £73.15 | In Stock | |
| OM23910 | 17 | 85 | SP...0602 | 25 | M2.2X5.5 | T7 | £73.15 | In Stock | |
| OM23912 | 18 | 90 | SP...0602 | 25 | M2.2X5.5 | T7 | £73.15 | In Stock | |
| OM23914 | 19 | 95 | SP...0602 | 25 | M2.2X5.5 | T7 | £85.16 | In Stock | |
| OM23916 | 20 | 100 | SP...0602 | 25 | M2.2X5.5 | T7 | £85.16 | In Stock | |
| OM23918 | 21 | 105 | SP...0602 | 25 | M2.2X5.5 | T7 | £94.99 | In Stock | |
| OM23920 | 22 | 110 | SP...07T3 | 25 | M2.5X8 | T8 | £94.99 | In Stock | |
| OM23923 | 23 | 115 | SP...07T3 | 25 | M2.5X8 | T8 | £94.99 | In Stock | |
| OM23925 | 24 | 120 | SP...07T3 | 25 | M2.5X8 | T8 | £104.81 | In Stock | |
| OM23929 | 25 | 125 | SP...07T3 | 32 | M2.5X8 | T8 | £104.81 | In Stock | |
| OM23931 | 26 | 130 | SP...07T3 | 32 | M2.5X8 | T8 | £117.91 | In Stock | |
| OM23933 | 27 | 135 | SP...07T3 | 32 | M2.5X8 | T8 | £117.91 | In Stock | |
| OM23935 | 28 | 140 | SP...0904 | 32 | M3.5X9 | T15 | £128.83 | In Stock | |
| OM23937 | 29 | 145 | SP...0904 | 32 | M3.5X9 | T15 | £128.83 | In Stock | |
| OM23939 | 30 | 150 | SP...0904 | 32 | M3.5X9 | T15 | £137.57 | In Stock | |
| OM23940 | 31 | 155 | SP...0904 | 32 | M3.5X9 | T15 | £137.57 | In Stock | |
| OM23941 | 32 | 160 | SP...0904 | 32 | M3.5X9 | T15 | £148.48 | In Stock | |
| OM23942 | 33 | 165 | SP...0904 | 32 | M3.5X9 | T15 | £148.48 | In Stock | |
| OM23943 | 34 | 170 | SP...1104 | 32 | M4.0X10 | T15 | £155.04 | In Stock | |
| OM23945 | 35 | 175 | SP...1104 | 32 | M4.0X10 | T15 | £159.40 | In Stock | |
| OM23947 | 36 | 180 | SP...1104 | 32 | M4.0X10 | T15 | £161.59 | In Stock | |
| OM23949 | 37 | 185 | SP...1104 | 32 | M4.0X10 | T15 | £168.14 | In Stock | |
| OM23951 | 38 | 190 | SP...1104 | 32 | M4.0X10 | T15 | £168.14 | In Stock | |
| OM23953 | 39 | 195 | SP...1104 | 32 | M4.0X10 | T15 | £172.50 | In Stock | |
| OM23955 | 40 | 200 | SP...1104 | 32 | M4.0X10 | T15 | £172.50 | In Stock | |
| OM23957 Viewing | 41 | 205 | SP...1104 | 32 | M5.0X11 | T20 | £176.87 | In Stock | |
| OM23959 | 42 | 210 | SP...1405 | 40 | M5.0X11 | T20 | £176.87 | In Stock | |
| OM23960 | 43 | 215 | SP...1405 | 40 | M5.0X11 | T20 | £183.42 | In Stock | |
| OM23961 | 44 | 220 | SP...1405 | 40 | M5.0X11 | T20 | £183.42 | In Stock | |
| OM23962 | 45 | 225 | SP...1405 | 40 | M5.0X11 | T20 | £189.97 | In Stock | |
| OM23963 | 46 | 230 | SP...1405 | 40 | M5.0X11 | T20 | £189.97 | In Stock | |
| OM23964 | 47 | 235 | SP...1405 | 40 | M5.0X11 | T20 | £198.71 | In Stock | |
| OM23965 | 48 | 240 | SP...1405 | 40 | M5.0X11 | T20 | £198.71 | In Stock | |
| OM23966 | 49 | 245 | SP...1405 | 40 | M5.0X11 | T20 | £205.26 | In Stock | |
| OM23967 | 50 | 250 | SP...1405 | 40 | M5.0X11 | T20 | £205.26 | In Stock |
