Omega Indexable U-Drill - 5xD - SPMG/SPKX - 48mm

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Omega Indexable U-Drill - 5xD - SPMG/SPKX - 48mm

SKU:OM23965

Specification

Diameter	48
Flute Length	240
Insert	SP...1405
Shank Size	40
Screw	M5.0X11
Wrench	T20

£198.71

Prices shown ex. VAT

In Stock— only 3 left

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

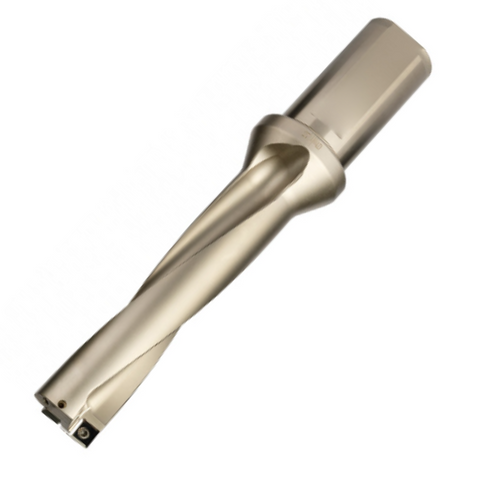

The Omega Indexable U-Drill delivers reliable, general-purpose through-hole drilling with interchangeable inserts, built for a wide range of materials including steel, stainless steel, cast iron, exotics, and non-ferrous metals. This 48 mm diameter tool uses the SPMG/SPKX ISO inserts a versatile solution for everyday machining, with through-coolant capability for efficient chip evacuation.

Drill Diameter: 48 mm
Maximum Drilling Depth: 5xD
Insert System: Uses SPMG or SPKX ISO inserts
Coolant: Internal through coolant capability
Holder Options: Holders available in 2xD, 3xD and 4xD
Material Range: General insert grade available for machining Steel, Stainless Steel, Cast Iron & Exotics

Designed for general-purpose indexable drilling, the Omega U-Drill supports deeper holes with a single setup thanks to its 5xD depth capability and interchangeable SPMG/SPKX inserts. The through-coolant design enhances chip evacuation and cut quality, while compatible holder depths (2xD–4xD) offer flexibility for different hole requirements without changing tools.

Diameter	48
Flute Length	240
Insert	SP...1405
Shank Size	40
Screw	M5.0X11
Wrench	T20

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Omega Indexable U-Drill - 5xD - SPMG/SPKX

View full collection →

You are viewing OM23965. Click any other SKU to view its full details.

Product SKU	Diameter	Flute Length	Insert	Shank Size	Screw	Wrench	Price	Stock

OM23906	15	75	SP...0502	25	M2.0X5	T6	£73.15	In Stock
OM23908	16	80	SP...0502	25	M2.0X5	T6	£73.15	In Stock
OM23910	17	85	SP...0602	25	M2.2X5.5	T7	£73.15	In Stock
OM23912	18	90	SP...0602	25	M2.2X5.5	T7	£73.15	In Stock
OM23914	19	95	SP...0602	25	M2.2X5.5	T7	£85.16	In Stock
OM23916	20	100	SP...0602	25	M2.2X5.5	T7	£85.16	In Stock
OM23918	21	105	SP...0602	25	M2.2X5.5	T7	£94.99	In Stock
OM23920	22	110	SP...07T3	25	M2.5X8	T8	£94.99	In Stock
OM23923	23	115	SP...07T3	25	M2.5X8	T8	£94.99	In Stock
OM23925	24	120	SP...07T3	25	M2.5X8	T8	£104.81	In Stock
OM23929	25	125	SP...07T3	32	M2.5X8	T8	£104.81	In Stock
OM23931	26	130	SP...07T3	32	M2.5X8	T8	£117.91	In Stock
OM23933	27	135	SP...07T3	32	M2.5X8	T8	£117.91	In Stock
OM23935	28	140	SP...0904	32	M3.5X9	T15	£128.83	In Stock
OM23937	29	145	SP...0904	32	M3.5X9	T15	£128.83	In Stock
OM23939	30	150	SP...0904	32	M3.5X9	T15	£137.57	In Stock
OM23940	31	155	SP...0904	32	M3.5X9	T15	£137.57	In Stock
OM23941	32	160	SP...0904	32	M3.5X9	T15	£148.48	In Stock
OM23942	33	165	SP...0904	32	M3.5X9	T15	£148.48	In Stock
OM23943	34	170	SP...1104	32	M4.0X10	T15	£155.04	In Stock
OM23945	35	175	SP...1104	32	M4.0X10	T15	£159.40	In Stock
OM23947	36	180	SP...1104	32	M4.0X10	T15	£161.59	In Stock
OM23949	37	185	SP...1104	32	M4.0X10	T15	£168.14	In Stock
OM23951	38	190	SP...1104	32	M4.0X10	T15	£168.14	In Stock
OM23953	39	195	SP...1104	32	M4.0X10	T15	£172.50	In Stock
OM23955	40	200	SP...1104	32	M4.0X10	T15	£172.50	In Stock
OM23957	41	205	SP...1104	32	M5.0X11	T20	£176.87	In Stock
OM23959	42	210	SP...1405	40	M5.0X11	T20	£176.87	In Stock
OM23960	43	215	SP...1405	40	M5.0X11	T20	£183.42	In Stock
OM23961	44	220	SP...1405	40	M5.0X11	T20	£183.42	In Stock
OM23962	45	225	SP...1405	40	M5.0X11	T20	£189.97	In Stock
OM23963	46	230	SP...1405	40	M5.0X11	T20	£189.97	In Stock
OM23964	47	235	SP...1405	40	M5.0X11	T20	£198.71	In Stock
OM23965 Viewing	48	240	SP...1405	40	M5.0X11	T20	£198.71	In Stock
OM23966	49	245	SP...1405	40	M5.0X11	T20	£205.26	In Stock
OM23967	50	250	SP...1405	40	M5.0X11	T20	£205.26	In Stock
